Datasheet> All Categories > The connector> The connector> M80-8942205

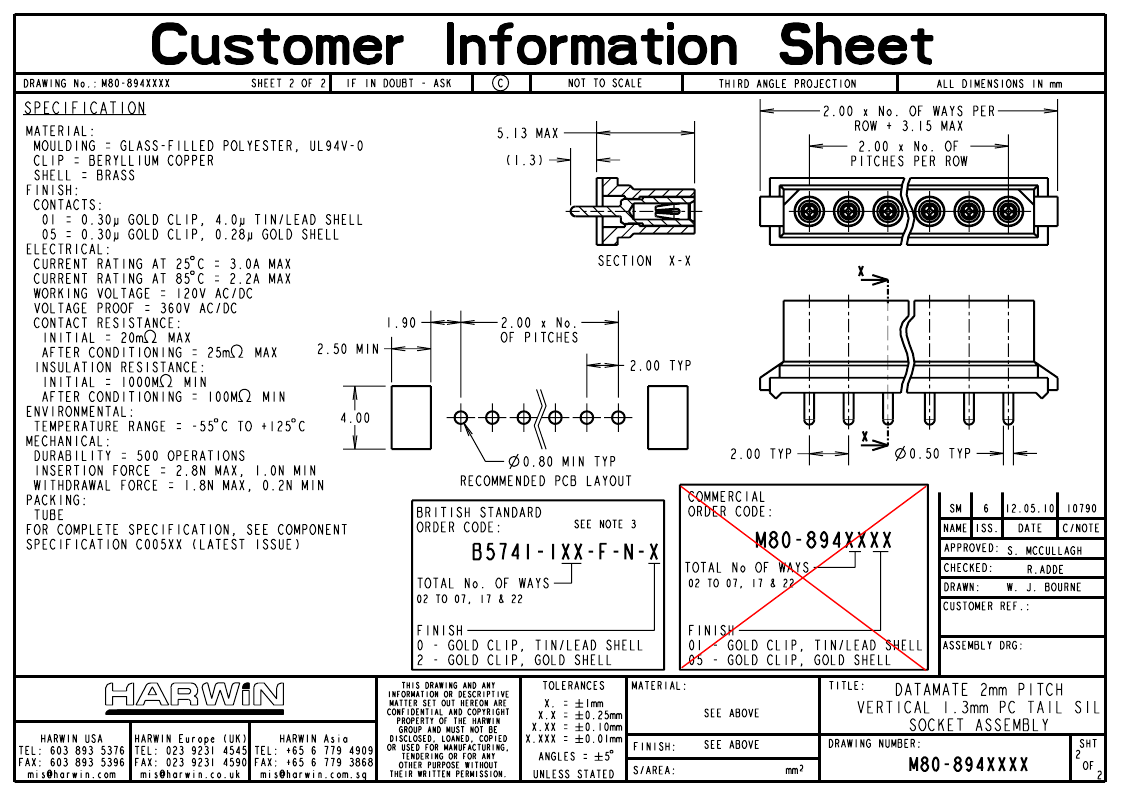

Preview

M80-8942205: DescriptionHeaders u0026 Wire Housings 22 POS SIL FEMALE VERT 1.3mm TAIL GOLD; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

M80-8942205 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-8942205	-	-	View	Buy Now

M80-8942205 Overview

Headers u0026 Wire Housings 22 POS SIL FEMALE VERT 1.3mm TAIL GOLD

M80-8942205 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED, SHROUDED
subject depth	0.202 inch
body length	1.856 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	12u inch
polarization key	POLARIZED KEY
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.051 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	22
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1

Preview

Download Datasheet

View All

OBSOLETE

All M80 versions

LTB date 09-03-2018

C/N 20971

M80-8942205 Related Products

	M80-8942205	M80-8940601	M80-8940605	M80-8940505	M80-8940401
Description	Headers u0026 Wire Housings 22 POS SIL FEMALE VERT 1.3mm TAIL GOLD		Headers u0026 Wire Housings 6 POS SIL FEMALE VERT 1.3mm TAIL GOLD	Headers u0026 Wire Housings 5 POS SIL FEMALE VERT 1.3mm TAIL GOLD	Headers u0026 Wire Housings 4 POS SIL FEMALE VERT 1.3mm TL TIN/LD
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	not_compliant	compliant	compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	POLARIZED, SHROUDED	POLARIZED, SHROUDED	POLARIZED, SHROUDED	POLARIZED, SHROUDED	POLARIZED, SHROUDED
subject depth	0.202 inch	0.202 inch	0.202 inch	0.202 inch	0.202 inch
body length	1.856 inch	0.596 inch	0.596 inch	0.518 inch	0.439 inch
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD (12)	NOT SPECIFIED	NOT SPECIFIED	GOLD (12)
Contact completed and terminated	Gold (Au)	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Gold (Au)	Gold (Au)	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	BERYLLIUM COPPER	NOT SPECIFIED	NOT SPECIFIED	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
maximum insertion force	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
JESD-609 code	e4	e0	e4	e4	e0
MIL compliance	NO	NO	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1
Number of rows loaded	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	12u inch	12u inch	12u inch	12u inch	12u inch
polarization key	POLARIZED KEY	POLARIZED KEY	POLARIZED KEY	POLARIZED KEY	POLARIZED KEY
Rated current (signal)	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.051 inch	0.051 inch	0.051 inch	0.051 inch	0.051 inch
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	22	6	6	5	4
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N
Base Number Matches	1	1	1	1	1
