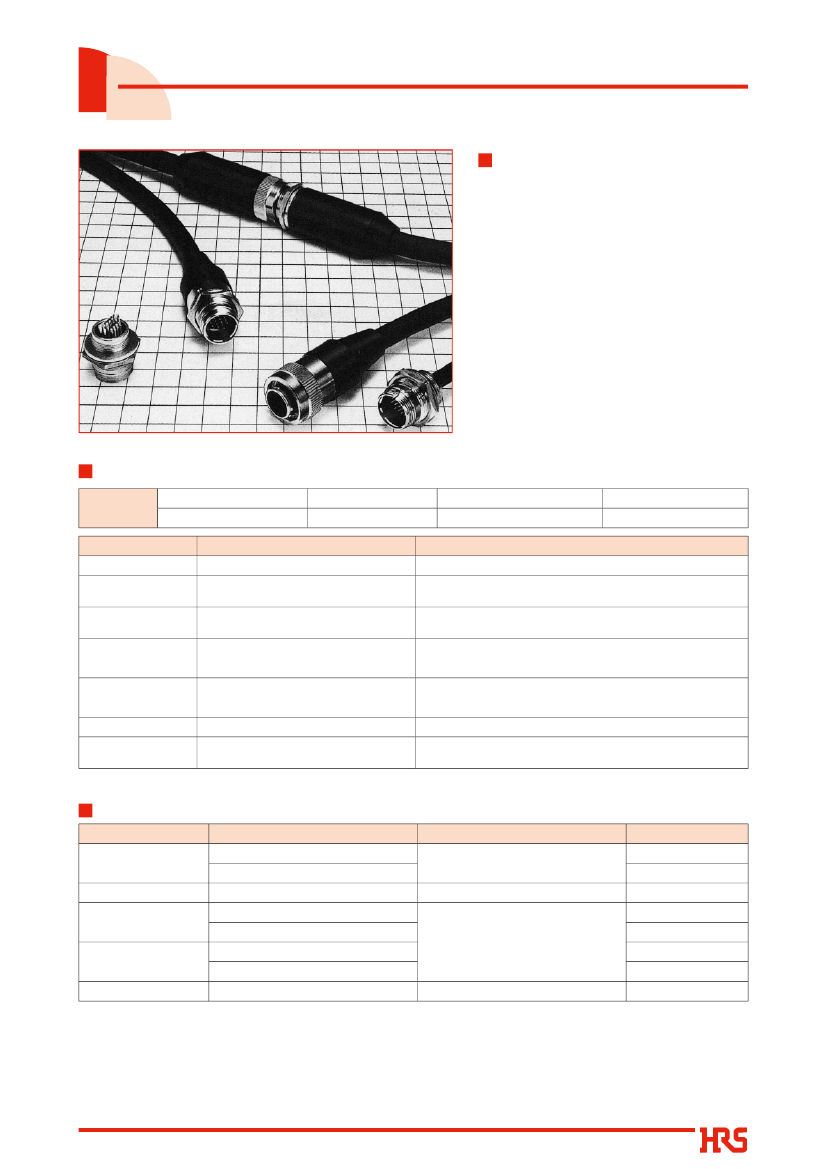

High Performance, Miniature Circular Connectors
HR22 Series
Features
·Both waterproof and non-waterproof
types are available. (Waterproof and non-
waterproof connectors can be mated with
each other if needed, but will no longer
result in a waterproof connection)
·Waterproof performance
The HR22 waterproof type is IP67 and
IP68 rated when mated.
IP67: Left at a water depth of 1 m for 30 minutes
IP68: Left at a water depth of 2 m for 14 days
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Product specifications
Ratings
Item
Rated current
Rated voltage
2A
100V AC, 140V DC
Specifications
·Both crimp and solder type termination
are available. Termination style can be
chosen as required by your specific
application.
·The receptacle features a jam nut
configuration at the front, which allows
for easy panel mounting.
·The jack connector can also be used as
a panel jack.
Operating temperature range
Storage temperature range
Conditions
Measured at DC 1A
Measured at DC 100V
Measured at AC 300 V for one minute
-25ç to +85℃
-10ç to +60℃
1. Contact resistance 20mø max.
2. Insulation
1,000 Mø min.
resistance
3. Withstanding
No flashover or dielectric breakdown.
voltage
4. Vibration
resistance
5. Shock resistance
6. Mating cycles
7. Resistance to
water pressure
There shall be no electrical No electrical 10 to 500 Hz/cycle, amplitude: 0.75 mm, acceleration- 98 m/s
2
3 axis directions, 2 hours each
discontinuity for 10 µs or greater.
No electrical discontinuity for 10 µs or
greater.
Contact resistance: 20 mø max.
No water penetration into the connector.
duration: 11 ms, 3 axis directions,
Acceleration: 490 m/s
2
，
3 times each
100 times
Mated connectors left in Water at a depth of 1.8 m for 48
hours.
Materials
Items
Plated shell
Insulator
Male contact
Female contact
Hood and bushing
Material
Brass
Zinc alloy
PBT resin
Brass (Soldering)
Phosphor bronze (Crimping)
Beryllium copper (Soldering)
Phosphor bronze (Crimping)
Acrylonitrile-butadiene rubber
Black
Silver plating
Finish
Nickel plating
Black
Remarks
――――
UL94V-0
――――
――――
――――
――――
2014.11w
1
HR22 Series●High Performance, Miniature Circular Connectors
Ordering information
HR22 - 12 W T P A - 20 SC
(
73
)
1
2
3
4 5
6
7
8
9
1
Model name: HR22
2
Shell size: The shell size is the outer diameter of the mating end of the plug.
3
W: Waterproof
Blank: Non-waterproof
4
Locking mechanism
T: Threaded coupling type
5
Shell type
P: Plug
J:Jack
R:Receptacle
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
6
Shell variation: Variation of the same connector configuration is shown by A, B, C, D....
7
Number of contacts
8
Contact form
P:Male pin
PC: Crimp type male pin
S:Female pin SC: Crimp type female pin
9
Other specifications:
A two-digit character is added to indicate other specifications as needed.
2
HR22 Series●High Performance, Miniature Circular Connectors

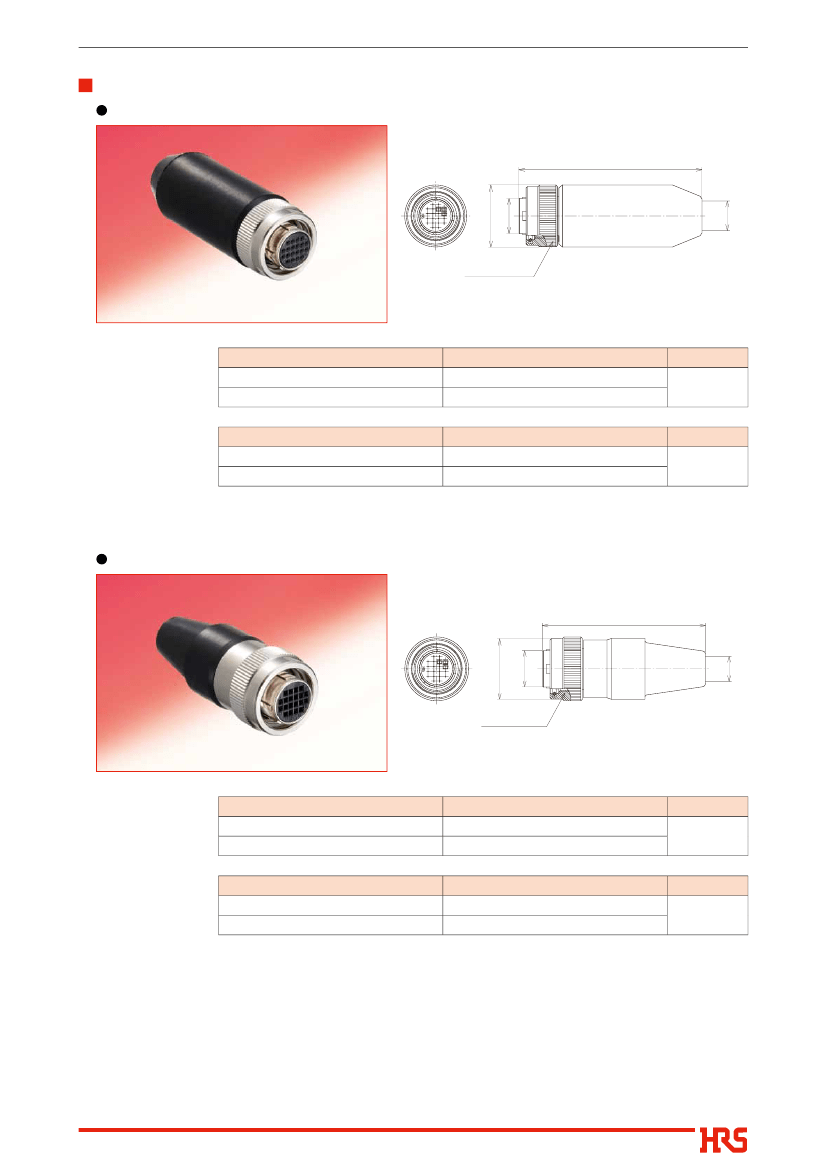

Plug
Waterproof type
M15×0.75
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
(Representative example)
HR22-12WTPA-20SC(73)
Crimp type
Part No.
HR22-12WTPA-20SC(73)
HR22-12WTPA-20PC(73)
HRS No.
122-0004-7 73
122-0024-4 73
HRS No.
122-0015-3 73
122-0027-2 73
RoHS
Yes
Solder type
Part No.
HR22-12WTPA-20S(73)
HR22-12WTPA-20P(73)
RoHS
Yes
Cable clamping force, rotation force, waterproof performance, and other types of performance may differ depending on the
cable type used. Please make sure to verify the suitability of the cable assembly before use or production.
Non-waterproof type
M15×0.75
(Representative example)
HR22-12TPD-20SC(73)
Crimp type
Part No.
HR22-12TPD-20SC(73)
HR22-12TPD-20PC(73)
HRS No.
122-0010-0 73
122-0018-1 73
HRS No.
122-0011-2 73
122-0012-5 73
RoHS
Yes
Solder type
Part No.
HR22-12TPD-20S(73)
HR22-12TPD-20P(73)
RoHS
Yes
Cable clamping force, rotation force, waterproof performance, and other types of performance may differ depending on the
cable type used. Please make sure to verify the suitability of the cable assembly before use or production.
(Applicable cable dia.)
53.5
Ø11.9
Ø8.5
Ø21
(Applicable cable dia.)
62
Ø11.9
Ø21
Ø10
１
５
１１
１７
４１０
１６
２０
１ ４
５
１０
１１ ２０
１７ １６
3
HR22 Series●High Performance, Miniature Circular Connectors

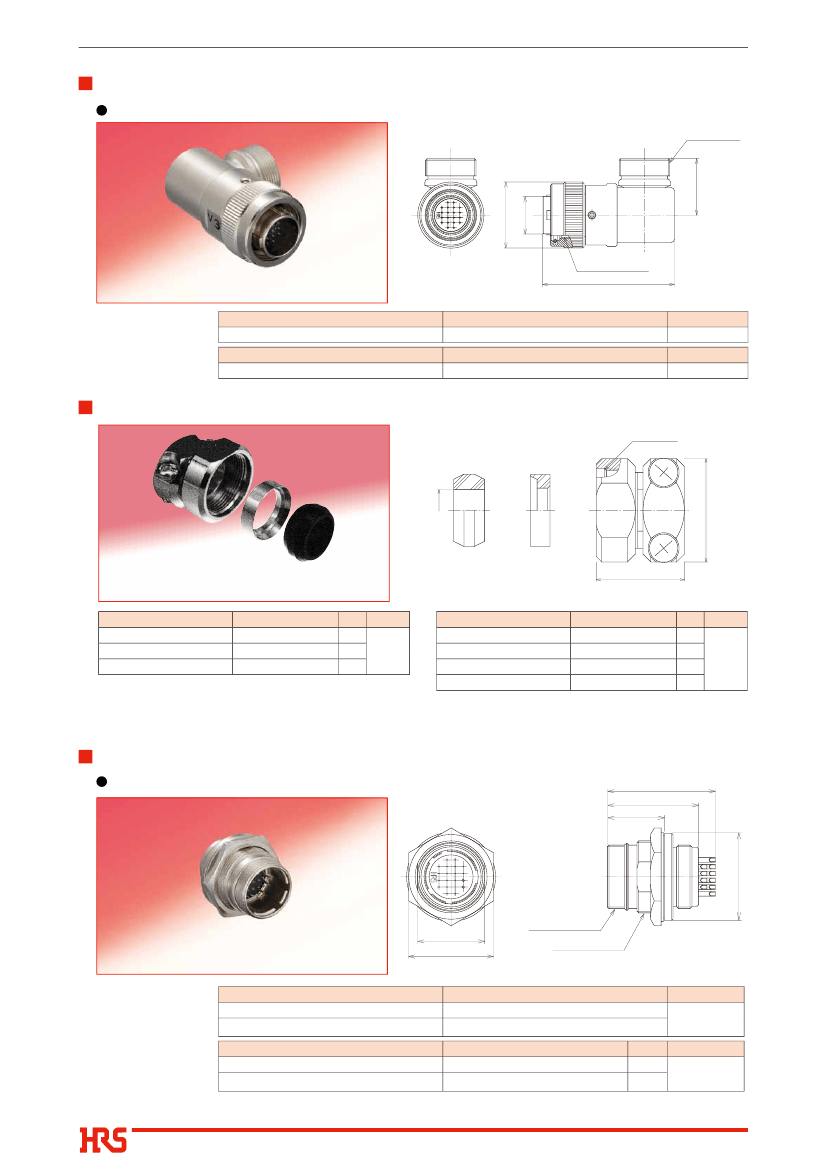

Right angle plug
Waterproof type
M16
×
0.75
Ø11.9
Ø21
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
HR22-12WTLP-20P(73)
Crimp type
Solder type
Part No.
HR22-12WTLP-20PC
Part No.
HR22-12WTLP-20P(73)
M15
×
0.75
41.7
(Representative example)
HRS No.
122-0064-9 00
HRS No.
122-0054-5 73
RoHS
Yes
RoHS
Yes
Cord clamp for use on right-angled plugs
M16
×
0.75
φ
A
17
JR13WCC-10(72)
Part No.
JR13WCC-4(72)
JR13WCC-5(72)
JR13WCC-6(72)
HRS No.
114-2045-0 72
114-2046-3 72
114-2047-6 72
A
4
5
6
RoHS
Yes
Part No.
JR13WCC-7(72)
JR13WCC-8(72)
JR13WCC-9(72)
JR13WCC-10(72)
(Representative example)
HRS No.
114-2048-9 72
114-2049-1 72
114-2050-0 72
114-2051-3 72
A
7
8
9
10
RoHS
Yes
Cable clamping force, rotation force, waterproof performance, and other types of performance may differ depending on the
cable type used. Please make sure to verify the suitability of the cable assembly before use or production.
Receptacle
Waterproof / Non-waterproof combined use type
A
21.5
13.5
φ
20
１６
１０
17.95
１６
１１
２０ １７
２０
１７
１１
５
M15
×
0.75
HR22-12WTRA-20P(73)
Crimp type
Part No.
HR22-12WTRA-20SC(73)
HR22-12WTRA-20PC(73)
Part No.
HR22-12WTRA-20S(73)
HR22-12WTRA-20P(73)
15.8
20(HEX)
M17
×
0.75
(Representative example)
HRS No.
122-0021-6 73
122-0005-0 73
HRS No.
122-0014-0 73
122-0013-8 73
A
24
25.5
RoHS
Yes
RoHS
Yes
Solder type
4
φ
20.6
４
１０
１
５
４
１

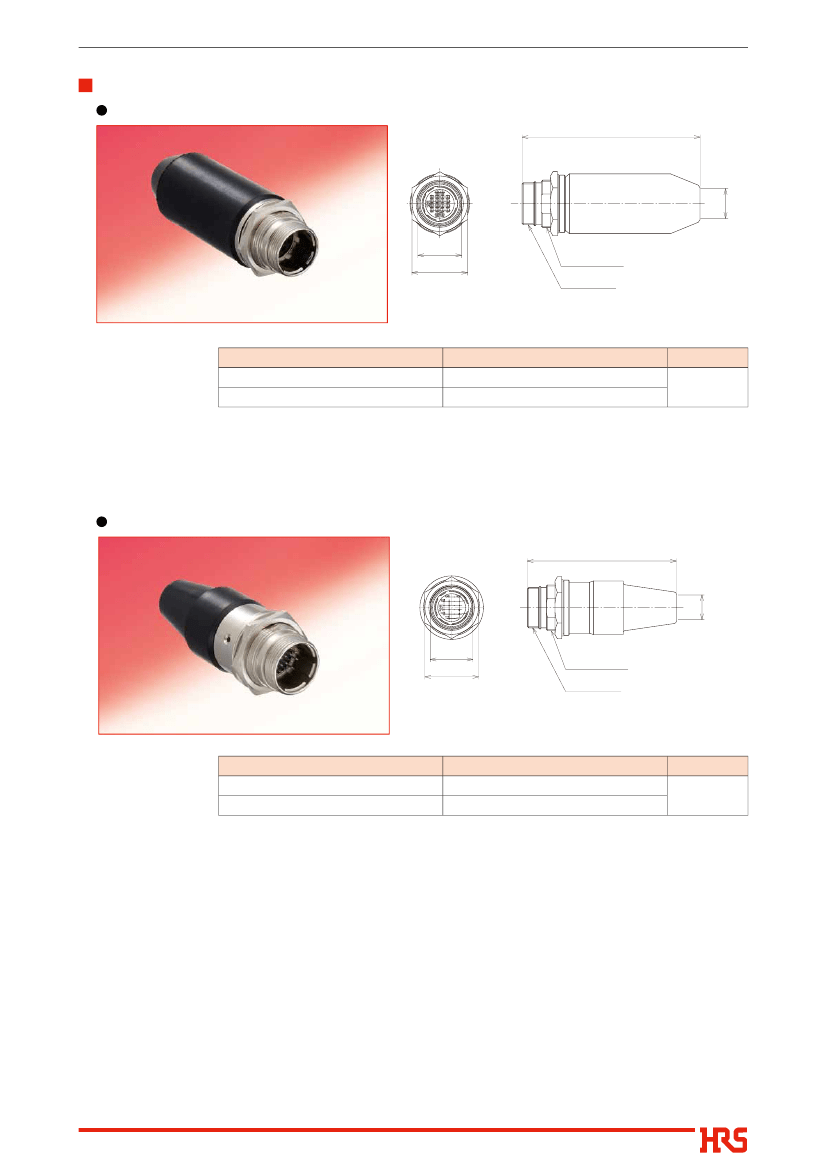

HR22 Series●High Performance, Miniature Circular Connectors
Jack
Waterproof type
64
(Applicable cable dia.)
１６
２０
１７
１１
15.8
20(HEX)
M17
×
0.75
M15
×
0.75
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
HR22-12WTJA-20PC(73)
Crimp type
Part No.
HR22-12WTJA-20SC(73)
HR22-12WTJA-20PC(73)
HRS No.
122-0025-7 73
122-0006-2 73
(Representative example)
RoHS
Yes
Cable clamping force, rotation force, waterproof performance, and other types of performance may differ depending on the
cable type used. Please make sure to verify the suitability of the cable assembly before use or production.
Non-waterproof type
(Applicable cable dia.)
55.5
15.8
20(HEX)
M17
×
0.75
M15
×
0.75
HR22-12TJD-20P(73)
Solder type
Part No.
HR22-12TJD-20S(73)
HR22-12TJD-20P(73)
HRS No.
122-0023-1 73
122-0022-9 73
(Representative example)
RoHS
Yes
Cable clamping force, rotation force, waterproof performance, and other types of performance may differ depending on the
cable type used. Please make sure to verify the suitability of the cable assembly before use or production.
Ø8.5
Ø10
１０
４
１
５
5
