826-22-064-00-001000

Description
Headers u0026 Wire Housings VERT BRKAWAY HDR 10P CN
CategoryThe connector    The connector
File Size554KB,1 Pages
ManufacturerMill-Max
Websitehttps://www.mill-max.com
Environmental Compliance
Download Datasheet Parametric View All

826-22-064-00-001000 Online Shopping

Suppliers Part Number Price MOQ In stock
826-22-064-00-001000 - - View Buy Now

826-22-064-00-001000 Overview

Headers u0026 Wire Housings VERT BRKAWAY HDR 10P CN

826-22-064-00-001000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionPFOA, PFOS, ROHS AND REACH COMPLIANT
Reach Compliance Codecompliant
Other featuresPANEL MOUNTABLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (20) OVER NICKEL (100)
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts64
Base Number Matches1
SPRING-LOADED
CONNECTORS

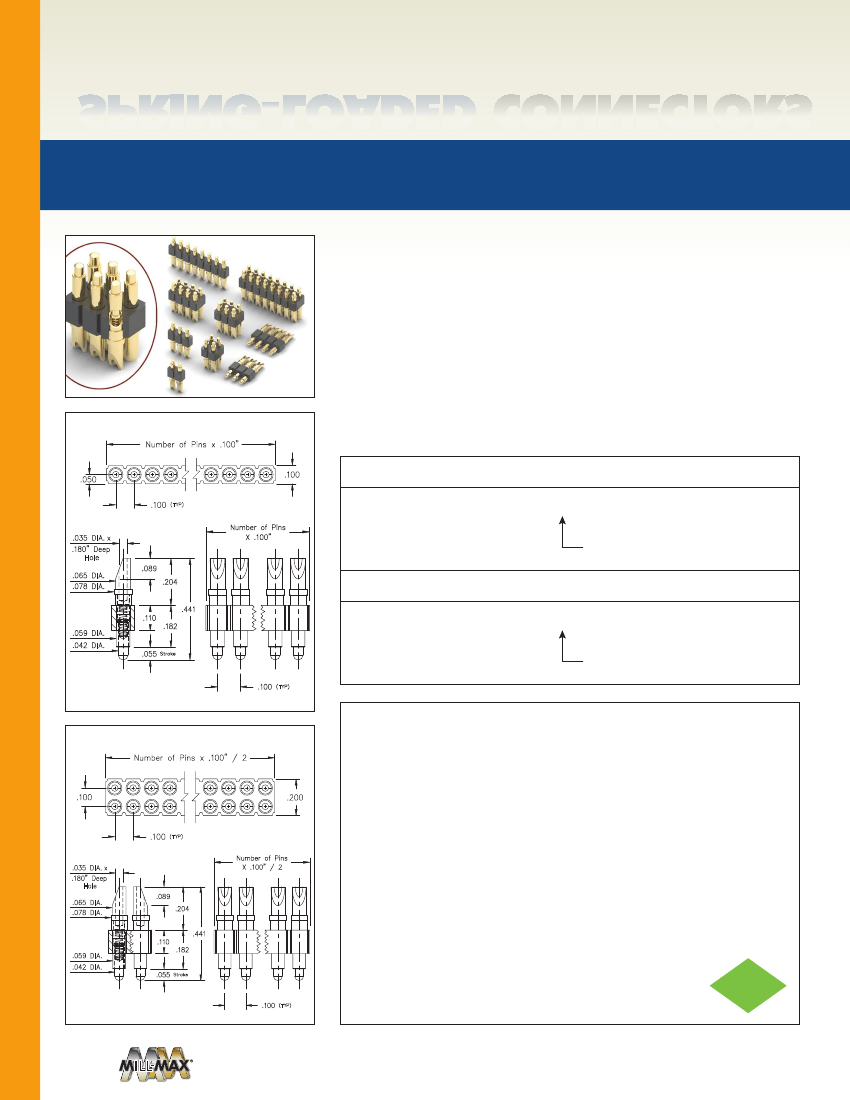

SERIES 824 & 826 • .100” GRID SOLDERCUP HEADER •
SINGLE AND DOUBLE ROW STRIPS
• Modular contacts for use on .100” grid, supplied in single and double row contact strips
• Precision-machined piston / base and gold-plated components assure up to 1,000,000
cycle life durability
• Pistons have a .0275” mid. stroke and a .055” max. stroke
• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
• Insulators are high temperature thermoplastic
• Both 824 & 826 series strips have spring pins with wire termination soldercups. The
soldercups are aligned to provide easy access for soldering up to size 22 AWG wires
SINGLE ROW Series 824
ORDERING INFORMATION
Single Row Series 824
824-22-0XX-00-001000
Specify number of contacts
01-64
Double Row Series 826
826-22-0XX-00-001000
Specify number of contacts
04-72
DOUBLE ROW Series 826
PAGE 17 | SPRING-LOADED CONNECTORS
Materials:
Contact piston & base: Machined copper alloy plated 20μ” gold over
100μ” nickel
Spring: Beryllium copper-plated 10μ” gold
Insulator: High temperature thermoplastic, rated UL94 V-0
Mechanical:
Spring force @ initial height: 25 grams
Spring force @ mid stroke (.0275”): 60 grams
Durability: Up to 1,000,000 cycles
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20mW max.
Insulation resistance: 10,000MW min.
Dielectric strength: 700Vrms min.
Capacitance: 1pF max.
Technical Specifications
2011/65/EU
RoHS - 2
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
