M80-9422005 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> M80-9422005

Preview

M80-9422005: DescriptionAnalog to Digital Converters - ADC 4Ch+/-10V InputRange 24-Bit; CategoryThe connector The connector; File Size286KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-9422005 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-9422005	-	-	View	Buy Now

M80-9422005 Overview

Analog to Digital Converters - ADC 4Ch+/-10V InputRange 24-Bit

M80-9422005 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	LEAD FREE
Reach Compliance Code	compliant
body width	0.291 inch
subject depth	0.927 inch
body length	1.555 inch
Connector type	BOARD CONNECTOR
Contactor design	LOOSE
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	M2X0.4
Installation option 2	JACKSCREW
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	20
UL Flammability Code	94V-0
Maximum wire diameter	24 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

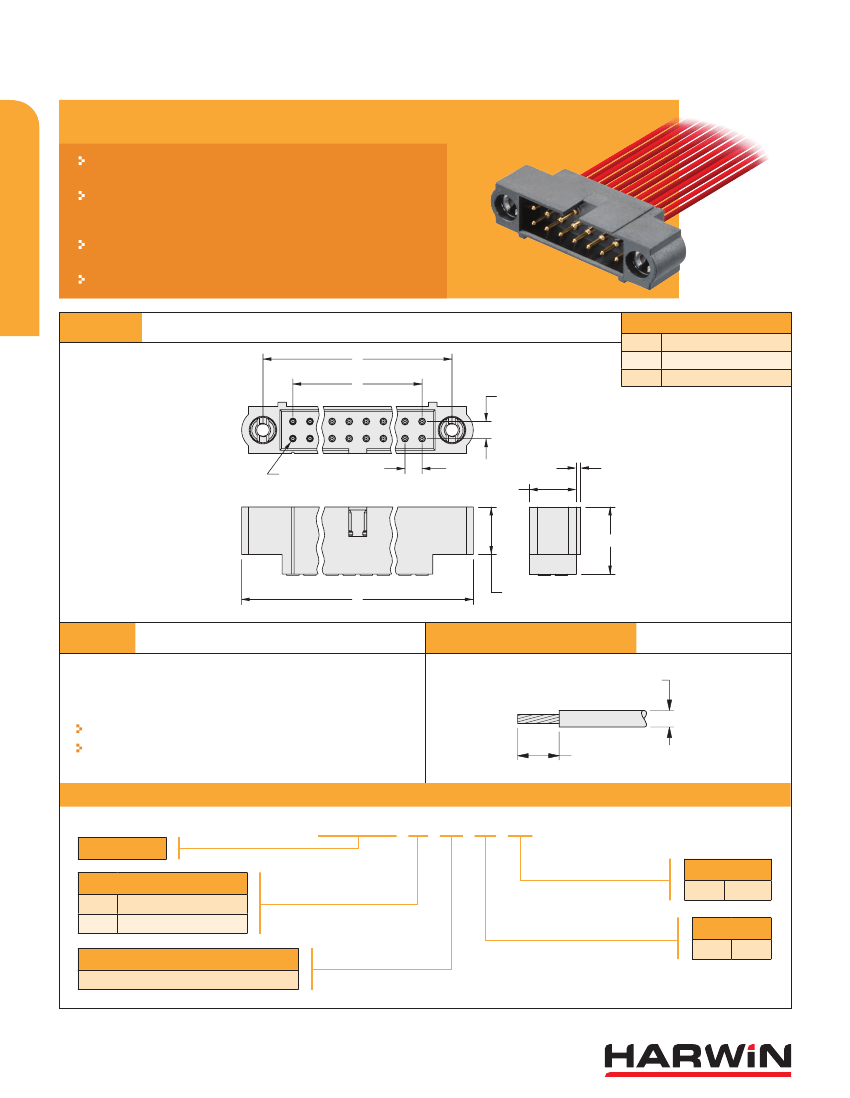

Datamate J-Tek Connectors

Male Crimp Kit 101Lok

Part numbers are for a complete kit of a housing and the

applicable number of contacts.

101Lok fixing gives secure, fast and simple mating; no special

tooling required. Just a simple 101-degree turn is required to fix

the connectors together.

Connectors mate with Datamate J-Tek female connectors with

applicable 101Lok fixings.

Crimp contacts supplied loose.

DATAMATE J-TEK

101LOK

C

B

2.00

CALCULATION

A

B

C

B + 12

Total no. of contacts - 2

B+7

No.1 contact

2.00

5.50

0.50

7.85

A

5.60

TOOLS

Recommended Crimp Tool

– M22520/2-01

Positioner

– Z80-193

Contact Insertion/Removal Tool

– Z80-280

Spare contacts shown on following pages.

Instruction sheets available at

www.harwin.com/instructions.

WIRE STRIPPING DETAILS

Ø1.10 max

2.00

HOW TO ORDER

M80 - 5 X1 XX 05 MC

SERIES CODE

TYPE

C1

D1

Small Bore (24-28 AWG)

Large Bore (22 AWG)

JACKSCREW

MC

101Lok

FINISH

05

Gold

TOTAL NO. OF CONTACTS

04, 06, 08, 10, 12, 14, 20, 26, 34, 42, 50

All dimensions in mm.

www.harwin.com

117

M80-9422005 Related Products

	M80-9422005	M80-9433405	M80-9430605	M80-9420605	M80-9421005	M80-9432605	M80-9431405
Description	Analog to Digital Converters - ADC 4Ch+/-10V InputRange 24-Bit	Headers u0026 Wire Housings 17+17 WAY MALE CRIMP L/BORE W/HOOD	Board Connector, 6 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle, LEAD FREE	Multilayer Ceramic Capacitors MLCC - SMD/SMT 10uF 10% 10Volts	Multilayer Ceramic Capacitors MLCC - SMD/SMT 10uF 10% 10Volts	Headers u0026 Wire Housings 13+13 WAY MALE CRIMP L/BORE W/HOOD	Board Connector, 14 Contact(s), 2 Row(s), Male, 0.079 inch Pitch, Crimp Terminal, M2, Black Insulator, Receptacle, LEAD FREE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	-	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-	conform to
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	-	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	-	compliant
body width	0.291 inch	0.291 inch	0.291 inch	0.291 inch	0.291 inch	-	0.291 inch
subject depth	0.927 inch	0.929 inch	0.929 inch	0.927 inch	0.927 inch	-	0.929 inch
body length	1.555 inch	2.106 inch	1.004 inch	1.004 inch	1.161 inch	-	1.319 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR
Contactor design	LOOSE	PREASSEM CONN	PREASSEM CONN	LOOSE	LOOSE	-	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED	GOLD (12)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Contact completed and terminated	Gold (Au)	Gold (Au)	GOLD	Gold (Au)	Gold (Au)	-	Gold (Au)
Contact point gender	MALE	MALE	MALE	MALE	MALE	-	MALE
Contact material	NOT SPECIFIED	BRASS	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	-	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	-	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	-	NO
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	-	500 Cycles
Filter function	NO	NO	NO	NO	NO	-	NO
IEC compliance	NO	NO	NO	NO	NO	-	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	-	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	-	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	-	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e4	e4	e4	e4	e4	-	e4
MIL compliance	NO	NO	NO	NO	NO	-	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	-	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	-	0.079 inch
Mixed contacts	NO	NO	NO	NO	NO	-	NO
Installation option 1	M2X0.4	M2	M2	M2X0.4	M2X0.4	-	M2
Installation option 2	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	-	JACKSCREW
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	-	CABLE
Number of rows loaded	2	2	2	2	2	-	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	-	3 A
Guideline	UL	UL	UL	UL	UL	-	UL
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	-	CRIMP
Total number of contacts	20	34	6	6	10	-	14
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	-	94V-0
Maximum wire diameter	24 AWG	22 AWG	22 AWG	24 AWG	24 AWG	-	22 AWG
Minimum wire diameter	28 AWG	22 AWG	22 AWG	28 AWG	28 AWG	-	22 AWG
