408B-A--0301-B-001000: Description10A, 250VAC, MALE, MAINS POWER CONNECTOR, PLUG, ROHS COMPLIANT; CategoryThe connector The connector; File Size283KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Parametric View All

408B-A--0301-B-001000 Overview

10A, 250VAC, MALE, MAINS POWER CONNECTOR, PLUG, ROHS COMPLIANT

408B-A--0301-B-001000 Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	STANDARDS: CSA; UL; VDE
Body/casing type	PLUG
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	10A, 250VAC
Manufacturer's serial number	408B
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYVINYLCHLORIDE
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

Cord Sets

www.schurter.com/pg07_2

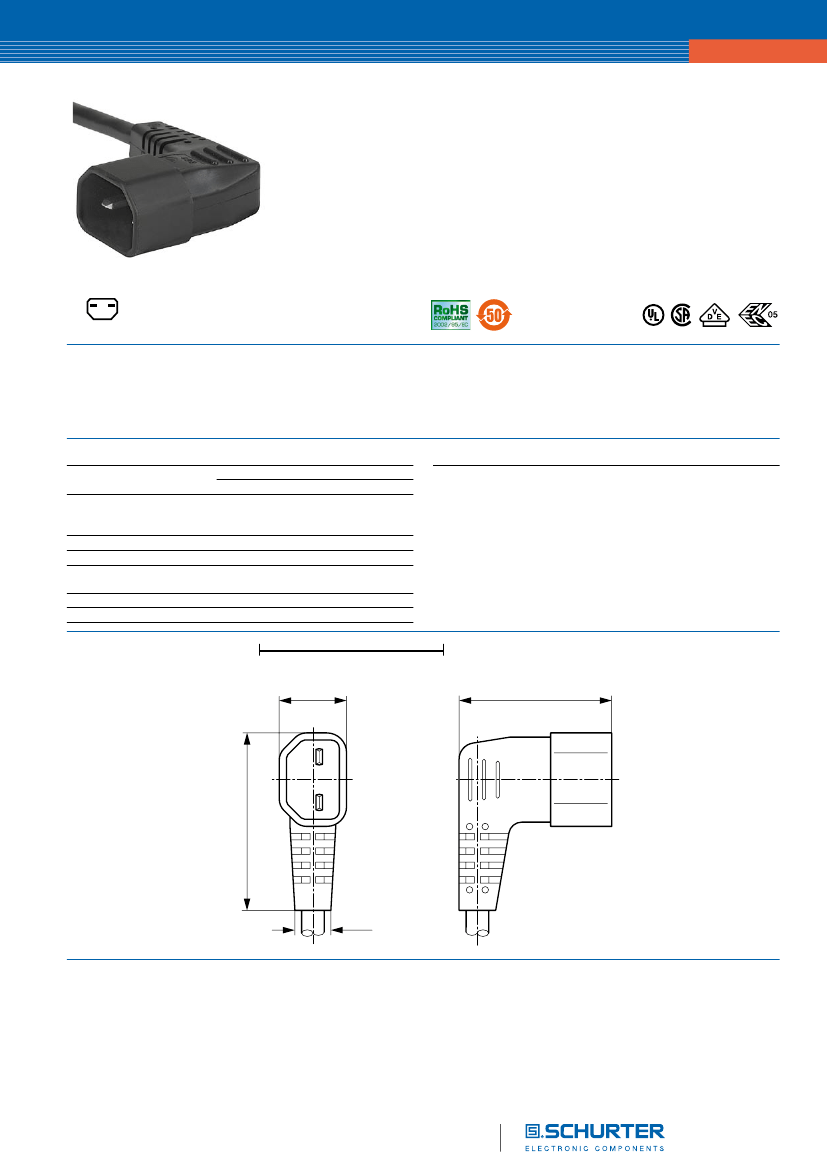

Interconnection Cord with Plug "G-Horizontal", Angled

408B

70° C

Description

Approvals

Interconnection Cord, Protection class II, Pin temperature 70 °C, Cable

- VDE Certificate Number: 103264

- UL File Number: E45116

- CSA File Number: 32338

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

Terminal

Material: Housing

Dimensions

SE

46.7 mm

Allowable Operation Temp.

Degree of Protection

Protection Class

10 A / 250 VAC; 50 Hz

10 A / 250 VAC; 60 Hz

> 4 kVDC between L-N

> 2 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 20 acc. to IEC 60529

Suitable for appliances with protection

class 2 acc. to IEC 61140

moulded

PVC, black or grey

20.6

PH

A

54.3

ø 11

-O

UT

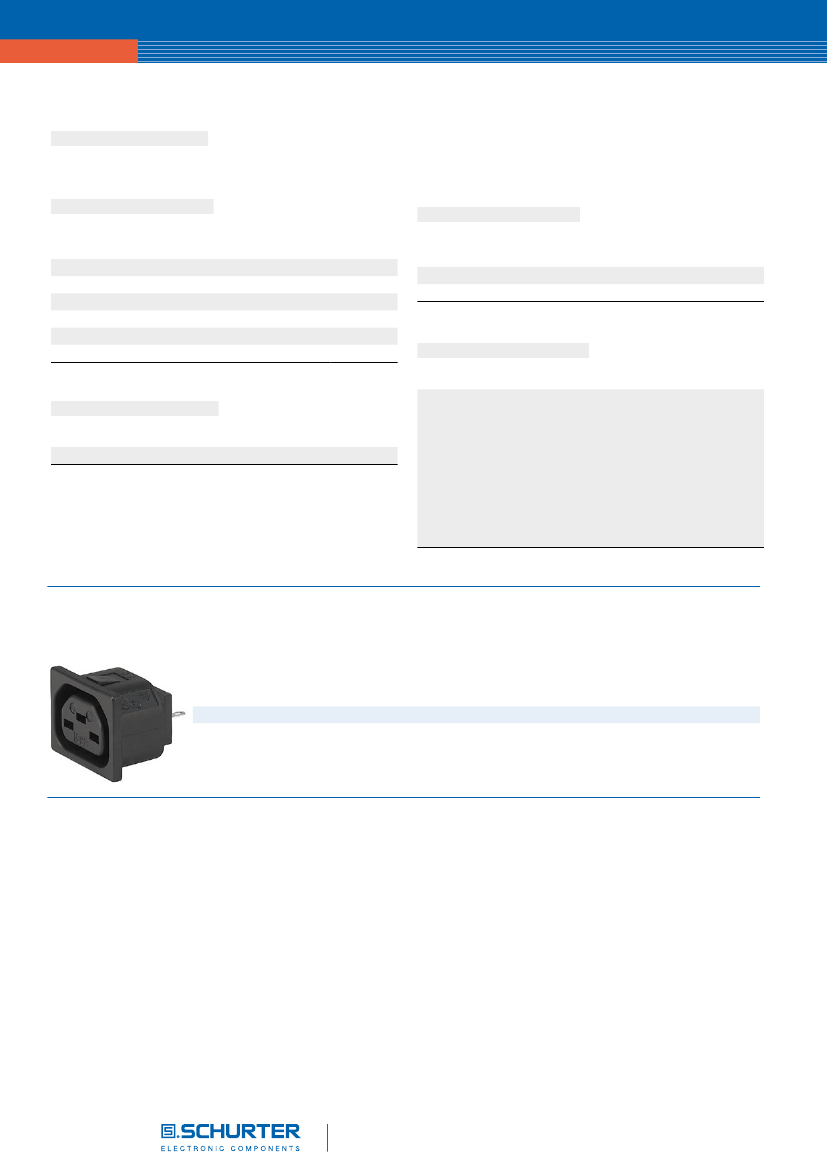

References

Weblinks

pdf, General Product Information, Approvals, RoHS, CHINA-RoHS,

Mating Connectors, e-Store, SCHURTER-Stock-Check, Distributor-

Stock-Check, Accessories

46.7
