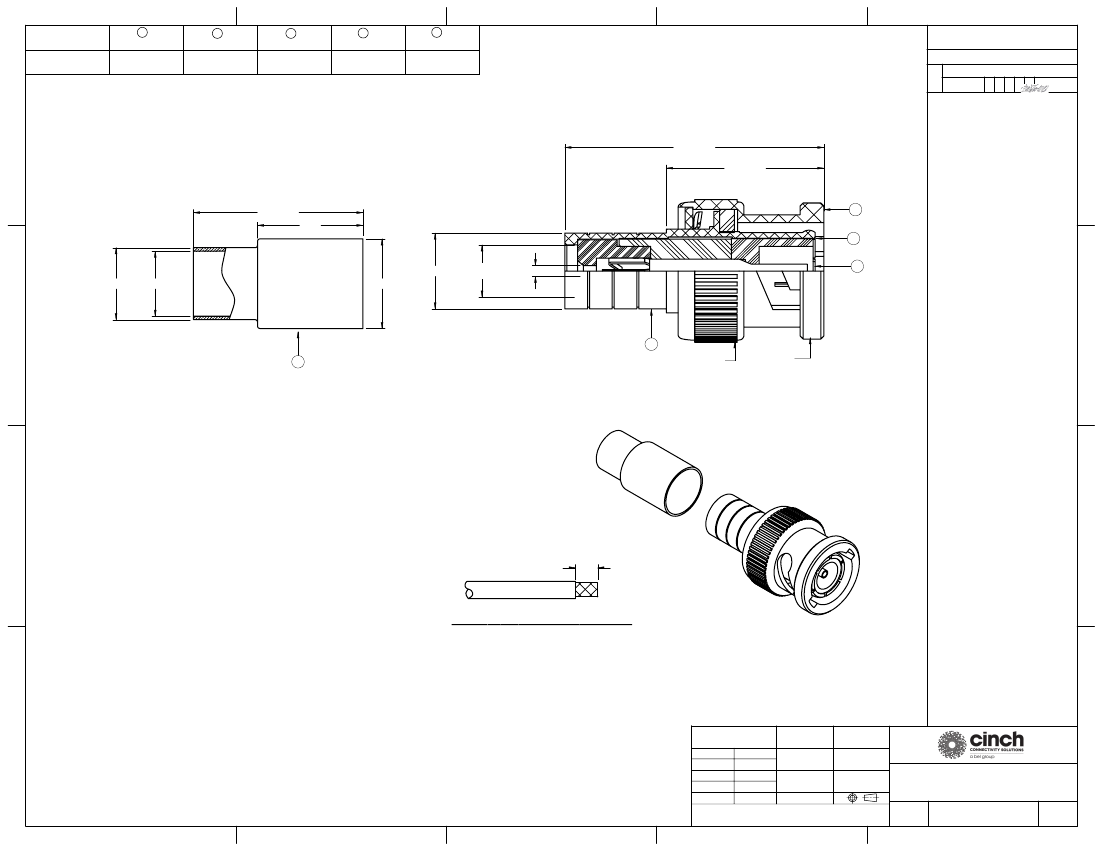

DRAWING NO.
PART NUMBER
CP-88-4
ITEM 1
BODY
ITEM 2
CONTACT
ZINC
BRASS
NICKEL PLATED GOLD PLATED
ITEM 3
INSULATOR
TEFLON
ITEM 5
ITEM 4
CRIMP SLEEVE CUPLING NUT
ZINC
BRASS
NICKEL PLATED NICKEL PLATED
CP-88-4
REVISIONS
A
RELEASE FOR QUTATION
09-26-05
Y
U
W
T
Thomas Chow
2005.10.11
12:31:29 +08'00'
D
D
26.0
u
0.5
16.0 ±0.3
17.2 ±0.3
10.7
5
3
+0.10
-0.05
O
7.7
O
7.3
O
6.6 ±0.1
O
9.1
O
5.30
O
1.1 ±0.1
2
C
C
1
4
O
14.5
O
13.8
B
NOTES:
1. ELECTRICAL SPECIFICATIONS
IMPEDANCE: 50 OHMS NOMINAL
FREQUENCY RANGE: 0-4 GHz
WORKING VOLTAGE: 500 Vrms MAX AT SEA LEVEL
DIECTRIC WITHSTANDING VOTALGE: 1500 vrms AT SEA LEVEL
CORONA LEVEL:375 VOLTS MINIMUM AT 70,000 FEET
CONTACT RESISTANCE: OUTER-0.2 MILLIOHMS MAXIMUM
CENTER-2.1 MILLIOHMS MAXIMUM
INSULATION RESISTANCE: 5000 MEGOHMS MINIMUM
2. MECHANICAL SPECIFICATIONS
DURABILITY: 500 CYCLES MIN
FORCE TO ENGAGE/DISENGAGE:3 LBS.MAXIMUM
CABLE ACCEPTABILITY: RG-MATV-59
3. ENVIRONMENTAL SPECIFICATIONS
RECOMMENDED TEMPERATURE RANGE: -55
℃
TO +85
℃
MOISTURE RESISTANCE: MIL-STD-202
THIS DRAWING TO BE INTERPRETED
PER ANSI Y 14.5M - 1994
B
11.43
CABLE STRIP DIMENSIONS
ASSEMBLY INSTRUCTIONS ON SHEET 2
A
COMPANY CONFIDENTIAL
TOLERANCE UNLESS DRAWN BY
OTHERWISE SPECIFIED
BETTY.YU
DECIMALS
X
X.X
X.XX
ANGLES
mm
CHECKED BY
DATE
9-22-05
DATE
09-24-05
09-26-05
SHEET
1 OF 2
TITLE
A
+
0.5
-
+
0.2
-
+
0.05
-
+
0.5
v
-
IVON.WANG
THOMAS
U/M
mm
APPROVED BY DATE
STRAIGHT BNC CRIMP PLUG
FOR RG-MATV-59 STYLE CABLE
DRAWING NO.
SIZE
THIS DRAWING WAS PRODUCED BY COMPUTER,
DO NOT SCALE DRAWING OR UPDATE MANUALLY.
CP-88-4
1
C
5
4
3
2
5
4
3
2
1
DRAWING NO.
PART NUMBER
CP-88-4
CABLE
RG-MATV-59
CRIMP
BRAID HEX
8.13
CRIMP
RECOMMENDED
(STRAIN RELIEF) CRIMP TOOL
6.35
24-9859P
CP-88-4
REVISIONS
A
RELEASE FOR QUTATION
09-26-05
Y
U
W
T
Thomas Chow
2005.10.11
12:31:44
+08'00'
D
CRIMP SLEEVE
CONNECTOR BODY
D
JACKET
CRIMP SLEEVE
11.43

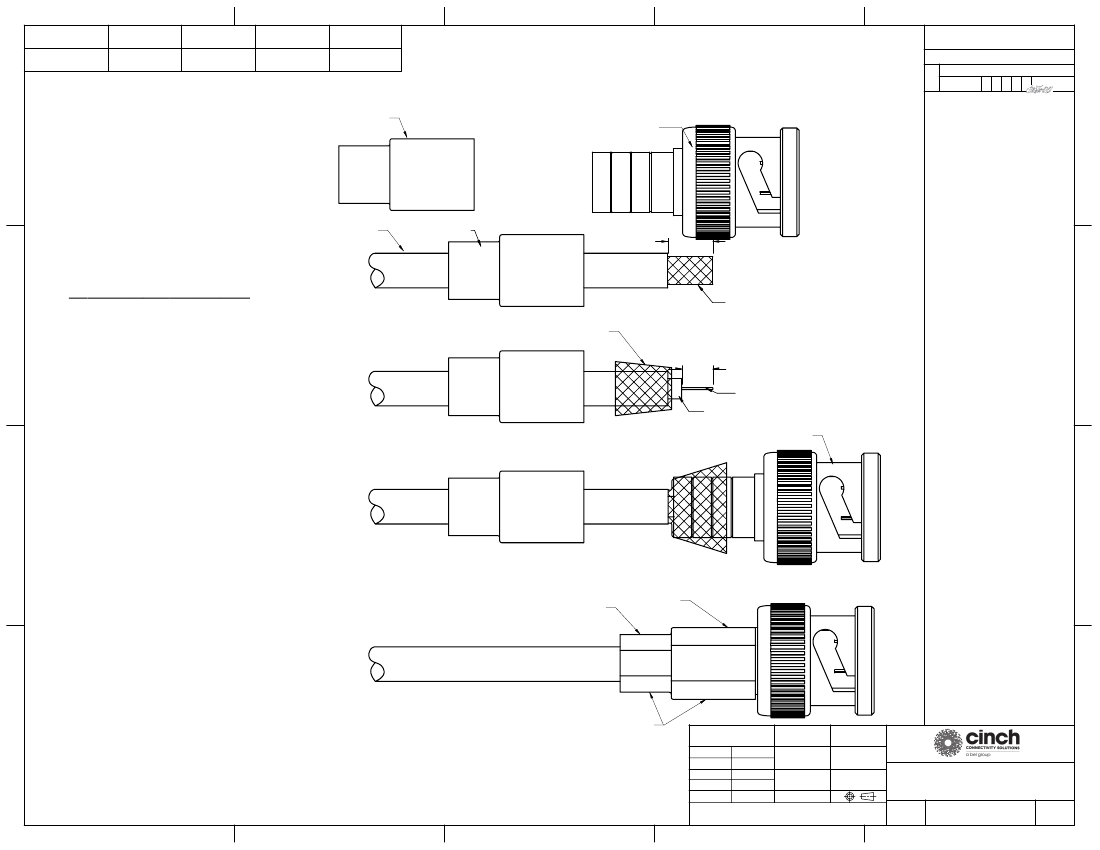

ASSEMBLY INSTRUCTIONS
BRAID
1. IDENTIFY CONNECTOR PARTS.
C
(2 PIECE PARTS)
2. SLIDE CRIMP SLEEVE OVER CABLE AND STRIP
CABLE JACKET TO DIMENSION SHOWN. DO
NOT NICK BRAID OR CENTER CONDUCTOR
DURING STRIP OPERATIONS.
3. FLAIR BRAID AND FOLD BACK. STRIP CABLE
INSULATION TO DIMENSION SHOWN. DO NOT
NICK CENTER CONDUCTOR. CABLES WITH
STRANDED CENTER CONDUCTORS SHOULD BE
TINNED FOR RIGIDITY.
4. INSERT CENTER CONDUCTOR INTO THE GUIDE
HOLE FOUND IN THE REAR OF THE CONNECTOR
BODY. PUSH OR TWIST THE BODY ONTO THE
CENTER CONDUCTOR UNTIL THE CABLE INSU-
LATION BUTTS UP TO THE BODY.
5. ARRANGE BRAID UNIFORMLY AROUND CRIMP
STEM. SLIDE CRIMP SLEEVE OVER BRAID AND
CRIMP SECURELY USING RECOMMENDED
CRIMP TOOL.
BRAID FOLDED BACK
C
7.92
CENTER CONDUCTOR
INSULATOR
CONNECTOR BODY
B
B
( STRAIN RELIEF )
(BRAID HEX)
THIS DRAWING TO BE INTERPRETED
PER ANSI Y 14.5M - 1994
A
CRIMP
COMPANY CONFIDENTIAL
TOLERANCE UNLESS DRAWN BY
OTHERWISE SPECIFIED
BETTY.YU
DECIMALS
X
X.X
X.XX
ANGLES
mm
CHECKED BY
DATE
09-22-05
DATE
TITLE
A
+
0.5
-
+
0.2
-
+
0.05
-
+
0.5
v
-
IVON.WANG
THOMAS
U/M
mm
09-24-05
APPROVED BY DATE
09-26-05
STRAIGHT BNC CRIMP PLUG
FOR RG-MATV-59 STYLE CABLE
SHEET
2 OF 2
DRAWING NO.
SIZE
THIS DRAWING WAS PRODUCED BY COMPUTER,
DO NOT SCALE DRAWING OR UPDATE MANUALLY.
CP-88-4
1
C
5
4
3
2
