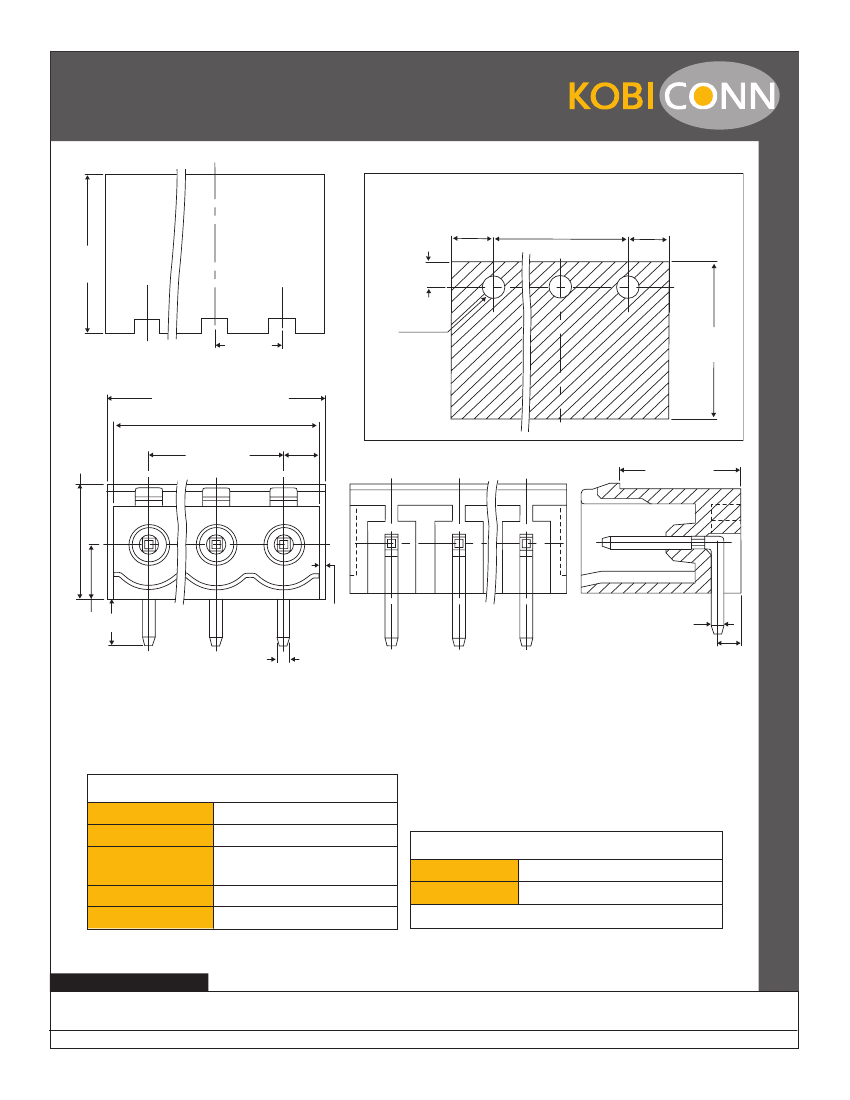

Terminal Block Headers
158-P025EHDRCH-E, 158-P035EHDRCH-E, 158-P045EHDRCH-E, 158-P055EHDRCH-E,
158-P065EHDRCH-E, 158-P075EHDRCH-E, 158-P085EHDRCH-E, 158-P095EHDRCH-E,
158-P105EHDRCH-E, 158-P115EHDRCH-E, 158-P125EHDRCH-E
Terminal Block Headers
P.C.B. LAYOUT (REF)
3.10
(.122)
12
(.472)
5.00x(P-1)
(.197x(P-1))
3.10
(.122)
1.75
ø1.6~1.7
5 ± .08
(.197 ± .003)
5.0xP+1.2 (.197xP+.047)
(5.0xP)+0.2+0.1 ((.197xP)+.008 +.004)
-0.0
-0
8.32
(.328)
5.00x(P-1)
(.197x(P-1))
2.60
(.102)
12.0
(.472)
158-P025EHDRCH-E, 158-P035EHDRCH-E, 158-P045EHDRCH-E, 158-P055EHDRCH-E, 158-P065EHDRCH-E, 158-
P075EHDRCH-E, 158-P085EHDRCH-E, 158-P095EHDRCH-E, 158-P105EHDRCH-E, 158-P115EHDRCH-E, 158-P125EHDRCH-E
9.05 (.356)
4
3.75 (.157)
(.148)
1 ± .10
(.039 ± .004)
.50
(.02)
1 ± .05
(.039 ± .002)
1.75
(.069)
Dimensions: mm (in.)
SPECIFICATIONS
Rating:
Pitch:
Insulation withstands
voltage:
Insulation resistance:
Temperature range:
300V 15A
5.00 mm
AC 1500 V/min
500MΩ or more @ DC500V
-40°C ~ +105°C
MATERIAL SPECIFICATIONS
Solder pin:
Housing:
tin plated copper
PA66, green
RoHS Compliant
Date Last Revised: 4-13-07
Available from Mouser Electronics
1-800-346-6873 / www.mouser.com
KC-
301128
