3-794625-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-794625-4

3-794625-4: Description04P MICRO MNL ASSY,R/A,SMT LF; CategoryThe connector The connector; File Size212KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-794625-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-794625-4	-	-	View	Buy Now

3-794625-4 Overview

04P MICRO MNL ASSY,R/A,SMT LF

3-794625-4 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	POLARIZATION
Board mount options	SPLIT BOARD LOCK
body width	0.29 inch
subject depth	0.615 inch
body length	0.394 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	75 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Plug information	794617-4
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.6228 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	NYLON
Terminal pitch	2.9972 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
UL Flammability Code	94V-0
Evacuation force-minimum value	.6672 N
Base Number Matches	1

Preview

Download Datasheet

View All

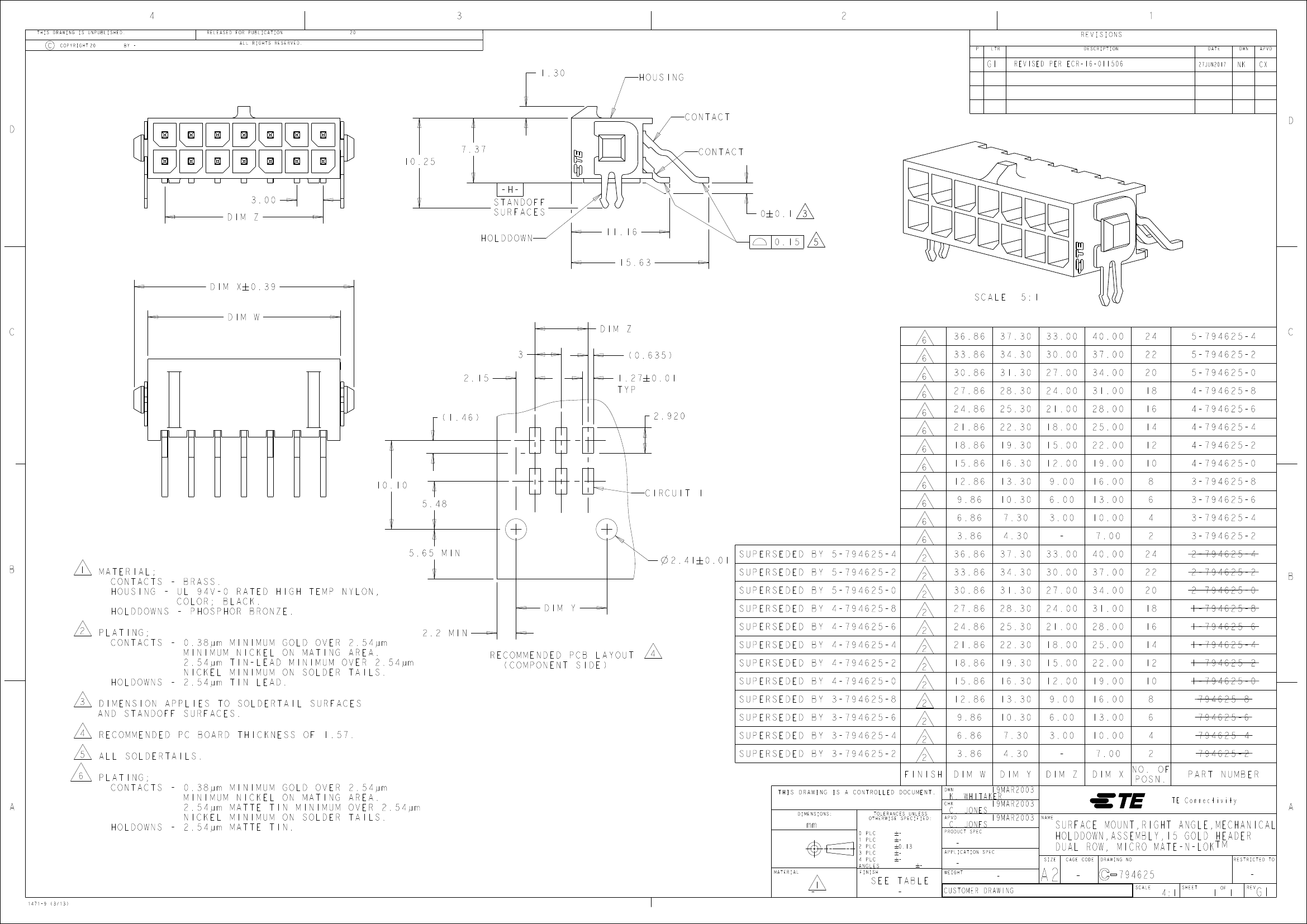

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

1.30

HOUSING

REVISED PER ECR-16-011506

27JUN2017

10.25

7.37

CONTACT

3.00

DIM Z

-H-

STANDOFF

SURFACES

HOLDDOWN

11.16

15.63

DIM X # 0.39

DIM W

SCALE

DIM Z

2.15

( 0.635 )

1.27

TYP

0.01

5:1

2.920

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

DIM W

DWN

CHK

37.30

34.30

31.30

28.30

25.30

22.30

19.30

16.30

13.30

10.30

7.30

4.30

37.30

34.30

31.30

28.30

25.30

22.30

19.30

16.30

13.30

10.30

7.30

4.30

DIM Y

19MAR2003

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM Z

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

DIM X

NO. OF

POSN.

5- 794625 -4

5- 794625 -2

5- 794625 -0

4- 794625 -8

4- 794625 -6

4- 794625 -4

4- 794625 -2

4- 794625 -0

3- 794625 -8

3- 794625 -6

3- 794625 -4

3- 794625 -2

2- 794625 -4

2- 794625 -2

2- 794625 -0

1- 794625 -8

1- 794625 -6

1- 794625 -4

1- 794625 -2

1- 794625 -0

794625 -8

794625 -6

794625 -4

794625 -2

PART NUMBER

TE Connectivity

( 1.46 )

10.10

5.48

CIRCUIT 1

5.65

MIN

MATERIAL;

CONTACTS - BRASS.

HOUSING - UL 94V-0 RATED HIGH TEMP NYLON,

COLOR; BLACK.

HOLDDOWNS - PHOSPHOR BRONZE.

PLATING;

CONTACTS - 0.38µm MINIMUM GOLD OVER 2.54µm

MINIMUM NICKEL ON MATING AREA.

2.54µm TIN-LEAD MINIMUM OVER 2.54µm

NICKEL MINIMUM ON SOLDER TAILS.

HOLDOWNS - 2.54µm TIN LEAD.

DIMENSION APPLIES TO SOLDERTAIL SURFACES

AND STANDOFF SURFACES.

RECOMMENDED PC BOARD THICKNESS OF 1.57.

ALL SOLDERTAILS.

PLATING;

CONTACTS - 0.38µm MINIMUM GOLD OVER

MINIMUM NICKEL ON MATING

2.54µm MATTE TIN MINIMUM

NICKEL MINIMUM ON SOLDER

HOLDOWNS - 2.54µm MATTE TIN.

2.54µm

AREA.

OVER 2.54µm

TAILS.

2.2

MIN

2.41

0.01

SUPERSEDED BY 5-794625-4

SUPERSEDED BY 5-794625-2

SUPERSEDED BY 5-794625-0

FINISH

DIM Y

SUPERSEDED BY 4-794625-8

SUPERSEDED BY 4-794625-6

RECOMMENDED PCB LAYOUT

(COMPONENT SIDE)

SUPERSEDED BY 4-794625-4

SUPERSEDED BY 4-794625-2

SUPERSEDED BY 4-794625-0

SUPERSEDED BY 3-794625-8

SUPERSEDED BY 3-794625-6

SUPERSEDED BY 3-794625-4

SUPERSEDED BY 3-794625-2

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

K. WHITAKER

C. JONES

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

PRODUCT SPEC

C. JONES

NAME

APPLICATION SPEC

1471-9 (3/13)

SEE TABLE

WEIGHT

CUSTOMER DRAWING

SIZE

SURFACE MOUNT,RIGHT ANGLE,MECHANICAL

HOLDDOWN,ASSEMBLY,15 GOLD HEADER

DUAL ROW, MICRO MATE-N-LOK

CAGE CODE

DRAWING NO

RESTRICTED TO

794625

SCALE

4:1

SHEET

REV
