8400-0002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 8400-0002

8400-0002: DescriptionRF Connectors / Coaxial Connectors; CategoryThe connector; File Size58KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

8400-0002 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8400-0002	-	-	View	Buy Now

8400-0002 Overview

RF Connectors / Coaxial Connectors

8400-0002 Parametric

Parameter Name	Attribute value
Product Category	RF Connectors / Coaxial Connectors
Manufacturer	Amphenol
Termination Style	Solder

Preview

Download Datasheet

View All

ROHS COMPLIANT

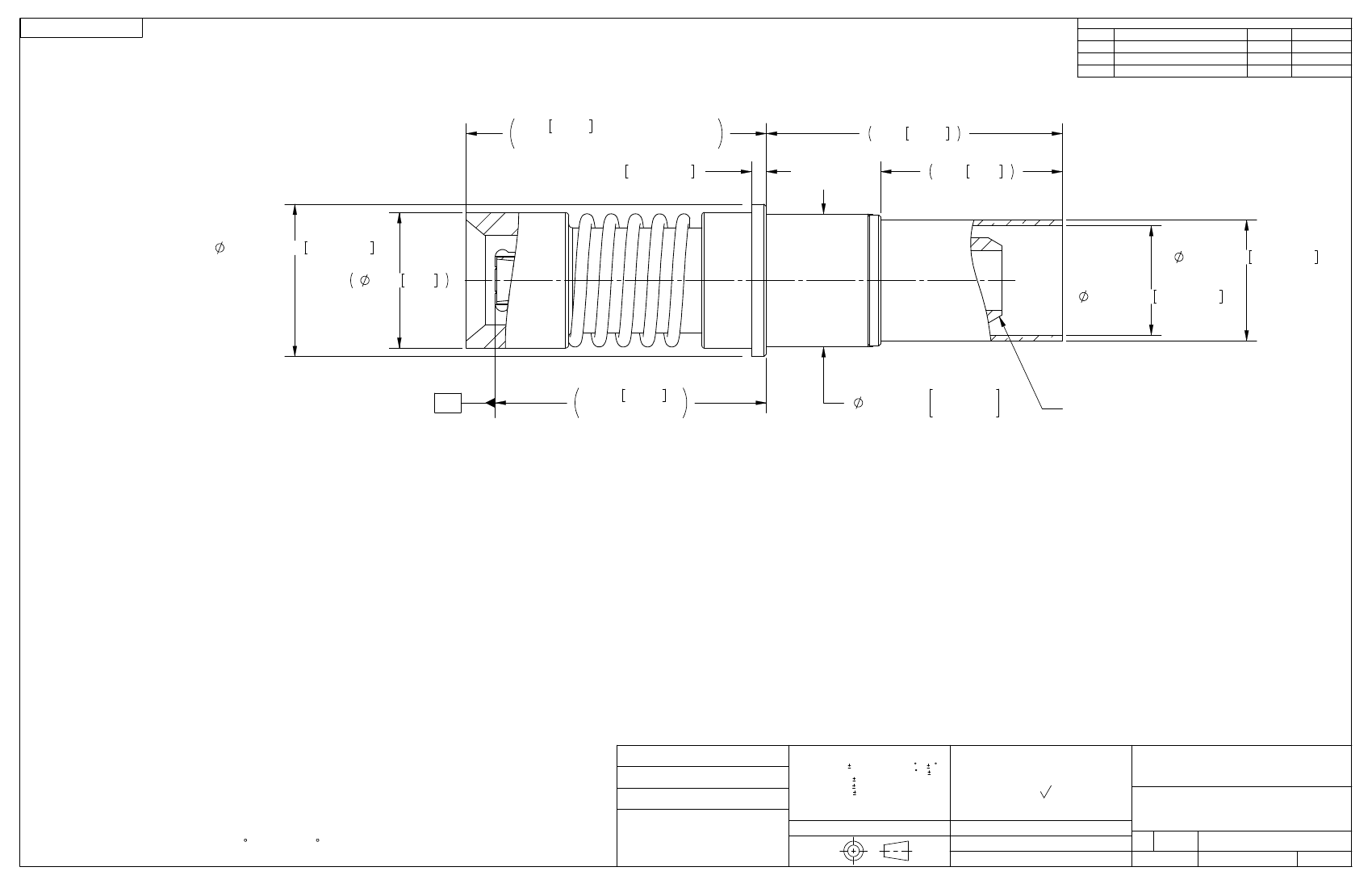

PRODUCT DATA DRAWING

REV

REVISION HISTORY

DESCRIPTION

DATE

APPROVED

PRELIMINARY

DCN 35469 P/N WAS SK-2384

REV. DCN 37383

07/07/06

10/24/07

02/24/10

STW

PJS

.620 15.75 UNCOMPRESSED

.560 COMPRESSED

.031±.002 0.79±0.05

.611 15.52

.375 9.53

.3145±.0015 7.99±0.04

.280 7.11

.250±.002 6.35±0.05

.227±.002 5.75±0.05

.500 12.70

COMPRESSED

+.001

+0.03

.275

6.99

- .002

- 0.05

ACCOMMODATES RG-142 CABLE

OR EQUIVALENT

MATERIAL:

BODIES & SLEEVES:

CONTACTS &

LOCK RING:

INSULATORS:

GASKET:

STAINLESS STEEL PER AMS-5640,

ALLOY UNS S30300, TYPE 1

BERYLLIUM COPPER PER ASTM B196,

ALLOY No. UNS C17300, TD04

PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B

SILICONE RUBBER PER

A-A-59588,

CLASS 2B, GRADE 50/60

FINISH:

BODIES & SLEEVES:

SPRING:

CONTACT:

PASSIVATED PER AMS-2700, TYPE 2.

STAINLESS STEEL PER ASTM A313, TYPE 631.

GOLD PER ASTM B488, TYPE II,

CODE C, CLASS 1.27; OVER NICKEL

PER AMS-QQ-N-290, CLASS 1, .00005" MIN.

NICKEL PER AMS-QQ-N-290

MATERIAL:

SIZE 8 SOCKET CONTACT

SEE NOTES

N/A

PROPRIETARY

THE INFORMATION CONTAINED IN THIS DRAWING

IS THE SOLE PROPERTY OF SV MICROWAVE, INC.

ANY REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

SV MICROWAVE, INC IS PROHIBITED.

DIMENSIONS ARE IN INCHES TOLERANCES:

FRACTIONAL:

DECIMAL: .X

.XX

.XXX

1/64

.030

.010

.005

ANGULAR: X

X X'

1 0'

15'

LOCK RING:

PERFORMANCE:

IMPEDANCE:

FREQ. RANGE:

VSWR:

INSERTION LOSS:

DWV:

OPERATING TEMP.:

UNLESS OTHERWISE SPECIFIED

1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]

2) ALL DIMENSIONS ARE AFTER PLATING.

3) BREAK CORNERS & EDGES .005 R. MAX.

4) CHAM. 1ST & LAST THREADS.

5) SURFACE ROUGHNESS

MIL-STD-10.

6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC

WITHIN .005 T.I.R.

7) REMOVE ALL BURRS

SV Microwave, Inc.

2400 Centrepark West Drive, Suite 100

West Palm Beach, FL 33409

TITLE:

50 OHMS

DC TO 12.0 GHz

1.3:1 MAX. MATED PAIR DC TO 12.0 GHz

.06 X SQRT(F(F IN GHz))

1000 VRMS

-55 C TO +125 C

FINISH:

SURFACE AREA:

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

THIRD ANGLE PROJECTION

DRAWN:

CHECKED:

APPROVED:

JMC 07/07/06

JM 07/07/06

12 GHZ BMZ MALE TO RG-142

FOR M38999 SIZE 8 CAVITY

SIZE CAGE CODE DWG. NO.

95077

SCALE: 6:1

SF9811-6002

SHEET 1 OF 1
