52207-2185

Description
FFC u0026 FPC Connectors 1.0 FPC Hsg Assy ZIF SMT 21Ckt EmbsTpPkg
CategoryThe connector    The connector
File Size33KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

52207-2185 Online Shopping

Suppliers Part Number Price MOQ In stock
52207-2185 - - View Buy Now

52207-2185 Overview

FFC u0026 FPC Connectors 1.0 FPC Hsg Assy ZIF SMT 21Ckt EmbsTpPkg

52207-2185 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresZIF
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch1 mm
Termination typeSURFACE MOUNT
Total number of contacts21
UL Flammability Code94V-0
Base Number Matches1
This document was generated on 03/08/2013
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
52207-2185
Active
FFC-FPC (SMT)
1.00mm Pitch FFC/FPC Connector, SMT, Right Angle, ZIF, Top Contact Style
Receptacle, 21 Circuits, Lead-Free, High Barrier Packaging
Documents:
3D Model
Drawing (PDF)
Product Specification PS-52207-047 (PDF)
Packaging Specification SPK-52207-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series

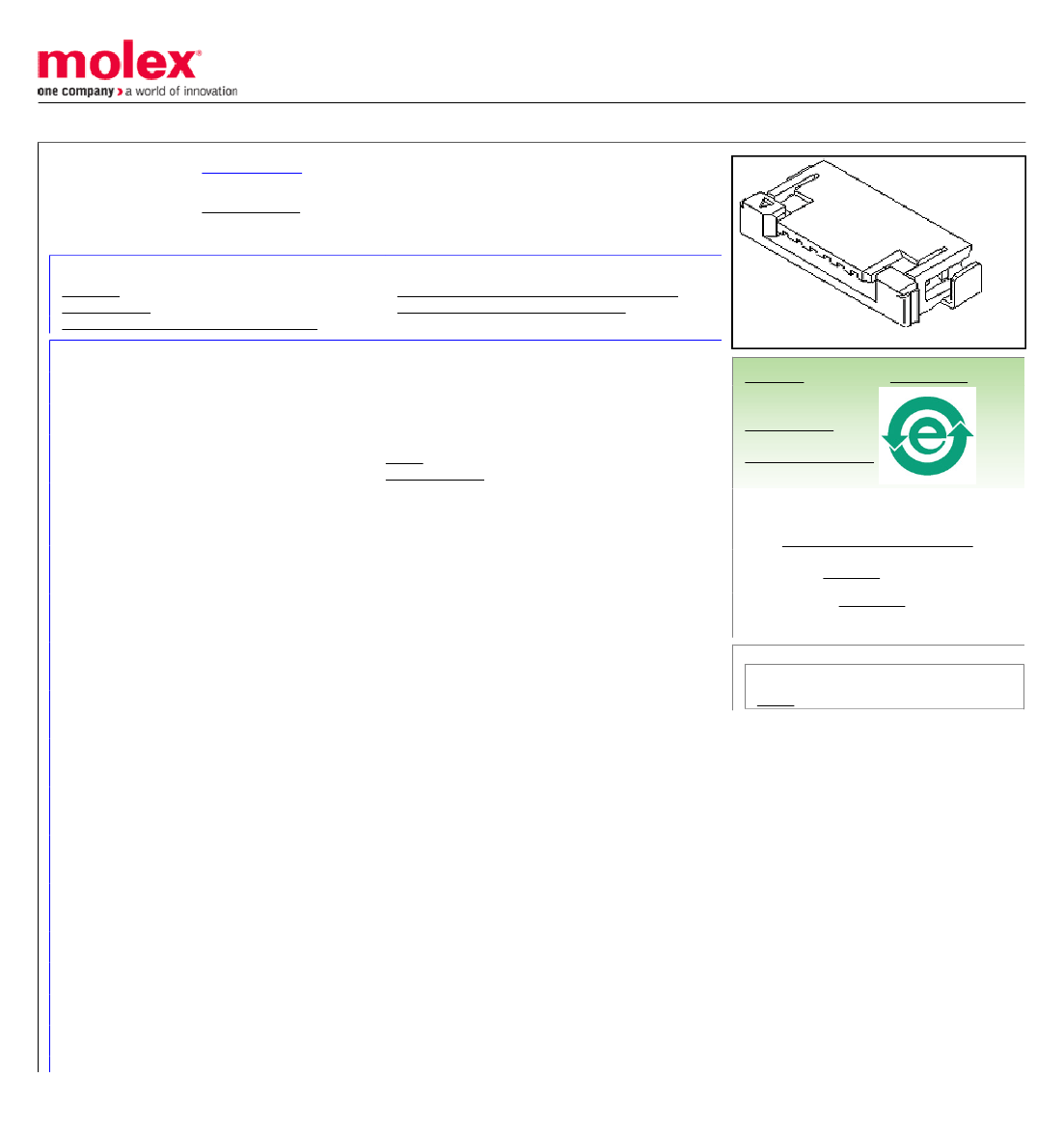

image - Reference only
Agency Certification
CSA
UL
LR19980
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Low-Halogen
China RoHS
General
Product Family
Series
Overview
Product Name
UPC
FFC/FPC Connectors
52207
FFC-FPC (SMT)
N/A
822348118229
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Flammability
Mated Height
Material - Metal
Material - Plating Mating
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
21
Natural
Top
30
90° Angle
94V-0
2.70mm
Phosphor Bronze
Tin-Bismuth
Nylon
754.600/mg
1
Right Angle
2.00mm
No
Yes
Embossed Tape on Reel
1.00mm
1.00mm
Yes
No
-30°C to +85°C
Surface Mount
FFC/FPC
Search Parts in this Series
52207Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
125V
