4
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
20
3
2
LOC
DIST
1
C
COPYRIGHT
20
n .100 MOUNTING HOLES
ACCEPT 2-56 UNC, 100 $
FLAT HEAD SCREWS
(2 PLACES)
D
-
C'SINK
CONTACT
IDENTIFICATION
MARKERS
4 PLACES
(BOTH SIDES)
-
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
J
REV PER ECO 16-014836
11-11-16
CT
DW
D
R .06
[ 1.5 ]
4 PLACES
.160
[ 4.06 ]
4 PLACES
.030 X 45 $
4 PLACES
C
.274
[ 6.96 ]
.175
[ 4.45 ]
.240
[ 6.1 ]
1996884-1
CAGE CODE
DATE CODE
.175
[ 4.45 ]
.548 .002
[ 13.92
0.05 ]
.442 .002
[ 11.227
0.05 ]
C
.120
[ 3.05 ]
.053 .002
[ 1.35 0.05 ]
.215
[ 5.46 ]
.140
[ 3.56 ]
.397 .006
[ 10.07
0.15 ]
.062 .002
[ 1.57 0.05 ]
.064 -.067
[ 1.64 -1.71 ]
ALIGNMENT PIN
.245 .002
[ 6.22 0.05 ]
.138
[ 3.51 ]
.240
[ 6.1 ]
B
B
.460 .002
[ 11.68
0.05 ]
.740 .002
[ 18.8 0.05 ]
SMPM FULL DETENT
PER MIL-STD-348
FIG 328-2
4X
A
1. MATERIAL:
SMOOTHBORE SMPM CONNECTOR BODY & CENTER CONTACT - BERYLLIUM COPPER,
ALLOY UNS C17300 CONDITION TDO4, PER ASTM B196.
INSULATORS - TEFLON (PTFE) ROD, PER ASTM D 1710.
MODULE BODY - STAINLESS STEEL, PER UNS S30300.
SLOTTED SPRING PIN - NICKEL STAINLESS STEEL
2. FINISH:
SMOOTHBORE SMPM CONNECTOR BODY & CENTER CONTACT - GOLD PLATE OVER NICKEL
MODULE BODY & SLOTTED PIN - PASSIVATED
1471-9 (3/11)
1996884-1
DWN
CHK
DIMENSIONS:
THIS DRAWING IS A CONTROLLED DOCUMENT.
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
S T Morley
S T Morley
INCHES[mm]
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
.1
.01
.001
.0005
PRODUCT SPEC
S T Morley
PRELIMINARY
24JUL2009
24JUL2009
TE Connectivity
NAME
24JUL2009
PART
NUMBER
A
APPLICATION SPEC
-
1.0 $
WEIGHT
-
-
CUSTOMER DRAWING
A2
00779
SIZE
CAGE CODE

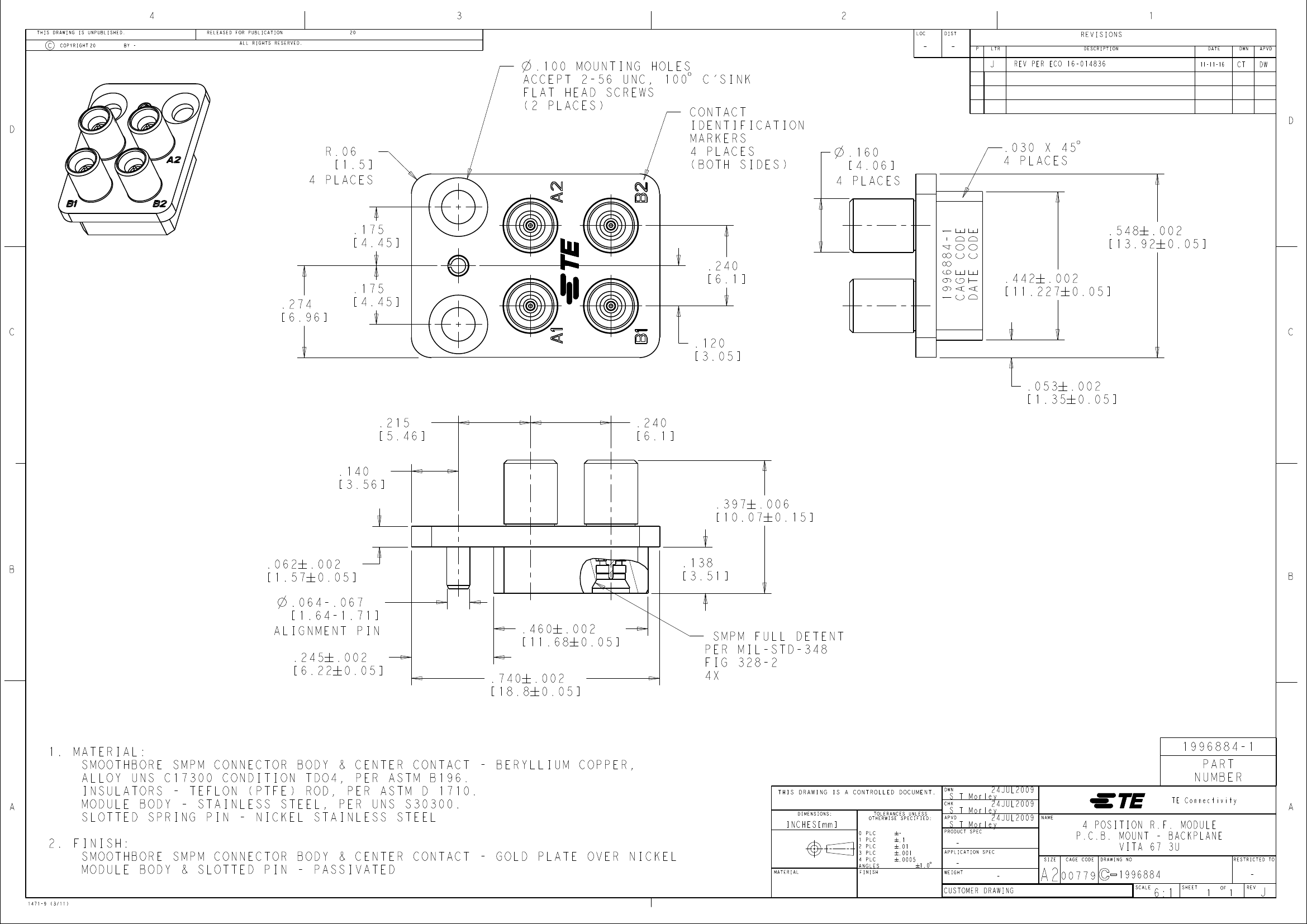

4 POSITION R.F. MODULE
P.C.B. MOUNT - BACKPLANE
VITA 67 3U
DRAWING NO
RESTRICTED TO
1996884
SCALE
6:1
SHEET
1
OF
1
REV
-
J
