5962R9678601QWC datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> 5962R9678601QWC

5962R9678601QWC: DescriptionCMOS TO TTL TRANSCEIVER, TRUE OUTPUT, CDIP22, CERAMIC, DIP-22; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size496KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9678601QWC Overview

CMOS TO TTL TRANSCEIVER, TRUE OUTPUT, CDIP22, CERAMIC, DIP-22

5962R9678601QWC Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP, DIP22,.4
Contacts	22
Reach Compliance Code	unknown
ECCN code	EAR99
maximum delay	50 ns
Interface integrated circuit type	CMOS TO TTL TRANSCEIVER
JESD-30 code	R-CDIP-T22
JESD-609 code	e4
Number of digits	8
Number of functions	1
Number of terminals	22
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output latch or register	NONE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP22,.4
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,10 V
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum seat height	5.72 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
Supply voltage 1-max	10.5 V
Mains voltage 1-minute	9.5 V
Supply voltage1-Nom	10 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	10.16 mm
Base Number Matches	1

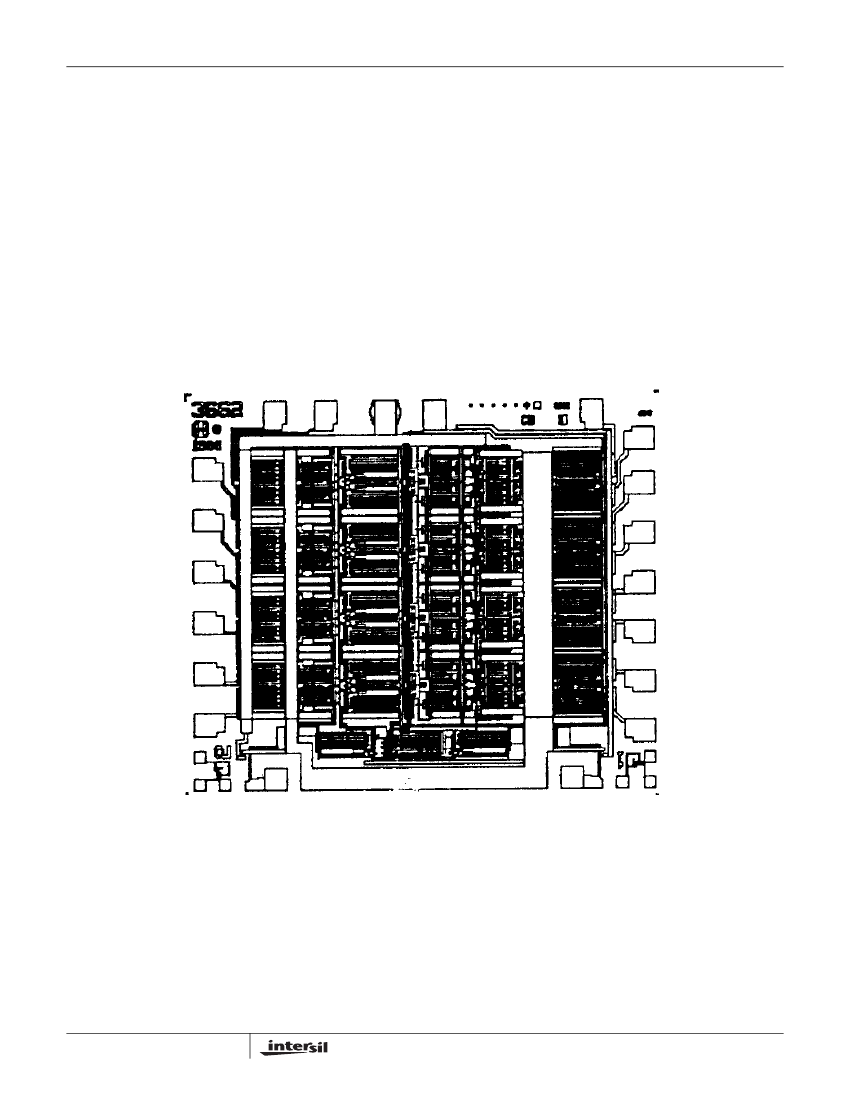

Preview

Download Datasheet

View All

DUC

EN T

P R O LA C E M r a t

E TE

SOL DED RE ort Cent /tsc

upp

com

OMM hnical S .intersil.

NO R our Tec or www

Data Sheet

ntac TERSIL

8-IN

1-88

HS-3374RH

August 2000

File Number

3038.2

Radiation Hardened 8-Bit Bidirectional

CMOS/TTL Level Converter

The Intersil HS-3374RH is a radiation hardened 8-bit

bidirectional level converter designed to interface CMOS

logic levels with TTL logic levels in radiation hardened bus

oriented systems. The HS-3374RH is fabricated using a

radiation hardened EPI-CMOS process and features eight

parallel bidirectional buffer/level converters.

Two control inputs, ENABLE and DISABLE, are used to

determine the direction of data flow, and to set both the in

puts and outputs in the high impedance state. The control

inputs may be driven by either TTL or CMOS logic drivers

capable of sinking one standard TTL load.

The HS-3374RH is a non-inverting version of the industry

standard CD40116. The non-inverting outputs of the

HS-3374RH reduce PC board chip count by eliminating the

need to restore data back to a non-inverted format.

Specifications for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed here must be used when ordering.

Detailed Electrical Specifications for these devices are

contained in SMD 5962-96786. A “hot-link” is provided

on our homepage for downloading.

www.intersil.com/spacedefense/space.asp

Features

• Electrically Screened to SMD # 5962-96786

• QML Qualified per MIL-PRF-38535 Requirements

• Radiation Hardened EPI-CMOS

- Total Dose . . . . . . . . . . . . . . . . . . . . . . 1 x 10

RAD(Si)

- Latch-Up Immune . . . . . . . >1 x 10

RAD(Si)/s (Note 1)

• Low Propagation Delay Time

- Typical CMOS to TTL Pre-RAD . . . . . . . . . . . . . . . 40ns

- Typical CMOS to TTL Post 100KRAD . . . . . . . . . . 40ns

- Typical TTL to CMOS Pre-RAD . . . . . . . . . . . . . . . 50ns

- Typical TTL to CMOS Post 100KRAD . . . . . . . . . . 50ns

• Low Standby Power

• +10V CMOS and +5V TTL Power Supply Inputs

• Eight Non-Inverting Three-State Input/Output Channels

• No External TTL Input Pull-Up Resistors Required

• High TTL Sink Current

• Equivalent to Sandia SA2996

• Military Temperature Range . . . . . . . . . . . . -55

C to 125

NOTE:

1. For operation at 10V and transient levels above

1 x 10

RAD(Si)/s, please refer to Application Note 401.

Ordering Information

ORDERING NUMBER

5962R9678601QWC

5962R9678601VWC

INTERNAL

MKT. NUMBER

HS1-3374RH-8

HS1-3374RH-Q

TEMP. RANGE

(

-55 to 125

Pinout

HS-3374RH

MIL-STD-1835, CDIP2-T22

(SBDIP)

TOP VIEW

VDD

VDD = 1

VCC = 22

GND = 11

CMOS

INPUT/OUTPUT

22 VCC

21 B0

20 B1

19 B2

18 B3

17 B4

16 B5

15 B6

14 B7

13 DISABLE

12 NC

TTL

INPUT/OUTPUT

Functional Diagram

DISABLE

CMOS

IN/OUT

2-9

LEVEL

SHIFTER

TTL

OUT (IN)

14-21

ENABLE 10

GND 11

ENABLE

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143

Intersil (and design) is a registered trademark of Intersil Americas Inc.
