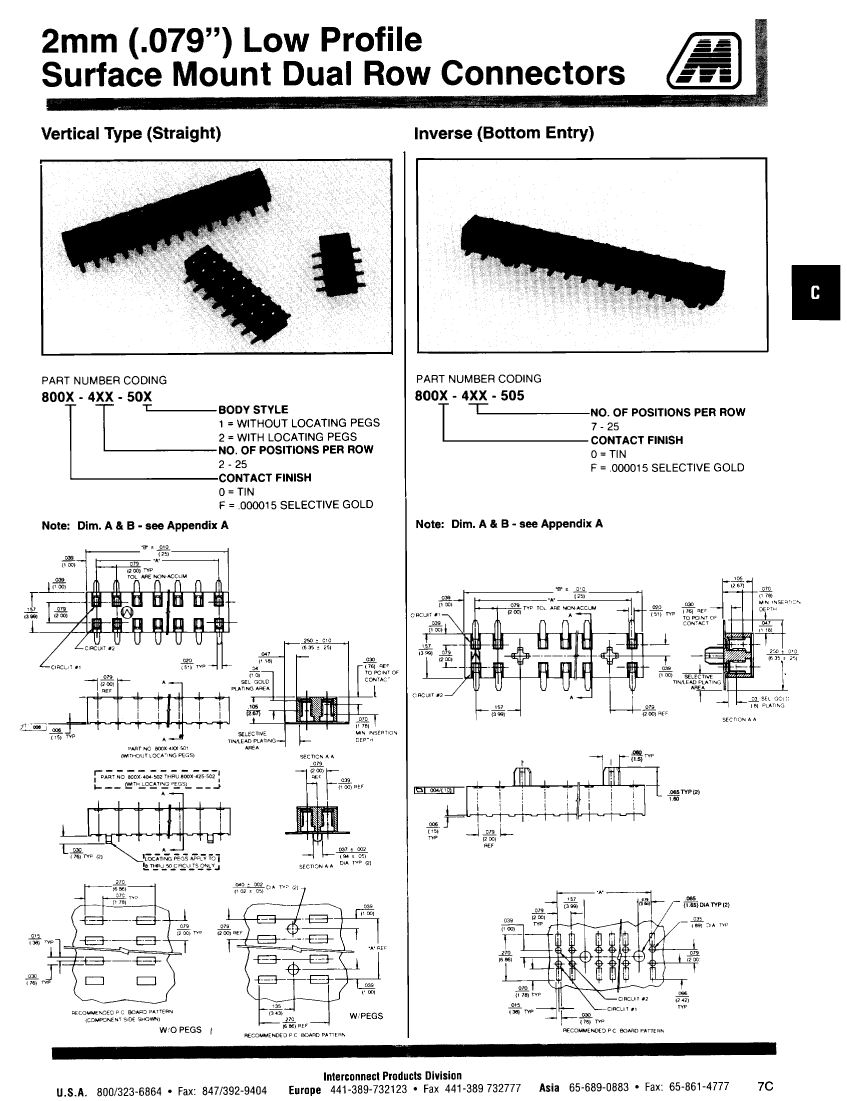

800F-4-505: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size101KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric Compare View All

800F-4-505 Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
Other features	BOTTOM ENTRY, LOW PROFILE
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	8000
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

	800F-4-505	800F-4-50	8000-4-505	8000-4-50
Description	Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal
Maker	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.	Methode Electronics Inc.
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	BOTTOM ENTRY, LOW PROFILE	LOW PROFILE	BOTTOM ENTRY, LOW PROFILE	LOW PROFILE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	8000	8000	8000	8000
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	50	50	50	50
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
