SJ1-3533 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> SJ1-3533

Preview

SJ1-3533: DescriptionFilm Capacitors 1uF 16VDC 20% 1210 Acryllic Resin; CategoryThe connector The connector; File Size153KB，3 Pages; ManufacturerCUI; Websitehttp://www.cui.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SJ1-3533 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SJ1-3533	-	-	View	Buy Now

SJ1-3533 Overview

Film Capacitors 1uF 16VDC 20% 1210 Acryllic Resin

SJ1-3533 Parametric

Parameter Name	Attribute value
Brand Name	CUI Inc
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	LOW PROFILE
body width	0.48 inch
subject depth	0.71 inch
body length	0.32 inch
Body/casing type	JACK
Configuration	1X1 HORIZONTAL
Connector type	3.5mm AUDIO
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	BRASS
Contact resistance	50 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	5000 Cycles
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of poles	3
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
polarization key	POLAR PIN POSITION
Rated current (signal)	1 A
reliability	COMMERCIAL
Terminal length	0.13 inch
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

For more information, please visit the

product page.

date

page

12/21/2011

1 of 3

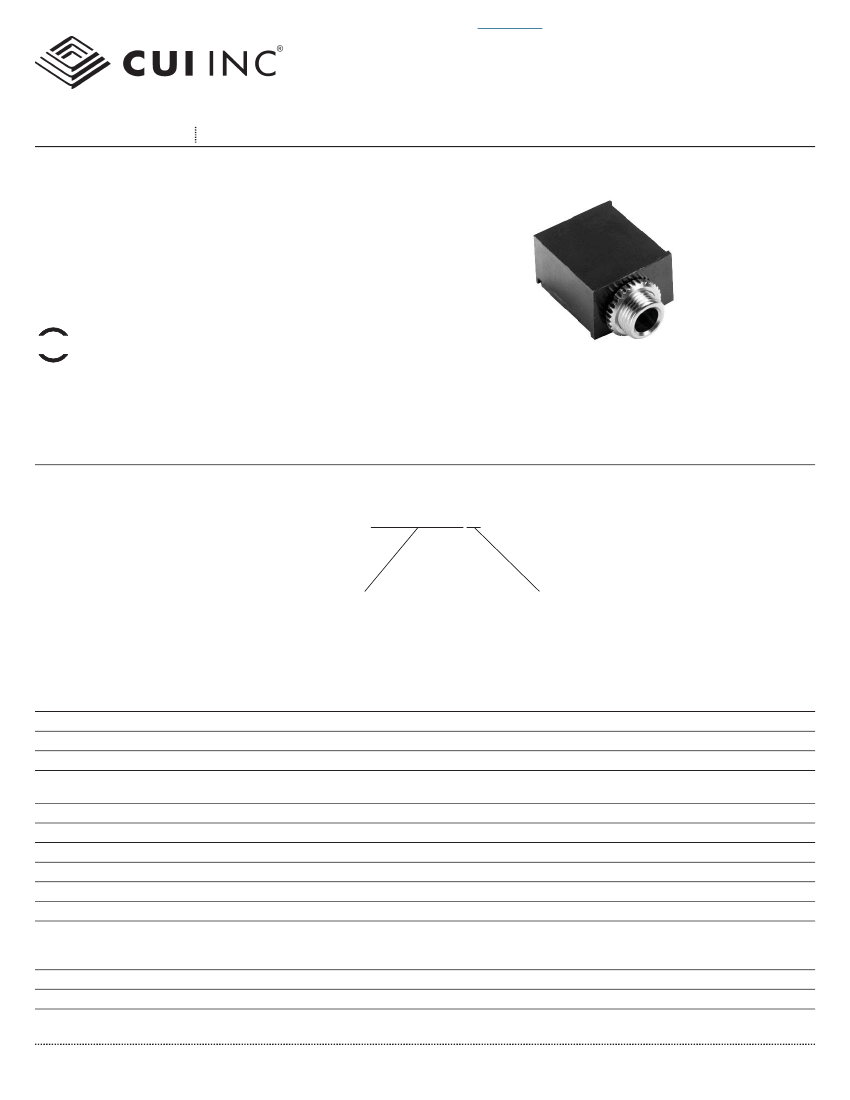

SERIES:

SJ1-353

FEATURES

• low profile design

• threaded with nut

• switch options include:

– no switch

– tip switch

– tip and ring switch

DESCRIPTION:

3.5 MM AUDIO JACKS

RoHS

PART NUMBER KEY

SJ1 - 353

X

Base Number

Switch Options

3 = no switch

4 = tip switch

5 = tip and ring switch

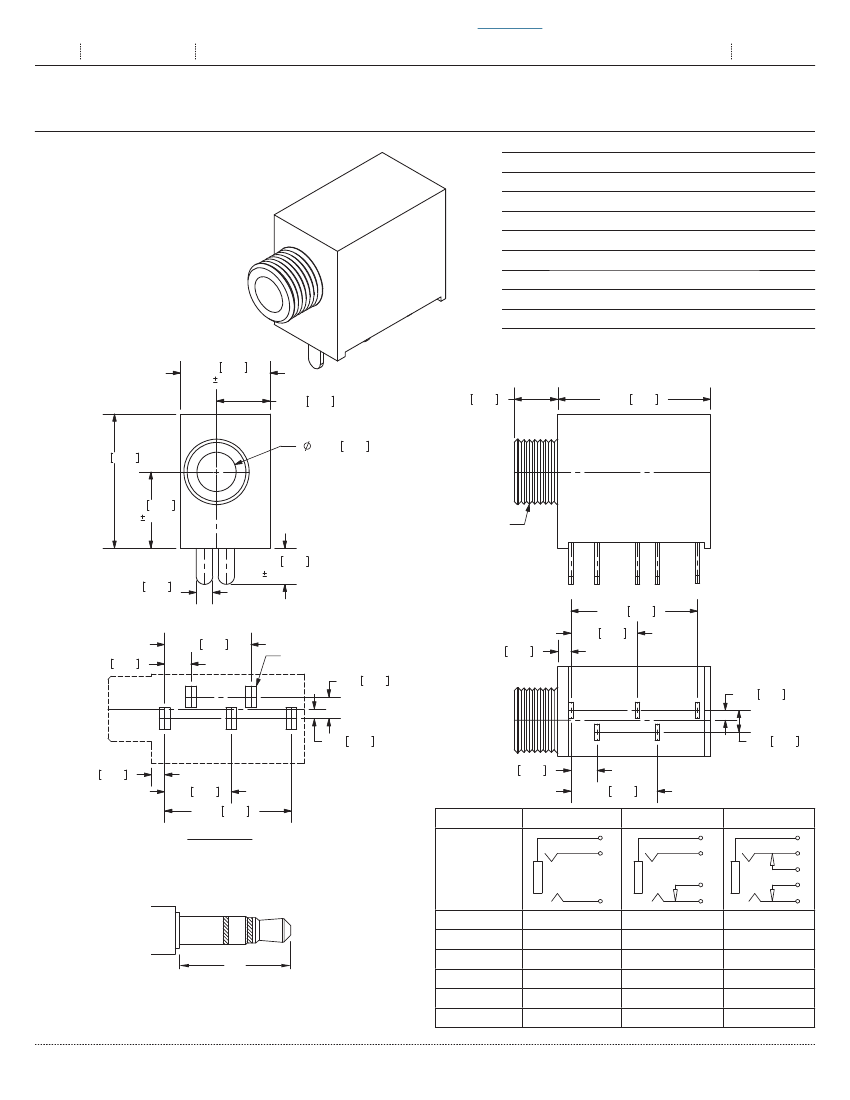

SPECIFICATIONS

parameter

rated input voltage

rated input current

contact resistance

insulation resistance

voltage withstand

insertion/withdrawl force

terminal strength

operating temperature

life

Notes:

*When measured at a current of less than 100 mA / 1 kHz

conditions/description

min

typ

12

max

1

units

Vdc

A

mΩ

MΩ

Vac

kg

g

°C

cycles

between terminal and mating plug

between terminal in a closed circuit

*

at 500 Vdc

at 50/60Hz for 1 minute

0.3

any direction for 10 seconds

-25

5,000

100

50

30

500

3

500

85

SOLDERABILITY

parameter

wave soldering

conditions/description

dipped in solder pot for 5±0.5 seconds at

min

255

typ

260

max

265

units

°C

cui.com

SJ1-3533 Related Products

	SJ1-3533	SJ1-3534	SJ1-3535
Description	Film Capacitors 1uF 16VDC 20% 1210 Acryllic Resin	USB Cables / IEEE 1394 Cables USB Type C to C USB 2.0 BLK 1.0m	Automotive Connectors STAC64 VERT HDR 16C BLK POL A TRAY
Brand Name	CUI Inc	CUI Inc	CUI Inc
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE
body width	0.48 inch	0.48 inch	0.48 inch
subject depth	0.71 inch	0.71 inch	0.71 inch
body length	0.32 inch	0.32 inch	0.32 inch
Body/casing type	JACK	JACK	JACK
Configuration	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL
Connector type	3.5mm AUDIO	3.5mm AUDIO	3.5mm AUDIO
Contact to complete cooperation	TIN	TIN	TIN
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact material	BRASS	BRASS	BRASS
Contact resistance	50 mΩ	50 mΩ	50 mΩ
DIN compliance	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
Durability	5000 Cycles	5000 Cycles	5000 Cycles
IEC compliance	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK
JESD-609 code	e3	e3	e3
MIL compliance	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
Number of poles	3	3	3
Number of ports	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
polarization key	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION
Rated current (signal)	1 A	1 A	1 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.13 inch	0.13 inch	0.13 inch
Termination type	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1
