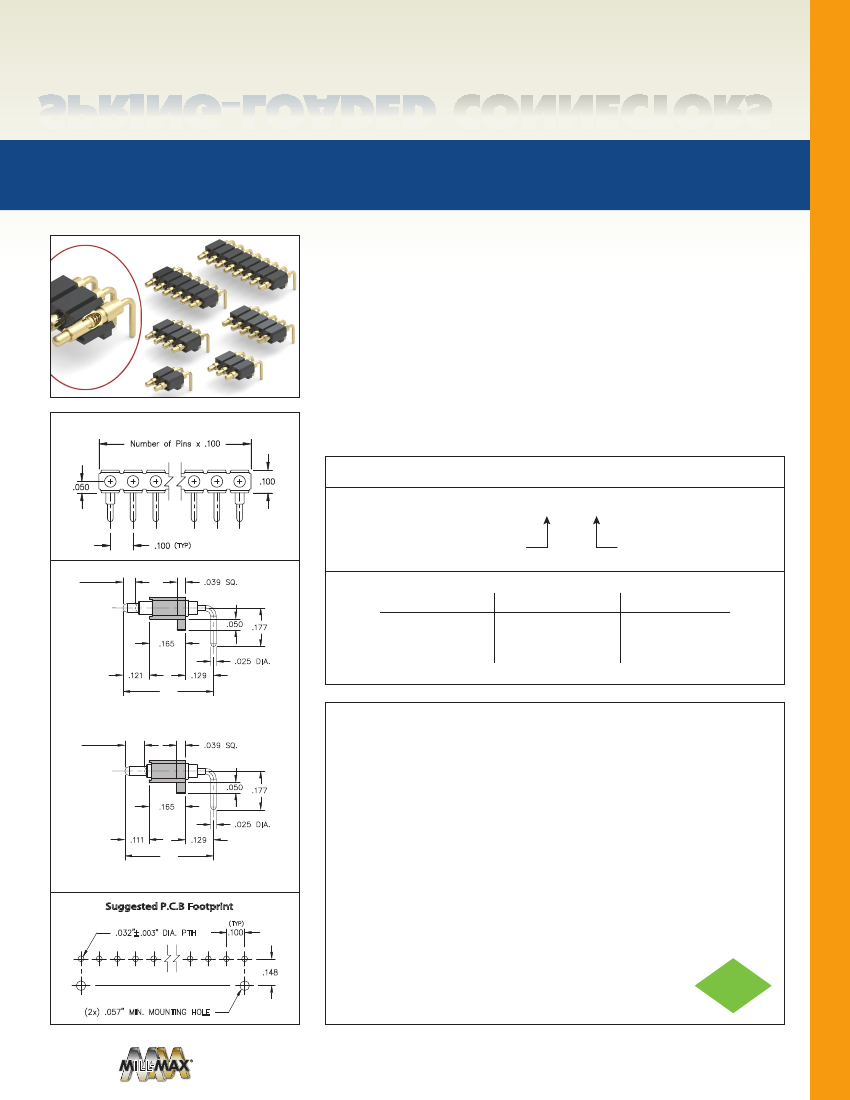

SPRING-LOADED
CONNECTORS
SERIES 829 • .100” GRID RIGHT ANGLE MOUNT •
SINGLE ROW STRIPS
• Modular contacts for use on .100” grid. Supplied in single row strips with mounting pegs
for support
• Precision-machined piston / base and gold-plated components assure up to 1,000,000
cycle life durability
• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
• High temperature thermoplastic insulators are suitable for wave and reflow processes
• 829 series contact strips are designed for manual placement into Ø .032±.003” plated
through-holes in the circuit board prior to wave or reflow soldering
SINGLE ROW Series 829
Number of Pins x .100
ORDERING INFORMATION
.100
Single Row Series 829
829-22-0XX-20-00X101
.050
.100
(TYP)
Specify number of contacts
01-20
Specify contact style
1 or 2
Stroke
B
CONTACT STYLE
1
2
A
INITIAL LENGTH A
.415
.406
MAX. STROKE B
.055
.090
Contact style 1 only
Stroke
B
A
Contact style 2 only
Suggested P.C.B Footprint
Mechanical:
Spring force @ initial length (A): 25 grams
Spring force @ mid stroke (B/2): 60 grams
Durability: Up to 1,000,000 cycles
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20mW max.
Insulation resistance: 10,000MW min.
Dielectric strength: 700Vrms min.
Capacitance: 1pF max.
2011/65/EU
RoHS - 2
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 16 | SPRING-LOADED CONNECTORS
Materials:
Contact piston & base: Machined copper alloy plated 20μ” gold over
100μ” nickel
Spring: Beryllium copper-plated 10μ” gold
Insulator: High temperature thermoplastic, rated UL94 V-0
Technical Specifications
