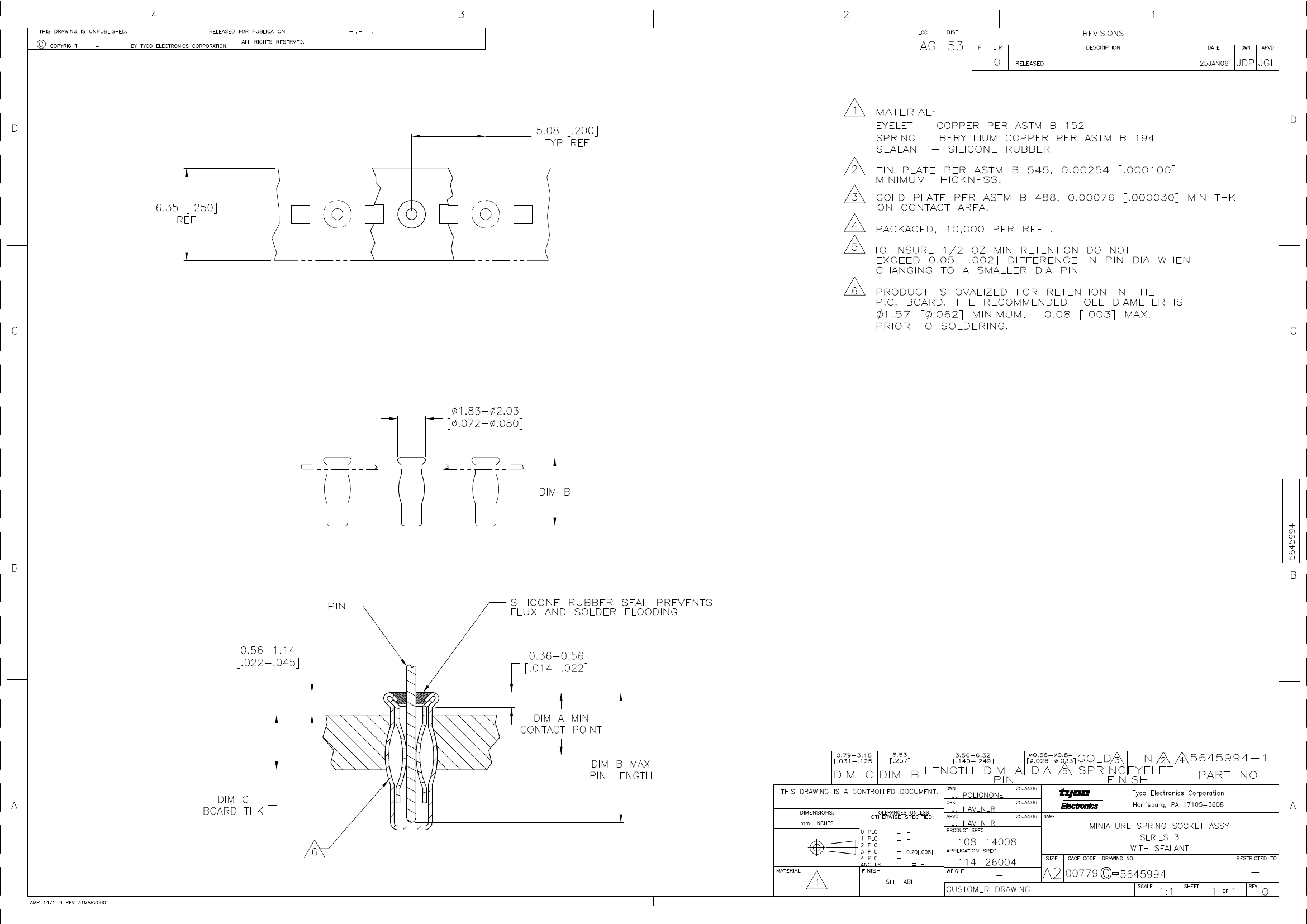

MSS ASSY SERIES 3 W/SEALANT
| Parameter Name | Attribute value |
| Casing type | closed |
| Connector System | cable to board |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| shape | zero |
| Cable type | Separate conductor |
| Sealants | yes |
| Casing plating materials | tin |
| Casing material | copper |
| Terminal base material | beryllium copper alloy, beryllium copper alloy, beryllium copper alloy |
| Contact Current Rating (Max) (A) | 6.5 |
| Terminal type | socket |
| Contact spring plating thickness | .762 µm [ 30 µin ] |
| Contact spring plating materials | gold |
| Terminal contact plating thickness | 30 µm [ 30 µin ] |
| Terminal conduction (typ.) | Signal (data)/power |
| Outlet type | Separate |
| PCB Termination Methods | Through hole - solderless connection |
| Cable termination method | welding |
| insertion method | Manual/semi-automatic |
| Socket length | 6.53 mm [ .257 in ] |
| Hole size (recommended) | 1.57 mm [ .062 in ] |
| Cable size | .326 – .518 mm² [ 22 – 20 AWG ] |
| Engagement pin diameter range | .66 – .84 mm [ .026 – .033 in ] |
| PCB thickness (recommended) | .79 – 3.18 mm [ .031 – .125 in ] |
| Working group temperature range | -65 – 125 °C [ -85 – 257 °F ] |
| Circuit Application | Power and Signal |
| Encapsulation method | roll, carrier tape |
| Package quantity | 10000 |
| Spring Material | beryllium copper alloy |
