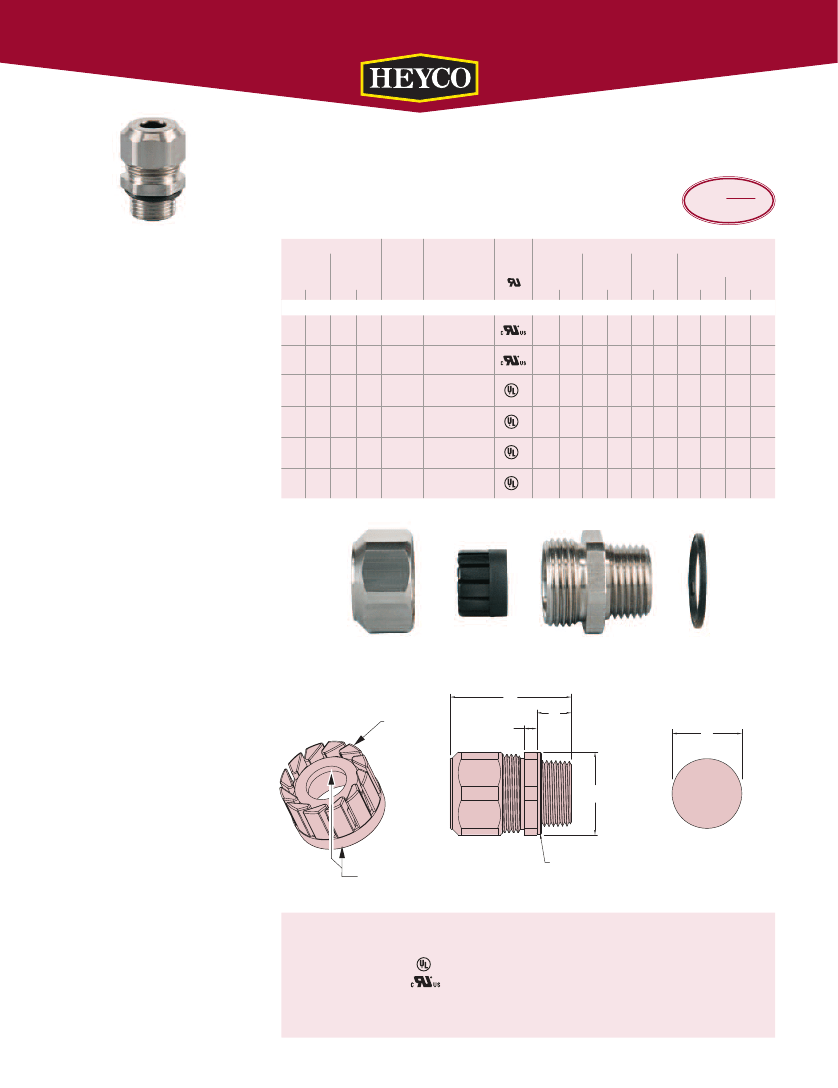

Liquid Tight Cordgrips
HEYbrid Stainless Steel Liquid Tight Cordgrips
Straight-Thru, Pg Hubs
Don’t get SKU’ed: More Cable Range, Fewer SKU’s –
Genetically engineered to destroy your inventory monster!
The Ultimate in Liquid Tight Strain Relief Protection
•
HEYCo-molded gripping finger/gland
technology
accommodates the
widest
cable range
over the
fewest sku’s.
•
Rolled grease-free threads
prevent
galling
and allow for multiple
assemblies and disassemblies.
No messy, unsightly thread
lubrication required.
•
Approved for
NEMA 4, 4X, 6 and 6P
applications.
•
Self-retaining sealing rings eliminate
the need for an O-Ring groove, thus
reducing cost.
•
Typical applications: Control cabinets,
marine, car washes, hot tubs,
instrumentation, carpet cleaning
machines, food processing equipment,
underground for direct burial
or submersed up to 130 ft. (70 PSIG).
•
Ideal for corrosive environments.
•
Constructed from corrosion resistant
303 stainless steel.
•
Resistant to salt water, acids and
most chemicals.
•
Locknuts not included. To order
locknuts separately, see page 3-46.
•
Patent pending.
•
DFARS Compliant
CABLE DIA. RANGE
Minimum Maximum
in. mm.
in.
mm.
5,3
M6030
6,4
M6031
5,8
M6032
8,0
M6033
RSSCG PG7
SSCG PG7
RSSCG PG9
SSCG PG9
RSSCG PG13.5
c
SSCG PG13.5
RSSCG PG16
SSCG PG16
RSSCG PG21
SSCG PG21
RSSCG PG29
SSCG PG29
c
US
™
ALL NEW
PRODUCTS!
PART
NO.
DESCRIPTION
or
PART DIMENSIONS
A
B
C
D
E
Clearance Max. O.A. Thread
Wrenching Nut
Hole Dia.
Length
Length Thickness Flat Size
in. mm. in. mm. in. mm. in. mm. in. mm.
HEYco-molded Finger/Gland
.065 1,7 .210
.115 2,9 .250
.065 1,7 .230
.105 2,7 .315
.492 12,5 1.24 31,5 .35
.599 15,2 1.31 33,3 .34
8,9 .20
8,6 .20
5,1
5,1
.75 19,1
.88 22,4
.095 2,4 .290 7,4
M6036
.170 4,3 .450 11,4
M6037
.180 4,6 .400 10,2
M6038
.260 6,6 .545 13,8
M6039
.250 6,4 .490 12,4
M6040
.435 11,0 .705 17,9
M6041
.490 12,4 .785 19,9
M6042
.590 15,0 1.000 25,4
M6043
.804 20,4 1.58 40,1 .42 10,7 .20
.886 22,5 1.73 43,9 .45 11,4 .20
1.115 28,3 1.91 48,5 .53 13,5 .20
1.470 37,3 2.19 55,6 .59 15,0 .20
5,1 1.06 26,9
5,1 1.25 31,8
5,1 1.31 33,3
5,1 1.75 44,5
US
c
US
c
US
The HEYCo-molded
Finger, Gland & Seat
NYLON
FINGERS
B
C
D
A
E
SUGGESTED CLEARANCE HOLE
FOR NONTHREADED MOUNTING
HEYCo-molded
ELASTOMERIC
GLAND AND SEAT
RETAINED
SEALING WASHER
Material
Quick
Specs
3-25
Certifications
Flammability Rating
Temperature Range
IP Rating
c
US
303 Stainless Steel Body and sealing nut with nylon 6/6 and TPE
co-molded finger/gland assembly
SBR Sealing Washer
Listed under Underwriters’ Laboratories File E51579
Recognized under Underwriters’ Laboratories File E51579
94V-2
-40°F (-40°C) to 221°F (105°C)
IP68 (70 PSI, 5 BAR)
