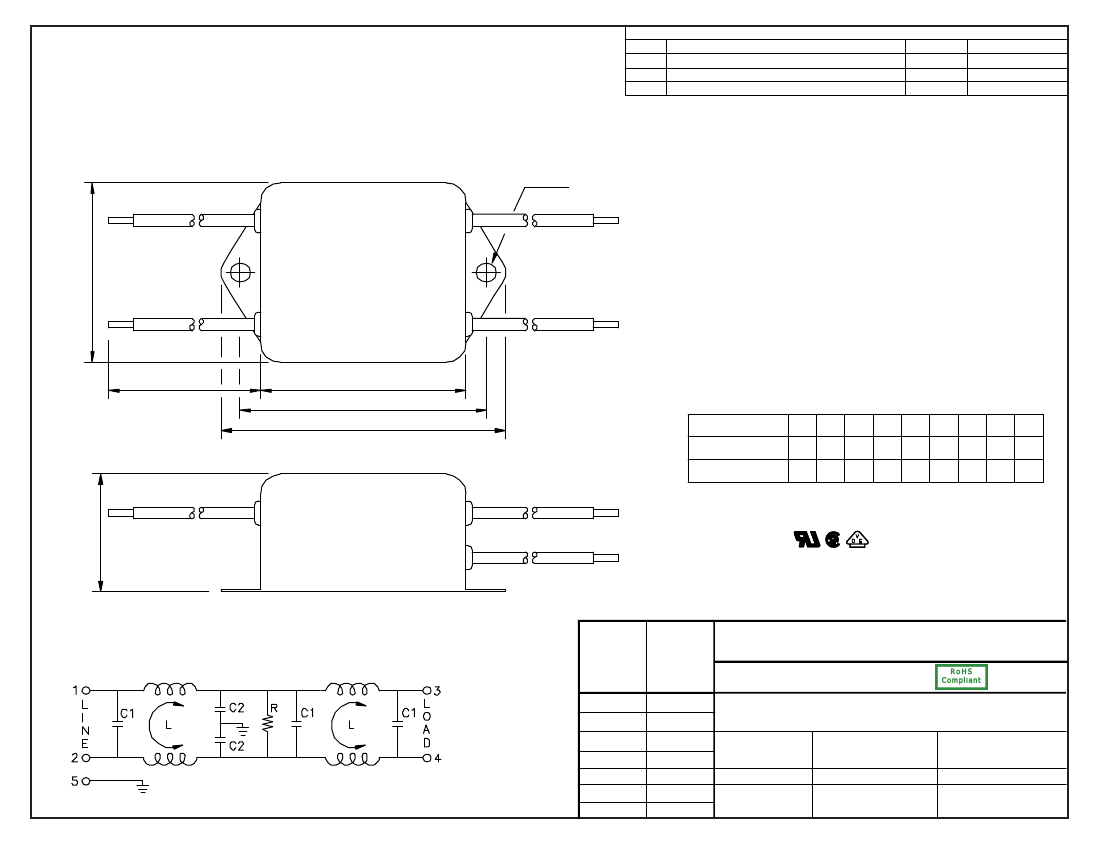

1. PHYSICAL DIMENSIONS:
Ø0.188
BROWN
1.90MAX
BROWN
REVISION
REV.
B
DESCRIPTION
RoHS Compliancy
DATE
06-01-06
APPROVED
DP
ELECTRICAL CHARACTERISTICS:
1-1.
VOLTAGE RATING...................................115/250VAC
1-2.
CURRENT RATING
A. @ 115 VAC..........................................2 A RMS MAX
B. @ 250 VAC.........................................2 A RMS MAX
OPERATING FREQUENCY......................50/60Hz
LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.25 mA MAX
B. @ 250 VAC 50Hz............................0.45 mA MAX
HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.01
7
1
.05
8
2
.10
30
3
.15
40
5
.50
60
50
1.0
65
65
5.0
55
60
10
50
54
30
40
46
1-3.
1-4.
BLUE
BLUE
1-5.
4.0MIN
2.08MAX
2.38 ± 0.02
2.77MAX
1-6.
FREQ. MHz
COM. MODE dB
DIF. MODE dB
1.15MAX
1-7.
OPERATING TEMPERATURE.................-25° TO +85° C
SAFETY:
RoHS COMPLIANT
G/Y
1-8.
1-9.
2. SCHEMATIC:
L:
C1:
C2:
R:
2.4mH
0.1uF
3300pF
2.2MΩ
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
PPC DIVISION
854-02/002
EMI FILTER
UNIT: in
REV. B
Approved / Date
JJH / 07-11-03
Drawn / Date
B.Zhang
07-11-03
Checked / Date
07-11-03
