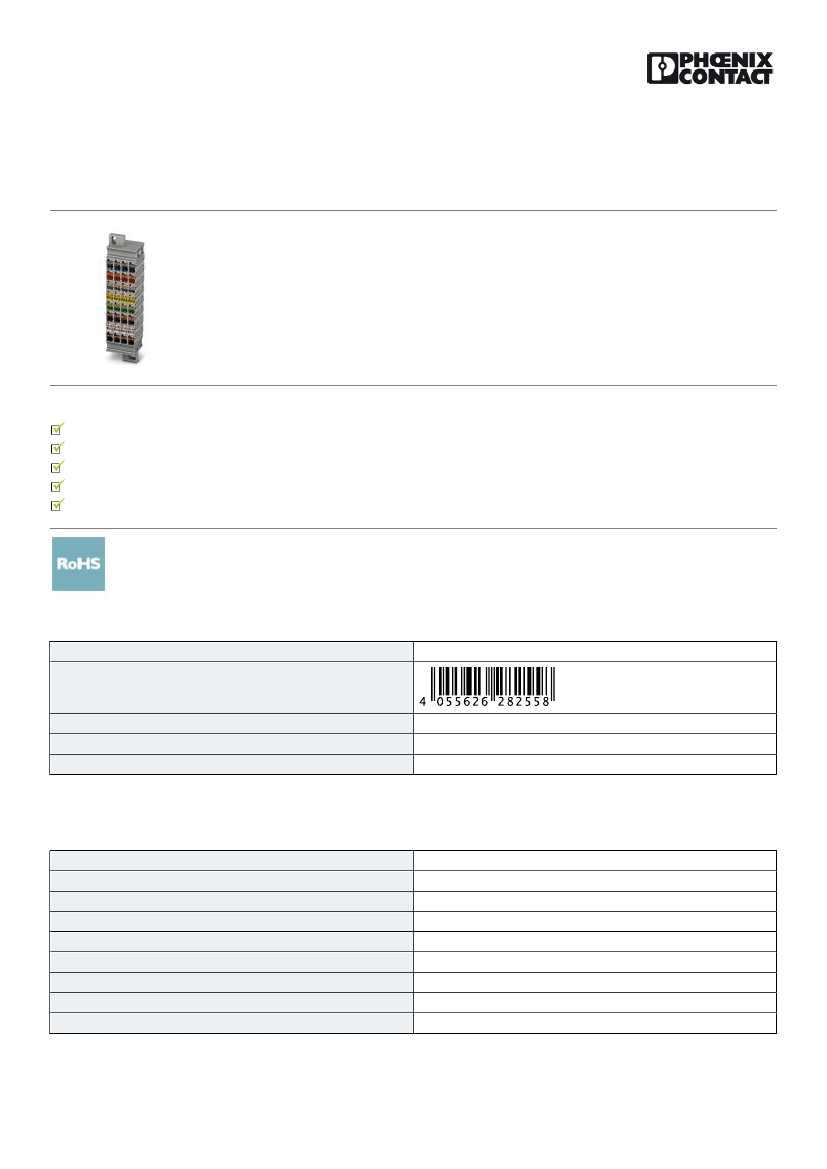

Marshalling patchboard - PTMC 1,5/32-2H VDE0815 19Z - 3270395
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Marshalling patchboard, Nom. voltage: 500 V, Nominal current: 17.5 A, Cross section: 0.14 mm² - 2.5 mm²,
AWG: 14 - 26, Connection type: Push-in connection, Number of positions: 32, Number of connections: 128,
Width: 34.4 mm, Length: 111 mm, Color: gray, Assembly: Wall mounting, 19" rack
Why buy this product
For mounting in 19" racks
Color configuration according to VDE 0815
High contact quality thanks to push-in technology as a replacement for Wire-Wrap®, TERMI-POINT®, etc.
Tool-free wiring in a confined space thanks to compact size
Clear representation of actuation and terminal points through vertical conductor routing
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4055626282558
85369010
Made to Order (non-returnable)
24 STK
Technical data
General
Note
Number of positions
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Labeled from 1 - 32
32
1
128
1.5 mm²
gray
PA
V0
6 kV
01/26/2017 Page 1 / 6
https://www.phoenixcontact.com/hq/products/3270395
Marshalling patchboard - PTMC 1,5/32-2H VDE0815 19Z - 3270395
Technical data
General
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
3
III
I
24 A (for a conductor cross section of 2.5 mm², the total current of all
connected conductors must not exceed the maximum load current.)
12 A (for a conductor cross section of 2.5 mm², the total current of all
connected conductors must not exceed the maximum load current.)
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
17.5 A
500 V
No
130 °C
125 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
27,5 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height
34.4 mm
111 mm
30 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Push-in connection
IEC 60947-7-1
0.14 mm²
2.5 mm²
26
14
0.14 mm²
1.5 mm²
26
01/26/2017 Page 2 / 6
https://www.phoenixcontact.com/hq/products/3270395
Marshalling patchboard - PTMC 1,5/32-2H VDE0815 19Z - 3270395
Technical data
Connection data
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
14
0.14 mm²
0.14 mm²
1.5 mm²
8 mm ... 10 mm
A1
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram

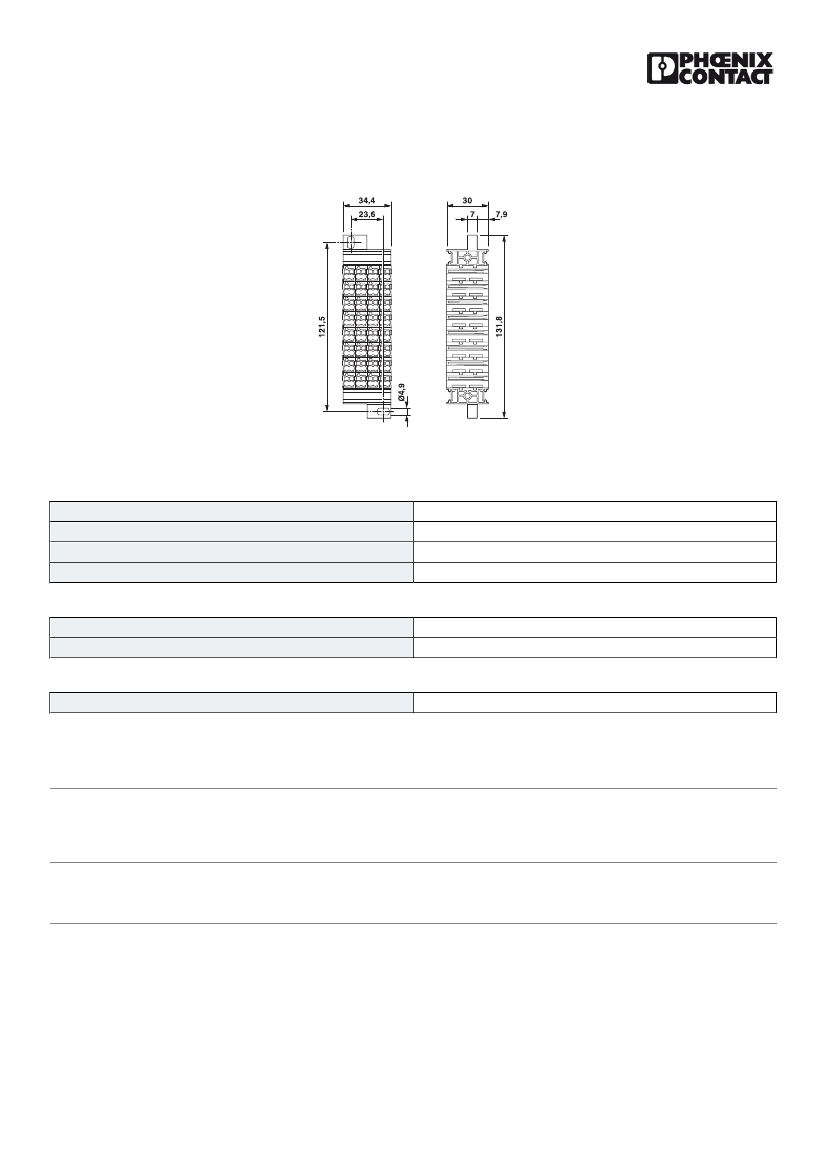

Dimensional drawing
35,4
+1
Panel cutout
112
+1
01/26/2017 Page 3 / 6
https://www.phoenixcontact.com/hq/products/3270395
Marshalling patchboard - PTMC 1,5/32-2H VDE0815 19Z - 3270395
Dimensional drawing
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
eCl@ss 9.0
27141124
27141124
27141120
27141120
ETIM
ETIM 5.0
ETIM 6.0
EC000897
EC000897
UNSPSC
UNSPSC 13.2
39121410
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approval details
01/26/2017 Page 4 / 6
https://www.phoenixcontact.com/hq/products/3270395
Marshalling patchboard - PTMC 1,5/32-2H VDE0815 19Z - 3270395
Approvals
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
24-16
10 A
300 V
FILE E 60425
24-16
10 A
300 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
24-16
10 A
300 V
FILE E 60425
24-16
10 A
300 V
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Accessories
Accessories
Bridge
Wire bridge - DB 50- 90 BU - 2821180
Wire bridge, Color: blue
Wire bridge - DB 50- 90 BK - 2820916
Wire bridge, Color: black
01/26/2017 Page 5 / 6
