• Glass sealed package assures high reliability and high temperature operation
• Tight tolerance and stability available
• Suitable for RoHS compliant reflow
• Low cost glass sealed crystal solution
RoHS /RoHS II Compliant
Pb in glass (exempt per RoHS II 2011/65/EU Annex (5))
8.0 x 4.5 x 1.4m m
Moisture Sensitivity Level (MSL) –This product is Hermetically Sealed and not Moisture Sensitive -MSL = N/A: Not Applicable
APPLICATIONS:
• High density applications
• Modems, communication and test equipment
• PMCIA, Wireless applications
• Microprocessor crystals

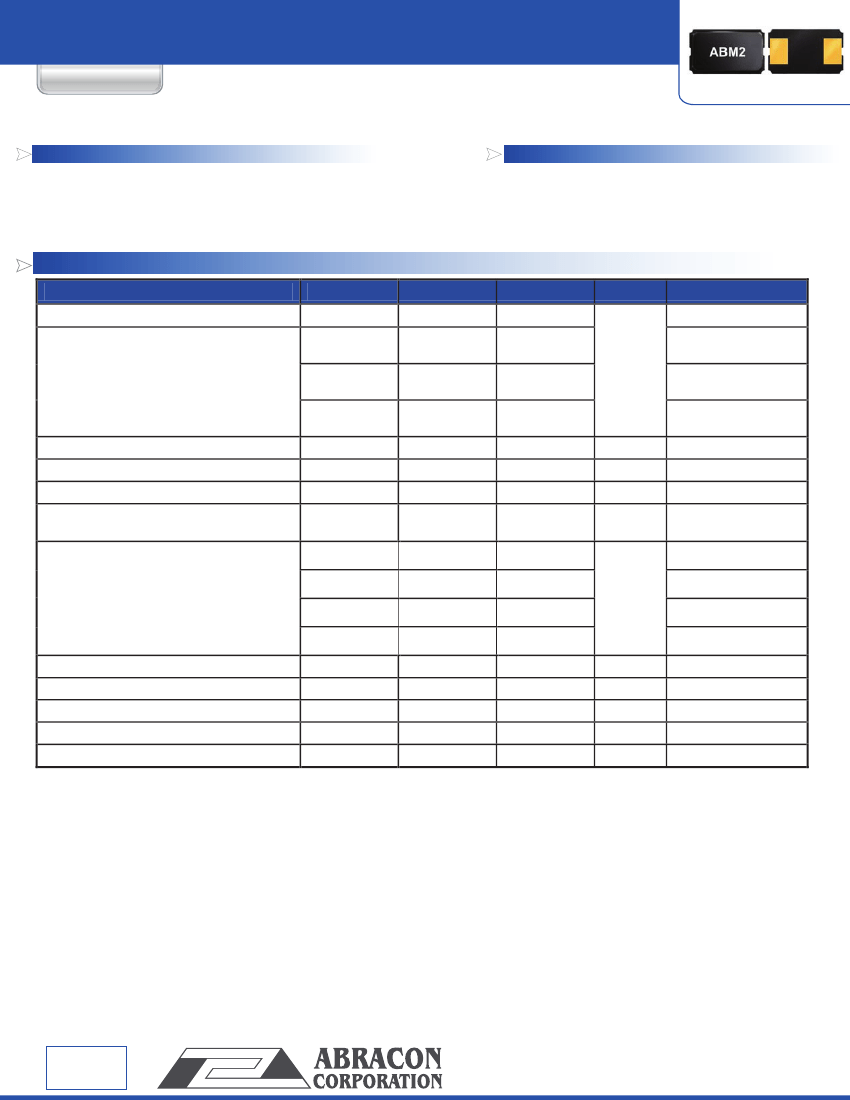

STANDARD SPECIFICATIONS:
Parameters
Frequency Range
Minimum
8.000
8.000
Typical
-----
-----
-----
-----
-----
-----
-----
-----
-----
-----
-----
-----
-----
18
10
-----
-----
Maximum
100.000
40.000
100.000
60.000
+60
+85
+50
+50
Units
Notes
Fundamental
Fundamental AT-
cut (Standard)
3
rd
OT AT-cut
(Standard)
Fundamental AT-
cut (See options)
See options
See options
See options
8.000 – 10.000MHz
(Fundamental)
10.001 – 15.999MHz
(Fundamental)
16.000 – 60.000MHz
(Fundamental)
40.000 – 100.000MHz
(3
rd
OT)
Operation mode
40.001
40.001
MHz
Operating Temperature
Storage Temperature
Frequency Tolerance @+25°C
Frequency Stability over the Operating
Temperature ( ref. to +25°C)
Equivalent series resistance
-10
-40
-50
-50
-----
-----
-----
-----
ºC
ºC
ppm
ppm
100
60
50
70
7
-----
100
±5
-----
pF
pF
µW
ppm
MΩ
Ω
Shunt capacitance (C0)
Load capacitance (CL)
Drive Level
Aging @ 25°C±3°C
Insulation Resistance
-----
-----
-----
-----
500
-----
See options
First year
@ 100Vdc
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
08.13.14
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit
www.abracon.comfor
Terms & Conditions of Sale
Revised:
CERAMIC SMD MICROPROCESSOR CRYSTAL
ABM2
ABM2-
RoHS /RoHS II Compliant
Pb in glass (exempt per RoHS II 2011/65/EU Annex (5))
8.0 x 4.5 x 1.4m m

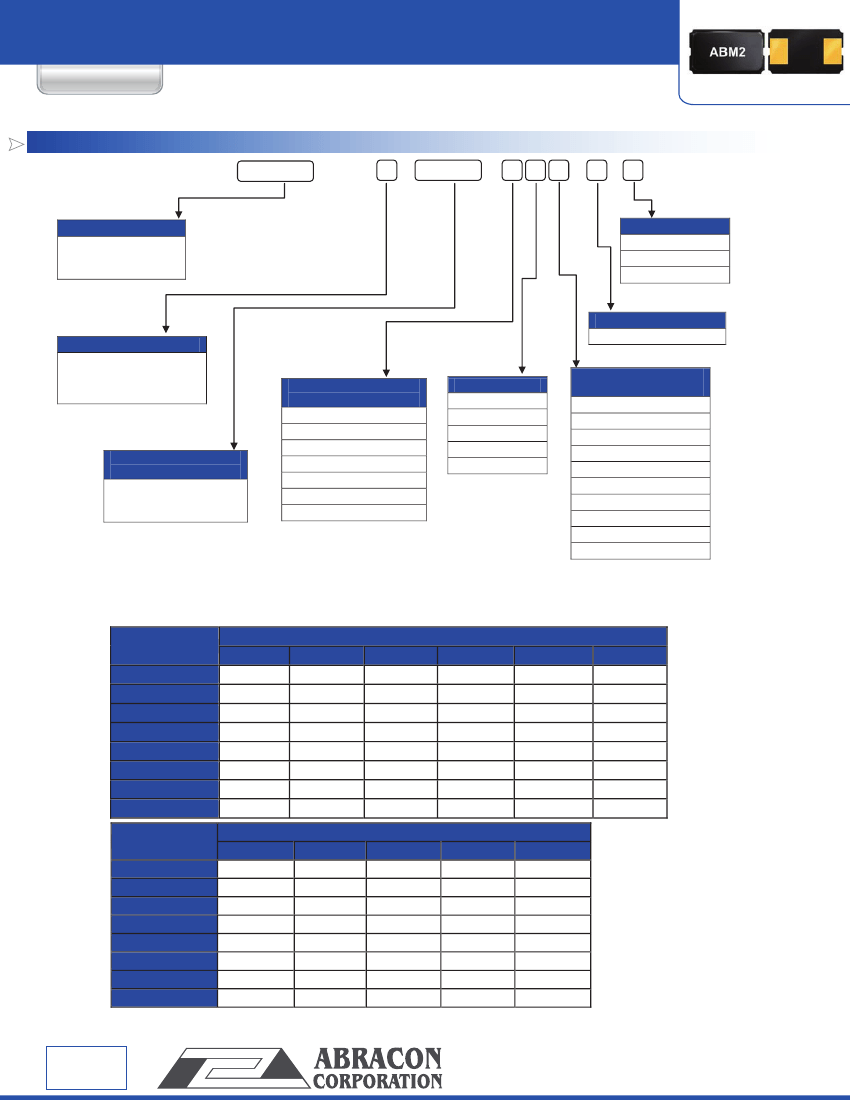

OPTIONS AND PART IDENTIFICATION:
(Left blank if standard)
MHz -
-
-
-
-
Packaging
Blank: Bulk
T: 1k reel
T2: 250pcs/reel
Mode
F: Fund AT for >40MHz
Frequency in MHz
e.g. 8.000MHz
14.31818MHz
26.000MHz
Load Capacitance (pF)
Please specify CL in pF
(8 to 33pF) or S for series
Please contact ABRACON for
other values
Custom ESR if other
than standard
R□
□:
Specify a value in
Ω
(e.g.: R40)
Operating Temp.
(See Table 1 for details)
E: 0°C ~ +70°C
B: -20°C ~ +70°C
C: -30°C ~ +70°C
N: -30°C ~ +85°C
D: -40°C ~ +85°C
J: -40°C ~ +105°C
K: -40°C ~ +125°C
Freq. Tolerance
1: ± 10 ppm
7: ± 15 ppm
2: ± 20 ppm
3: ± 25 ppm
4: ± 30 ppm
Freq. Stability
(See Table 1 for details)
U: ±10 ppm
G: ±15 ppm
X: ±20 ppm
W: ±25 ppm
Y: ±30 ppm
H: ±35 ppm
A: ±80 ppm
Q: ±100 ppm
V: ±120 ppm
P: ±150 ppm
Note: See Table 1 for the availability of Operating Temp. and Freq. Stability combination
Table 1 Available Combinations of Operating Temp. and Freq. Stability
Operating Temp.
Std: -10°C ~ +60°C
E: 0°C ~ +70°C
B: -20°C ~ +70°C
C: -30°C ~ +70°C
N: -30°C ~ +85°C
D: -40°C ~ +85°C
J: -40°C ~ +105°C
K: -40°C ~ +125°C
Operating Temp.
Std: -10°C ~ +60°C
E: 0°C ~ +70°C
B: -20°C ~ +70°C
C: -30°C ~ +70°C
N: -30°C ~ +85°C
D: -40°C ~ +85°C
J: -40°C ~ +105°C
K: -40°C ~ +125°C
Freq. Stability
Std:±50ppm
√
√
√
√
√
√*
A:±80ppm
√
√
√
√
√
√
Q:±100ppm
√
√
√
√
√
√
√
√
V:±120ppm
√
√
√
√
√
√
√
√
P:±150ppm
√
√
√
√
√
√
√
√
Freq. Stability
U:±10ppm
√
G:±15ppm
√
√
√
X:±20ppm
√
√
√
W:±25ppm
√
√
√
√
Y:±30ppm
√
√
√
√
√
√*
H:±35ppm
√
√
√
√
√
√*
Note: *: Availability depends on frequency.
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
08.13.14
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit
www.abracon.comfor
Terms & Conditions of Sale
Revised:
CERAMIC SMD MICROPROCESSOR CRYSTAL
ABM2
RoHS /RoHS II Compliant
Pb in glass (exempt per RoHS II 2011/65/EU Annex (5))
8.0 x 4.5 x 1.4m m

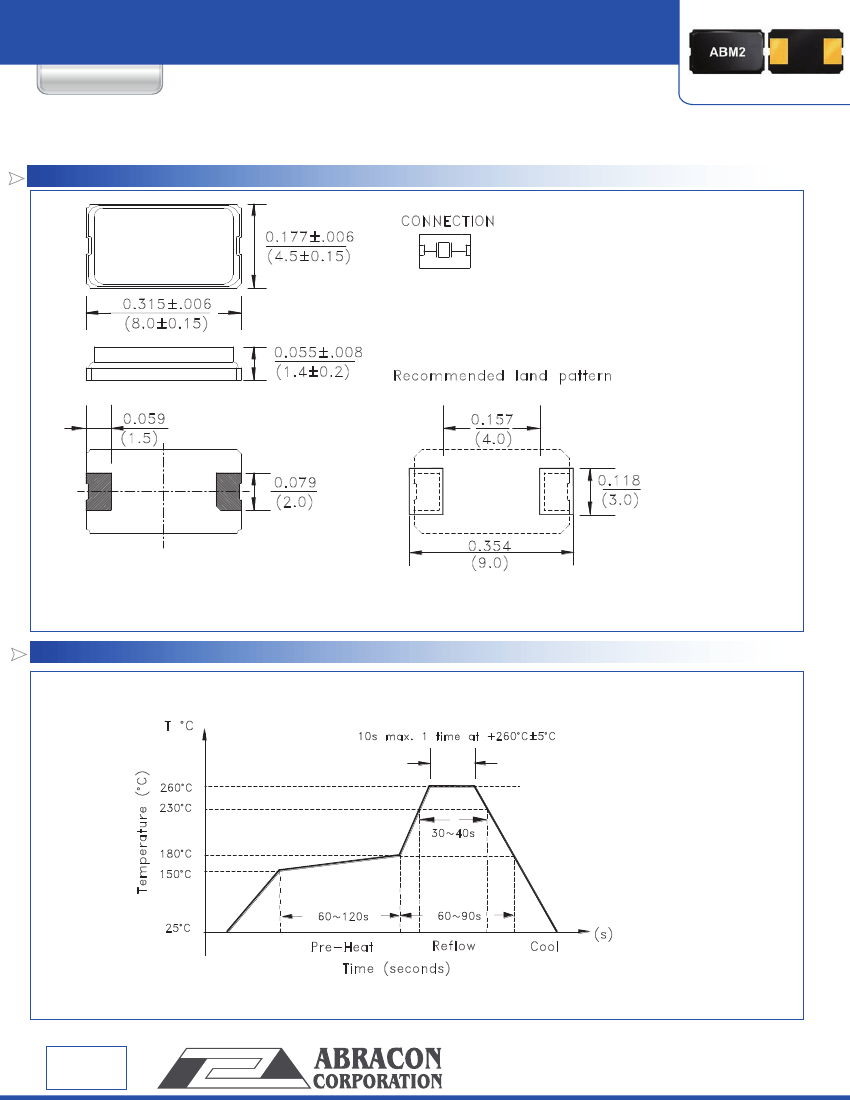

OUTLINE DIMENSION:
Note: Due to the availability of raw materials, the chamfer may not appear on the both pads. Be advised that this does
not affect the electrical characteristics of the crystal in any way.
Dimensions: inches (mm)
REFLOW PROFILE:
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
08.13.14
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit
www.abracon.comfor
Terms & Conditions of Sale
Revised:
CERAMIC SMD MICROPROCESSOR CRYSTAL
ABM2
RoHS /RoHS II Compliant
Pb in glass (exempt per RoHS II 2011/65/EU Annex (5))
8.0 x 4.5 x 1.4m m

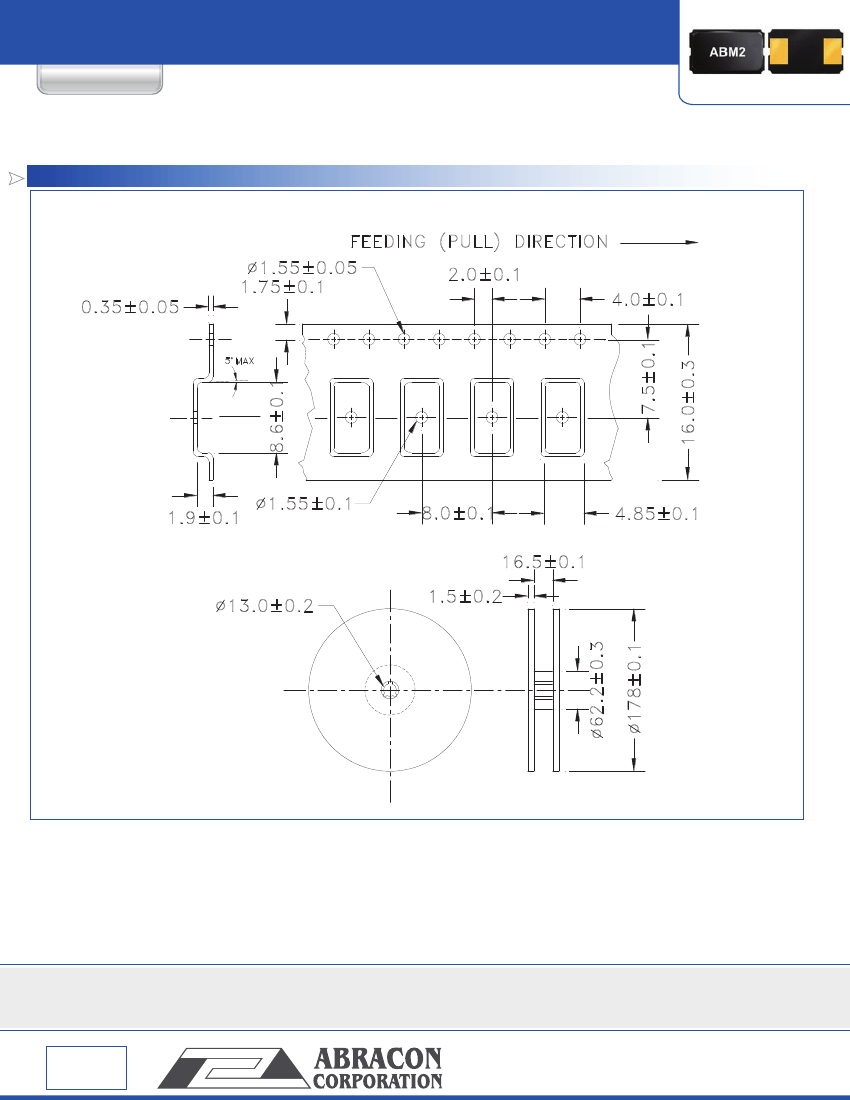

TAPE & REEL:
T: 1000pcs/reel
T2: 250pcs/reel
Dimensions: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
