Film Capacitors 440V 40uF

23FB4440-F Parametric

Parameter Name	Attribute value
Product Category	Film Capacitors
Manufacturer	Cornell Dubilier
RoHS	Details
Termination Style	Quick Connect
Product	Motor Start Film Capacitors
Dielectric	Polypropylene (PP)
Capacitance	40 uF
Voltage Rating AC	440 VAC
Tolerance	10 %
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 70 C
Height	95.25 mm
Packaging	Bulk
Factory Pack Quantity	42

Preview

Download Datasheet

View All

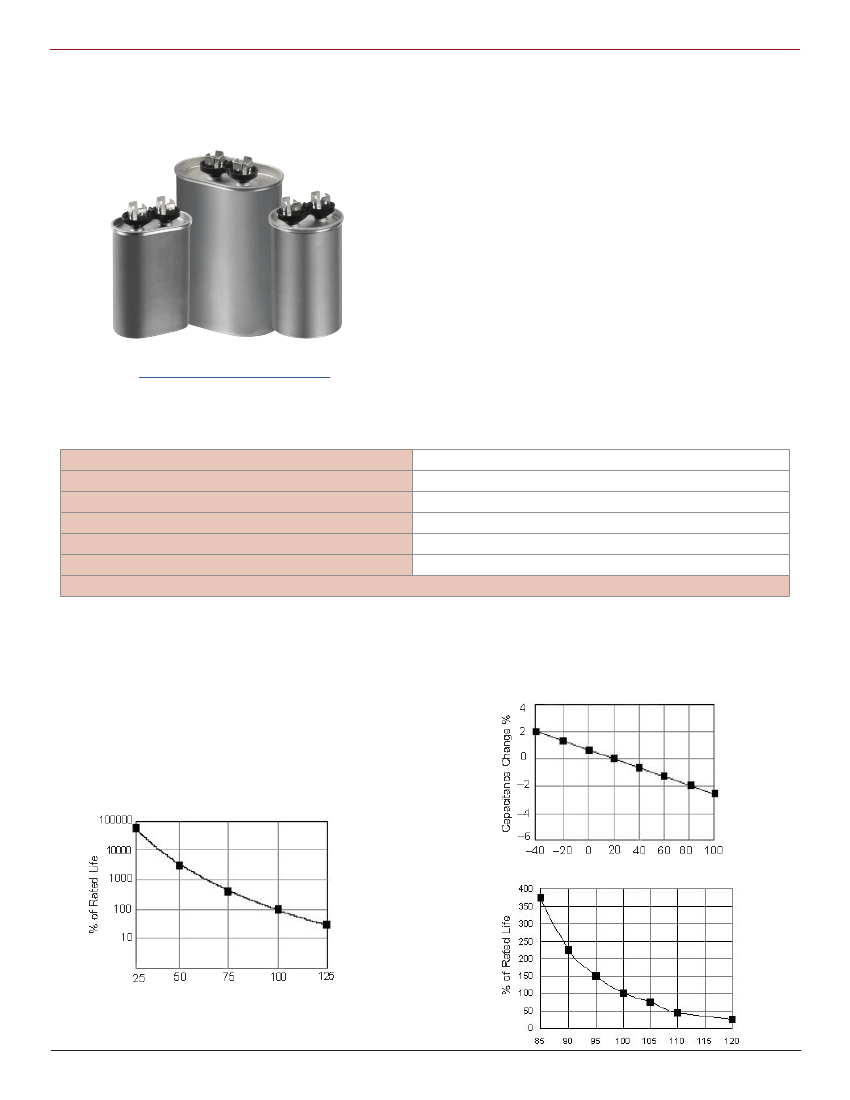

Type MPF, AC Motor Run Capacitors

Oval and Round, Oil Filled, 70 ºC, Metallized Polypropylene Capacitors

Type MPF AC metallized polypropylene film dielectric capacitors

offer a reliable option for alternating current applications. All

devices are oil filled in metal cases with 4-prong quick disconnect

terminals for easy assembly. These capacitors pack high

capacitance and voltage capabilities into a small, light-weight

package. The MPF is internally protected for fail-safe operation.

These capacitors have extremely low DF that is ideal for AC motor-

run applications.

Highlights

- Low DF

- Protected with a pressure sensitive interrupter

- Small size and light weight

- UL E71645

- CSA 219950

- Air conditioning and refrigeration applications

- Power factor correction

- Motors

1 µF to 80 µF

± 10%

330 Vac, 370 Vac and 440 Vac

–40 ºC to +70 ºC

50 Hz and 60 Hz

0.1% max @ 60 Hz

RoHS Compliant

Click here to view hardware

Specifications

Capacitance Range

Capacitance Tolerance

Rated Voltage

Operating Temperature Range with Ripple

Rated Frequency

Dissipation Factor

The service life objective for this series is 60,000 hours of

operating life with a 94% survival rate when operated at

full voltage, 60 Hz, and rated ambient temperature. AC ca-

pacitors are frequently used at voltages and ambient tem-

peratures other than rated conditions. Service life may be

estimated under specific conditions of temperature and

voltage by using the curves as shown below and to the

right.

Service Life Objective

Capacitance vs. Temperature

The Capacitance vs. Temperature curve may be used to determine

the capacitance change as a function of temperature. Capacitance

varies by no more than ±3% over the operating temperature range.

Capacitance vs. Temperature

Life vs. Temperature

10000

% of Rated Life

1000

100

125

–20

Life vs. Voltage

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830

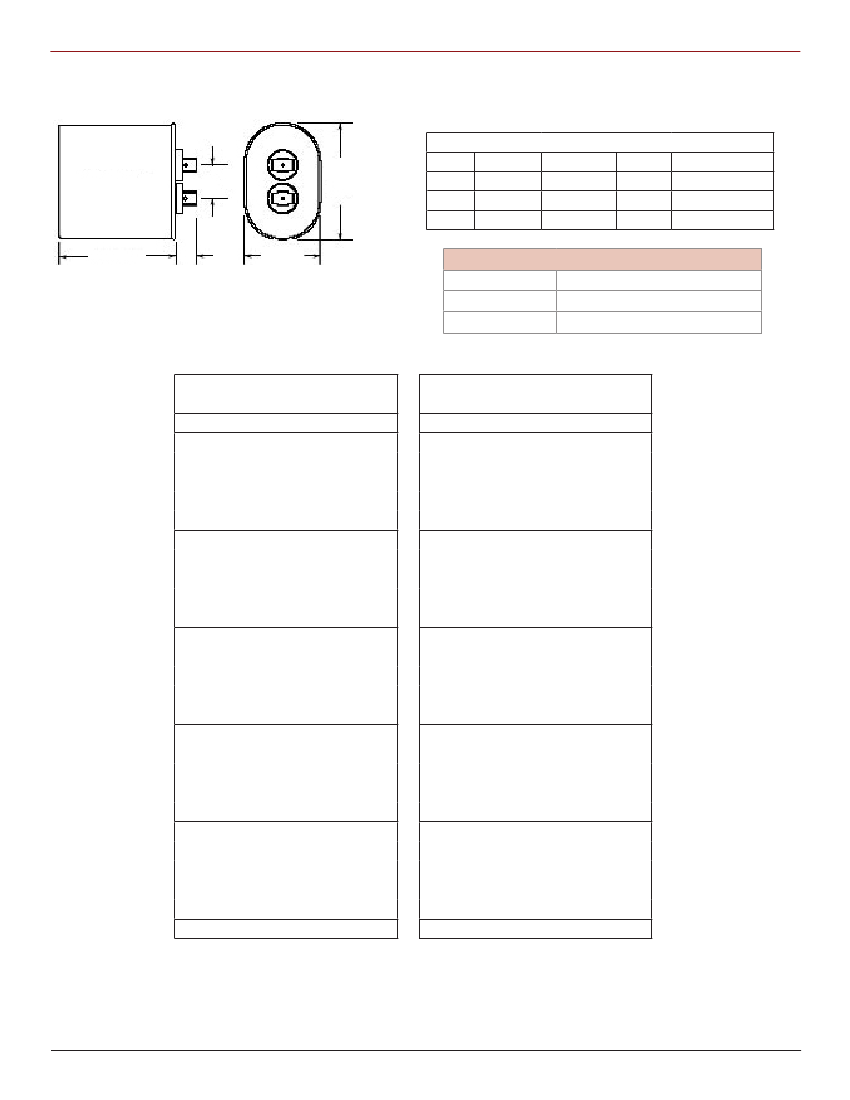

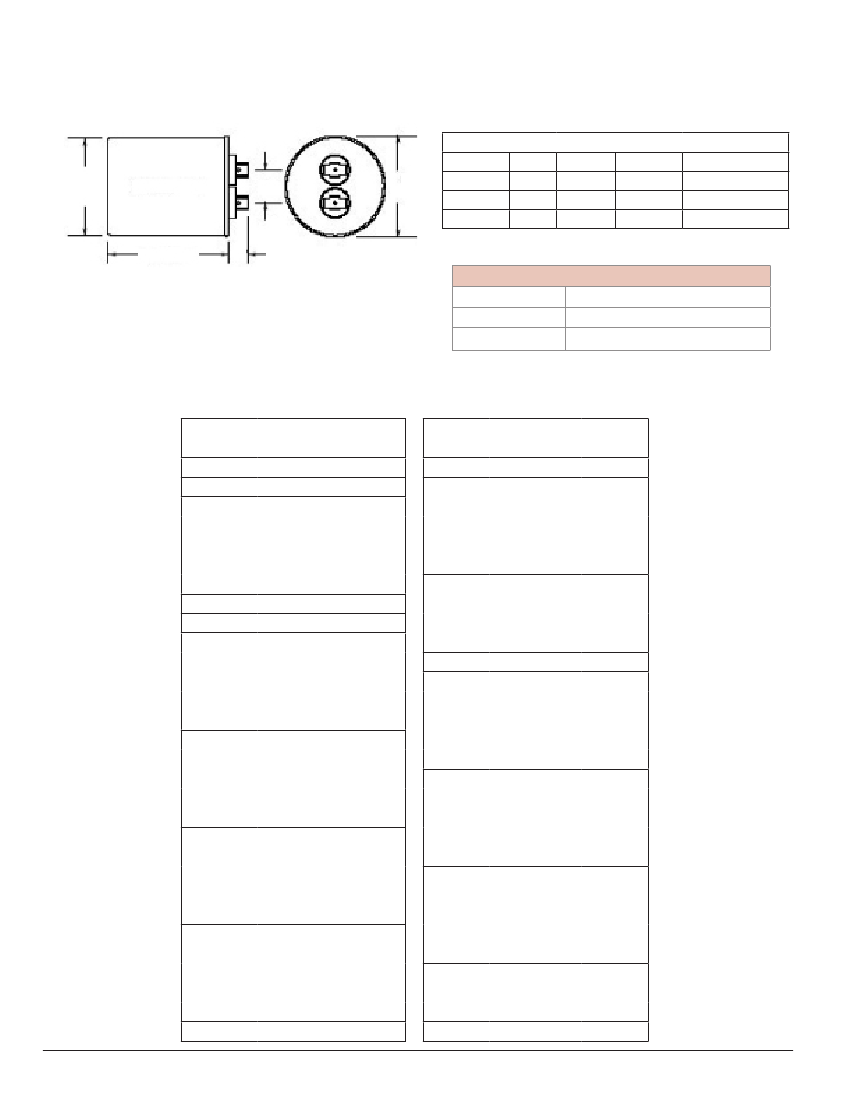

Type MPF, AC Motor Run Capacitors

Oval and Round, Oil Filled, 70 ºC, Metallized Polypropylene Capacitors

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and

data (collectively, the “Information”) in this datasheet or other publication are subject to change. The

customer is responsible for checking, confirming and verifying the extent to which the Information con-

tained in this datasheet or other publication is applicable to an order at the time the order is placed. All

Information given herein is believed to be accurate and reliable, but it is presented without any guaran-

tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability

for certain applications are based on the knowledge that the Cornell Dubilier company providing such

statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards

as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-

tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,

warranty or representation concerning the suitability for a specific customer application, use, storage,

transportation, or operating environment. The Information is intended for use only by customers who

have the requisite experience and capability to determine the correct products for their application. Any

technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference

to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),

and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although

Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design

and manufacturing of its products, in light of the current state of the art, isolated component failures may

still occur. Accordingly, customer applications which require a high degree of reliability or safety should

employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies

or other appropriate protective measures) in order to ensure that the failure of an electrical component

does not result in a risk of personal injury or property damage. Although all product-related warnings,

cautions and notes must be observed, the customer should not assume that all safety measures are indi-

cated in such warnings, cautions and notes, or that other safety measures may not be required.
