1330-32G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 1330-32G

1330-32G: DescriptionFixed Inductors 3.3uH 2% .85ohm Unsheilded SMT Ind; CategoryPassive components inductor; File Size1MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/

Download Datasheet Parametric View All

1330-32G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1330-32G	-	-	View	Buy Now

1330-32G Overview

Fixed Inductors 3.3uH 2% .85ohm Unsheilded SMT Ind

1330-32G Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	3313
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	3313
structure	Rectangular
core material	IRON
DC Resistance	0.85 Ω
Nominal inductance(L)	3.3 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package height	3.68 mm
Package length	8.26 mm
Package form	SMT
Package width	3.18 mm
method of packing	TR, 13 Inch
Minimum quality factor (at nominal inductance)	45
Maximum rated current	0.285 A
self resonant frequency	90 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	7.9 MHz
Tolerance	2%
Base Number Matches	1

Preview

Download Datasheet

View All

±1

(µ

SERIES

1330R

1330

TI )

RA A

T (m

EN UM

RR IM

CU X

AN )

ST S

SI HM

RE M (O

)

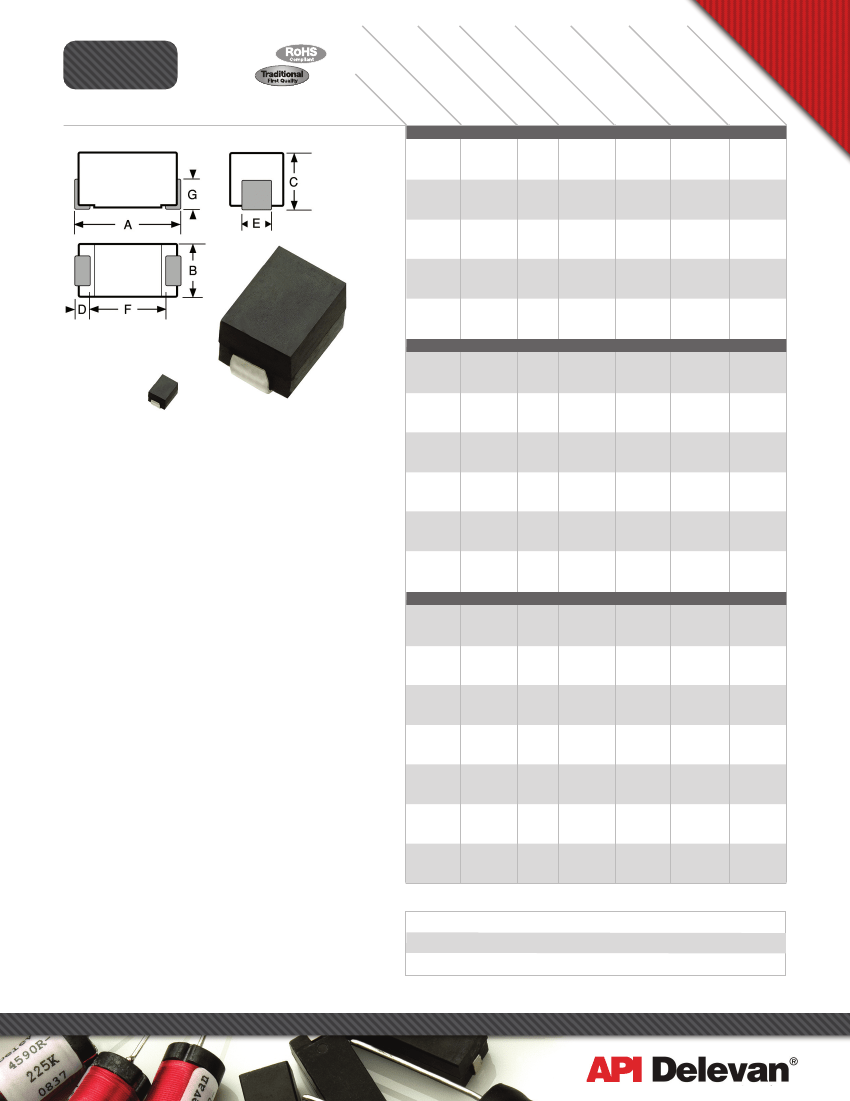

Unshielded Surface Mount Inductors

-94K

-96K

-00K

-02K

-04K

-06K

-08K

-10K

-12K

-14K

-16K

-18K

-20K

0.10

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.00

SERIES 1330 PHENOLIC CORE

25.0

680.0

25.0

640.0

25.0

600.0

25.0

550.0

25.0

510.0

25.0

430.0

25.0

410.0

25.0

365.0

25.0

330.0

25.0

300.0

25.0

275.0

25.0

250.0

25.0

230.0

0.08

0.09

0.10

0.12

0.14

0.16

0.22

0.30

0.35

0.50

0.60

0.85

1.00

1380

1300

1230

1120

1040

975

830

710

660

550

500

420

390

Actual Size

Physical Parameters

Inches

0.300 to 0.325

0.105 to 0.125

0.125 to 0.145

0.020 Min.

0.040 to 0.060

0.190 (Ref. only)

0.070 (Ref. only)

Weight Max

(Grams) 0.30

Millimeters

7.62 to 8.26

2.67 to 3.18

3.18 to 3.68

0.508 Min.

1.02 to 1.52

4.83 (Ref. only)

1.78 (Ref. only)

-22K

-24K

-26K

-28K

-30K

-32K

-34K

-36K

-38K

-40K

-42K

-44K

-46K

-48K

-50K

-52K

-54K

1.20

1.50

1.80

2.20

2.70

3.30

3.90

4.70

5.60

6.80

8.20

10.00

12.0

15.0

18.0

22.0

27.0

SERIES

1330 IRON CORE

7.9

150.0

7.9

140.0

7.9

125.0

7.9

115.0

7.9

100.0

7.9

90.0

7.9

80.0

7.9

75.0

7.9

65.0

7.9

60.0

7.9

55.0

7.9

50.0

2.5

40.0

2.5

35.0

2.5

30.0

2.5

25.0

2.5

20.0

0.18

0.22

0.30

0.40

0.55

0.85

1.00

1.20

1.80

2.00

2.70

3.30

2.70

2.80

3.10

3.30

3.50

620

560

480

415

355

285

263

239

195

185

160

144

160

157

149

144

140

Operating Temperature Range

Phenolic: –55°C to +125°C

Iron and Ferrite: –55°C to +105°C

Current Rating at 90°C Ambient

Phenolic: 35°C Rise

Iron and Ferrite: 15°C Rise

Maximum Power Dissipation at 90°C Ambient

Phenolic: 0.210 W

Iron: 0.090 W

Ferrite: 0.073 W

Marking

API/SMD; inductance with units and tolerance;

date code (YYWWL). Note: An R before the date code

indicates a RoHS component.

Example: 1330-42K

API/SMD

8.2uH±10%

0218A

Packaging

Tape & reel (16mm): 7" reel, 500 pieces max.;

13" reel, 2200 pieces max.

Made In the U.S.A.

-56K

-58K

-60K

-62K

-64K

-66K

-68K

-70K

-72K

-74K

-76K

-78K

-80K

-82K

-84K

-86K

-88K

-90K

-92K

33.0

39.0

47.0

56.0

68.0

82.0

100.0

120.0

150.0

180.0

220.0

270.0

330.0

390.0

470.0

560.0

680.0

820.0

1000.0

SERIES 1330 FERRITE CORE

2.5

24.0

2.5

22.0

2.5

20.0

2.5

18.0

2.5

15.0

2.5

14.0

2.5

13.0

0.79

12.0

0.79

11.0

0.79

10.0

0.79

9.0

0.79

8.0

0.79

7.0

0.79

6.5

0.79

6.0

0.79

5.0

0.79

4.2

0.79

3.8

0.79

3.4

3.40

3.60

4.50

5.70

6.70

7.30

8.00

13.00

15.00

17.00

21.00

25.00

28.00

35.00

42.00

46.00

60.00

65.00

72.00

130

125

110

100

Optional Tolerances: J = 5% H = 3% G = 2% F = 1%

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

1/2009
