2520-2031: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2520-2031 Overview

Board Connector, 3 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking

2520-2031 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.224 inch
subject depth	0.303 inch
body length	0.386 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	2520
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	3
Evacuation force-minimum value	1.4734 N
Base Number Matches	1

Preview

Download Datasheet

View All

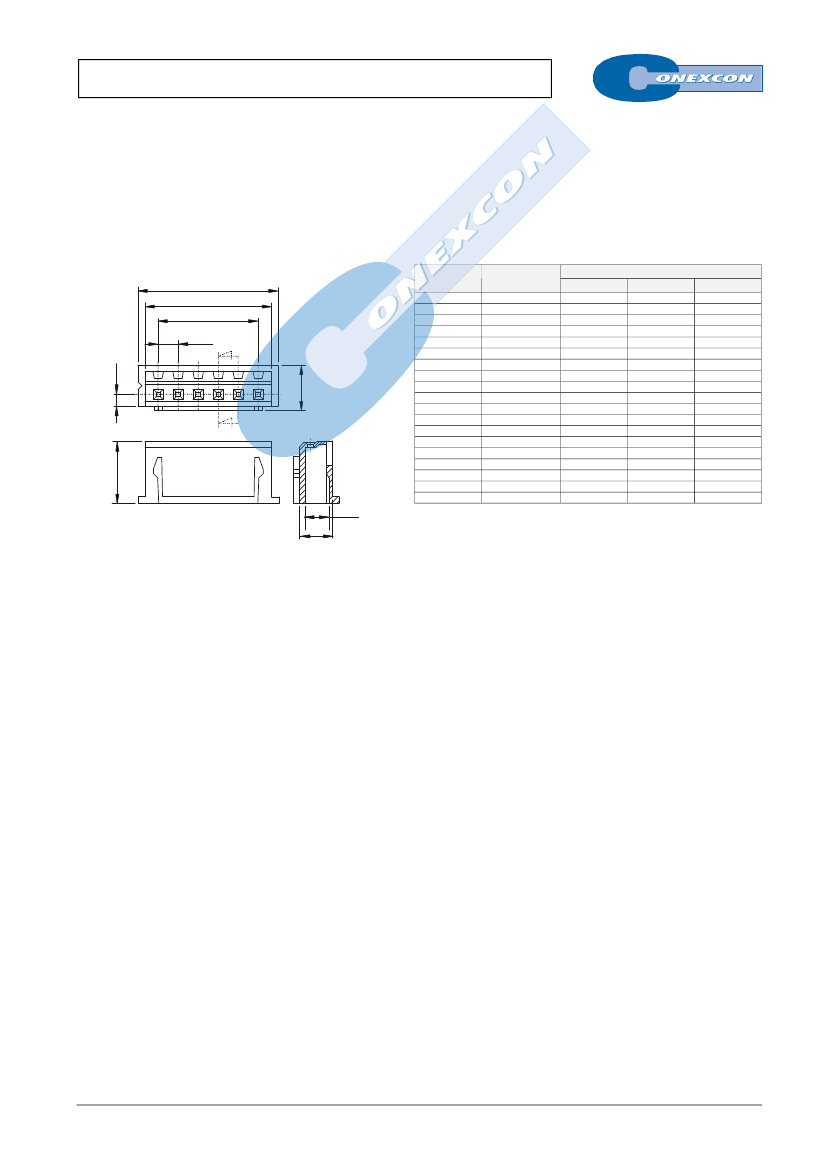

CRIMP TERMINAL HOUSING

2520 SERIES.

2.50mm(0.098”). Housing

Features



Available in 2 through 20 circuits

Polarised with locking ribs

Material: Nylon 6/6 UL 94V-0



Accepts 2523 series terminal

Mates with 2.50mm(0.025”) pitch single row headers

2521and 2522 series

Ordering and Dimensional Information

Dimensions

A

2,50(0,098)

5,00(0,197)

7,50(0,295)

10,00(0,394)

12,50(0,492)

15,00(0,591)

17,50(0,689)

20,00(0,787)

22,50(0,886)

25,00(0,984)

27,50(1,083)

30,00(1,181)

32,50(1,280)

35,00(1,378)

37.50 (1.476)

40.00 (1.575)

42.50 (1.673)

45.00 (1.772)

47.50 (1.870)

B

5,80(0,228)

8,30(0,327)

10,80(0,425)

13,30(0,524)

15,80(0,622)

18,30(0,720)

20,80(0,819)

23,30(0,917)

25,80(1,016)

28,30(1,114)

30,80(1,213)

33,30(1,311)

35,80(1,409)

38,30(1,508)

40.80 (1.606)

43.30 (1.705)

45.80 (1.803)

48.30 (1.902)

50.80 (2.000)

C

7,50(0,295)

10,00(0,394)

12,50(0,492)

15,00(0,591)

17,50(0,689)

20,00(0,787)

22,50(0,886)

25,00(0,984)

27,50(1,083)

30,00(1,181)

32,50(1,280)

35,00(1,378)

37,50(1,476)

40,00(1,575)

42.50 (1.673)

45.00 (1.772)

47.50 (1.870)

50.00 (1.969)

52.50 (2.067)

Dimensional Information

C

B

A

2.50

.098

1.50

.059

F

5.7

.224

Circuit Size

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

20

Part Number

2520-2021

2520-2031

2520-2041

2520-2051

2520-2061

2520-2071

2520-2081

2520-2091

2520-2101

2520-2111

2520-2121

2520-2131

2520-2141

2520-2151

2520-2161

2520-2171

2520-2181

2520-2191

2520-2201

F

SEC. F-F

.303

7.7

3.00

4.10

.161

.118

FULL LINE CATALOGUE

D-XX
