OPTIONS AND PART IDENTIFICATION (Left blank if standard)
AOCJY4 -
Supply Voltage Option
A: 5.00V
B: 12.00V
-
MHz -
-
RF Output Options
Blank: CMOS
SW: Sinewave
Frequency in MHz
Such as; 10.000 MHz
26.000 MHz
40.000 MHz
Temperature Options
E: -20°C to +70°C
F: -40°C to +75°C
ABRACON IS
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
Revised: 07.24.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-80
|
fax 949-546-8001
| www.abracon.com
00
Visit
www.abracon.com
for Terms & Conditions of Sale
OVEN CONTROLLED CRYSTAL OSCILLATOR
AOCJY4 Series

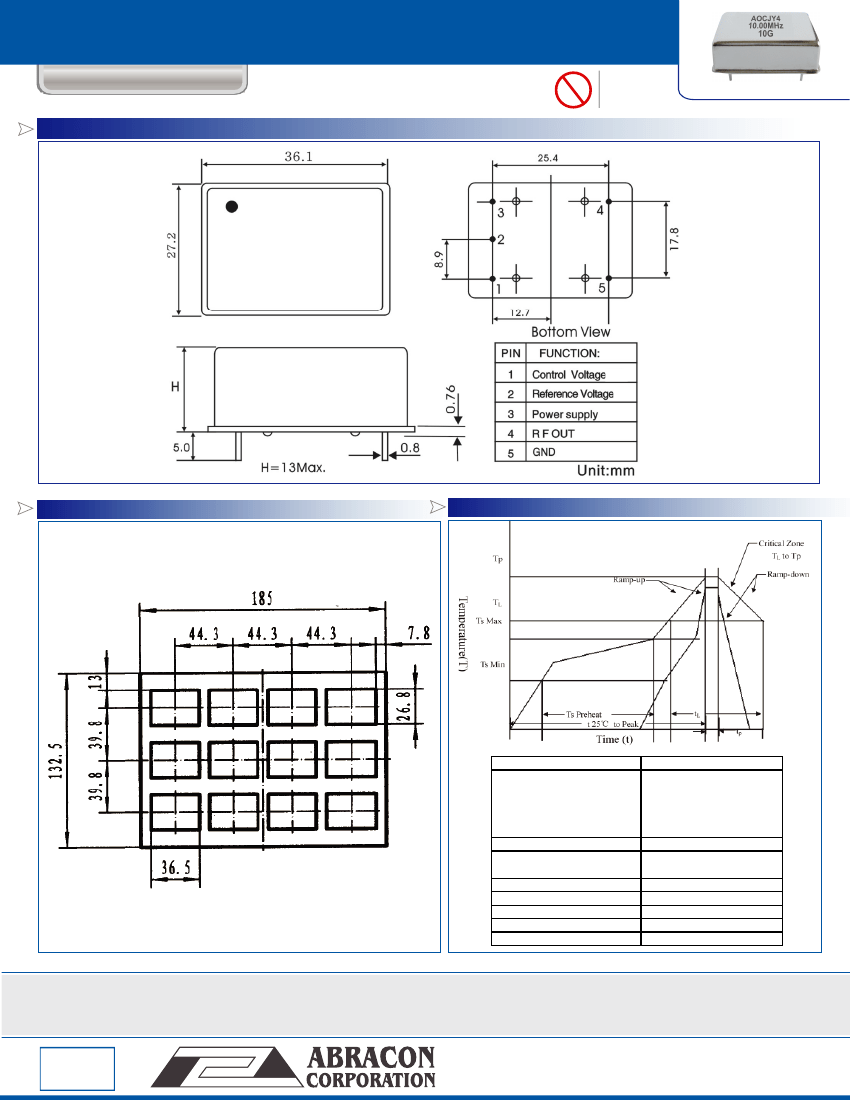

OUTLINE DIMENSIONS
Pb
RoHS
Compliant
36.1x 27.2 x 13mm
| | | | | | | | | | | |
| | |
PACKAGING:
12 pcs/tray
REFLOW PROFILE:
T
S
m a x to T
L
(R a m p -u p R a te )
P re h e a t
Te m p e ra tu re Min . (T
S
Min . )
Te m p e ra tu re Typ ic a l (T
S
Typ .)
Te m p e ra tu re Ma x. (T
S
Ma x. )
Tim e (t
S
)
R a m p -u p ra te (T
L
to T
p
)
Tim e Ma in ta in e d Ab o ve :
--Te m p e ra tu re (T
L
)/Tim e (T
L
)
P e a k Te m p e ra tu re (T
p
)
Ta rg e t P e a k Te m p e ra tu re (T
p
Ta rg e t)
Tim e with in 5 °C o f a c tu a l p e a k (t
p
)
R a m p -d o wn R a te
Tu n e 2 5 °C to P e a k Te m p e ra tu re (t)
3 °C /s e c o n d m a x.
1 5 0 °C
1 7 5 °C
2 0 0 °C
60 ~ 18 0 s e c on d s
3 °C /s e c o n d m a x.
2 1 7 °C /6 0 ~ 1 5 0 s e c o n d s
2 5 0 °C m a x. fo r 1 0 s e c o n d s
2 5 0 °C +0 /-5 °C
20 ~ 40 s e co nd s
6 °C /s e c o n d m a x.
8 m in u te s m a x.
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
Revised: 07.24.11
30332 Esperanza, Rancho Santa Margarita, California 92688
