K50-3C1E135600MR datasheet, PDF

Datasheet> All Categories > Passive components> K50-3C1E135600MR

K50-3C1E135600MR: DescriptionStandard Clock Oscillators CLOCK OSCILLITORS; CategoryPassive components; File Size91KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric View All

K50-3C1E135600MR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	K50-3C1E135600MR	-	-	View	Buy Now

K50-3C1E135600MR Overview

Standard Clock Oscillators CLOCK OSCILLITORS

K50-3C1E135600MR Parametric

Parameter Name	Attribute value
Product Category	Standard Clock Oscillators
Manufacturer	AVX
Product	Standard Clock Oscillators
Frequency	13.56 MHz
Frequency Stability	100 PPM
Load Capacitance	15 pF
Supply Voltage - Min	3 V
Supply Voltage - Max	3.6 V
Package / Case	Miniature CSMD
Minimum Operating Temperature	- 10 C
Maximum Operating Temperature	+ 70 C
Length	7 mm
Width	5 mm
Packaging	Reel
Duty Cycle - Max	60 %
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

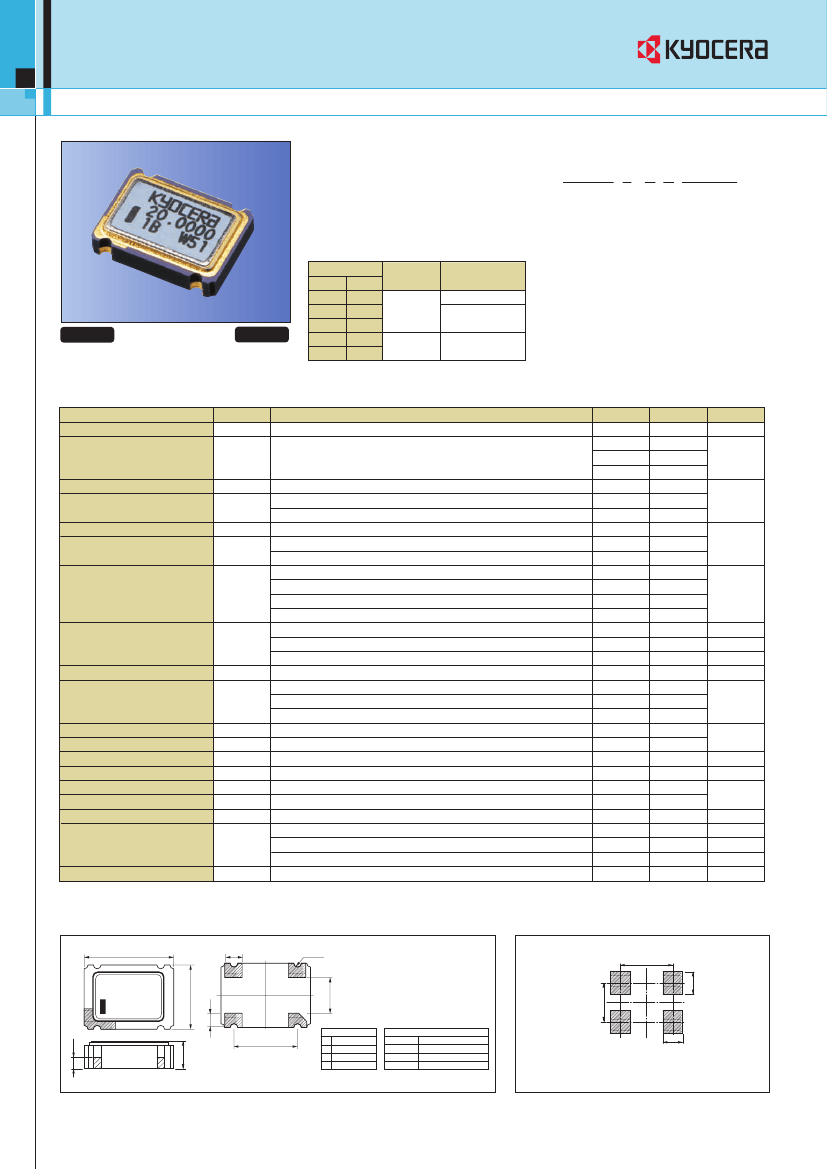

Clock Crystal Oscillators Surface Mount Type

K50-3C Series

CMOS / 3.3V / 7.0×5.0A

CMOS/ 3.3V/ 7.0×5.0mm

Clock Crystal Oscillators

Surface Mount Type

K50-3C

Series

This product is NOT recommended for new designs.

Features

• Miniature ceramic package

• Highly reliable with seam welding

• CMOS output

• Supply voltage V

=3.3V

•

±25ppm

available

How to Order

K50-3C 0 - S E 25.0000

w er

qType(7×5

SMD, 3.3V)

wFrequency

Stability Code(See Table1)

eDuty

Ratio(S: 45% to 55% STD)

rEnable/Disable

Function(STD)

tOscillation

Frequency(Ex.: 25.0000MHz)

Packaging(Tape & Reel 1Kpcs/reel)

Table 1

Stability

OPR

(°C)

Code (ppm)

−10

+70

(Standard)

±100 −40

+85

(Extend)

Note

Standard specifications

With only certain

frequencies

With only certain

frequencies

Pb Free

RoHS Conforming

Specifications

Item

Output Frequency Range

Frequency Stability

Storage Temperature Range

Symbol

OUT

SBY

STG

OPR

---

Stability:

±50ppm, ±30ppm, ±100ppm(Ext

Temp)

Stability:

±25ppm, ±50ppm(Ext

Temp)

1.5≤F

OUT

≤20MHz

20<F

OUT

≤40MHz

40<F

OUT

≤60MHz

60<F

OUT

≤80MHz

8≤F

OUT

≤32MHz(Standby

Function)

32<F

OUT

≤50MHz(Disable

Function)

50<F

OUT

≤80MHz(Standby

Function)

@50% V

8≤F

OUT

≤26MHz

26<F

OUT

≤45MHz

45<F

OUT

≤80MHz

=8mA

=−8mA

CMOS

Overall conditions:

initial tolerance, operating temperature range, rated power

supply voltage change, load change, aging(1year @25°C),

shock and vibration

Conditions

Min.

1.5

−25

−30

−50

−55

−10

−40

−0.5

2.97

3.14

---

90% V

---

Max.

+25

+30

+50

+125

+70

+85

7.0

3.63

3.46

10% V

---

Units

MHz

ppm

Operating Temperature Range

Max. Supply Voltage

Supply Voltage

Current Consumption

(Maximum Loaded)

Standard

Extend(option)

°C

Volt

μA

Volt

Standby/Disable Current

Duty Ratio(Symmetry)

Rise/Fall Time

(10% V

to 90% V

Maximum Loaded)

Output Voltage-"L"

Output Voltage-"H"

Output Load

Input Voltage Range

Input Voltage-"L"

Input Voltage-"H"

Output Disable Time

Output Enable Time

Start-up Time

SYM

Tr/Tf

---

8≤F

OUT

≤32MHz

32<F

OUT

≤50MHz

50<F

OUT

≤80MHz

---

70% V

---

30% V

---

150

Volt

@Minimum operating Voltage to be 0sec.

Note: Please contact us for inquires about extended operating temperature range, available frequencies and other conditions.

All electrical characteristics are defined at the maximum load and operating temperature range.

Dimensions

7.0

1.4

R0.35

(Unit : mm)

Recommended Land Pattern

5.08

(Unit : mm)

5.0

2.6

1.1

Pin Connections

Control

Case GND

Output

Enable/Disable Function

Pin1

Pin3(Output)

Open

Active

"H" Level

Active

"L" Level

High Z

∗

No-Oscillation:

8≤F

OUT

≤32MHz,

50<F

OUT

≤80MHz

4.2

0.6

5.08

1.6

1.8

Note: A capacitor of value 0.01μF between V

and GND is recommended.

152

2.0

Plating: Ni+Au

Tolerance:

±0.2

Recommended Resources

AD7730 internal functional block diagram and pin function diagram

Two-speed motor forward and reverse control circuit with energy consumption braking

A base 100 counter

LA1186N power amplifier circuit

Actual circuit of step-down chopper switching regulated power supply

Sound circuit: AN5265

About Milky White/Silver Chip Capacitors: Recently I came across this type of chip capacitor: 0603 package, capacitance of about 47p, color is a bit milky white/silver gray. It's like this. Does anyone know this type of capacitor? What materi...; yshmily Analog electronics

How to output large numbers using assembly: How to output x dd 5937000 such a large number, the final output is 5937000 I am a beginner in assembly, hope prawns can give me some advice, thank you very much...; kerode Embedded System

Boost and Buck Circuits: How to change the operating mode of buck circuit and boost circuit (continuous mode and discontinuous mode)...; 朝朝暮暮朝朝 Power technology

Things you didn't know about Einstein: Source: Science Academy [/size][/font][/color][/align][align=left][color=rgb(0, 0, 0)][font="][size=18px] Relative theory, conservation of energy, photoelectric effect and cosmological constant... The...; eric_wang DIY/Open Source Hardware

What research software do students use?: Good software is successful in general, that's how it is said :victory: Especially in school, you must have used software that you can't forget. Let me share it with everyone. Let me first mention a f...; sjl2001 Talking

【Repost】Talking about amateur radio communication: [b]Talking about amateur radio communication[/b] [b]Reprinted from: [/b][font=Verdana, Arial, Helvetica, sans-serif, ì][color=#000000][b]http://www.0437.gov.cn/gov/wxdgl/dispArticle.Asp?ID=435[/b][/co...; dontium RF/Wirelessly
