SELECTION GUIDE
Order Code
30850BC
30101BC
30121BC
30151BC
30221BC
3000B Series
Surface Mount Power Inductor
Inductance (1MHz, 0.1V)
Typ. @ I
DC
±20%
nH
nH
85
100
114
154
200
84
102
112
143
169
I
DC3
Typ.
A
37
37
37
37
29
I
SAT
(Typ.)
4
25ÚC
100ÚC
A
A
78
66
59
43
32
71
58
50
38
29
DC Resistance
Typ.
Max.
mΩ
mΩ
0.29
0.29
0.29
0.29
0.29
0.42
0.42
0.42
0.42
0.42
FEATURES
Low-profile surface-mount design
Inductance Range from 85nH to 220nH
Rated current up to 78A
pk
Materials meet UL94V-0
Custom inductance values available
RoHS compliant
J-STD-020 D.1 reflow
ABSOLUTE MAXIMUM RATINGS
Operating temperature range
Storage temperature range
SOLDERING INFORMATION
1
Peak reflow solder temperature
Pin finish
Moisture sensitivity level
2
-40°C to +130°C
-40°C to +155°C
245°C
SAC305
1
Mechanical Dimensions
Mechanical Dimensions

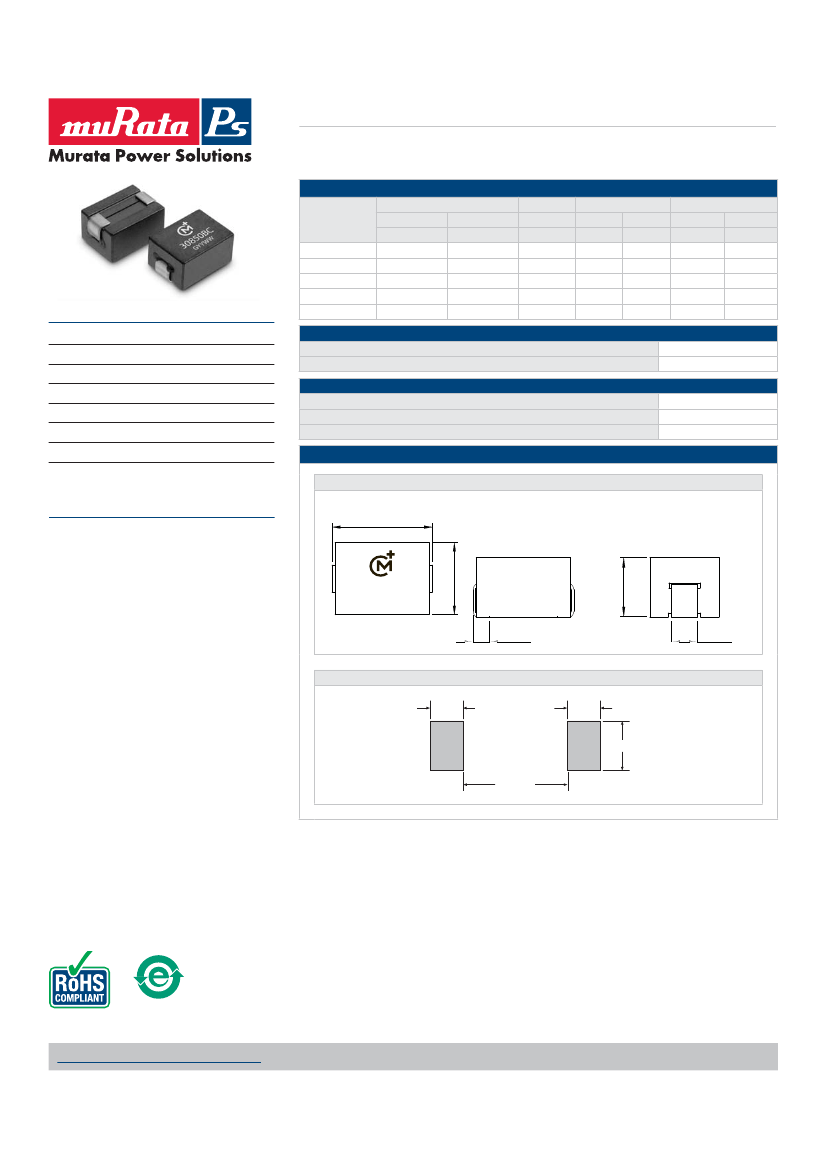

PRODUCT OVERVIEW
The 3000B series are a range of high-current,
surface-mount bead inductors, suited to a variety
of applications. The products are designed for
noise suppression in high-frequency, high-current
switching power supplies, DC-DC converters,
DC-AC inverters and VRMs.
(0.402” Max)
10.20mm Max.
7.00mm Max.
(0.276 Max.)
30850BC
GYYWW
Weight Typ. = 1.35g
1.52mm
(0.195” Max.)
4.96mm Max.
2.48mm
Recommended Pad Layout
2.03
(0.080)
2.03
(0.080)
3.05 (0.120)
6.35 (0.250)
Unless otherwise stated, all dimensions in mm (inches) ± 0.25 (0.010).
Specifications typical at T
A
= 25°C
1 For further information, please visit www.murata-ps.com/rohs
2 Representative samples of the product were subjected to the conditioning described in IPC/JEDEC J-STD-020D and passed electrical
testing, package coplanarity and visual inspection which revealed no external cracks or changes in package body flatness.
3 I
DC
is the value at which the inductance falls to 80% of its nominal value or when its temperature reaches 40ÚC, which ever is sooner.
4 I
SAT
is the value at which the inductance falls to 80% of its nominal value.
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com/support
3000B_A02
Page 1 of 3
3000B Series
Surface Mount Power Inductor

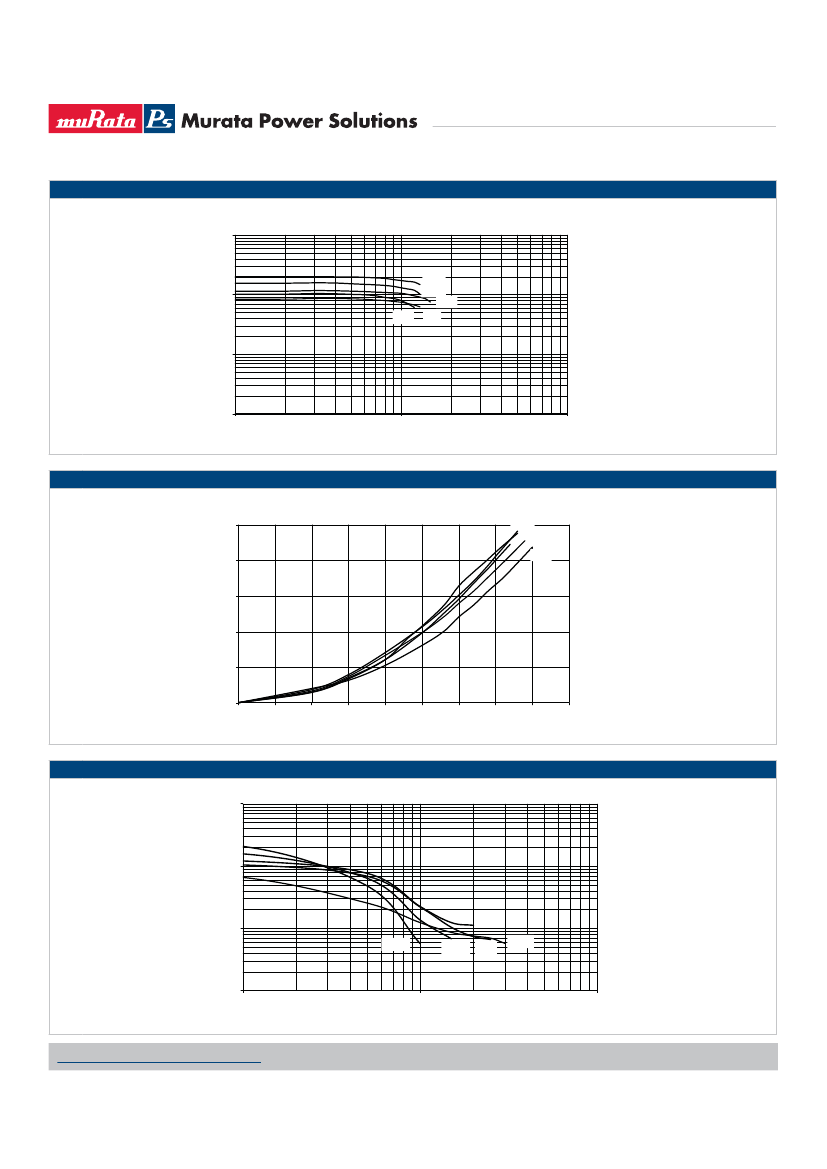

INDUCTANCE Vs CURRENT
3000B Series Inductance Vs Current
1000
Inductance, L (nH)
100
220nH
155nH
120nH
100nH
85nH
10
1
1
10
100
Current, I DC (A)
TEMPERATURE Vs CURRENT
3000B Temperature Vs Current
Temperature rise above ambient, t (ºC)
50
120nH
220nH
85nH
100nH
155nH
40
30
20
10
0
0
5
10
15
20
25
30
35
40
45
Current, I DC (A)
INDUCTANCE Vs FREQUENCY
3000B Series Inductance Vs Frequency
1000
Inductance, L (nH)
100
10
120nH
220nH
155nH
100nH
85nH
1
10
100
1000
Frequency, (MHz)
www.murata-ps.com/support
3000B_A02
Page 2 of 3
3000B Series
Surface Mount Power Inductor

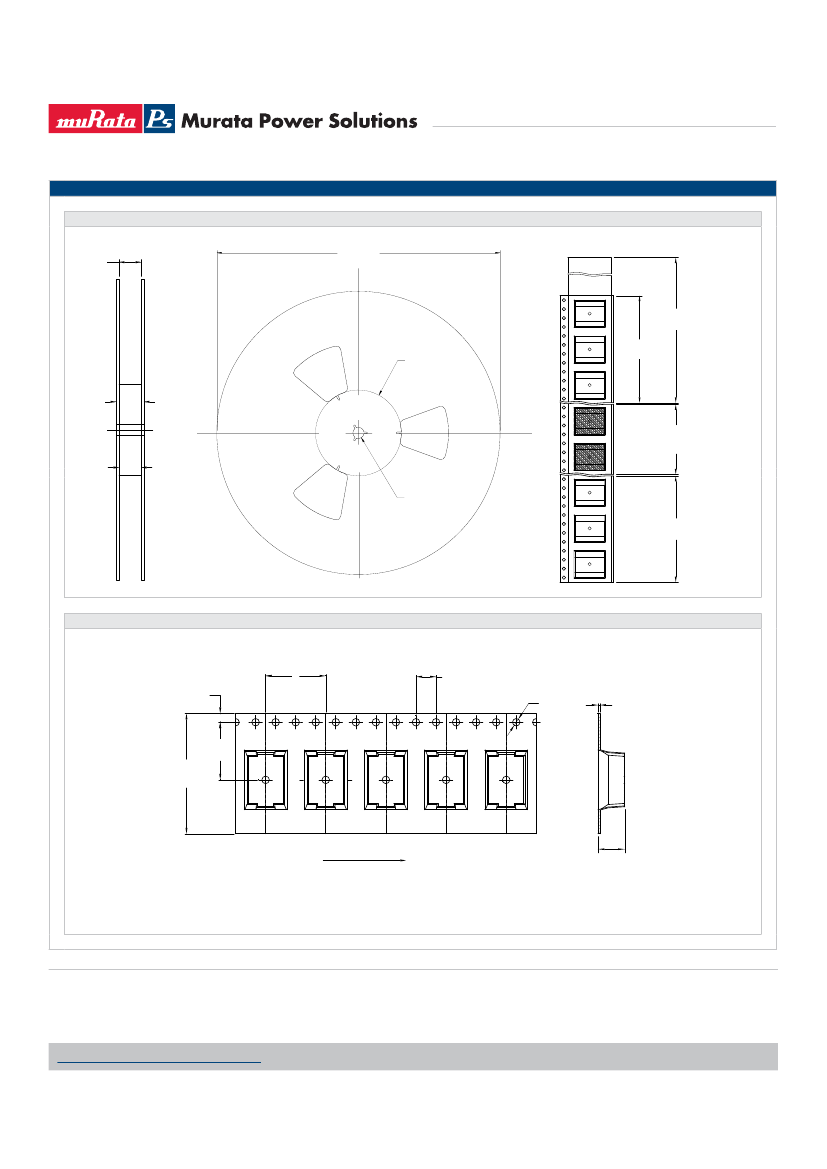

PACKAGE SPECIFICATIONS
Reel Dimensions
(
0.95
+0.02
)
-0
24
+0.5
-0
330
(12.99) MAX
Leader Section
400 (15.748) Min.
100
Ø (3.94) MIN
100 (3.937)
Min.
30.4
(1.20) Max.
g
Goods
Enclosure
Section
24.4 (0.96)
g
26.4 (1.04)
13.00±0.5
Ø (0.51±0.02)
Trailer Section
160 (6.299) Min.
Reel Dimensions
1.75
(0.069)
12.00
(0.472)
4.00
(0.157)
Ø1.50
(0.059)
0.40
(0.016)
11.5
(0.453)
24.00
(0.945)
A
A
Direction of unreeling
5.20
(0.205)
Murata Power Solutions, Inc.
11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A.
ISO 9001 and 14001 REGISTERED
Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply
the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without
notice.
© 2013 Murata Power Solutions, Inc.
www.murata-ps.com/support
3000B_A02
Page 3 of 3
