T520T156M12RATE080 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> T520T156M12RATE080

Preview

T520T156M12RATE080: DescriptionTantalum Capacitors - Polymer SMD 12.5volts 15uF 20% ESR=80; CategoryPassive components capacitor; File Size61KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

T520T156M12RATE080 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T520T156M12RATE080	-	-	View	Buy Now

T520T156M12RATE080 Overview

Tantalum Capacitors - Polymer SMD 12.5volts 15uF 20% ESR=80

T520T156M12RATE080 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	, 1411
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	15 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (SOLID POLYMER)
ESR	80 mΩ
high	1.2 mm
JESD-609 code	e3
leakage current	0.01875 mA
length	3.5 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 7 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	12.5 V
ripple current	275 mA
size code	1411
surface mount	YES
Delta tangent	0.08
Terminal surface	Matte Tin (Sn)
Terminal shape	J BEND
width	2.8 mm

Preview

Download Datasheet

View All

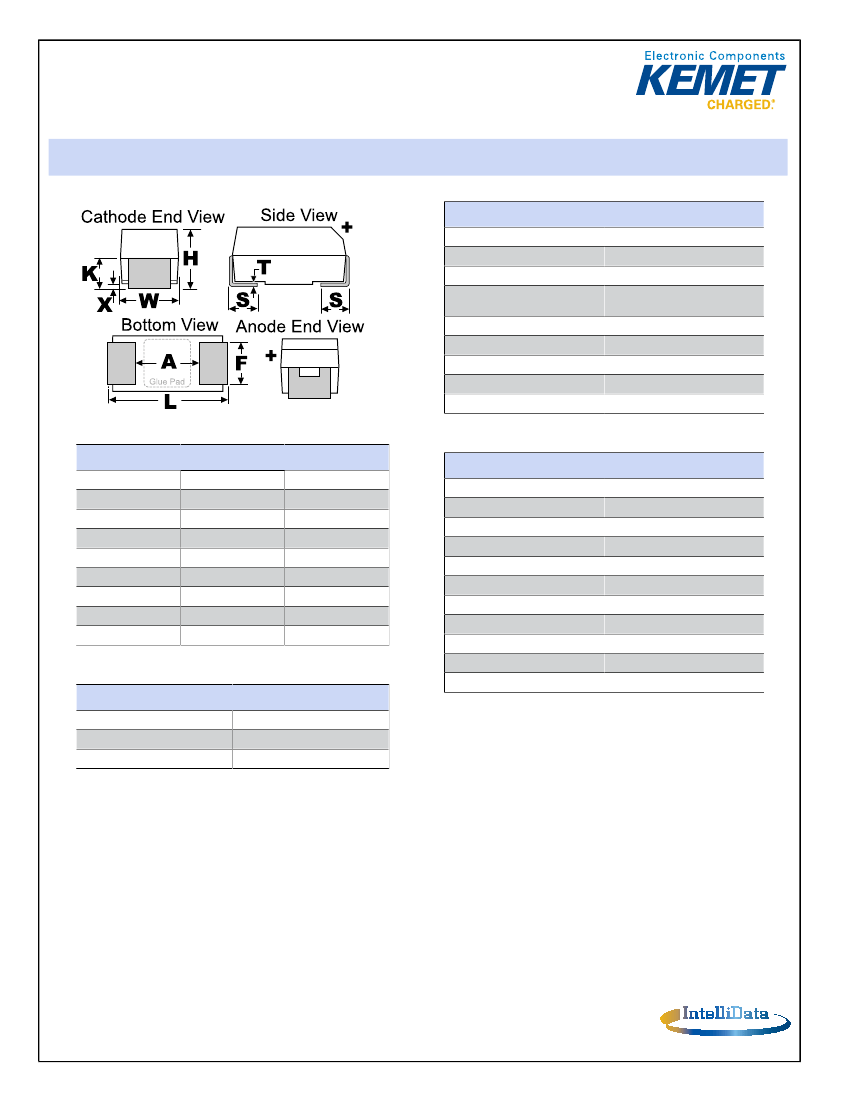

KEMET Part Number: T520T156M12RATE080

Capacitor, Tantalum, SMD, Polymer, Molded, Low Profile/ESR, Non-Combustible, 15 uF, 3528, +/-20% Tol, -55/+105C, 12.5 VDC

(105C)

General Information

Supplier:

Application:

Sub Application:

Part Type Description:

Construction:

Body Type:

Footprint:

Weight:

RoHS:

KEMET

Low ESR

(NonCombustibleCathode)

SMD, Polymer, Molded, Low

Profile/ESR, Non-Combustible

Standard Chip-Polymer

SMD Chip

3528

54.84 mg

Yes

Symbol

L

W

H

F

S

X

T

A

Dimensions (mm)

Dimension

3.5

2.8

1.1

2.2

0.8

0.05

0.13

1.9

Tolerance

+/-0.2

+/-0.1

+/-0.3

REF

MIN

Specifications

Capacitance:

Tolerance:

Voltage:

Temperature Range:

Current/Ripple Current:

Resistance/ESR:

Failure Rate:

Leakage Current:

Dissipation Factor:

15 uF

+/-20%

12.5 VDC (105C)

-55/+105C

1100 mAmps (100kHz 45C)

770 mAmps (85C)

522.5 mAmps (105C)

80 mOhms (100kHz 25C)

N/A

18.8 uA

8%

Packaging Specifications

Package Kind:

Package Size:

Package Quantity:

T&R

7 in/180 mm

2500

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 10/12/2017 - 953fd145-cc1c-431c-97bb-d378c107ac7e
