SMT Trimmer Potentiometers/EVM1D/1E/1U
4 mm Square SMT Trimmer Potentiometers
(Cermet, Open Frame Type)
Type:
EVM1D
EVM1E
EVM1U
1U
1E
1D
■
Features
●
●
●
●
●
●
4 mm square series for reflow soldering
Both sides adjust type (EVM1U)
High reliability realized by cermet element
Excellent mountability
Conforms to JIS C5260-1:1999
RoHS compliant
■
Recommended Applications
●
Audio/visual, office, and communication equipment
●
General electronic equipment
■
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
Product Code
Type/Structure
(1D, 1E, 1U)
Packaging
Taper & Resistance
Example : B52=500
■
Specifications
Total Resistance Value
Resistance Tolerance
Power Rating
Limiting Element Voltage
100
Ω
to 1 MΩ
±25 %
0.2 W
50 V
Rotation Torque
2 to 20 mN·m
Temperature Coefficient of Resistance
±250
×
10
–6
/°C
■
Minimum Quantity/Packing Unit
Taping
Part Number
Quantity per reel
EVM1D
EVM1E
EVM1U
1000
Packaging quantity
4000
Dia. of reel
(mm)
0178
The standard packaging methods for a reel is
0178.
Please contact us, if you would like different packaging methods. (Bulk, Reel of
0330,
Reel of
0380)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01
Oct. 2013
9
SMT Trimmer Potentiometers/EVM1D/1E/1U
■

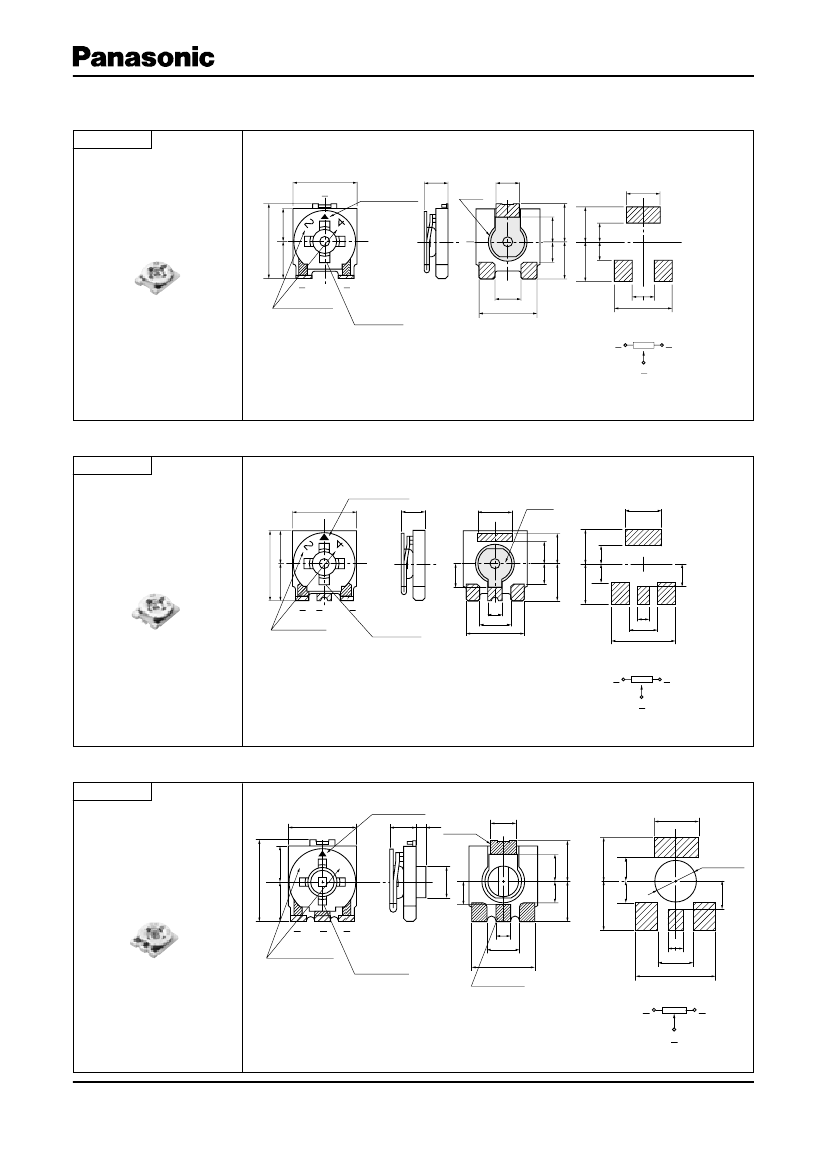

Dimensions in mm (not to scale)
No. 1
3.8
b
Wiper
position mark
1.4
Resin
1.2 1.5
2.2
2.3
2.6
2.5
1.1 1.4
1.4
2.4
●
3-terminal, Cross Slot ...............................................................................................................................................EVM1D
4.5
2.2
a
Resistance
Driver Slot
width 0.55
length 2.5
depth 0.35
2
c
1.6
3.5
1.6
4.2
(Recommended Land Pattern)
a
c
b
(Circuit diagram)
Mass (Weight) : 58 mg/pc.
●
3-terminal, Cross Slot ............................................................................................................................................... EVM1E
No. 2
Wiper
position mark
3.8
1.4
2
Resin
2.4
1.2 1.35
2.2
1.85
4.2
2.2
2
2.5
1.1 1.4
1.4
a
b
c
Driver Slot
width 0.55
length 2.5
depth 0.35
Resistance
0.8
1.9
3.5
2.6
0.8
2
4.4
(Recommended Land Pattern)
a
c
Mass (Weight) : 58 mg/pc.
b
(Circuit diagram)
●
3-terminal, Cross Slot, Both Sides Adjust .................................................................................................................EVM1U
No. 3
3.8
Wiper
position mark
1.4
0.5
1.4
Dummy
2.5
1.5
2.3
2.4
1.4
1.2
2.2
1.1 1.4
4
f2.3
1.4
0.8
2
4.4
a
c
b
(Circuit diagram)
Oct. 2013
2
f1.7
2.2
2
4.5
1.4
a
b
c
Resistance
Driver Slot
width 0.55
length 2.5
depth 0.35
0.8
1.9
3.5
Driver Slot
width 0.45
depth 0.35
2.6
(Recommended Land Pattern)
Mass (Weight) : 71 mg/pc.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01
10
