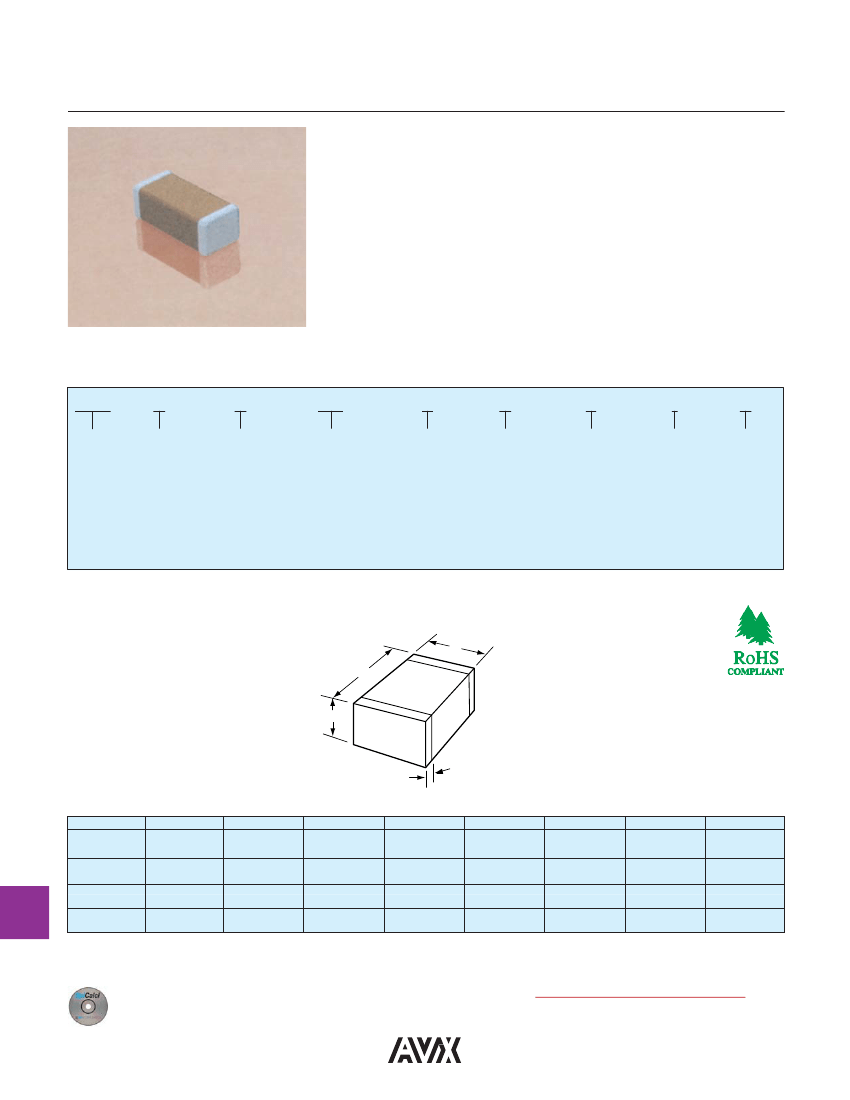

High value, low leakage and small size are difficult parameters to obtain in ca-
pacitors for high voltage systems. AVX special high voltage MLC chips capacitors
meet these performance characteristics and are designed for applications such
as snubbers in high frequency power converters, resonators in SMPS, and high
voltage coupling/DC blocking. These high voltage chip designs exhibit low ESRs
at highfrequencies.
To make high voltage chips, larger physical sizes than are normally encountered
are necessary. These larger sizes require that special precautions be taken in
applying these chips in surface mount assemblies. In response to this, and to fol-
low from the success of the FLEXITERM
®
range of low voltage parts, AVX is de-
lighted to offer a FLEXITERM
®
high voltage range of capacitors, FLEXITERM
®
.
The FLEXITERM
®
layer is designed to enhance the mechanical flexure and tem-
perature cycling performance of a standard ceramic capacitor, giving customers
a solution where board flexure or temperature cycle damageare concerns.
HOW TO ORDER
1808
AVX
Style
0805
1206
1210
1808
1812
1825
2220
2225
***
A
C
272
K
Capacitance
Tolerance
C0G: J =±5%
K = ±10%
M = ±20%
X7R: K = ±10%
M = ±20%
Z= +80%,
-20%
A
TestLevel
Z
Termination*
Z = FLEXITERM
®
100% Tin
(RoHSCompliant)
1
Packaging
2 = 7" Reel
4 = 13" Reel
A
Special
Code
A =Standard
Voltage
Temperature Capacitance Code
(2 significantdigits
600V/630V = C
Coefficient
+ no. of zeros)
1000V =A
C0G = A
1500V =S
Examples:
X7R =C
10 pF = 100
2000V =G
100 pF = 101
2500V =W
1,000 pF = 102
3000V =H
22,000 pF = 223
4000V =J
220,000 pF = 224
5000V =K
1
μF=105
Notes: Capacitors with X7R dielectrics are not intended for applications across AC supply mains or AC line filtering with polarity reversal. Contact plant for recommendations.
Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.
***
AVX offers nonstandard chip sizes. Contact factory for details.
