TLR2BDTD20L0F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> TLR2BDTD20L0F

TLR2BDTD20L0F: DescriptionCurrent Sense Resistors - SMD .02 OHM .5W 1%; CategoryPassive components; File Size281KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

TLR2BDTD20L0F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TLR2BDTD20L0F	-	-	View	Buy Now

TLR2BDTD20L0F Overview

Current Sense Resistors - SMD .02 OHM .5W 1%

TLR2BDTD20L0F Parametric

Parameter Name	Attribute value
Product Category	Current Sense Resistors - SMD
Manufacturer	KOA Speer
RoHS	Details
Resistance	0.02 Ohms
Power Rating	500 mW (1/2 W)
Tolerance	1 %
Temperature Coefficient	75 PPM / C
Operating Temperature Range	- 65 C to + 170 C
Case Code - in	1206
Case Code - mm	3216
Technology	Metal Element
Termination	2 Terminal
Qualification	AEC-Q200
Packaging	Reel
Diameter	-
Height	0.6 mm
Length	3.2 mm
Maximum Operating Temperature	+ 170 C
Minimum Operating Temperature	- 65 C
Package / Case	1206 (3216 metric)
Product	Metal Element Current Sensing Resistors
Factory Pack Quantity	5000
Termination Style	SMD/SMT
Type	Metal Plate Current Sense Resistor
Voltage Rating	-
Width	1.6 mm
Unit Weight	0.000571 oz

Preview

Download Datasheet

View All

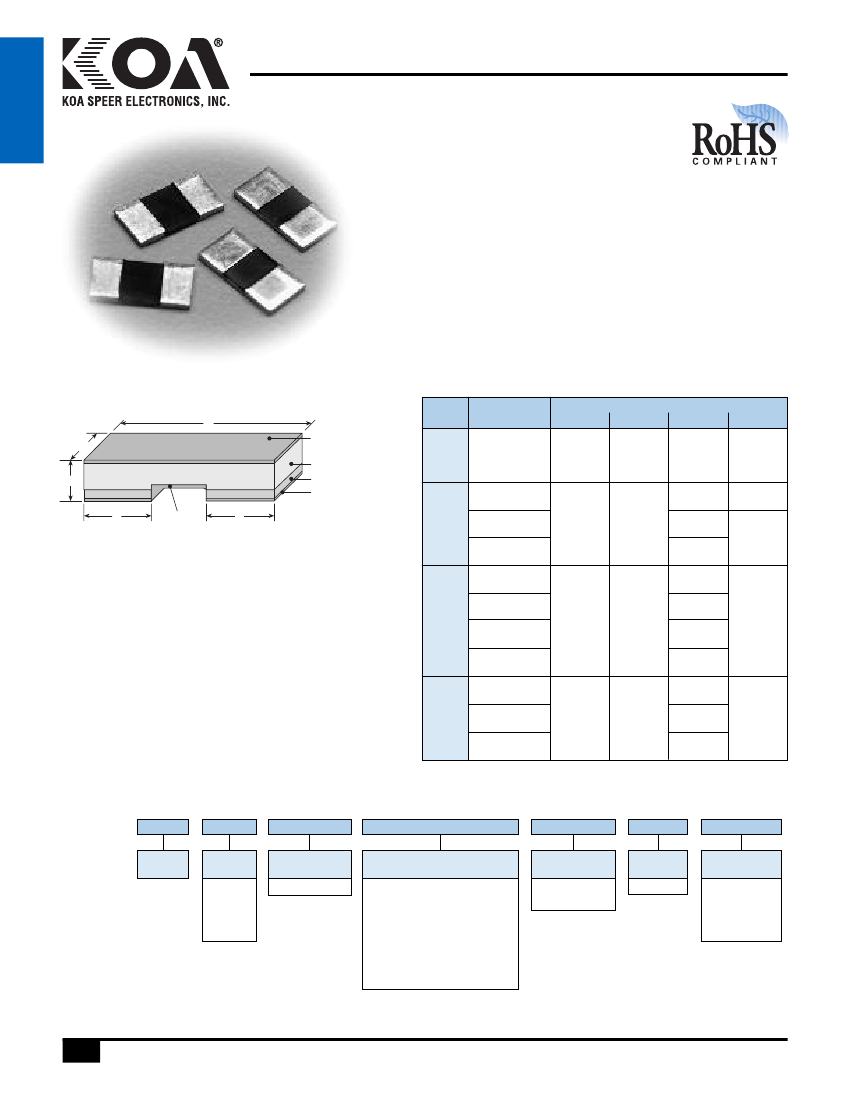

TLR

metal plate current sense resistor

resistors

features

•

Ultra-low TCR (+75ppm/°C) available

•

Metal alloy: superior corrosion and heat resistance

•

Applications include current sensing, voltage division

and pulse applications

•

Ultra low resistance (1mΩ - 20mΩ)

•

Products with lead-free terminations meet EU RoHS

and China RoHS requirements

•

AEC-Q200 Qualified

dimensions and construction

Protective Coating

(3A, 3AW: 1mΩ only)

Resistive Element

Termination

Solder

Protective

Coating

Size

Code

TLR2B

Resistance

2m,3m,4m,5m,6m,

7m,8m,9m,10m,11m,

12m,13m,15m,

16m,18m,20m

Dimensions

inches

(mm)

.126±.008 .063±.008 .020±.008 .024±.008

(3.20±0.20) (1.60±0.20) (0.50±0.20) (0.60±0.20)

.071±.008 .026±.008

(1.80±0.20) (0.65±0.20)

.200±.008 .100±.008 .060±.008

(5.00±0.20) (2.50±0.20) (1.50±0.20)

.024±.008

.020±.008

(0.60±0.20)

(0.50±0.20)

.087±.01

(2.20±0.25)

.047±.01

.25±.01

.125±.01

(1.20±0.25)

.024±.01

(6.35±0.25) (3.18±0.25)

.073±.01

(0.62±0.25)

(1.85±0.25)

.047±.01

(1.20±0.25)

.087±.01

(2.20±0.25)

.25±.01

.125±.01 .047±.01 .024±.01

(6.35±0.25) (3.18±0.25) (1.20±0.25) (0.60±0.25)

.030±.01

(0.77±0.25)

1mΩ

TLR2H

2mΩ - 6mΩ

7mΩ - 10mΩ

1mΩ

2mΩ

TLR3A

3mΩ

4mΩ

1mΩ - 4mΩ

TLR3AW

5mΩ - 8mΩ

9mΩ, 10mΩ

ordering information

New Part #

TLR

Type

Power

Rating

2B: 0.5W

2H: 1W

3A: 1W

3AW: 2W

Termination

Material

D: SnAgCu

Packaging

TE: 7" 8mm pitch

embossed plastic

(3A, 3AW)

TE: 7" 4mm pitch

embossed plastic

(2H only)

TD: 4mm pitch punched paper

(2B only)

2L00

Nominal

Resistance

F: 4 digits

Ex: 2L00: 2mΩ

Tolerance

F: ±1%

T.C.R.

75ppm/°C

Nil: 100ppm/°C

Nil: 150ppm/°C

Nil: 200ppm/°C

For further information on packaging,

please refer to Appendix A.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

12/17/12

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
