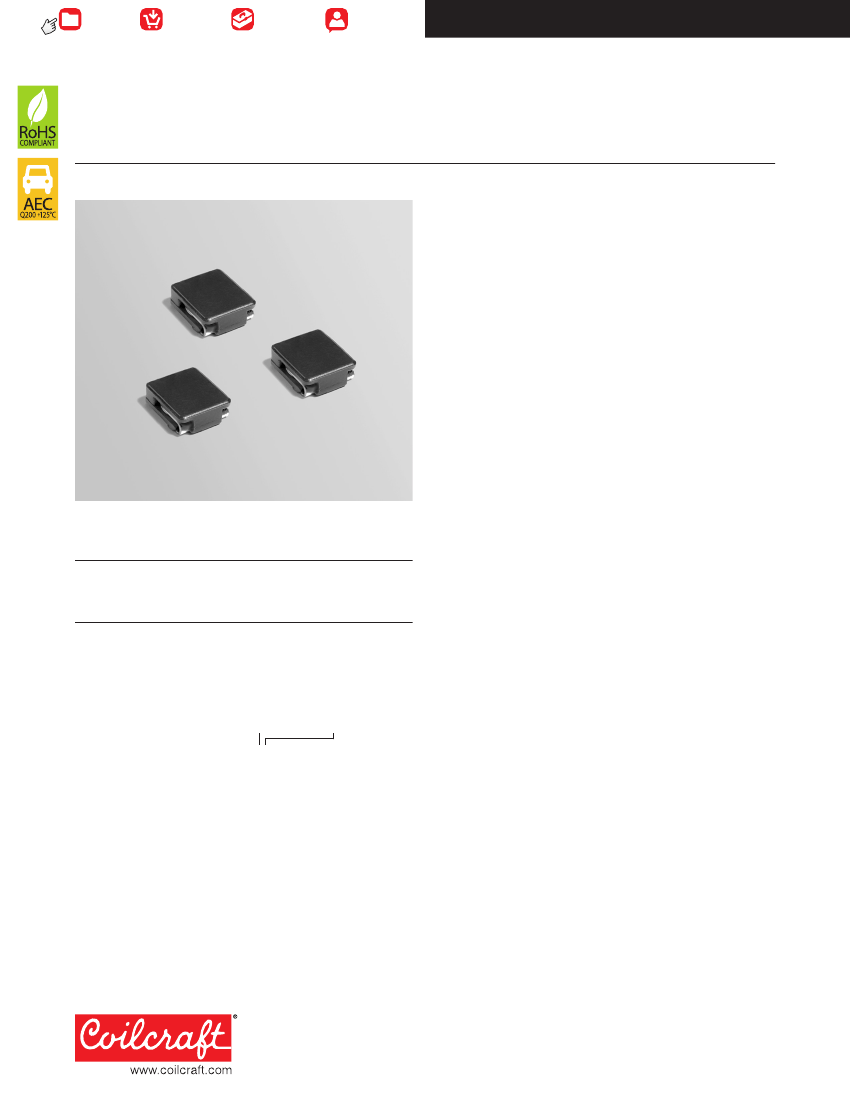

Document 420-1

VRM/ VRD Power Inductors – MVR

MVR1251T only

The MVR series provides greater current handling

capability than any other power inductor its size. While

requiring only one square centimeter of board space, this

inductor can handle up to 36 Amps of current.

These shielded inductors were developed for multi-phase

voltage regulators and are ideal for use in DC-DC con-

verters, battery-powered devices and high current power

supplies. Their flat wire construction ensures very low

DC resistance and offers an excellent performance-to-

height ratio. The materials used in these parts eliminate

all thermal aging issues.

The MVR12xxT is a high efficiency part that features very

low core loss. The MVR12xxC provides soft saturation

and is unaffected by part temperature up to 125°C.

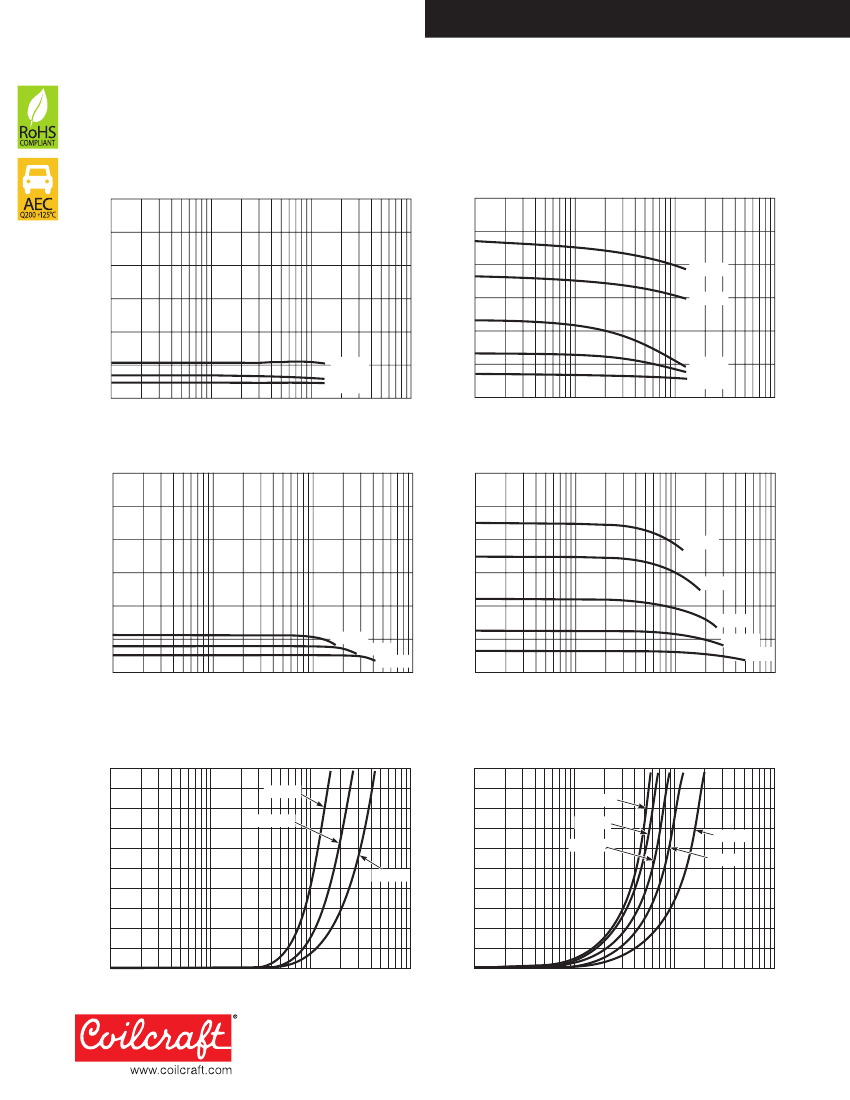

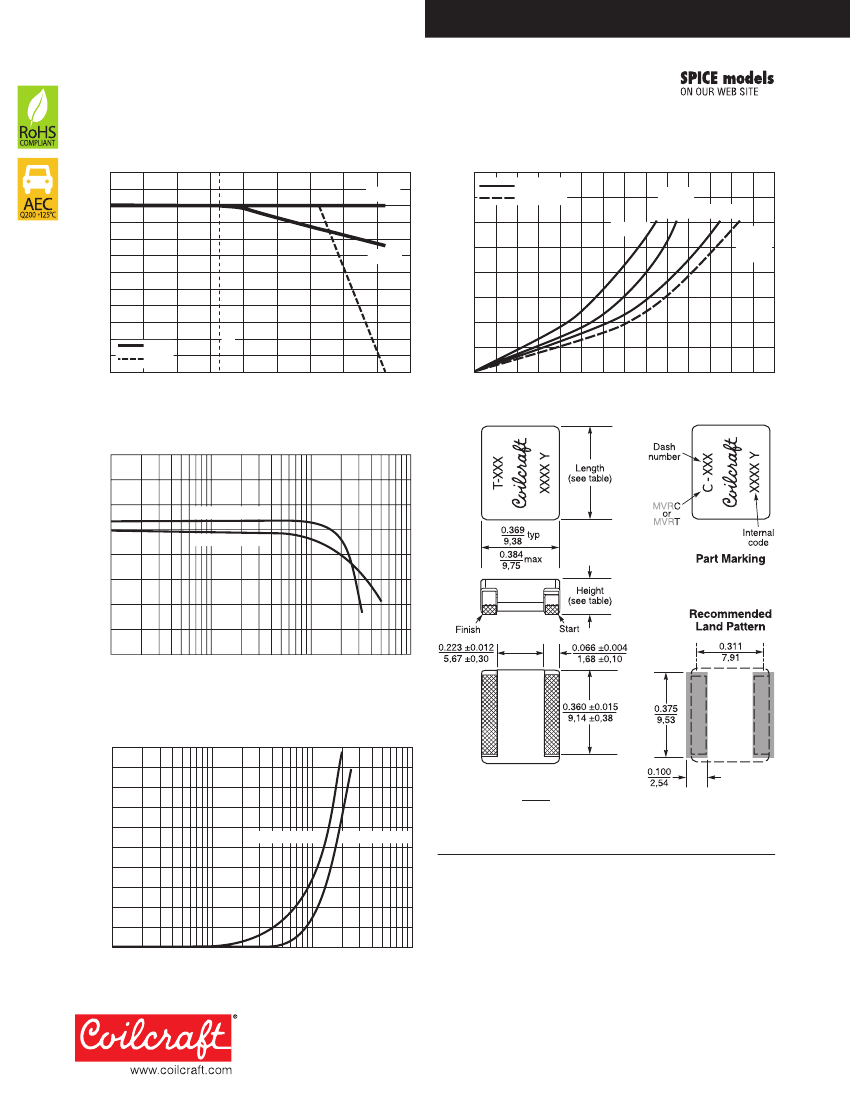

Refer to the comparison curves for L vs Current and ESR

vs Frequency for performance differences.

For free evaluation samples, contact Coilcraft or order

them online at

www.coilcraft.com.

DCR

SRF

Height

±20% ±8%

typ

Isat

Irms

max

(µH) (mOhm) (MHz) (A) (A) (mm)

0.25

0.36

0.56

0.36

0.65

1.10

1.65

2.30

0.925

1.50

1.95

2.53

3.08

160

140

110

120

115

5.1

4.7

5.5

6.1

7.1

7.8

Core material

MVRxxxT: Ferrite; MVRxxxxC: Powdered iron

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant tin-silver over copper. Other termina-

tions available at additional cost.

Weight

MVRT: 2.1 g; MVRC: 2.45 – 3.86 g

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

MVR1247

MVR1251

MVR1255

MVR1261

MVR1271

MVR1278

200/7″ reel; 900/13″ reel

175/7″ reel; 700/13″ reel

100/7″ reel; 500/13″ reel

Part number

Low core loss

MVR1251T-251ML_

MVR1251T-361ML_

MVR1251T-561ML_

Soft saturation

MVR1247C-361ML_

MVR1255C-651ML_

MVR1261C-112ML_

MVR1271C-162ML_

MVR1278C-232ML_

1. When ordering, please specify

termination

and

packaging

codes:

MVR1278C-232MLC

Termination: L

= RoHS compliant tin-silver over copper.

Special order: T

= RoHS tin-silver-copper

(95.5/4/0.5) or

= non-RoHS tin-lead (63/37).

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic

tape.

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge),

use code letter C instead.

= 13″ machine-ready reel. EIA-481 embossed plastic

tape. Factory order only, not stocked.

2. Inductance measured at 500 kHz, 0.1 Vrms, 0 Adc using a Coilcraft

SMD-A fixture in an Agilent/HP 4284A LCR meter or equivalent.

3. SRF measured on an Agilent/HP 8753ES.

4. DC current at which the inductance drops 30% (typ) for MVR12xxC

and 20% (typ) for MVR12xxT from its value without current.

5. Current that causes a 40°C temperature rise from 25°C ambient.

6. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

Plastic tape: 24 mm wide, 16 mm pocket spacing

MVR1247

0.35 mm thick, 4.5 mm pocket depth

MVR1251

0.4 mm thick, 6.1 mm pocket depth

MVR1255

0.4 mm thick, 6.1 mm pocket depth

MVR1261

0.4 mm thick, 6.1 mm pocket depth

MVR1271

0.4 mm thick, 7.5 mm pocket depth

MVR1278

0.4 mm thick, 7.5 mm pocket depth

PCB washing

Tested to MIL-STD-202 Method 215 plus an additional

aqueous wash. See

Doc787_PCB_Washing.pdf.

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 420-1

Revised 07/13/11

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
