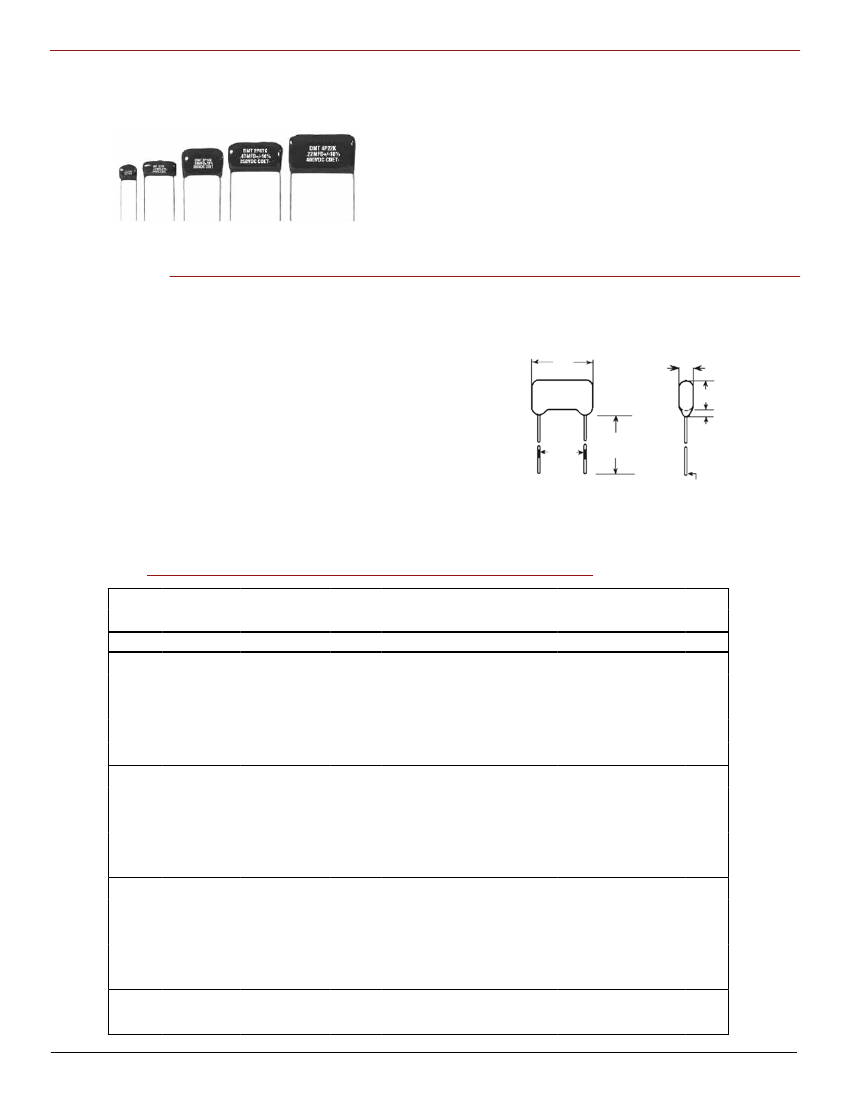

Type DMT,
Polyester Film Capacitors
Film/Foil
Radial Leads
General Purpose, High Peak Currents,
High Insulation Resistance
Type DMT
radial-leaded, polyester film/foil
noninductively wound film capacitors feature
compact size and moisture-resistive epoxy
coating. High insulation resistance and low
dissipation factor,
Type DMT
is an ideal choice
for most applications, especially with high peak
currents.
Specifications
Voltage Range:
100-600 Vdc
Capacitance Range:
.001-.68 µF
Capacitance Tolerance:
±10% (K) standard
±5% (J) optional
Operating Temperature Range:
-55 °C to 125 °C*
*Full-rated voltage at 85 °C–Derate linearly to 50%-rated voltage at 125 °C
L
MAX.
T
MAX.
H
MAX.
.984 MIN.
(25)
.0937 MAX.
Dielectric Strength:
250% (1 minute)
Dissipation Factor:
1% Max. (25 °C, 1 kHz)
Insulation Resistance:
30,000 M
Ω
x µF
100,000 M
Ω
Min.
Life Test:
500 Hours at 85 °C at 125% Rated
Voltage
S
±.050
d
TINNED COPPER-CLAD
STEEL LEADS
NOTE:
Other capacitance values, sizes and performance specifications are
available. Contact us.
Ratings
Cap.
(µF)
Catalog
Part Number
Inches
T
(mm)
H
Inches
(mm)
Inches
L
(mm)
Inches
S
(mm)
RoHS Compliant
d
Inches
(mm)
dV/dt
V/μs
100 Vdc
0.0010
0.0015
0.0022
0.0033
0.0047
0.0068
0.0100
0.0150
0.0220
0.0330
0.0470
0.0680
0.1000
0.1500
0.2200
0.3300
0.4700
DMT1D1K-F
DMT1D15K-F
DMT1D22K-F
DMT1D33K-F
DMT1D47K-F
DMT1D68K-F
DMT1S1K-F
DMT1S15K-F
DMT1S22K-F
DMT1S33K-F
DMT1S47K-F
DMT1S68K-F
DMT1P1K-F
DMT1P15K-F
DMT1P22K-F
DMT1P33K-F
DMT1P47K-F
0.197
0.200
0.210
0.210
0.210
0.210
0.220
0.220
0.256
0.250
0.260
0.275
0.290
0.350
0.360
0.390
0.420
(5.0)
(5.1)
(5.3)
(5.3)
(5.3)
(5.3)
(5.6)
(5.6)
(6.5)
(6.3)
(6.6)
(7.0)
(7.4)
(8.9)
(9.1)
(9.9)
(10.7)
0.354
0.354
0.354
0.354
0.354
0.354
0.354
0.370
0.390
0.350
0.433
0.460
0.445
0.490
0.520
0.560
0.600
(9.0)
(9.0)
(9.0)
(9.0)
(9.0)
(9.0)
(9.0)
(9.4)
(9.9)
(8.9)
(11.0)
(11.7)
(11.3)
(12.4)
(13.2)
(14.2)
(15.2)
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.512
0.560
0.560
0.560
0.682
0.682
0.820
0.942
1.080
(13.0)
(13.0)
(13.0)
(13.0)
(13.0)
(13.0)
(13.0)
(13.0)
(13.0)
(14.2)
(14.2)
(14.2)
(17.3)
(17.3)
(20.8)
(23.9)
(27.4)
0.394
0.394
0.394
0.394
0.394
0.394
0.394
0.394
0.394
0.400
0.420
0.420
0.545
0.545
0.670
0.795
0.920
(10.0)
(10.0)
(10.0)
(10.0)
(10.0)
(10.0)
(10.0)
(10.0)
(10.0)
(10.2)
(10.7)
(10.7)
(13.8)
(13.8)
(17.0)
(20.2)
(23.4)
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.024
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
(0.6)
(0.6)
(0.6)
(0.6)
(0.6)
(0.6)
(0.6)
(0.6)
(0.6)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
4550
4550
4550
4550
4550
4550
4550
4550
4550
3300
3300
3300
2100
2100
1600
1600
1050
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02740
•
Phone: (508)996-8561
•
Fax: (508)996-3830 www.cde.com
Type DMT,
Polyester Film Capacitors
RoHS Compliant
Cap.
(µF)
Catalog
Part Number
Inches
T
(mm)
Inches
H
(mm)
Inches
L
(mm)
S
Inches
(mm)
d
Inches
(mm)
dV/dt
V/μs
600/630 Vdc
0.0068
0.0100
0.0150
0.0220
0.0330
0.0470
0.0680
0.1000
0.1500
0.2200
0.3300
0.4700
DMT6D68K-F
DMT6S1K-F
DMT6S15K-F
DMT6S22K-F
DMT6S33K-F
DMT6S47K-F
DMT6S68K-F
DMT6P1K-F
DMT6P15K-F
DMT6P22K-F
DMT6P33K-F
DMT6P47K-F
0.313
0.364
0.342
0.402
0.443
0.519
0.453
0.541
0.656
0.630
0.650
0.739
(7.9)
(9.2)
(8.7)
(10.2)
(11.2)
(13.2)
(11.5)
(13.7)
(16.7)
(16.0)
(16.5)
(18.8)
0.464
0.515
0.508
0.568
0.609
0.685
0.649
0.737
0.926
1.024
1.010
1.132
(11.8)
(13.1)
(12.9)
(14.4)
(15.5)
(17.4)
(16.5)
(18.7)
(23.5)
(26.0)
(25.6)
(28.7)
0.694
0.694
0.820
0.820
0.882
0.882
1.194
1.194
1.194
1.444
1.819
1.819
(17.6)
(17.6)
(20.8)
(20.8)
(22.4)
(22.4)
(30.3)
(30.3)
(30.3)
(36.7)
(46.2)
(46.2)
0.545
0.545
0.670
0.670
0.733
0.733
1.045
1.045
1.045
1.295
1.670
1.670
(13.8)
(13.8)
(17.0)
(17.0)
(18.6)
(18.6)
(26.5)
(26.5)
(26.5)
(32.9)
(42.4)
(42.4)
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
15000
15000
7400
7400
7400
7400
4000
4000
4000
3000
3000
3000
