Emergency stop KNA3-RS Part number 85100434
"Emergency stop" and "mobile guard monitoring" functions
Control device with one or two channels
3 "N/O" safety contacts with linked contacts-6A / 250 AC
1 "N/C" signalling contact
Level 4 according to NF.EN 954-1
Integrity check on control devices
Separate return loop
Four input circuits
Type
85 100 036
85 100 037
85 101 036
85 101 037
85 100 436
85 100 434
85 100 435
85 100 536
KNA3-XS
KNA3-XS
KNAC3-XS
KNAC3-XS
KNA3-RS
KNA3-RS
KNA3-RS
KZP3-RS
Function
Emergency stopMobile guard monitoring
Emergency stopMobile guard monitoring
Emergency stopMobile guard monitoring
Emergency stopMobile guard monitoring
Emergency stopMobile guard monitoring
Emergency stopMobile guard monitoring
Emergency stopMobile guard monitoring
Emergency stopMobile guard monitoring
Level of safety
3
3
4
4
4
4
4
4
Safety contacts
3
3
3
3
3
3
3
3
Casing
22,5 mm
22,5 mm
45 mm
45 mm
45 mm
45 mm
45 mm
45 mm
Supply voltage
24 V ACDC
40 - 260 V AC
24 V ACDC
40 - 260 V AC
24 V ACDC
115 V AC
230 V AC
24 V ACDC
Connections
Screw terminals
Screw terminals
Spring terminals
Spring terminals
Screw terminals
Screw terminals
Screw terminals
Screw terminals
Weight (g)
310
310
310
310
310
410
410
410
Supply voltage
On/off indication
1 power supply voltage LED
Type
Breaking capacity (V resistive)
Max. breaking current
Max. breaking voltage
Electrical endurance
Mechanical life (operations)
1500 VA
6,82 A
440 V AC
10
5
operations at 1500 VA resistive
5x10
5
operations at 500 VA resistive
10
7
On/off indication
Operating temperature (°C) IEC 68-2-14
Storage temperature (IEC 68-2-12) (ºC)
Internal voltage
0 →+50
-20 →+70
24 V DC
fast transients
Drop-out / short breaks / microbreaks
Un-30% for 10 ms every 1 s
Un-60% for 100 ms every 1 s according to IEC 61496-1/97
Un-100% for 10 ms every 100 ms
Un-50% for 20 ms every 200 ms
Un-50% for 500 ms every 5 s
Polycarbonate
Self-extinguishing-UL94 class VO
IP 40
IP 20
2 x 1,5 mm
2
multicore with ferrule
2 x 2,5 mm
2
solid conductor
Spring terminals, 2 terminals per connection point - rigid
wire
Spring terminals, 2 terminals per connection point -
flexible wire
2,5 mm
2
1,5 mm
2
Material
Protection Housing
Degree of terminal protection
Connection capacity
Operating range
Reset time
Maximum response time on emergency stop
< 50 ms
Number of safety circuits
Number of data circuits
1 "NC" AgSnO contacts
Max. absorbed power
Dielectric strength
Resistance to tracking
2,95 kVaccording to CEI 664-1
Material group III
Radiated electromagnetic field
Electrostatic discharge
Shock waves
8 kV in the air acc. to IEC 1000.4.2
KNA3-RS / KZP3-RS: 15 kV in the air acc. to IEC 1000.4.2
KNA3-XS:
- Common mode 1 kV acc. to IEC 1000.4.5 KNA3-RS / KZP3-RS:
- Level 3 acc. to IEC 1000.4.5
- Common mode 2kV for 24 V and 24 V
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
21/03/2012
Radio frequencies in common mode
- Common mode 4 kV for 230 V (2 kV residual current mode for KNA3-RS)
KNA3-XS:
- 10 V rms Level 3 according to IEC 1000.4.6
- 150 KhZ TO 80 MHz (ENV 50141) according to IEC 1000.4.11
KNA3-RS / KZP3-RS:
- 30 Vrms Level X acc. to IEC 1000.4.6
150 kHz to 80 MHz (ENV 50141) according to IEC 1000.4.11
www.crouzet.com
European "Machinery" Directive 89/392/EEC
French decree 92/765-766-768
European "Usage" Directive 89/655/EEC
French decree 93-40 /93-41
IEC 61496-1
IEC 664-1
En 50081-2
EN 50082-2
EN 60204-1
EN 292-1 and 2
Safety category to EN 954-1
EN 418
EN 1088
UL 508
C22-2N 14 M91
GS-ET-20
o
Catégorie 4
UL
(c) UL
BG

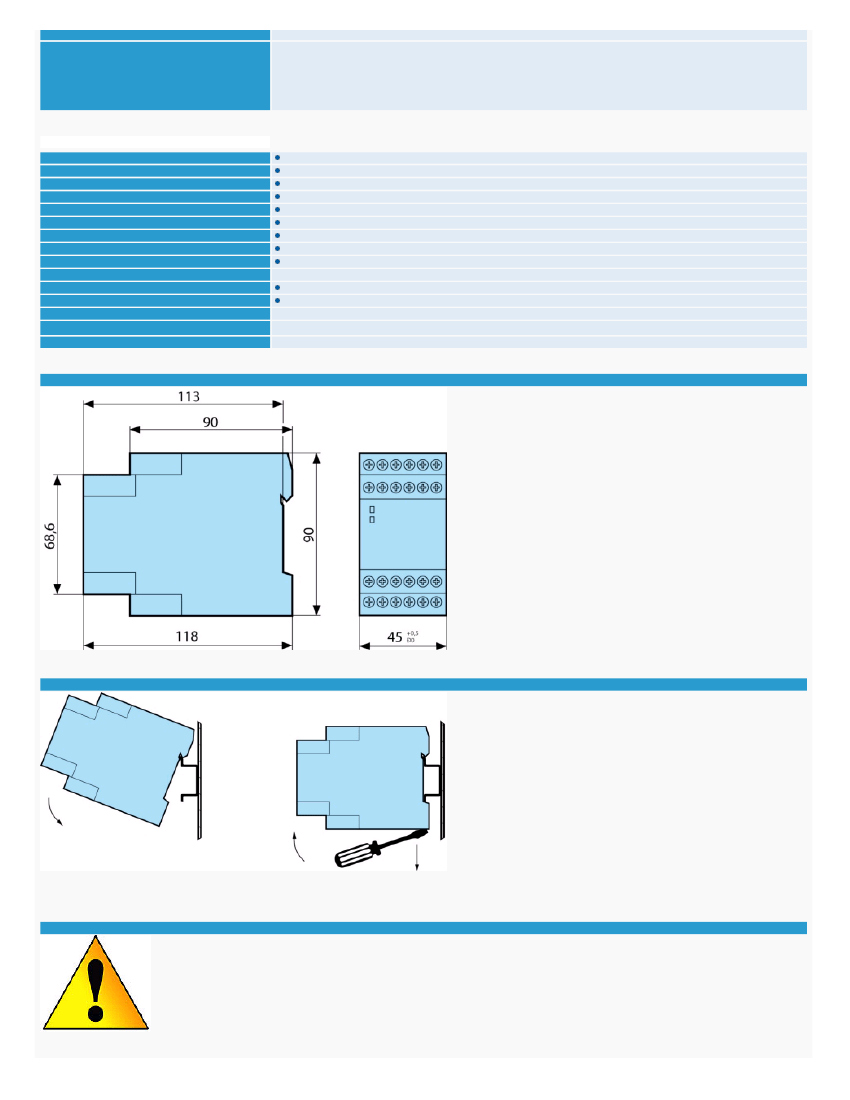

Dimension Diagram : KNA3-RS / KZP3-RS
Dimension Diagram : Mounting - Removing
:
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
21/03/2012
The KZP3-RS is used to obtain and maintain a category 4 level of safety for an installation with two control devices.
Depending on the degree of safety required, KNA3-XS / KNA3-RS / KZP3-RS can receive the following components as inputs:
- pushbutton for start or validation (Y1-Y2)
- emergency stop pushbuttons with one or two contacts (A1-A2)
one or two contacts (A1-A2)
two contacts KNA3-RS: Y11-Y12 and Y21-Y22,
two contacts KZP3-RS: Y11-Y12 / Y21-Y22 and Y31-Y32 / Y41-Y42
- position sensors (limit switches) with
one or two contacts (A1-A2)
two contacts KNA3-RS: Y11-Y12 and Y21-Y22,
two contacts KZP3-RS: Y11-Y12 / Y21-Y22 and Y31-Y32 / Y41-Y42
www.crouzet.com
A positive break operation device must be used if a single channel is used.
To increase the degree of safety, one "N/C" auxiliary contact per power contactor is wired in series with the start (or validation) pushbutton, to ensure self-checking in this part of the installation.
The KNA3-XS has three "N/O" safety contacts (13-14/23-24/33-34) and one "N/C" signalling contact (41-42). One or more control devices may be wired up to the breaking capacity of the safety
contacts: 1500 VA. However, to limit internal heating, it is advisable not to exceed 10 A thermal for all three contacts. The signalling contact can be wired on a PLC input or integrated into a fault
signalling system.
The number of contacts can be extended and the breaking capacity thus increased. To do this, use the KZE3-XS.

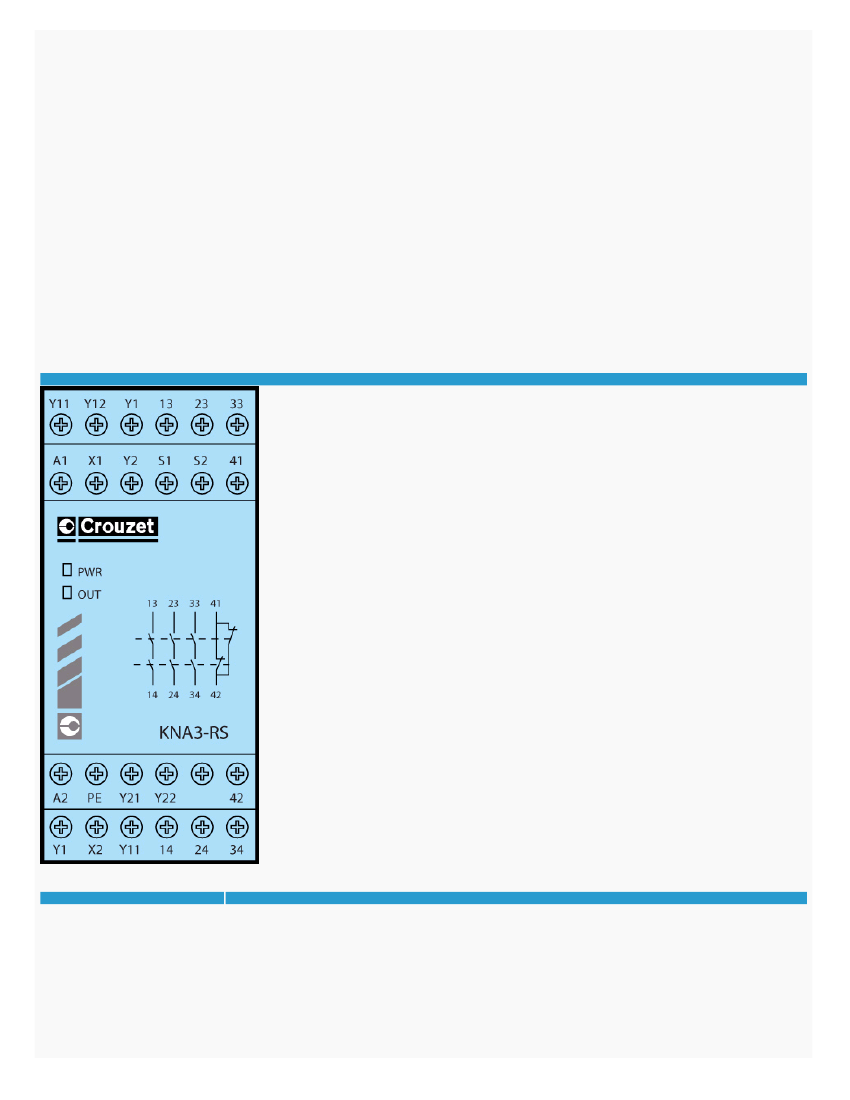

: KNA3-RS
Lég.
A1-A2
Y11-Y12 / Y21-Y22
Y1-Y2
S1-S2
X1-X2
13-14/23-24/33-34
41-42
Legend
Power supply
Redundant inputs with differentiated voltage for control devices
Start/validation
Short-circuit protection on start / validation input
Return loop
"N/O" safety contacts
"N/C" signalling contacts
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
Microcontroller MCU
