JV-3-KT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> JV-3-KT

JV-3-KT: DescriptionGeneral Purpose Relays POWER; CategoryMechanical and electronic products relay; File Size479KB，8 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

JV-3-KT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JV-3-KT	-	-	View	Buy Now

JV-3-KT Overview

General Purpose Relays POWER

JV-3-KT Parametric

Parameter Name	Attribute value
Maker	FUJITSU
Reach Compliance Code	unknown
ECCN code	EAR99
body width	10 mm
body height	12.5 mm
Body length or diameter	17.5 mm
Maximum coil current (DC)	0.1 A
Coil operating voltage (DC)	1.98 V
Coil power	300 mW
Coil release voltage (DC)	0.15 V
Coil resistance	30 Ω
Maximum coil voltage (DC)	3 V
Nominal coil voltage	3 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	1250VA@250VAC
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated power R load	150W@30VDC
Contact (DC) maximum rated R load	5A@150VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	5000 Vrms
Electrical life	100000 Cycle(s)
Insulation resistance	1000000000 Ω
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	8 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
PCB hole count	4
physical size	17.5mm x 10mm x 12.5mm
Guideline	CQC; CSA; SEMKO; UL; VDE
Relay action	MOMENTARY
Relay style	1 FORM A
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	4 ms
seal	RT3
surface mount	NO
Termination type	SOLDER
weight	4.3 g

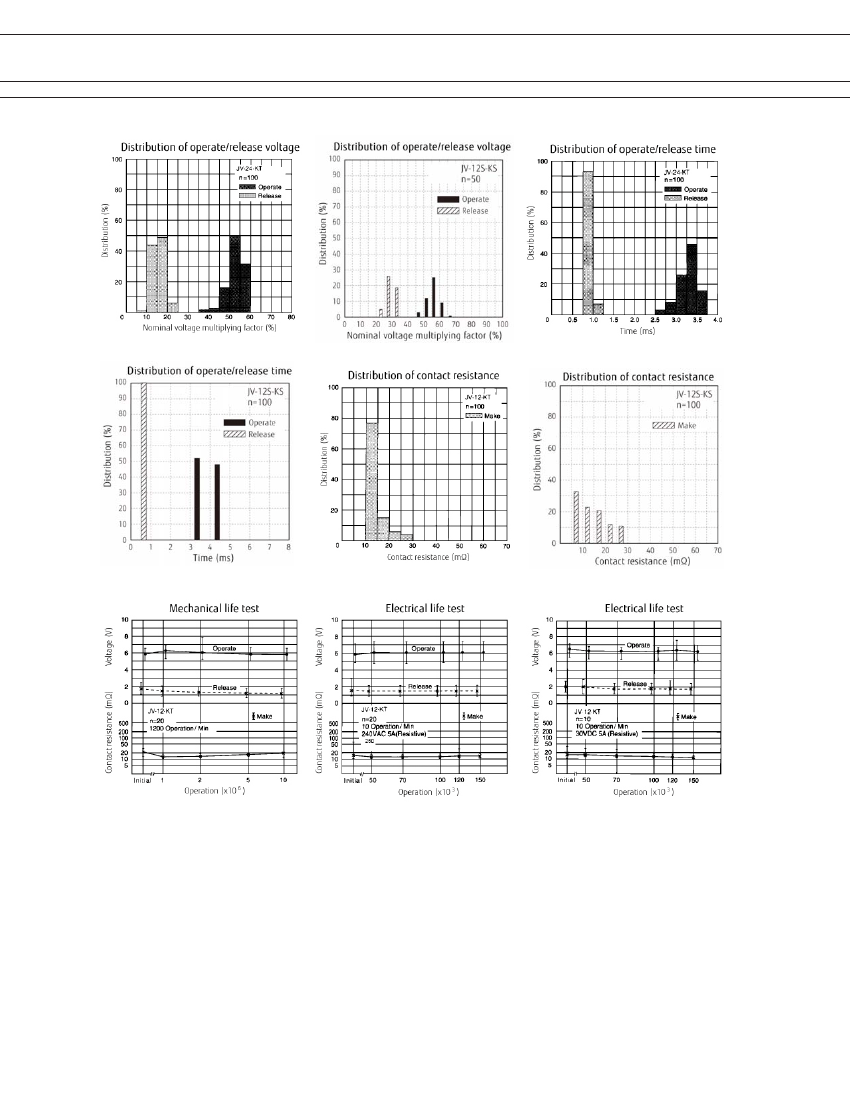

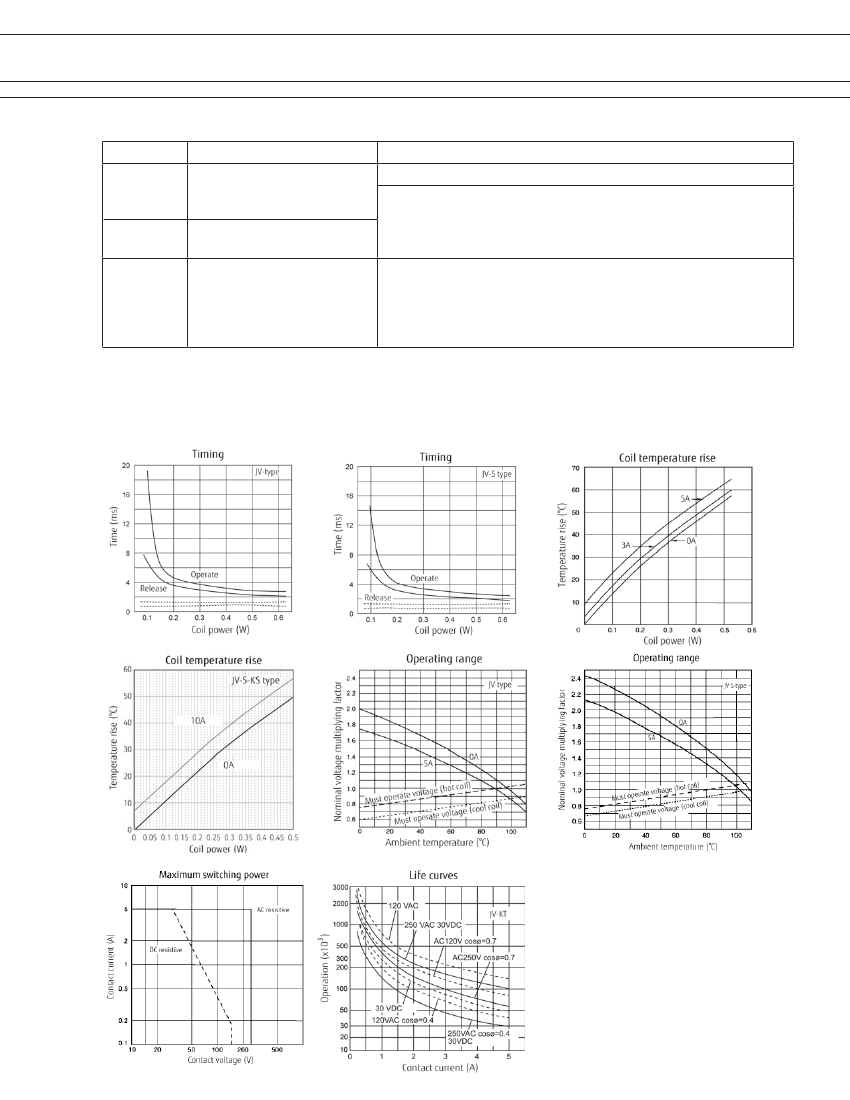

Preview

Download Datasheet

View All

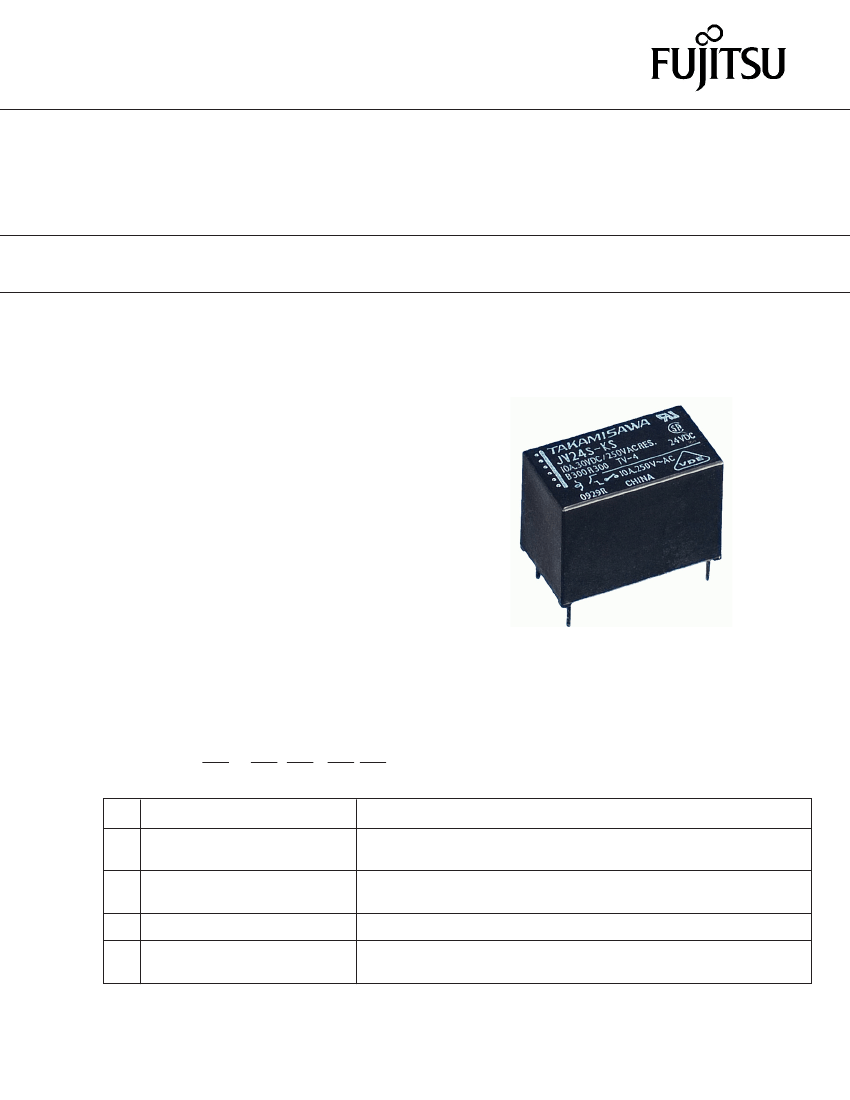

FTR-K1 SERIES

POWER RELAY

1 POLE - 5A/10A

Medium Load Control

JV Series

FEATURES

UL, CSA, VDE, SEMKO, CQC recognized

UL class B (130°C) wire class

Low profile and space saving

- Height: 12.5 mm

- Mounting space: 175 mm

High sensitivity in small package

- Operating power: 0.112 to 0.13 W

- Nominal power: 0.2 to 0.3 W

High insulation with reinforced insulation system

(between coil and contacts)

- Insulation distance: 8 mm

- Dielectric strength: 5,000 VAC

- Surge strength: 10,000 V

Plastic materials

- UL94 flame class V-0 -UL CTI level class 2

Plastic sealed type, RTIII

RoHS compliant.

Please see page 7 for more information

PARTNUMBER INFORMATION

[Example]

(a)

(b)

(c)

(d)

(f)

JV - 12

(a) (*) (b)

S - K

(c)

(d) (e)

Nil

: JV-Series

: 3.....48 VDC

Coil rating table at page 3

: Standard type (300mW) (not for -KS type)

: High sensitive type (200mW) (-KS type: 250mW)

: Plastic sealed type, RTIII

: High density mounting type

: High power type 10A

Relay type

Coil rated voltage

Coil type

Enclosure

Construction

Note: Actual marking omits the hyphen (-) of (*)

JV-3-KT Related Products

	JV-3-KT	JV-6-KT	JV-12-KT	JV-5S-KT
Description	General Purpose Relays POWER			ESD Suppressors / TVS Diodes 600W 33.0V
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
body width	10 mm	10 mm	10 mm	10 mm
body height	12.5 mm	12.5 mm	12.5 mm	12.5 mm
Body length or diameter	17.5 mm	17.5 mm	17.5 mm	17.5 mm
Maximum coil current (DC)	0.1 A	0.05 A	0.025 A	0.04 A
Coil operating voltage (DC)	1.98 V	3.96 V	7.9 V	3.75 V
Coil power	300 mW	300 mW	300 mW	200 mW
Coil release voltage (DC)	0.15 V	0.3 V	0.6 V	0.25 V
Coil resistance	30 Ω	120 Ω	480 Ω	125 Ω
Maximum coil voltage (DC)	3 V	6 V	12 V	5 V
Nominal coil voltage	3 V	6 V	12 V	5 V
Coil/Input Power Type	DC	DC	DC	DC
Contact (AC) maximum rated power R load	1250VA@250VAC	1250VA@250VAC	1250VA@250VAC	1250VA@250VAC
Contact (AC) maximum rated R load	5A@250VAC	5A@250VAC	5A@250VAC	5A@250VAC
Maximum contact current (AC)	5 A	5 A	5 A	5 A
Maximum contact current (DC)	5 A	5 A	5 A	5 A
Contact (DC) maximum rated power R load	150W@30VDC	150W@30VDC	150W@30VDC	150W@30VDC
Contact (DC) maximum rated R load	5A@150VDC	5A@150VDC	5A@150VDC	5A@150VDC
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V
Maximum contact voltage (DC)	150 V	150 V	150 V	150 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC
Dielectric strength between coil and contacts	5000 Vrms	5000 Vrms	5000 Vrms	5000 Vrms
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
operating hours	8 ms	8 ms	8 ms	8 ms
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
PCB hole count	4	4	4	4
physical size	17.5mm x 10mm x 12.5mm	17.5mm x 10mm x 12.5mm	17.5mm x 10mm x 12.5mm	17.5mm x 10mm x 12.5mm
Guideline	CQC; CSA; SEMKO; UL; VDE	CQC; CSA; SEMKO; UL; VDE	CQC; CSA; SEMKO; UL; VDE	CQC; CSA; SEMKO; UL; VDE
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay style	1 FORM A	1 FORM A	1 FORM A	1 FORM A
Relay function	SPST	SPST	SPST	SPST
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	4 ms	4 ms	4 ms	4 ms
seal	RT3	RT3	RT3	RT3
surface mount	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
weight	4.3 g	4.3 g	4.3 g	4.3 g
Maker	FUJITSU	FUJITSU	FUJITSU	-
