5511MYELREDGRN

Description
Illuminated Pushbutton Switches Pushbutton Switch SPDT 0.03A 12V
CategoryMechanical and electronic products    switch
File Size314KB,3 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Download Datasheet Parametric View All

5511MYELREDGRN Online Shopping

Suppliers Part Number Price MOQ In stock
5511MYELREDGRN - - View Buy Now

5511MYELREDGRN Overview

Illuminated Pushbutton Switches Pushbutton Switch SPDT 0.03A 12V

5511MYELREDGRN Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
Actuator length0.205 inch
Actuator stroke1.4986 mm
Actuator typePUSHBUTTON
Other featuresYELLOW CAP COLOR
body height9.2964 mm
center contact materialCOPPER ALLOY
Center contact platingGOLD OVER NICKEL
Maximum contact current (DC)0.03 A
Contact (DC) maximum rated R load0.03A@12VDC
Contact resistance0.05 mΩ
Maximum contact voltage (DC)12 V
Dielectric withstand voltage1000VRMS V
Electrical life500000 Cycle(s)
End contact materialCOPPER ALLOY
End contact platingGOLD OVER NICKEL
Shell materialNYLON
illuminationLED
Insulation resistance50000000 Ω
Manufacturer's serial number5511MYELREDGRN
Installation featuresTHROUGH HOLE-STRAIGHT
Maximum operating temperature65 °C
Minimum operating temperature-25 °C
PCB hole count10
surface mountNO
Switch actionMOMENTARY
switch functionSPDT
Switch typePUSHBUTTON SWITCH
Terminal length0.134 inch
Terminal materialCOPPER ALLOY
Termination typeSOLDER
Base Number Matches1

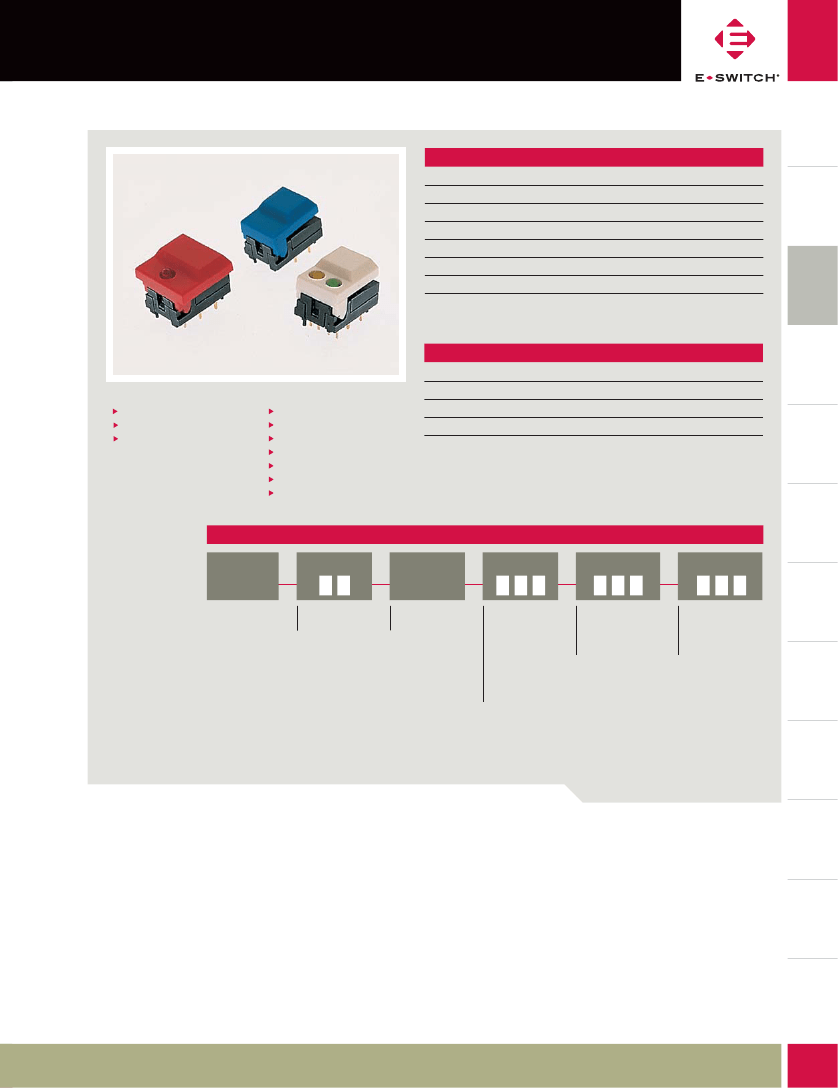

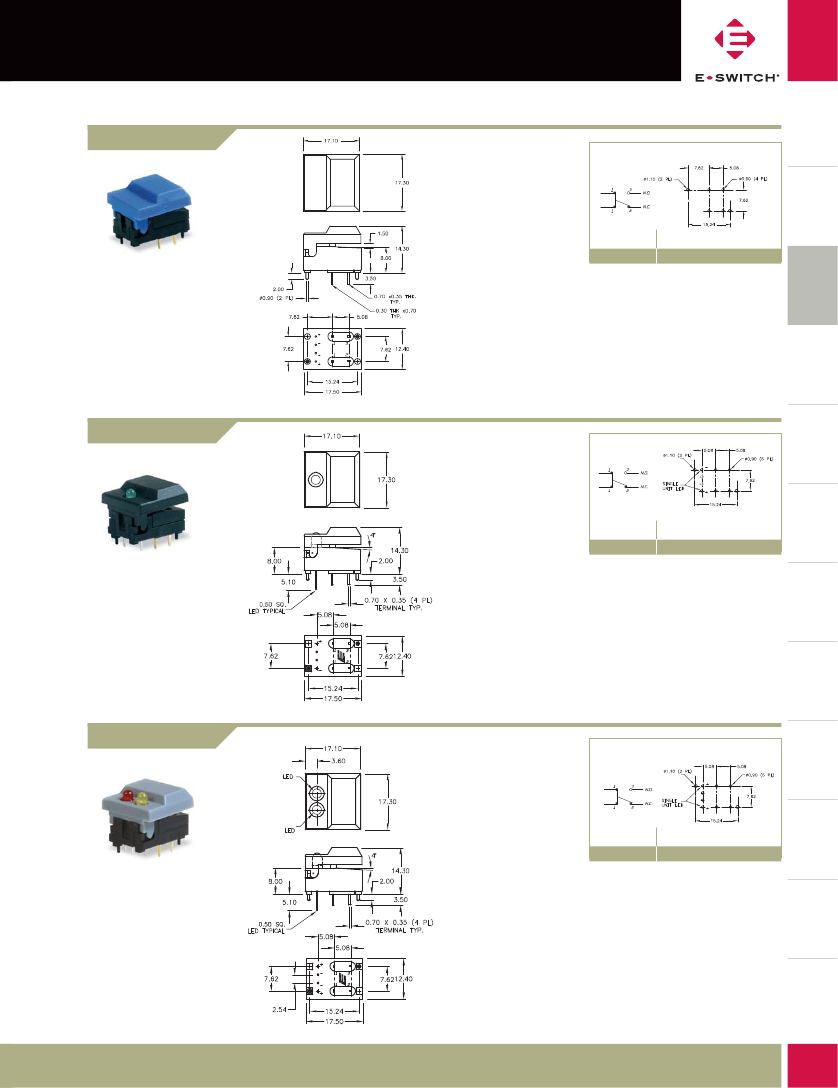

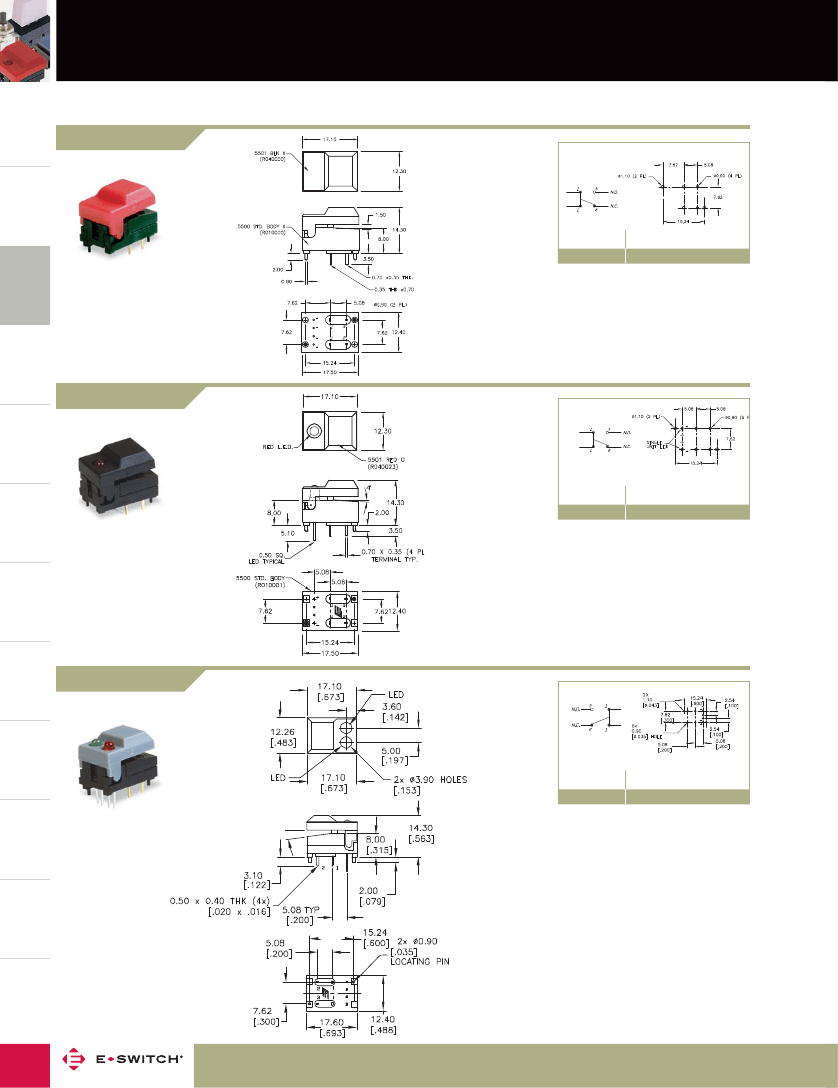

SERIES 5500 SWITCHES
SPECIFICATIONS
Life Expectancy:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Actuation Force:
500,000 cycles typical
50mΩ max. typical @ 2-4 VDC, 100mA
50 MΩ min.
>1,000 V rms at sea level
255 grams max.
PUSHBUTTON
SWITCHES
2nd LED COLOR
NAVIGATION
SWITCHES
CAP
OPTIONS
DETECTOR
SWITCHES
ROTARY
SWITCHES
KEYLOCK
SWITCHES
Specifications subject to change without notice.
Contact Ratings:
300mA @ 12 VDC
Operating Temperature: -25°C to +65°C
MATERIALS
Housing:
Nylon
ABS
Gold over nickel over copper alloy
Gold over nickel over copper alloy
Cap:
Contacts:
Terminals:
FEATURES & BENEFITS
Single or dual LED options
Hinged pushbutton design
High operating life
APPLICATIONS/MARKETS
Telecommunications
Networking
Computers/servers
Performance audio
Instrumentation
Low power on/off designs
External hard drives and modems
HOW TO ORDER
SERIES
CAP STYLE
MECHANICAL
CONFIGURATION
CAP COLOR
1st LED COLOR
(1-LED cap styles only)
(2-LED cap styles only)
55
01 = Small
11 = Large
M
M = Momentary
BLK = Black
GRY = Grey
YEL = Yellow
BLU = Blue
RED = Red
ORG = Orange
GRN = Green
WHT= White
X = No LED
RED = Red LED
GRN = Green LED
YEL = Yellow LED
,
RED = Red LED
GRN = Green LED
YEL = Yellow LED
Example Ordering Number
55_ 11_ M_ BLU
55_ 01_ M_ WHT_ RED, GRN
www.e-switch.com
info
@
e-switch.com
DIP
SWITCHES
SNAP-ACTION
SWITCHES
SLIDE
SWITCHES
ROCKER
SWITCHES
TOGGLE
SWITCHES
TACT
SWITCHES
PUSHBUTTON SWITCHES
81
