B5-11141 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> B5-11141

B5-11141: DescriptionBasic / Snap Action Switches SPDT-DB Solder High Current; CategoryMechanical and electronic products switch; File Size452KB，2 Pages; ManufacturerOTTO; Websitehttp://www.ottoexcellence.com; Environmental Compliance

Download Datasheet Parametric View All

B5-11141 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B5-11141	-	-	View	Buy Now

B5-11141 Overview

Basic / Snap Action Switches SPDT-DB Solder High Current

B5-11141 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	OTTO
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Actuator stroke	1.57 mm
Actuator type	BUTTON TYPE
body width	6.35 mm
body height	11.1 mm
Body length or diameter	19.84 mm
Contact (AC) maximum rated R load	10A@115VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Electrical life	100000 Cycle(s)
JESD-609 code	e3
Installation features	PANEL MOUNT
Maximum operating force	2.22 N
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum pre-travel	1.27 mm
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	Tin (Sn)
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

basic switches

subminiature double break, snap-action commercial & military Grades

basic

switches

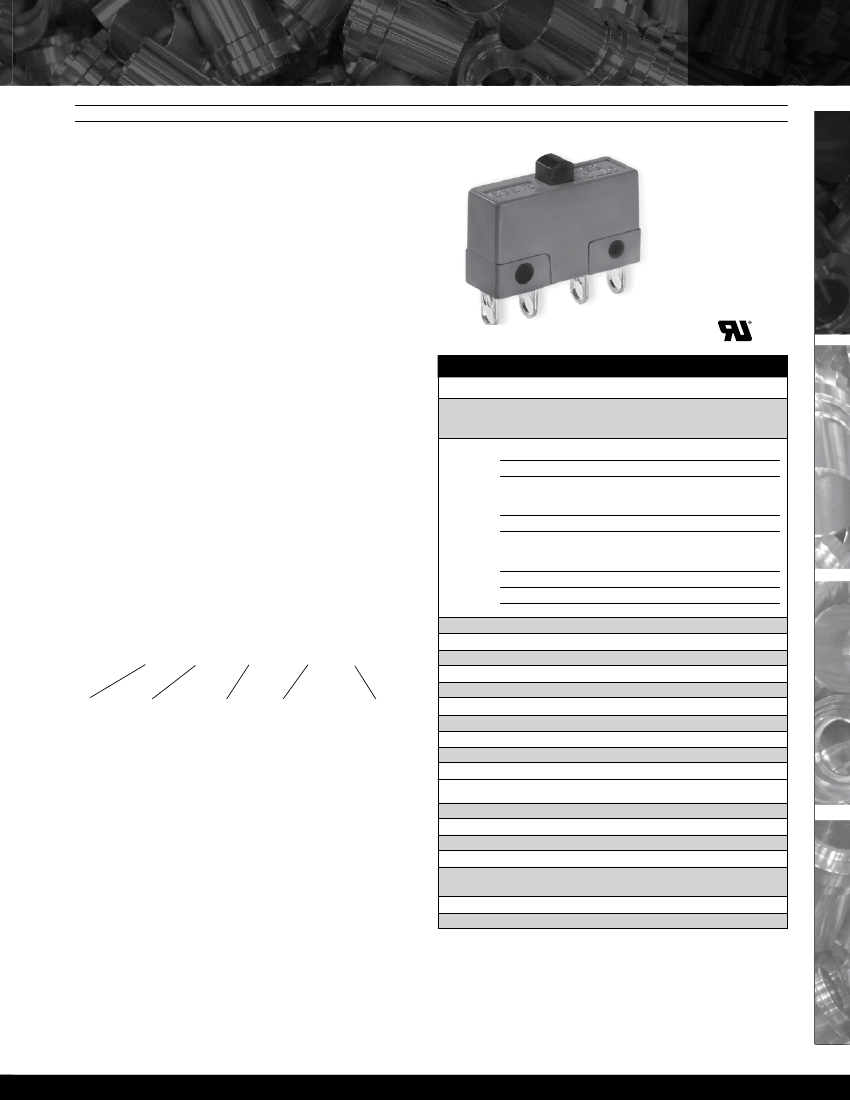

B5 series basic switches are subminiature in size and feature up

to 10 amps switching capability of 100,000 cycles. Mechanical

life is one million cycles.

The molded housing is rugged and structurally stable. The

terminals are sealed against solder flux entering the switch and

are bright acid tin plated for excellent solderability.

A variety of actuators for pushbutton, toggle and lever actuation

are available in standard and custom configurations.

basics

Solder

Terminal Style

Features:

•

Up to 10 amps switching capability

High contact pressure

Precision operating points

Button accepts actuation directly from cam

Constructed in accordance with MIL-PRF-8805/7

Available in Commercial & Military grades

Choice of four standard terminal styles or wire leads

UL recognized

B5-21141 QPL to MS27217-1

RoHS/WEEE/Reach compliant

Standard Characteristics/Ratings:

ELECTRICAL RATINGS:

Circuitry

SPNO-DB &

SPNC-DB

Load

Resistive

Inductive*

Lamp

SPDT-DB

2 Circuit

Resistive

Inductive*

Lamp

SPDT

Resistive

Inductive*

Lamp

*L/R = 0.026

Electrical Life:

Mechanical Life:

Seal:

Operating Force:

Sea Level

70,000 feet

@ 28VDC or

@ 115VAC, 60Hz @ 115VAC, 60Hz

10A

7.5A

10A

100,000 cycles

1,000,000 cycles

Unsealed

5 oz, +3/-2 oz or 6 oz max or 3 oz min

2 oz min

0.406 +/- 0.010 inches from mounting holes

0.012 inches min

0.050 inches max

10A

3.5A

N/A

10A

N/A

10A

1.5A

N/A

Sea Level @

125/250VAC, 60Hz

10.1A

1.5A

10.1A

N/A

B5 – X

B5 PART NUMBER CODE

X X

Operating Temp Range:

-65°C to +125°C

Model

Commercial

Solder

+3-2

Military

Taper Tab Quick

6 oz max

Connect

5 oz min

0.110 Quick

Connect

➀

PC Pin

With Wires 06.0" lg.

With Wires 12.0" lg.

With Wires 18.0" lg.

With Wires 24.0" lg.

With Wires 30.0" lg.

➀

Mates with AMP Series 110 receptacles.

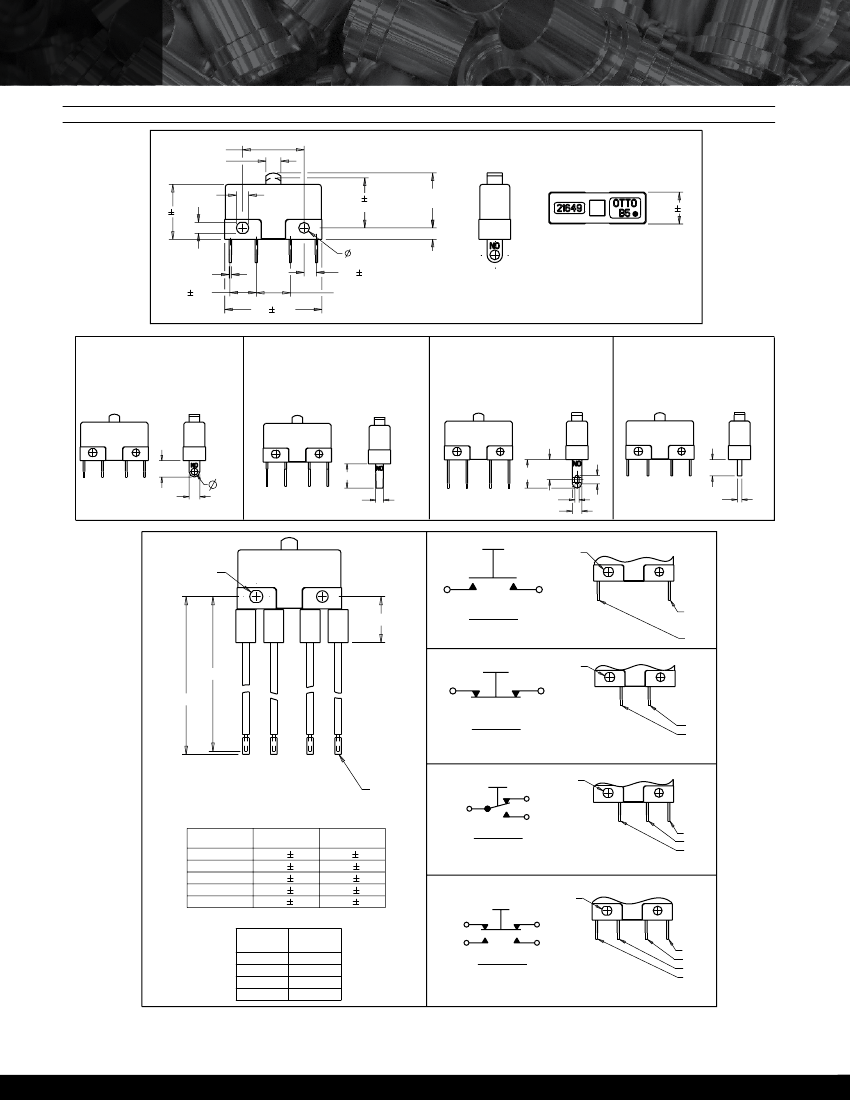

Terminal Style

or Wire Length

Operating

Force

Circuitry

SPNO-DB, Form X

SPNC-DB, Form Y

SPDT, Form C

SPDT-DB, Form Z

Contact

Material

Silver/Gold –

High Current

Silver/Gold –

Low Current

Release Force:

Operate Point:

Overtravel:

Pretravel:

Movement Differential:

0.020 +/- 0.005 inches

MATERIALS:

Case:

Cover:

Button:

Terminals:

Contacts:

Terminal Hardware:

Mounting Hardware:

Thermoset, blue

Thermoplastic, black

End or front solder type brass with bright acid tin plating

Stationary: Silver with gold

Moveable: Silver with gold

None provided

specifications subject to change without notice

www.ottoexcellence.com
