Electrocomponents
®
Series 204
D
at
a Sheet
SMD DIP Switch
Surface Mount
Multi-Functional
DIP Switch
IR Solderable,
PCB Washable
Features
Optimized Mechanical Features
• Coplanarity: 0.1mm / .004” max.
• Compatible with SMT assembly including IR and
Vapor-Phase (up to 260°C)
• Enclosed actuators shield contacts from foreign particles
throughout life of switch
• Gull-wing terminal configurations
• Available with SPST,SPDT,DPST, 3PST circuitry choices
Optimized Contact System
• Contact wiping action on make and break
• Integral terminal and contact locked into thermoset base
• Available with low profile, standard, or extended actuators
• Electrostatic discharge shield rated to 22 KV
Materials
• Gold plated contacts for long-term contact corrosion
resistance
• All UL 94 V-0 plastics used
• RoHS compliant
• Optional top tape seal for board spray washing
ce
Electrical and Mechanical Specifications
Switch Function
SPST - 2 through 10 and 12 positions
SPDT & DPST - 1 through 6 positions
3PST - 1 through 4 positions
Coplanarity
0.1mm/.004" max.
Allowable Solder Time
Up to 60 seconds at 260°C
Vibration
Per MIL-STD-202F, method 204D, condition B
(.06" or 15 G’s between 10 Hz to 2K Hz) with
no contact inconsistencies greater than 1 microsecond
Shock
Per MIL-STD-202F, method 213B, condition A
(50 G’s) with no contact inconsistencies
greater than 1
microsecond
Sealing
Bottom epoxy seal optional
Optional top tape seal for board spray washing
Marking
Special side or top marking available - consult CTS
Contact Resistance
50 milliohms maximum initial
100 milliohms maximum at end of life
Insulation Resistance
1,000 megohms minimum between insulated terminals
Dielectric Strength
500 VAC for 1 minute between adjacent switches
Nonswitching Rating
100 mA or 50 VDC maximum
Switch Capacitance
5 pF maximum between adjacent closed switches
Operating Temperature
–55°C to +85°C
Actuation Life
Packaging
Standard : Anti-static tube packaging
Optional : Tape and reel packaging
5,000 cycles switching 50 mA @ 24 VDC

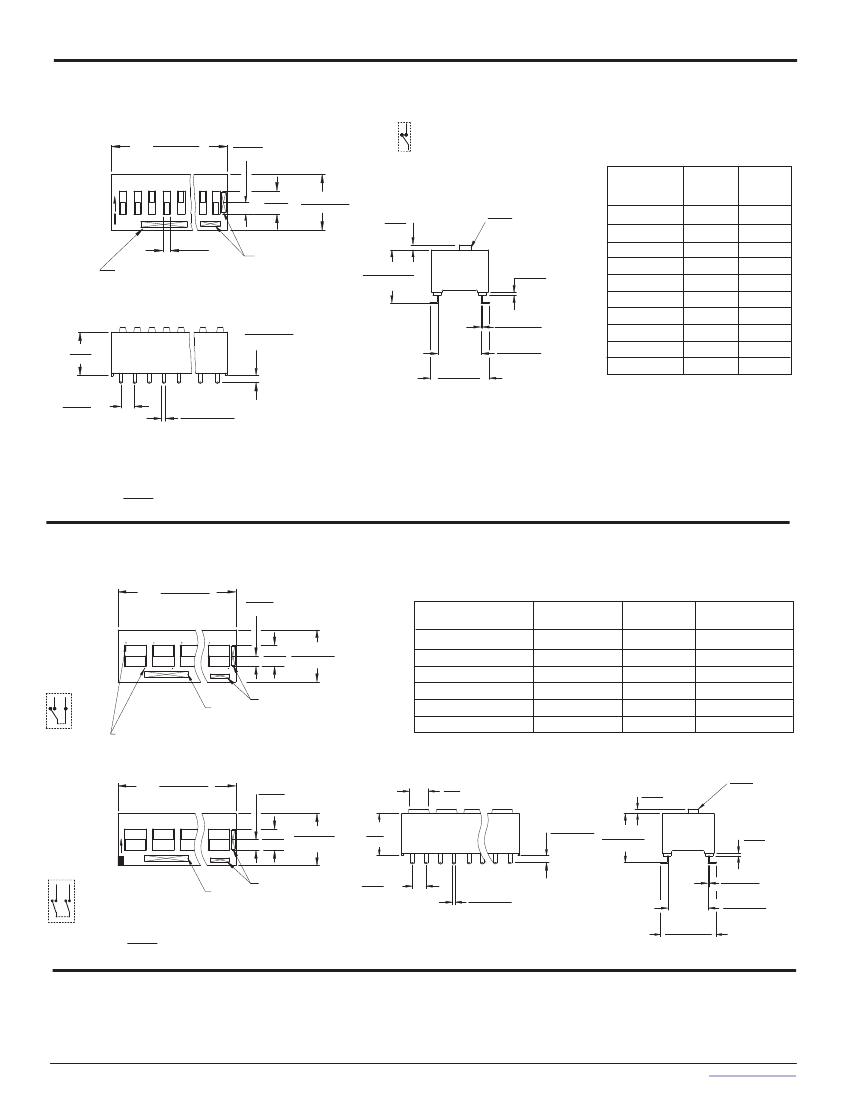

1-4
CTS Electrocomponents
©2017 CTS Corporation. All rights reserved. Information subject to change.
06/14/17
www.ctscorp.com
Ordering Information
204
NUMBER OF POLES
BLANK – (FOR SPST)
1
– SINGLE POLE
2
– DOUBLE POLES
3
– 3 POLES
4
– 4 POLES
– 1
2
1
E
ACTUATOR HEIGHT
S
T
R
N
TOP TAPE SEAL
BLANK
–NO TOP TAPE SEAL
T
–TOP TAPE SEAL
NUMBER OF THROWS
BLANK – (FOR SPST)
1
– SINGLE THROW
2
– DOUBLE THROWS
BLANK
– STANDARD(0.89mm/.035")
E
– EXTENDED(3.43mm/.135")
LP
– LOW PROFILE(Flush)
*
Low profile: SPST & SPDT only
*
*
*
Extended: SPST only
*
*
Not available on extended
actuator
TAPE AND REEL
BLANK -
ANTI-STATIC TUBE PACKAGING
R
- TAPE & REEL PACKAGING
NUMBER OF SWITCH POSITIONS
1
2
3
4
5
6
7
8
9
10
12
– 1 POSITION
– 2 POSITIONS
– 3 POSITIONS
– 4 POSITIONS
– 5 POSITIONS
– 6 POSITIONS
– 7 POSITIONS
– 8 POSITIONS
– 9 POSITIONS
– 10 POSITIONS
– 12 POSITIONS
*
for customized features not listed.
Not available
for 7 position. Consult CTS
*
ACTUATION PRESET
BOTTOM EPOXY SEAL
BLANK -
NO EPOXY SEAL
S -
EPOXY SEAL
BLANK
– SHIP AT "OFF" POSITION
N
– SHIP AT "ON" POSITION
Contact CTS for other common features not listed.
4-4
CTS Electrocomponents
©2017 CTS Corporation. All rights reserved. Information subject to change.
06/14/17
www.ctscorp.com
