TP302505-1

Description
Speakers u0026 Transducers Piezo Transducer
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size718KB，1 Pages
ManufacturerDB Unlimited
Download Datasheet Parametric View All

TP302505-1 Online Shopping

Suppliers Part Number Price MOQ In stock
TP302505-1 - - View Buy Now

TP302505-1 Overview

Speakers u0026 Transducers Piezo Transducer

TP302505-1 Parametric

Parameter NameAttribute value
Product CategorySpeakers & Transducers
ManufacturerDB Unlimited
RoHSDetails
ProductTransducers
TypePiezoelectric
Frequency2.5 kHz
Sound Pressure Level90 dBA
ShapeRound
Termination StyleSolder Pin
Diameter30 mm
Current Rating3 mA
Height10 mm
Height - in0.394 in
Height - mm10 mm
MountingThrough Hole
Operating Temperature Range- 20 C to + 70 C
PackagingBulk
Factory Pack Quantity2000
Voltage Rating3 V

Preview

Download Datasheet
Insert Graphics
Specifications
Description
Technology
Resonant Frequency
Rated Voltage
SPL @ 10cm
Capacitance
Mount Type
Voltage Range
Max Rated Current
Housing Material
Operating Temperature
Storage Temperature
Weight
Value
Piezo
2,500
3
90
25,000
Thru Hole
1 ~ 30
3
PBT
-20 ~ +70
-20 ~ +70
6
Unit
(Hz)
(V)
(dBA)
(pF)
(V)
(mA)
Notes
1) All dimensions are in mm unless otherwise noted
2) All parts meet RoHS
Revision History
Version
1
Description
Released from Engineering
Date
10/21/2013
Approved
J.S
Drawn by
°C
°C
(g)
A.B.
Date
10/21/2013
Checked by
C.E.
Date
10/21/2013
Approved by
J.S
Date
10/21/2013

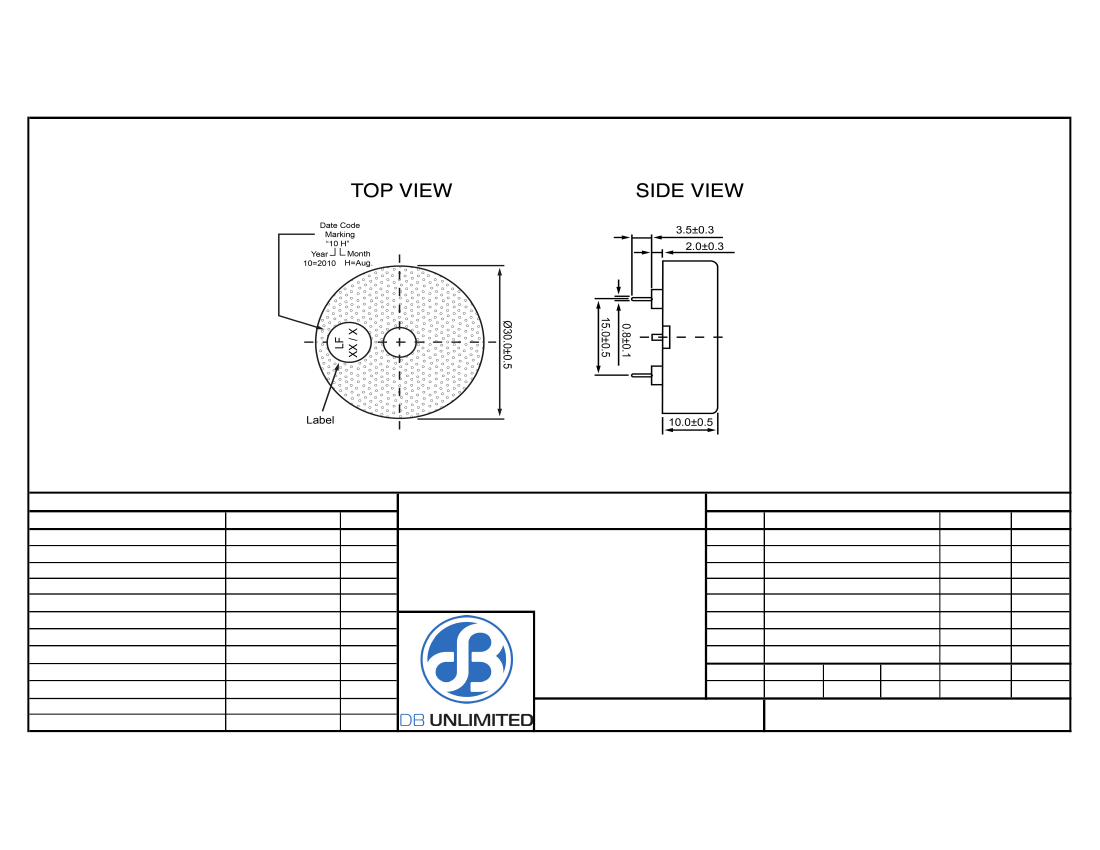

Piezo Transducer
TP302505-1
Sheet
1 of 1
sales@dbunlimitedco.com | www.dbunlimitedco.com
©2013, DB Unlimited
