Manual Switches
Rocker Switch Operators
COLOR DISPLAY OPTIONS
AML54/56 Series

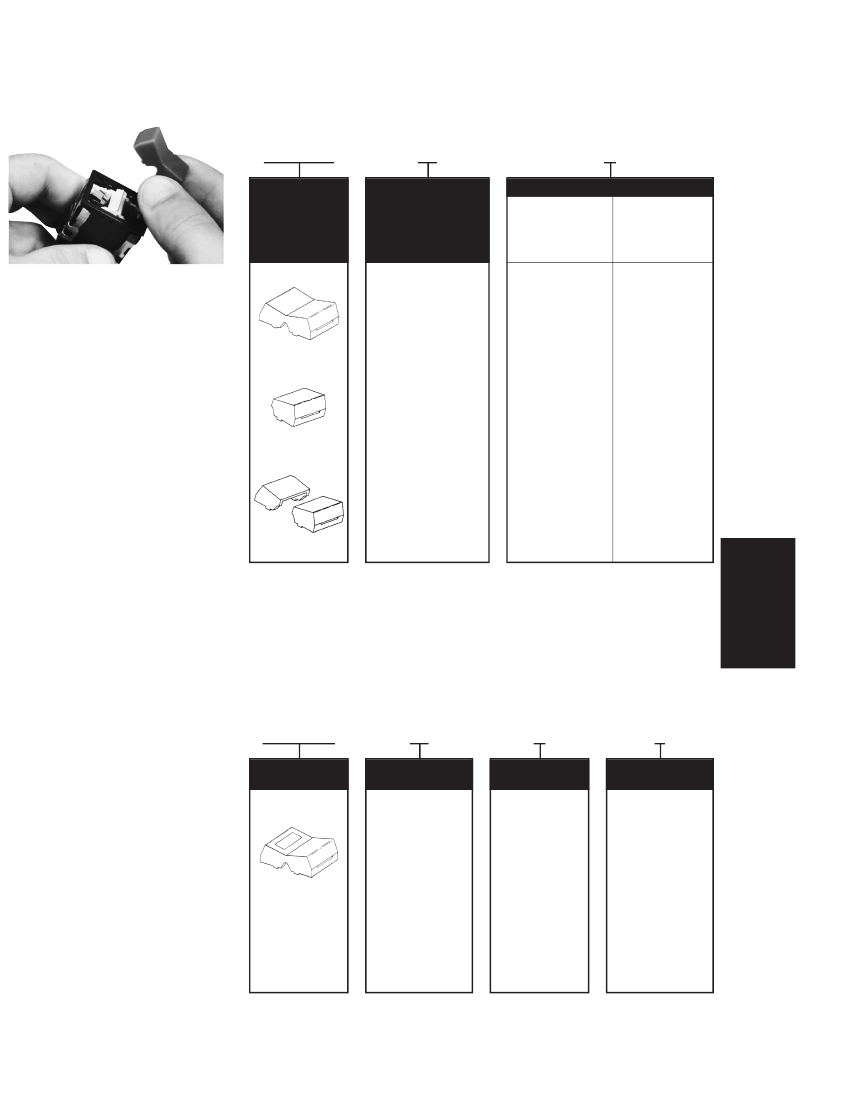

AML54 ROCKER OPERATOR ORDER GUIDE
(All possible color combinations may
not be available.)
For AML14, AML24, AML34 incandescent or non-lighted display.
AML54-F
10
R
Rocker Color – See Note Below
Full rocker,
1/2 rocker,
or one side of
two-piece
rockers
R
Red
Y
Yellow
G
Green
B
Blue
***W
White
K*
Black
L*
Gray
A**
Amber
Rocker
Operator Type
Display/Legend
Type
Transmitted Color
10
No legend
20
With legend on cap
Transmitted Color
(Clear cap and
color insert) †
11
No legend
21
With legend on
insert
Dead Front †
(Smoky gray cap
and color insert)
30
No legend
40
With legend on
insert
***Projected Color †
(White cap and
color insert)
50
No legend
60
With legend on cap
Rocker operators are assembled to the
switches by simply snapping them into
recesses in the switch operator sockets.
Transmitted color — Color is displayed
whether lamp is On or Off. Choice of 1-
piece rockers (types 10 or 20) or rockers
with clear cap and colored translucent
insert (types 11 or 12).
Dead front hidden color/hidden legend —
Rocker appears black with lamp Off. Leg-
end and color appear when illuminated
(types 30 or 40).
Projected color — Translucent white
rocker with transparent colored insert
(types 50 or 60). White rocker appears
colored when illuminated.
AML54-F
Full Rocker
AML54-E
1/2 Rocker
AML54-T
Other side
of two-piece
rockers
R
Red
Y
Yellow
G
Green
B
Blue
***W
White
K*
Black
L*
Gray
A**
Amber
Two-Piece Rocker
NOTE: AML54-F10 and AML54-F20 are
one-piece, one-color full rockers. Thus
only one color code letter is necessary
when ordering. Include a two letter code
for all other AML54-E (and AML54-T)
catalog listings.
* Not for lighted display.
**Not available with projected color or dead
front.
***Insert is clear for projected color when ‘‘W’’
is used.
†Not available for use with AML34 power
switches.
Manuals
Example:
AML54-F10R
Full rocker; with transmitted color, no
legend; red.
AML56 ROCKER OPERATOR ORDER GUIDE
For AML36 neon display.
AML56-N
10
R
Y
Rocker
Operator Type
AML56-N
Display/Legend
Type
Transmitted Color
10
No Legend
20
With Legend
Lens
Color
T
Clear
R
Red
Y
Yellow
Rocker
Color
R
Red
Y
Yellow
G
Green
B
Blue
W
White
K
Black
Full Rocker
with
Colored Lens
AML56-N rockers have a colored lentic-
ular lens window which extends over the
neon lamp.
Honeywell Sensing and Control 1-800-537-6945 USA
Example:
AML56-N10RY
Full rocker; with transmitted color, no leg-
end; yellow rocker and red lens.
51
1-815-235-6847 International 1-800-737-3360 Canada
Manual Switches
Rocker Switch Operators
AML56 ORDER GUIDE
For AML16 and AML26 LED display.
AML56 Series

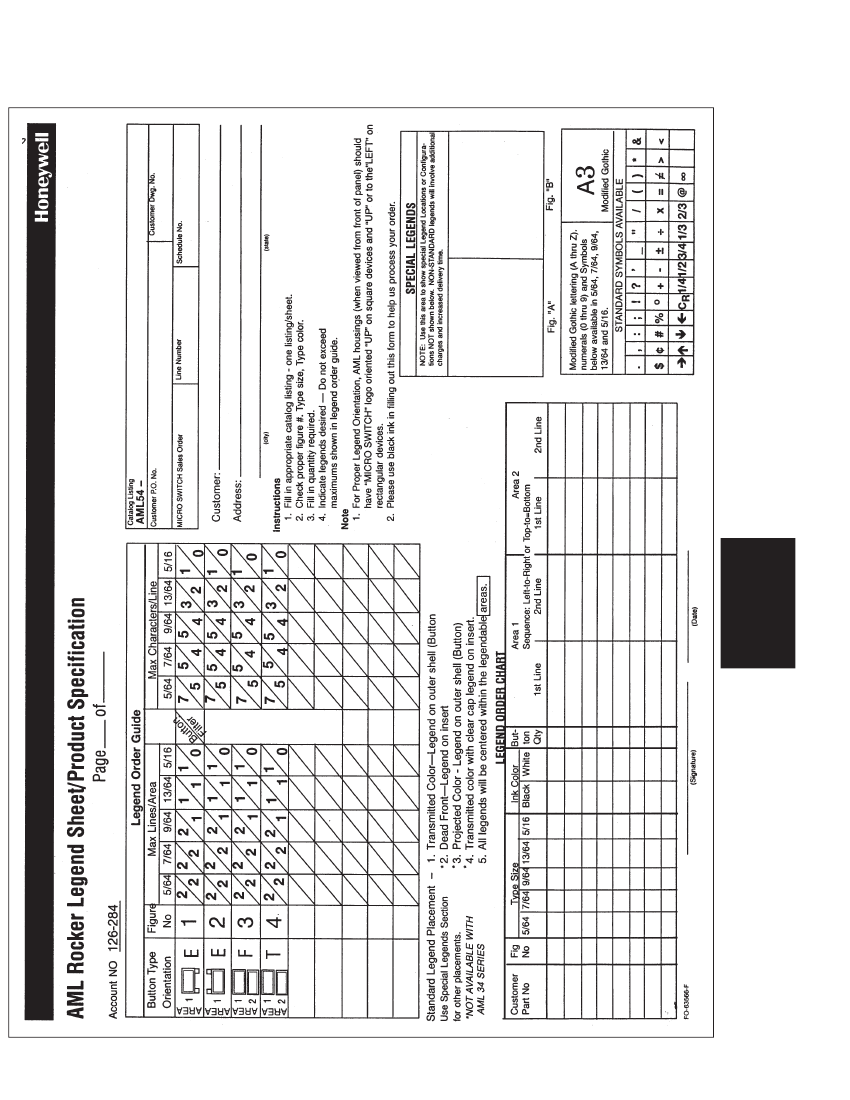

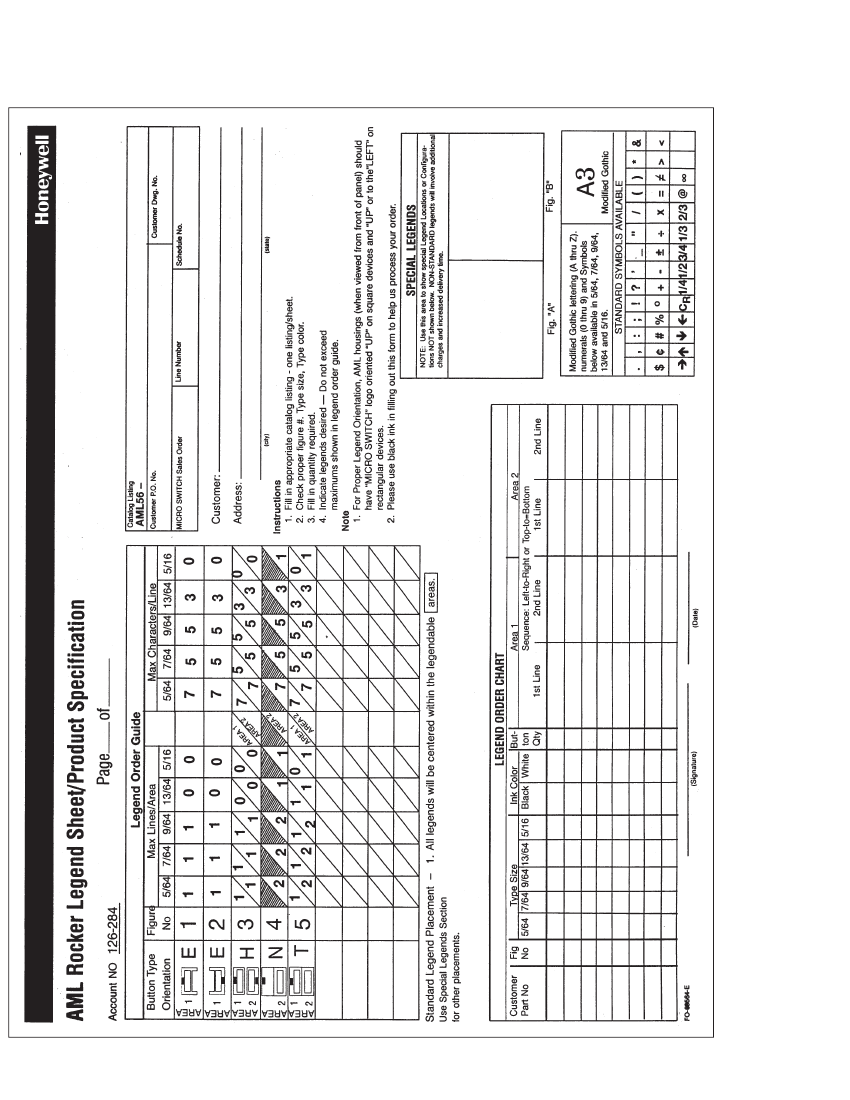

HOW TO ORDER ROCKER LEGENDS
When specifying legended rockers, sub-
mit a legend order sheet to cover each
catalog listing. These forms identify the
maximum number of lines per area and
the maximum characters per line, based
on the type size you request. To insure
proper legend orientation, rocker switch
housings (when viewed from the panel
front) should have the ‘‘MICRO SWITCH’’
identification facing UP or to the LEFT.
Rocker legend order sheets are shown on
the following pages. Reproduce them on
your office copier.
Legend Sheet
AML54 Rockers
AML56 Rockers
Form No.
FO-63566
FO-63564
AML56-T
10
R
1/2-rocker
or LED side of
two-piece rockers
R
Red
Y
Yellow
G
Green
B
Blue
W
White
K
Black
L
Gray
B
Rocker Color – See Notes Below
Rocker
Operator Type
AML56-E
Display/Legend
Type
Transmitted Color
10
No Legend
20
With Legend
Other side of
two piece rockers
R
Red
Y
Yellow
G
Green
B
Blue
W
White
K
Black
L
Gray
1/2-Rocker*
(For one LED)
AML56-T
Two-Piece Rocker
(For one LED)
AML56-H
Two-Piece Rocker
(For two LED’s)
Example:
AML56-T10RB
Two-piece rocker; with LED window in
one side, transmitted color, no legend;
red (LED side) and blue (non-LED side).
1
* Notes:
Only one color code letter is necessary
for AML56-E 1/2-rockers. AML56-E, -T,
and -H rockers have an open window
which allows LEDs to be flush with the
rocker surface.
2
To order a 1/2-rocker without the LED
‘‘window,’’ specify an AML54-E listing
from the previous page.
52
Honeywell Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
