Series 48A: Slide Switches
SerieS 48A
Slide Switches
FeATUreS
• Save Space and Weight
• SPDT and DPDT Circuitry
• Choice of Actuations and
Terminations

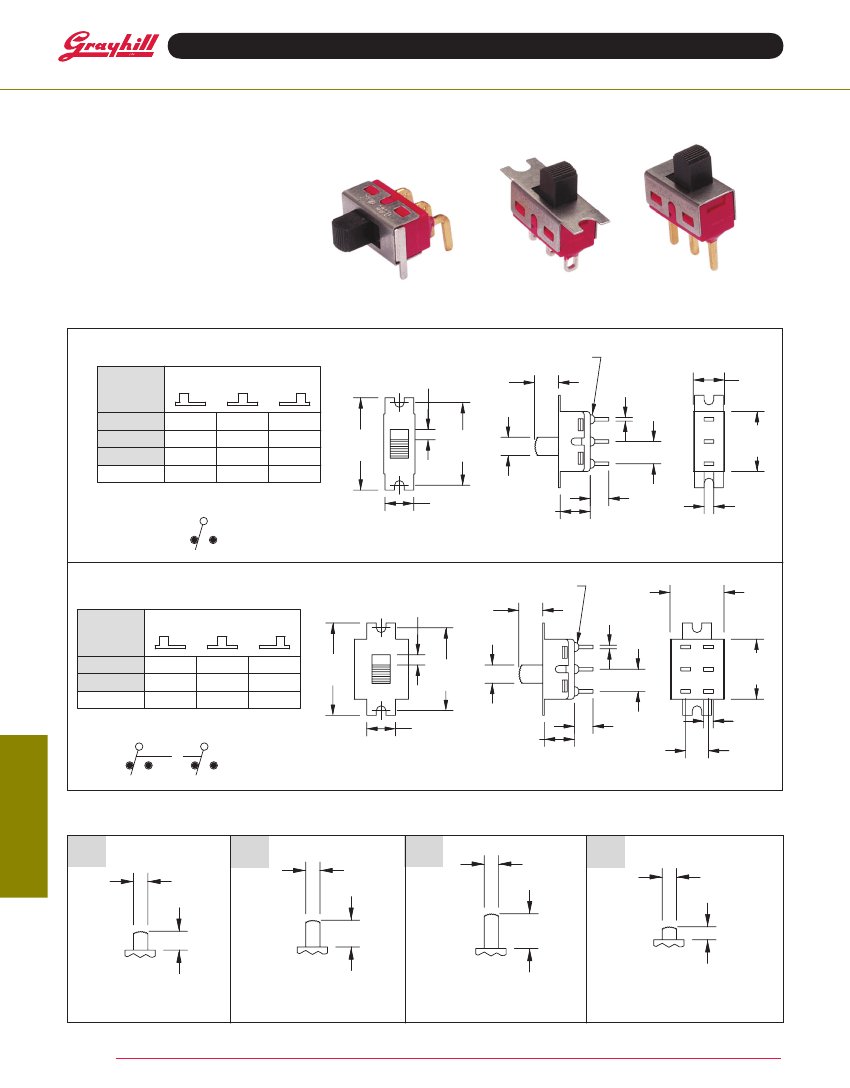

ModelS
SPdT
in inches (and millimeters)
TRAVEL
.085
(2.16)
EPOXY SEAL
.200
(5.08)
.030
(0.76)
.185
(4.70)
.260
(6.60)
3
2
1
MODEL
NO.
SSP1
SSP2
SSP3
TERM. COMM.
SWITCH POSITION
ON
ON
ON
2-1
02COMM.
NONE
NONE
OFF
OPEN
ON
(ON)
ON
2-3
.770
(19.56)
.690
(17.53)
.152
(3.86)
.500
(12.70)
()=MOMENTARY
.240
(6.10)
.250
(6.35)
.155
(3.94)
.080
(2.03)
SCHEMATIC
dPdT
1
3
TRAVEL
.085
(2.16)
EPOXY SEAL
.200
(5.08)
.030
(0.76)
.450
(11.43)
.185
(4.70)
MODEL
NO.
SDP1
SDP3
TERM. COMM.
SWITCH POSITION
6
5
4
3
2
1
ON
ON
2-1,5-4
ON
NONE
ON
OFF
OPEN 2-3,5-6
()=MOMENTARY
05COMM.
.770
(19.56)
.690
(17.53)
.152
(3.86)
.500
(12.70)
02COMM.
.240
(6.10)
.250
(6.35)
.155
(3.94)
.080
(2.03)
.190
(4.83)
1
Slide Switches
3
4
6
SCHEMATIC
AcTUATor oPTioNS
S1
Std
in inches (and millimeters)
S2
S3
.152 SQ.
(3.86)
.152 SQ.
(3.86)
.152 SQ.
(3.86)
S4
.152 SQ.
(3.86)
.200
(5.08)
.285
(7.24)
.370
(9.40)
.140
(3.56)
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Series 48A: Slide Switches

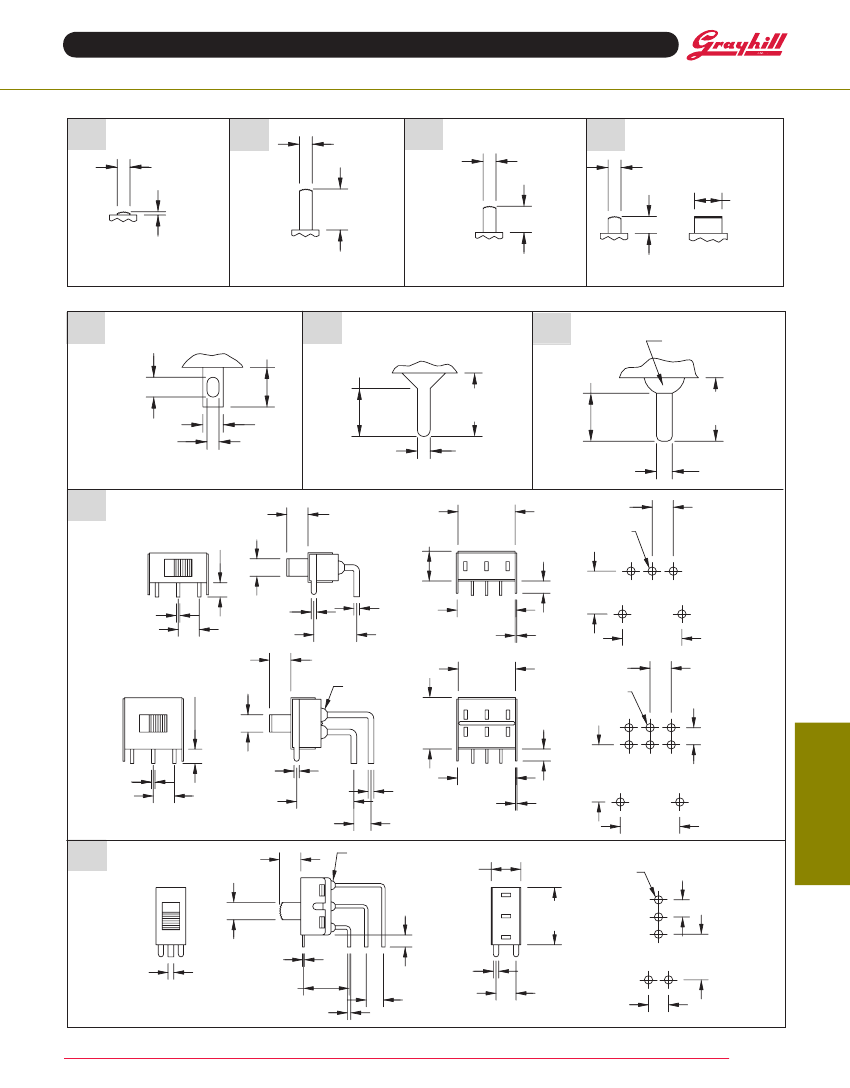

AcTUATor oPTioNS
S5
For DPDT Only
.152 SQ.
(3.86)
in inches (and millimeters)
S6
.152 SQ.
(3.86)
S7
.152 SQ.
(3.86)
T1
For DPDT Only
.152
(3.86)
.325
(8.26)
DIP Switches
.040
(1.02)
.485
(12.32)
in inches (and millimeters)
.310
(7.88)
.200
(5.08)
TerMiNATioN oPTioNS
M1
Solder Lug
.078
(1.98)
.156
(3.96)
M2
P.C. Mount (Std) M3 P.C. Mount, Quick Connect
EPOXY SEAL
.189
(4.80)
.250
(6.36)
.189
(4.80)
.250
(6.35)
.047
(1.19)
.080
(2.03)
THK. .030 (0.76)
THK. .030 (0.76)
.186
(4.72)
.050
(1.27)
.030 (0.76) THK.
.185
(4.70)
Ø.073
(Ø1.85)
.062
(1.57)
M6
Right Angle P.C. Mount,
Horizontal Actuation
.152
.125
(3.86)
(3.18)
.260
(6.60)
1
.500
(12.70)
2
3
.106
(2.69)
.030
(0.76)
SPdT
.125
(3.18)
.185
(4.70)
.046
(1.17)
.050
(1.27)
.375
(9.53)
.186
(4.72)
EPOXY
SEAL
.450
(11.43)
1
4
.520
(13.21)
.375
(9.53)
.014
(0.36)
.185
(4.70)
6
.520
(13.21)
.152
(3.86)
.500
(12.70)
5
.106
(2.69)
Ø.073
(Ø1.85)
2
3
1
4
.030
(0.76)
.046
(1.17)
.185
(4.70)
dPdT
.500
(9.53)
.150
(3.81)
EPOXY
SEAL
.050
(1.27)
.520
(13.21)
.014
(0.36)
.500
(12.70)
.150
(3.81)
Slide Switches
.520
(13.21)
Ø.073
(Ø1.85)
.150
(3.81)
M7
Right Angle P.C. Mount,
Vertical Actuation
.186
(4.72)
.106
2.69
2
.260
(6.60)
3
2
1
.500
(12.70)
.400
(10.16)
.175
(4.45)
.175
(4.45)
.050
(1.27)
.152
(3.86)
1
3
.014
(0.36)
.400
(10.16)
.150
(3.81)
.046
(1.17)
.030
(0.76)
SPdT
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

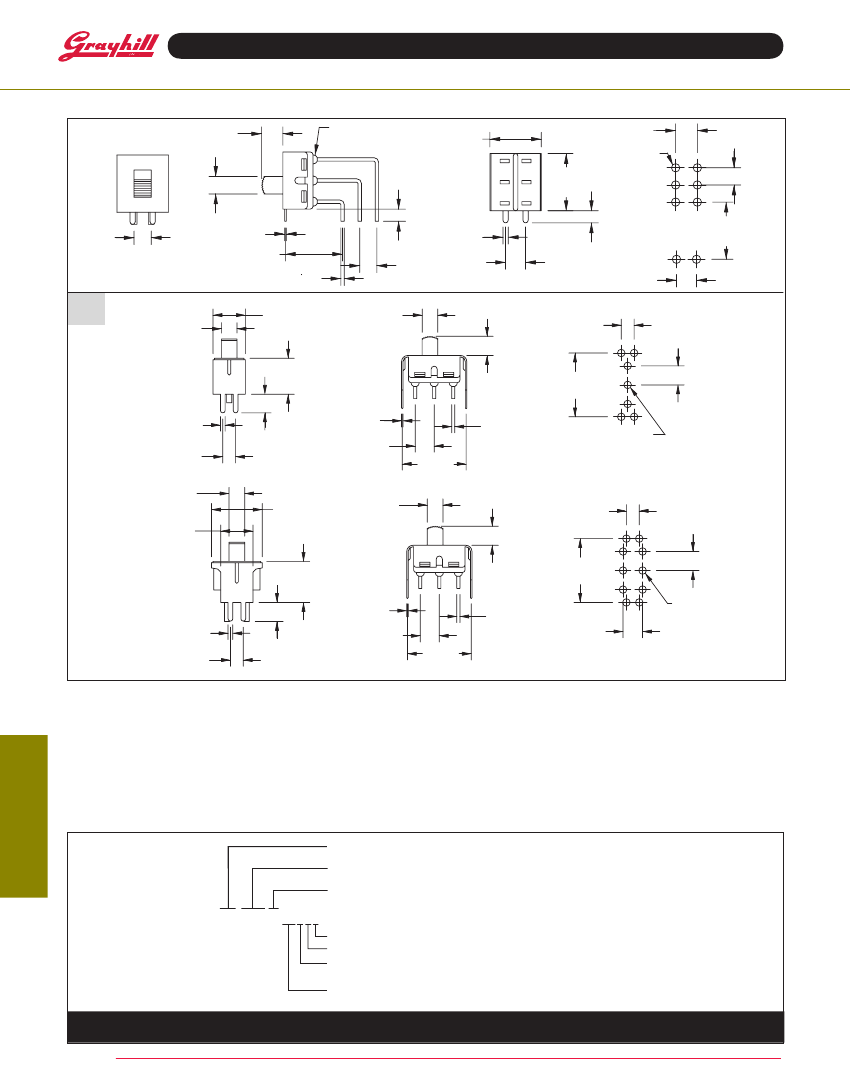

Series 48A: Slide Switches
TerMiNATioN oPTioNS
dPdT
.186
(4.72)
in inches (and millimeters)
EPOXY
SEAL
.106
(2.69)
5
.450
(6.60)
.190
(4.83)
3
2
1
.500
(12.70)
Ø.073
(Ø1.85)
.150
(3.81)
.150
(4.83)
.152
(3.86)
.014
(0.36)
.500
(12.70)
.030
(0.76)
4
6
.046
(1.17)
.150
(3.81)
.152
(3.86)
.500
(12.70)
.106
.175 (2.69)
(4.45)
.175
(4.45)
V2
Vertical Bracket P.C. Mount
.152
(3.86)
.314
(8.00)
.125
(3.18)
.185
(4.70)
.350
(8.90)
1
2
3
.186
(4.72)
.620
(15.75)
SPdT
.046
(1.17)
.125
(3.18)
.152
(3.86)
.314
(8.00)
.181
(4.60)
.014
(0.36)
.185
(4.70)
.620
(15.75)
.152
(3.86)
.030
(0.76)
Ø.073
(Ø1.85)
.492
(12.50)
.125
(3.18)
.185
(4.70)
.400
(10.16)
4
5
6
.186
(4.72)
.620
(15.75)
Ø.073
(Ø1.85)
.190
(4.83)
dPdT
.046
(1.17)
.125
(3.18)
.184
(4.67)
.014
(0.36)
.185
(4.70)
.620
(15.75)
.030
(0.76)
SPeciFicATioNS
rATiNgS
contact rating: Q option - 5A with resistive
load @ 125 VAC or 28 VDC; 2A with resistive
load @ 250 VAC. R option - 0.4 VA max @ 20
Vmax (AC or DC)
electrical life: 30,000 cycles at full load
contact resistance: 10 milliohms max. initial
@ 2-4 VDC, 100 mA
insulation resistance:1,000 megaohms min
dielectic Strength: 1,000 V RMS @sea level
operating Temperature: -30°C to 85°C
MATeriAlS
case: Diallyl phthalate (DAP) (UL94V-0)
Housing:
Stainless steel
Slide Handle:
Nylon
Terminal/contacts:
Copper alloy with gold
over silver plate.
Terminal Seal: Epoxy
Slide Switches
orderiNg iNForMATioN
Series 48A Slide Switches
Model: SPDT: SSP1, SSP2, SSP3
DPDT: SDP1, SDP3
Actuator Options: S1, S2, S3, S4, S5, S6, S7, T1
(See Actuator options.)
48ASSP1S2M6RBT
RoHS Compliant
Mounting Options: A = Mounting Tabs, B= No Mounitng Tabs
Contacts: R = Copper alloy, gold plate over nickel plate,
Q = Copper alloy, silver plate
Termination Options: M1, M2, M3, M6, M7, V2
(See Termination options.)
Available from your local grayhill component distributor.
For prices and discounts, contact a local Sales Office, an authorized local
Distributor or Grayhill.
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
