2 Nm RE1 10 and 17 Watts 17 W Part number made to order
Torque rating of gearboxes : 2 Nm, metal gears
Motors : nominal power 9 W and 15 W
Speed range : 60 to 400 rpm
Cyclic operation only
Replaceable brushes
Part numbers
Type
80803008
17 W
Type
808030
Voltage
24 V
Output speed (rpm)
161
Ratios (i)
728/45
Specifications
General characteristics
Motor
Gearbox
Maximum permitted torque from gearmotor under
continuous conditions for 1 million turns (Nm)
Axial load dynamic (daN)
Radial load dynamic (daN)
Max. output power (W)
Nominal output (W)
Gearbox case temperature rise (°C)
Weight (g)
828000
810430
2
2
2
17
15,6
40
600
Made to order products, available on request
Motors :
Special interference suppression
Other supply voltages
Motor with 1 ball bearing
Shaft lengths at front and/or rear
1 or 5 pulses/revolution magnetic encoder
Other fixing flanges on front
Gearboxes :
Special greasing
Other reduction ratios
Dimensions (mm)

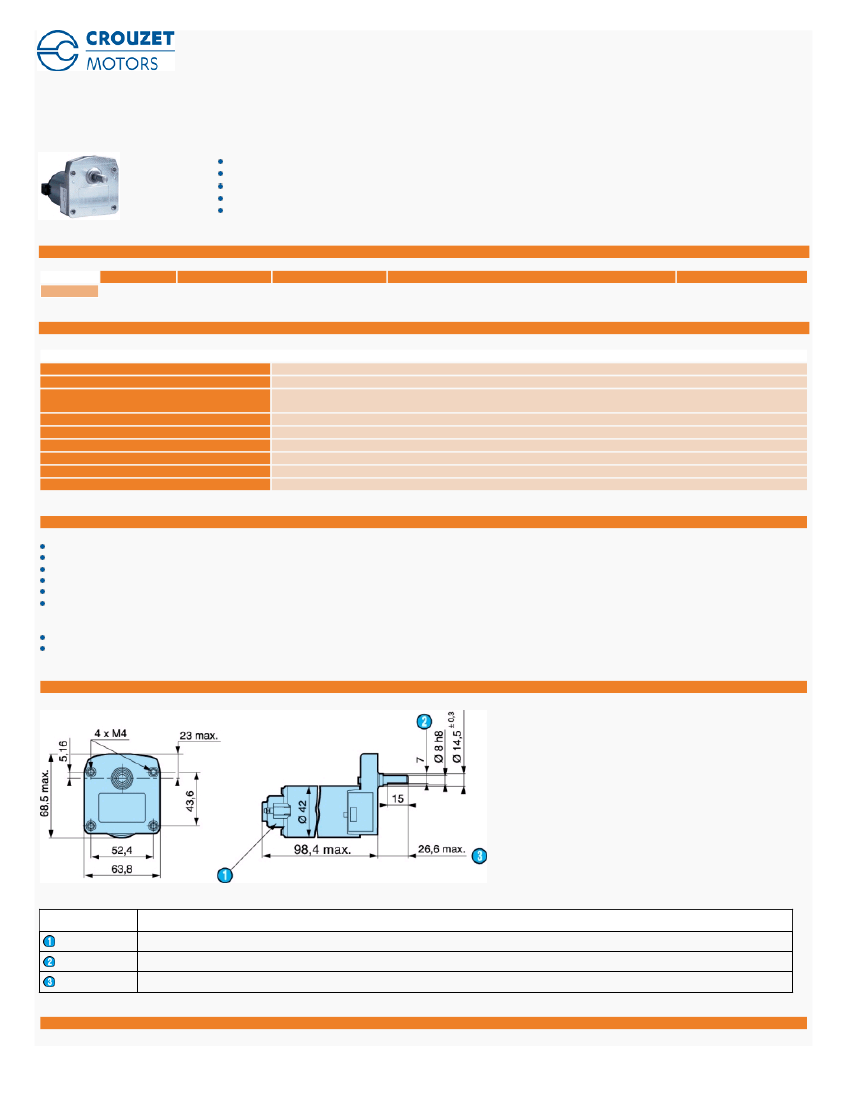

808030 standard
N
o
Legend
2 tags IEC 760, series 4.8 x 0.5
7 across flats
Shaft pushed-in
Dimensions (mm)

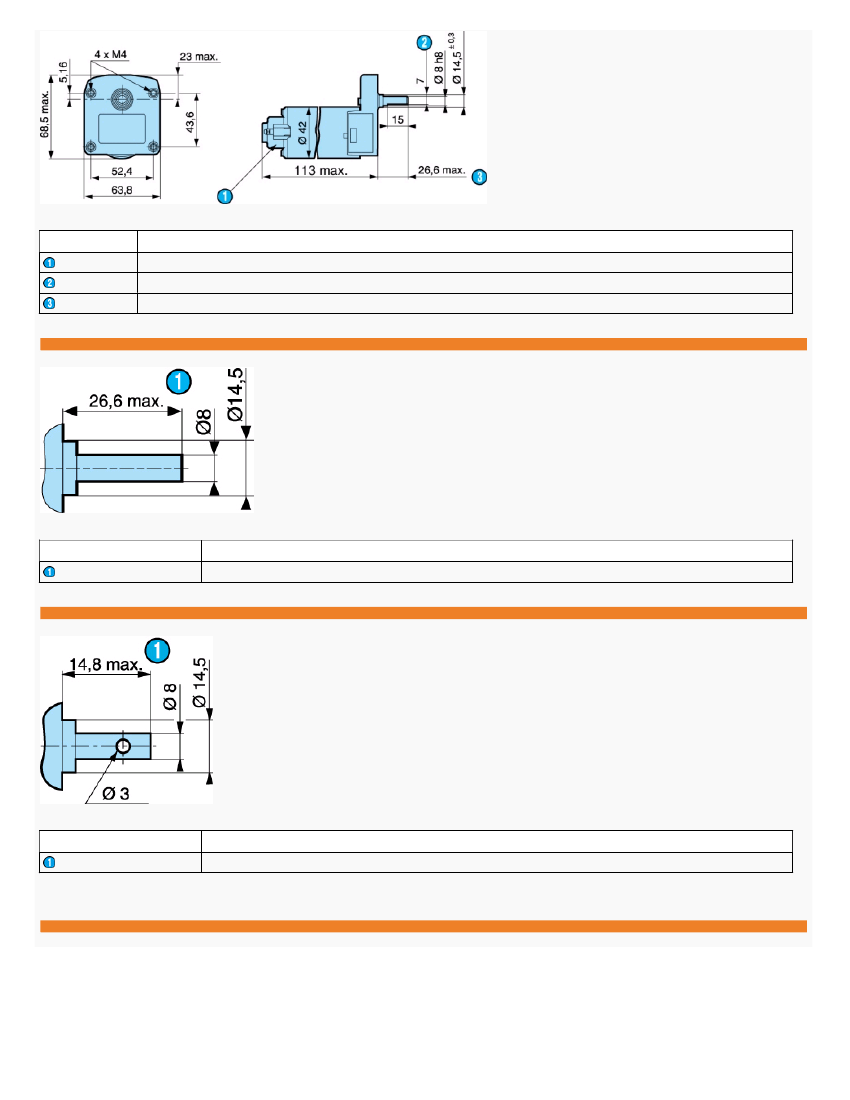

808030 encoder
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
N
o
Legend
2 tags IEC 760, series 4.8 x 0.5
7 across flats
Shaft pushed-in
Dimensions (mm)
Shaft 79261300
N
o
Legend
Shaft pushed-in
Dimensions (mm)
Shaft 79261309
N
o
Legend
Shaft pushed-in
Curves

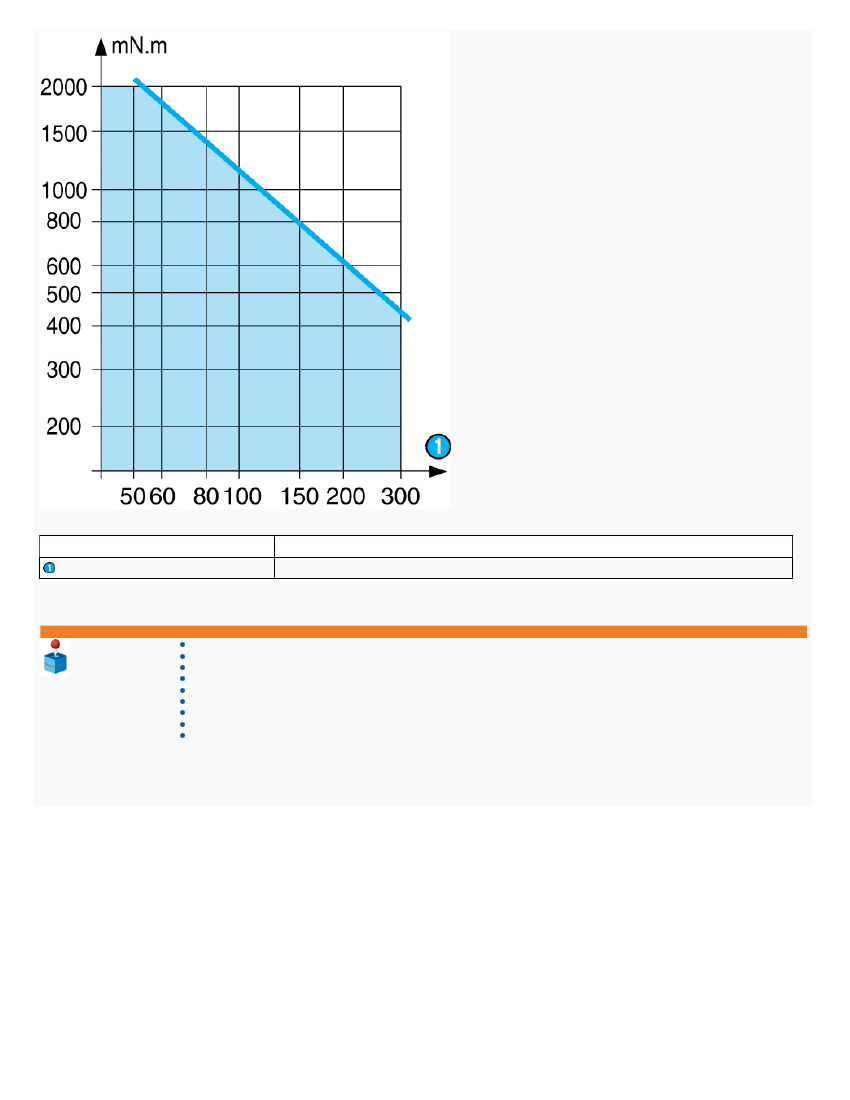

Curve : torque/nominal speed 808030
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
N
o
Legend
rpm
Product adaptations
Special supply voltage
Optical or Hall effect encoder
Special connections
Special shaft
Special reduction ratio
Special materials for gears
Special ball bearings
Special adaptor plate
With 828105 or 828005 motors
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
