100AWSP4T2B4VS2QE datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 100AWSP4T2B4VS2QE

100AWSP4T2B4VS2QE: DescriptionToggle Switches 5A 120VAC/28VDC (On)-Off-(On) PC Mnt; CategoryTopical application Mechanical and electrical/engineering/automation; File Size154KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

100AWSP4T2B4VS2QE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	100AWSP4T2B4VS2QE	-	-	View	Buy Now

100AWSP4T2B4VS2QE Overview

Toggle Switches 5A 120VAC/28VDC (On)-Off-(On) PC Mnt

100AWSP4T2B4VS2QE Parametric

Parameter Name	Attribute value
Product Category	Toggle Switches
Manufacturer	E-Switch
Factory Pack Quantity	1

Preview

Download Datasheet

View All

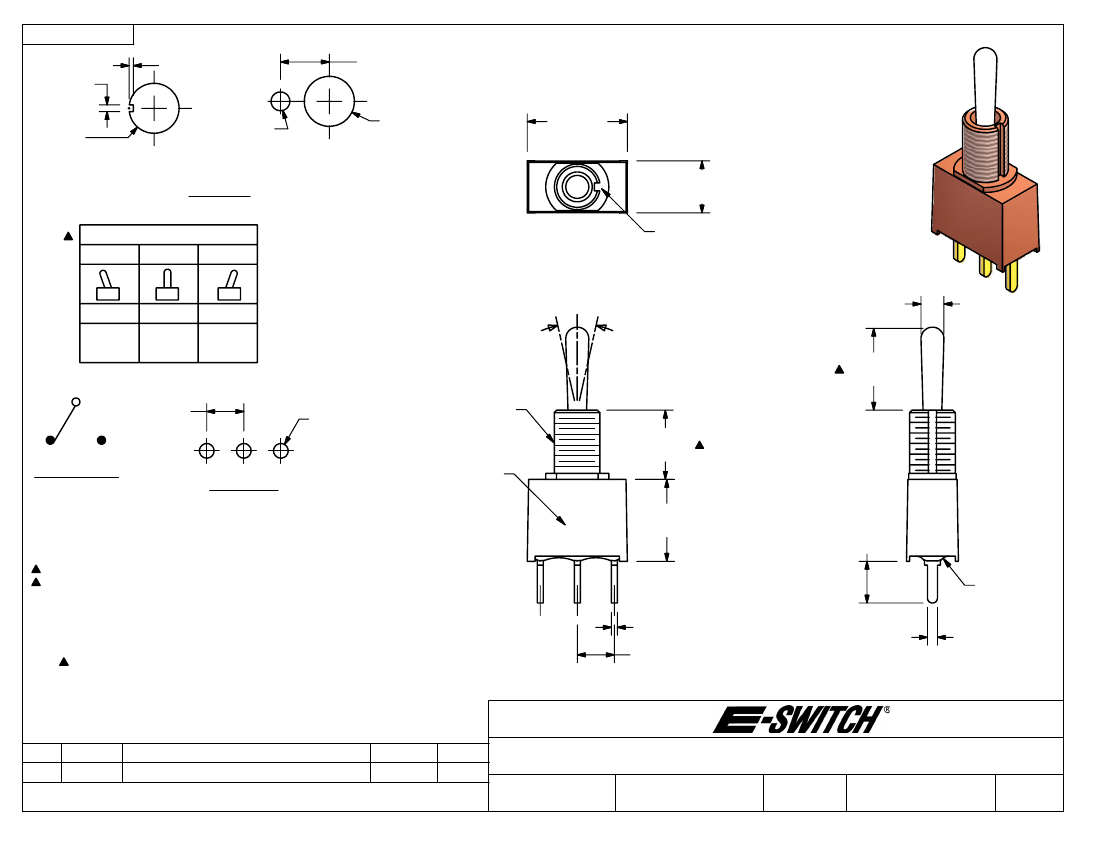

SHEET 1 OF 1

.85

[.033 in]

.55

[.022 in]

6.10

[.240 in]

6.35

[.250 in]

[.094 in]

2.38

6.35

[.250 in]

12.70

[.500 in]

Without Locking

Ring

PANEL

MOUNTING

With Standard

Locking Ring

6.60

[.260 in]

ISOMETRIC

SWITCH FUNCTION

POS. 1

POS. 2

POS. 3

KEYWAY

2-3

OFF

OPEN

2-1

POS. 1

POS. 2

POS. 3

[.115 in]

2.92

10.55

[.415 in]

4.70

[.185 in]

PCB LAYOUT

E-LOGO ON

OPPOSITE SIDE

10.40

[.409 in]

[.073 in]

1.85

1/4-40 UNS-2A

THREADS

8.80

[.346 in]

CIRCUIT: SPDT

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. PLATING MATERIAL: GOLD

5. RATING: 0.4 VA MAX. @ 20V (AC or DC)

6. MECHANICAL LIFE: 30,000 MAKE-AND-BREAK

CYCLES AT FULL LOAD.

7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.

8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

9. OPERATING TEMP.: -30°C to 85°C

10. DENOTES CRITICAL PARAMETER.

11. HARDWARE TO BE SHIPPED BULK

T100000 - HEXNUT - QTY 2

T100011- LOCKWASHER - QTY 1

T100015 - LOCKRING - QTY 1

12. 2002/95/EC (ROHS) COMPLIANT

REV

17929

PCR NO

RELEASE FOR PRODUCTION

DESCRIPTION

1/21/08

DATE

BLR

5.30

[.209 in]

.76

[.030 in]

4.70

[.185 in]

EPOXY SEAL

1.27

[.050 in]

TITLE

SCALE

100AWSP3T1B1M2REH

2:1

DATE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

1/21/2008

BLR

DWG

ST103022

REV
