DP09SHN12B25K

Description
DP09S HOR 12P NDET 25K M7*7MM
CategoryPassive components
File Size243KB,4 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

DP09SHN12B25K Online Shopping

Suppliers Part Number Price MOQ In stock
DP09SHN12B25K - - View Buy Now

DP09SHN12B25K Overview

DP09S HOR 12P NDET 25K M7*7MM

DP09SHN12B25K Parametric

Parameter NameAttribute value
Rotation typecontinuous
Encoder typeTerminal encoder
Switch typePush-Push SPST
Includes switchyes
sealno
partone
Adjustment typeSpindle
Number of pulses12
Adjust positionside
Number of brakesnone
Switch Current Rating (A).5
Shaft typeWith knurling
Termination typeA printed circuit board
installation anglelevel
Installation methodsurface mount
Dimensions (mm)11.35 x 9.5 x 12.05
Operating Speed (Max) (RPM)60

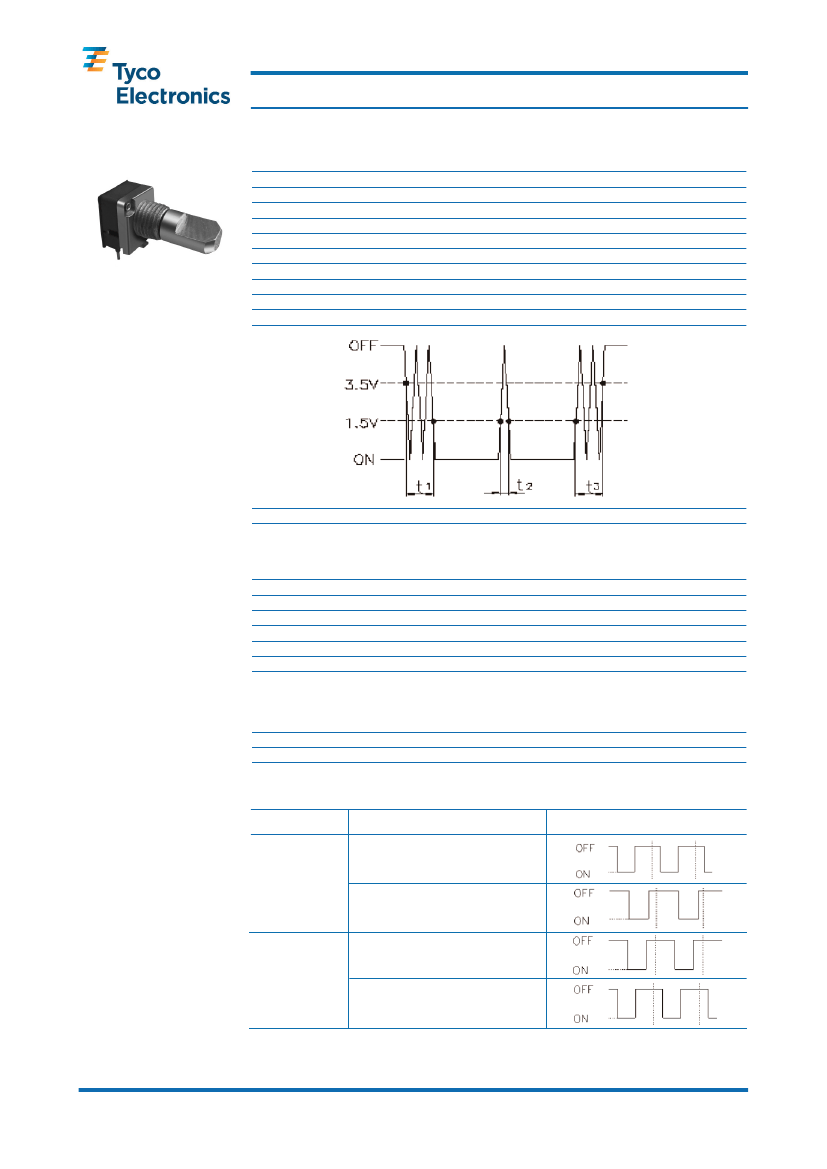

9mm Rotary Encoder
Type DP09 Series
Type DP09 Series
Characteristics -
Electrical
Pulses:
Contact Rating:
Dielectric Strength:
Insulation Resistance (min):
Operating Speed (RPM):
Switch Power Rating (where fitted):
Switch Contact Resistance:
Electrical Travel:
Rotational Noise:
Chattering:
12 & 15
10mA 5VDC
300VAC / 1mA, 1 minute
100M ohms at 250VAC
60 RPM
12VDC, 0.5A
100m ohm
Continuous
t2 = 5.0ms max (see below)
t1 & t3 = 5.0 ms max (see below)
9mm Rotary incremental encoder for
use in electronic equipment. Can be
supplied with or without switch with
customisation to standard options
Key Features
9mm Rotary Encoder
Incremental Type
Push on Switch Option
Various Shaft Lengths
Pulse Options
Detent Options
Code Off area V = 3.5V or more. Code on area V=1.5V or less
Characteristics -
Mechanical
Total Mechanical Travel:
Detents:
Switch Operating Force:
Switch Travel:
Shaft Type:
Shaft Length (from Mounting Surface):
Continuous
0, 12, 24, 30
400 + 400/- 200 gf
1.5mm
F – Flatted, K – Knurled
15, 20, 25, 30
Characteristics -
Environmental
Operating Temperature
Rotational Life
-10 - +65 degrees C
30,000 Cycles
Output Signal Format
Shaft Rotational
Direction
Signal
Format
A (Terminal A-C)
Clockwise
B (Terminal B-C)
A (Terminal A-C)
Anticlockwise
B (Terminal B-C)
Literature No. 6-1773449-8
Issued: 2-08

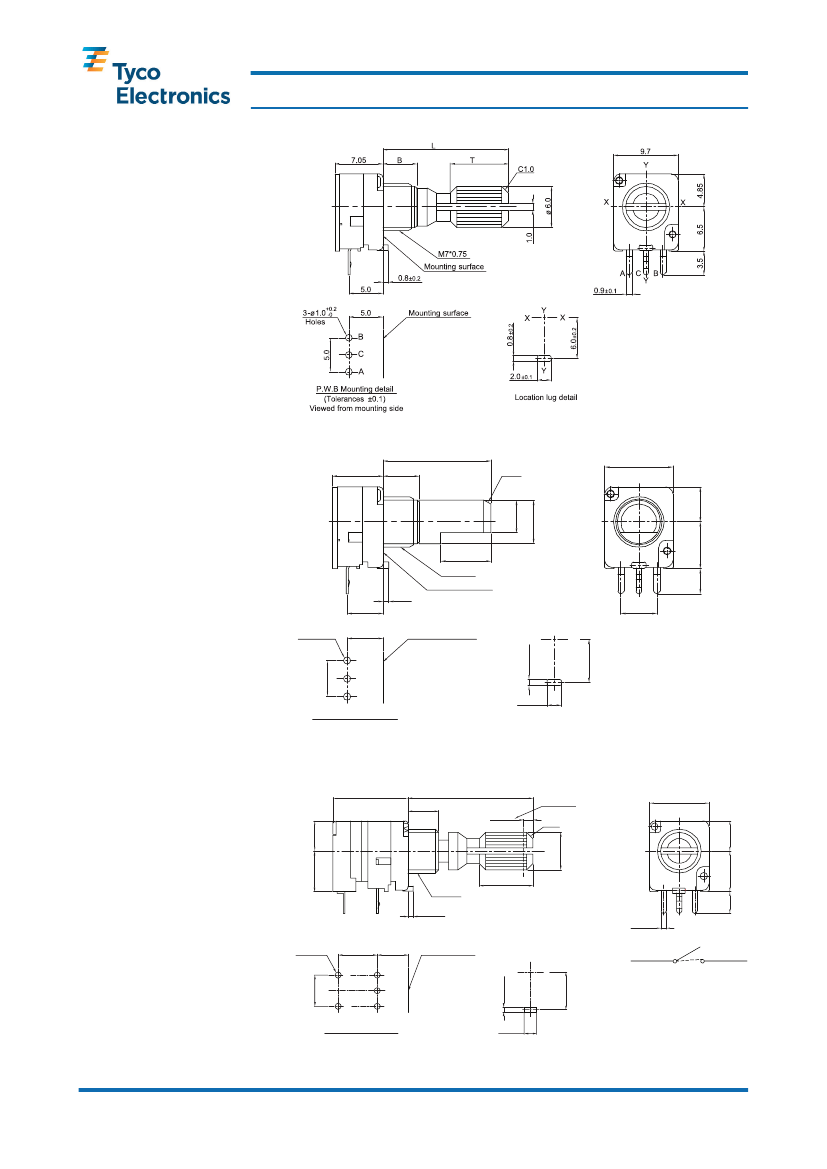

Dimensions are shown for
reference purposes only.
Dimensions are in
millimetres unless
otherwise specified.
Specifications subject to
change.
tycoelectronics.com
passives.tycoelectronics.com
