Ø 42 mm 14 to 31 Watts 16 W Part number 82810505
Usable power : 12 to 22 Watts
For high-power drive applications
Sintered bronze bearings lubricated for life
Power supply by 4.75 mm tags
Interchangeable brushes
Optional channel encoder
Part numbers
Type
82810505
16 W
Type
828105
Voltage
24 V
References
With 1 pulse/revolution encoder
Specifications
No-load characteristics
Speed of rotation (rpm)
Absorbed power (W)
Absorbed current (A)
3860
11,28
0,47
Nominal characteristics
Speed (rpm)
Torque (mNm)
Usable power (W)
Absorbed power (W)
Absorbed current (A)
Gearbox case temperature rise (°C)
Efficiency (%)
2750
45
13
32
1,32
33
40,8
General characteristics
Insulation class (conforming to IEC 85)
Protection (IEC/EN 60529)
Max. output power (W)
Start torque (mNm)
Starting current (A)
Resistance (Ω)
Inductance (mH)
Torque constant (Nm/A)
Electrical time constant (ms)
Mechanical time constant (ms)
Thermal time constant (mn)
Inertia (g.cm
2
)
Weight (g)
Number of of segments
Service life (h)
Sintered bronze bearings
Replaceable brushes
F (155 °C)
IP20
16
156
3,4
7,06
16,94
0,0532
2,4
23
8
72
310
8
2000
Encoder characteristics
Output current (mA)
Supply (V)
Ambient temperature (°C)
< 25 (25 °C)
4,5 →30 DC
-40 →85 °C
Made to order products, available on request
Built-in interference suppression (82 830 5)
Special interference suppression (82 800 5 - 82 810 5)
Other supply voltages
Motor with 1 ball bearing at front (82 800 5 or 82 810 5) (essential for vertical motor)
Shaft lengths at front and/or rear
Reversible 5 pulses/revolution magnetic encoder (1 or 5 pulses/revolution)
Other fixing flanges on front or rear
Short version possible on 82 830 5 (L = 90 mm)

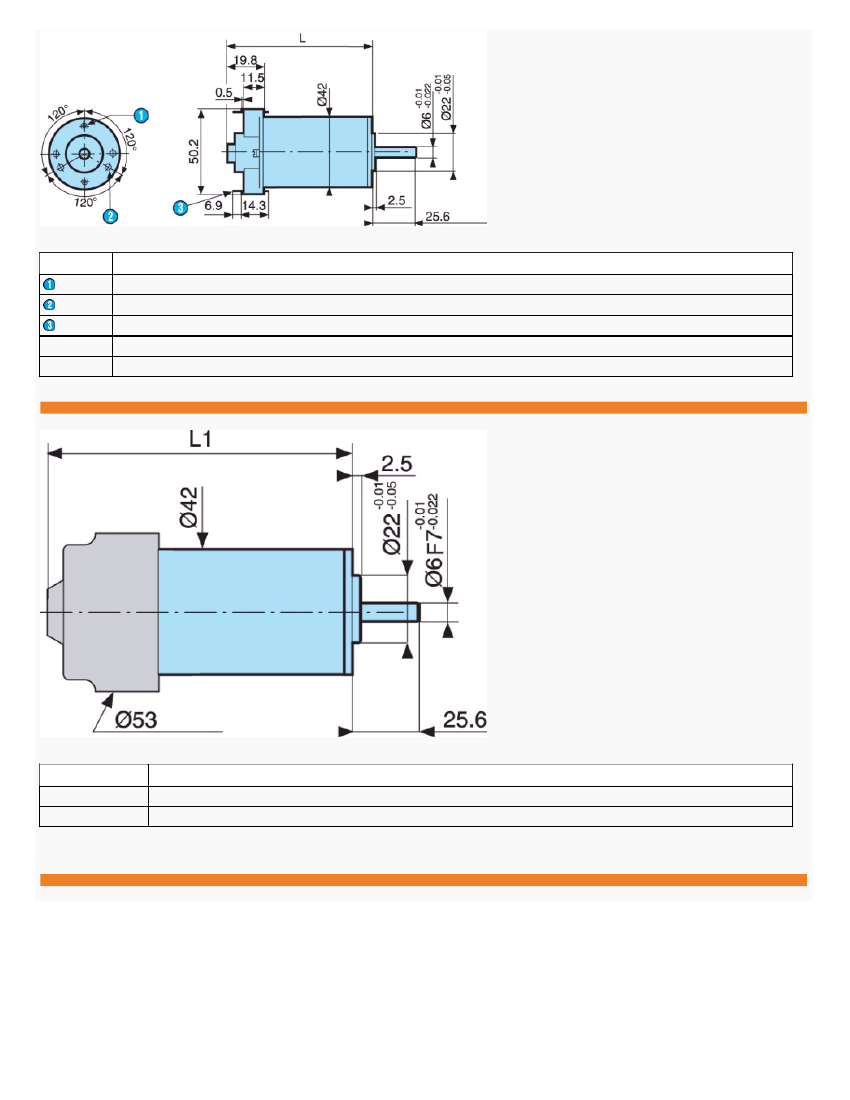

Dimensions (mm)
828005 - 828105
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
N
o
Legend
2 x M3 at 180°, depth 5 mm over Ø 32
2 holes Ø 2.75 at 120° depth 5 mm over Ø 32
2 tags IEC 760, series 4.8 x 0.5
L : 828005 : 84.8 mm max.
L : 828105 : 59.8 mm max.
Dimensions (mm)
Dimensions with magnetic encoder
N
o
Legend
L1 : 828005 : 99.1 mm max.
L1 : 828105 : 84.1 mm max.

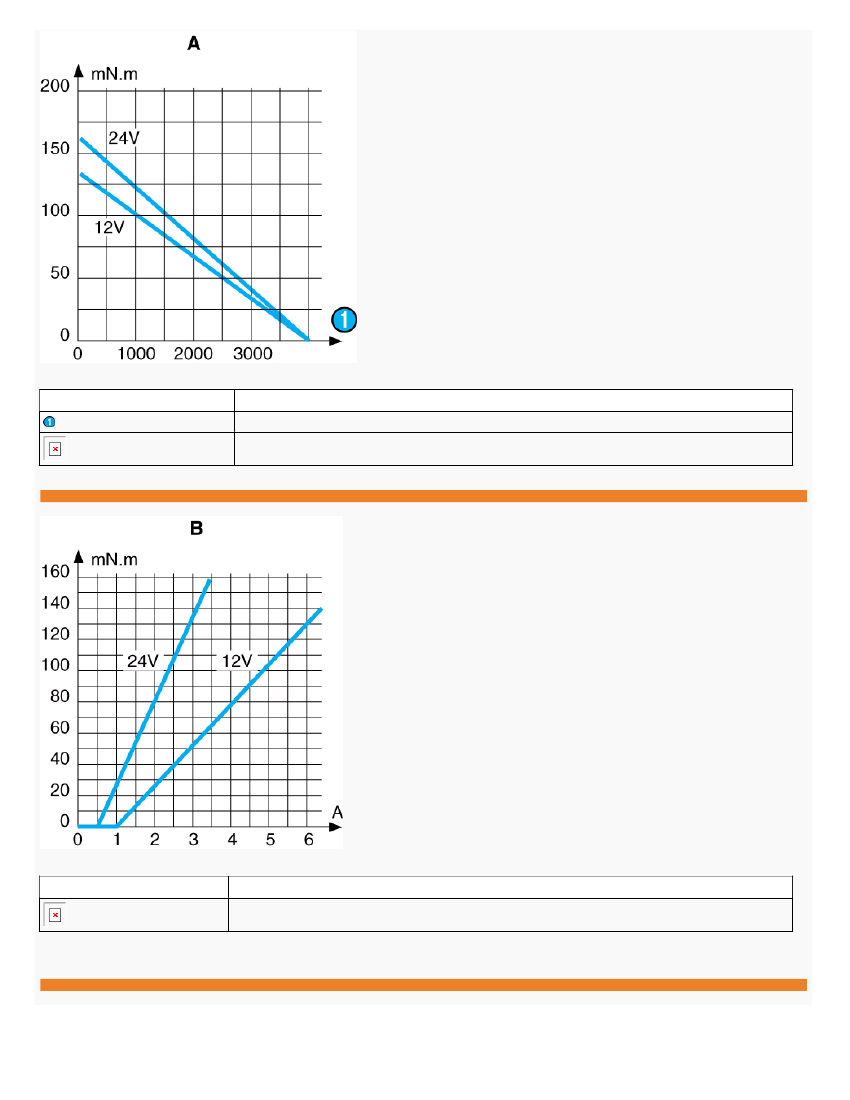

Curves
828105
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com

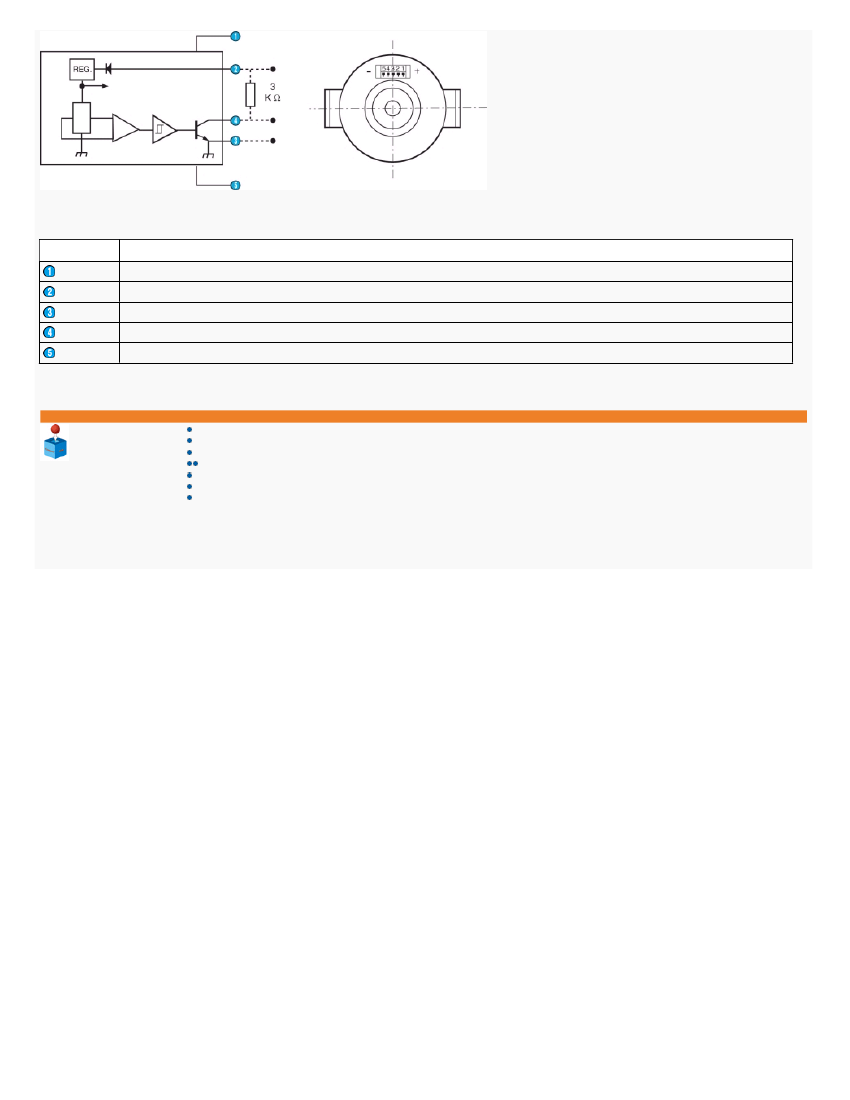

Part number of female connector to be used : STOCKO MKF 17-230 / 260 / 330 / 360
N
o
Legend
Motor power supply
+5 →+24 V DC (encoder power supply)
0 V DC (encoder power supply)
Encoder signal output
Motor power supply
Product adaptations
Special output shaft
Pinion on output shaft
Special supply voltage
Special ball bearings
Optical or Hall effect encoder
Special mounting plate
Special connections
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
