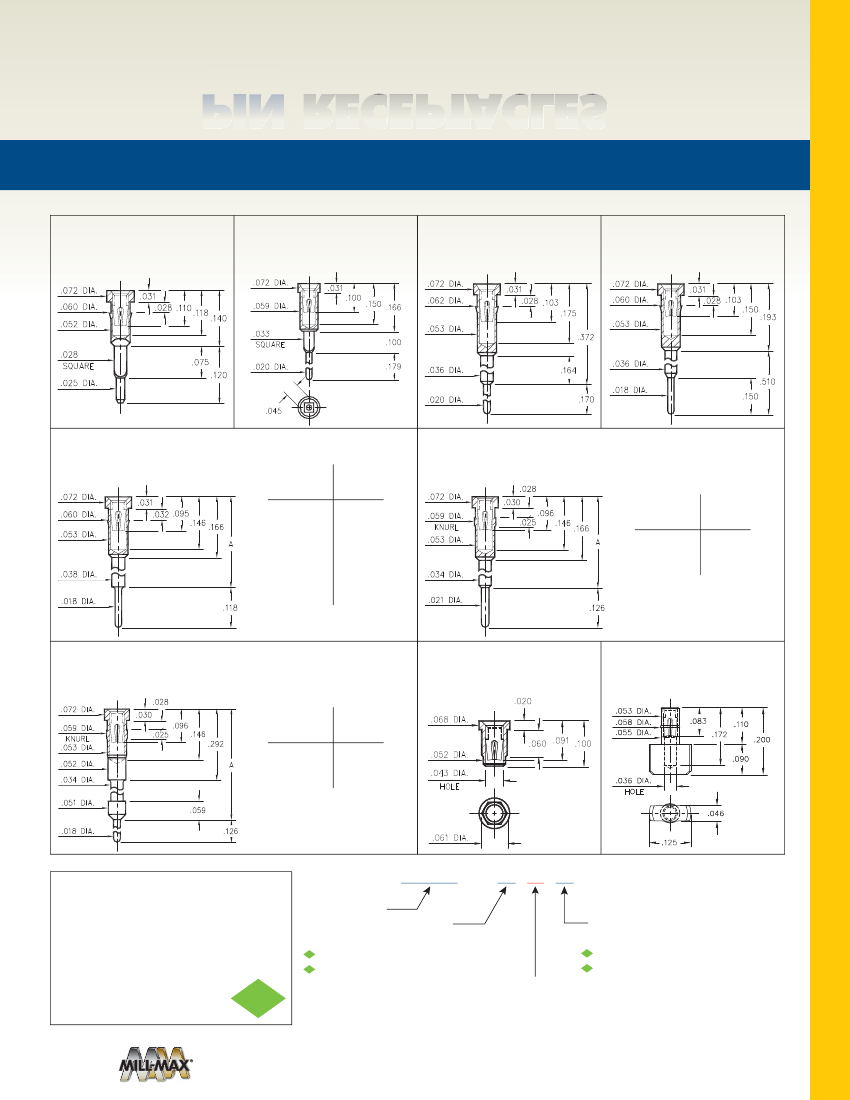

PIN
RECEPTACLES
FOR .015” - .025” DIAMETER PINS
7132
7132-0-15-XX-30-XX-04-0
Square press-fit for .032 ± .002
plated through-hole
8445
8445-0-15-XX-30-XX-04-0
Square press-fit for .039 ± .002
plated through-hole
1038
1038-0-15-XX-30-XX-04-0
Press-fit in .059 mounting hole
1261
1261-0-15-XX-30-XX-04-0
Press-fit in .057 mounting hole
0153
0153-X-15-XX-30-XX-04-0
Press-fit in .057 mounting hole
1602/1610
16XX-0-15-XX-30-XX-04-0
Basic Part
Number
Height
A
Press-fit in .057 mounting hole
0153-1
0153-2
0153-3
0153-4
0153-5
0153-6
.236
.315
.402
.472
.594
.699
Basic Part
Number
Height
A
1602-0
1610-0
.441
.642
0903/0904
090X-0-15-XX-30-XX-04-0
Press-fit in .057 mounting hole
8252
8252-0-15-XX-30-XX-10-0
Press-fit in .057 plated through-hole
4078
4078-0-15-XX-30-XX-40-0
Press-fit in .057 mounting hole
Basic Part
Number
Height
A
0903-0
0904-0
.841
1.141
SPECIFICATIONS:
Shell Material:
Brass Alloy 360, 1/2 Hard
Contact Material:
Beryllium Copper Alloy 172, HT
Dimensions: Inches
Tolerances On:
Lengths:
± .005
RoHS - 2
2011/65/EU
ORDER CODE: XXXX - X - 15 - XX -
30
- XX - XX - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200
”
TIN/LEAD OVER NICKEL
80
200
”
TIN OVER NICKEL (RoHS)
15
10
”
GOLD OVER NICKEL (RoHS)
SPECIFY CONTACT FINISH:
02
100
”
TIN/LEAD OVER NICKEL
84
100
”
TIN OVER NICKEL (RoHS)
27
30
”
GOLD OVER NICKEL (RoHS)
Diameters: ± .002
Angles:
±2°
SELECT CONTACT:
#30
CONTACT (DATA ON PAGE 253
(For alternate contact choices, see groups B and C on page 248)
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 167 | PIN RECEPTACLES
