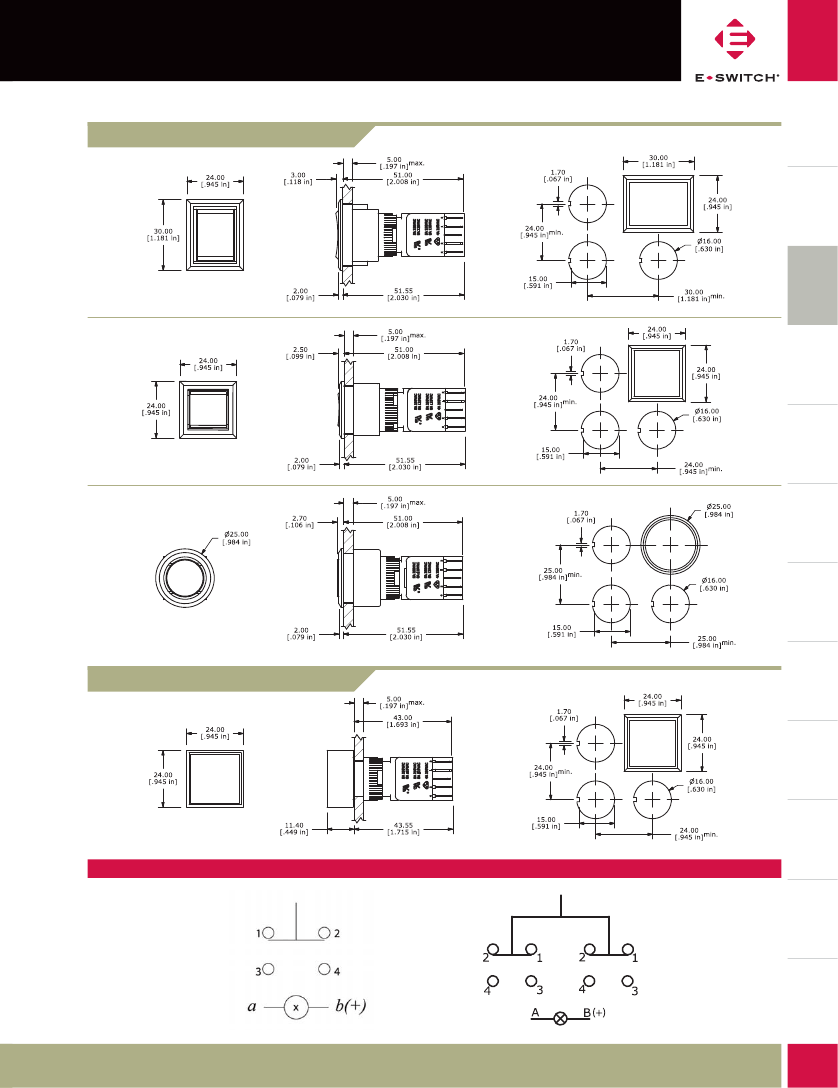

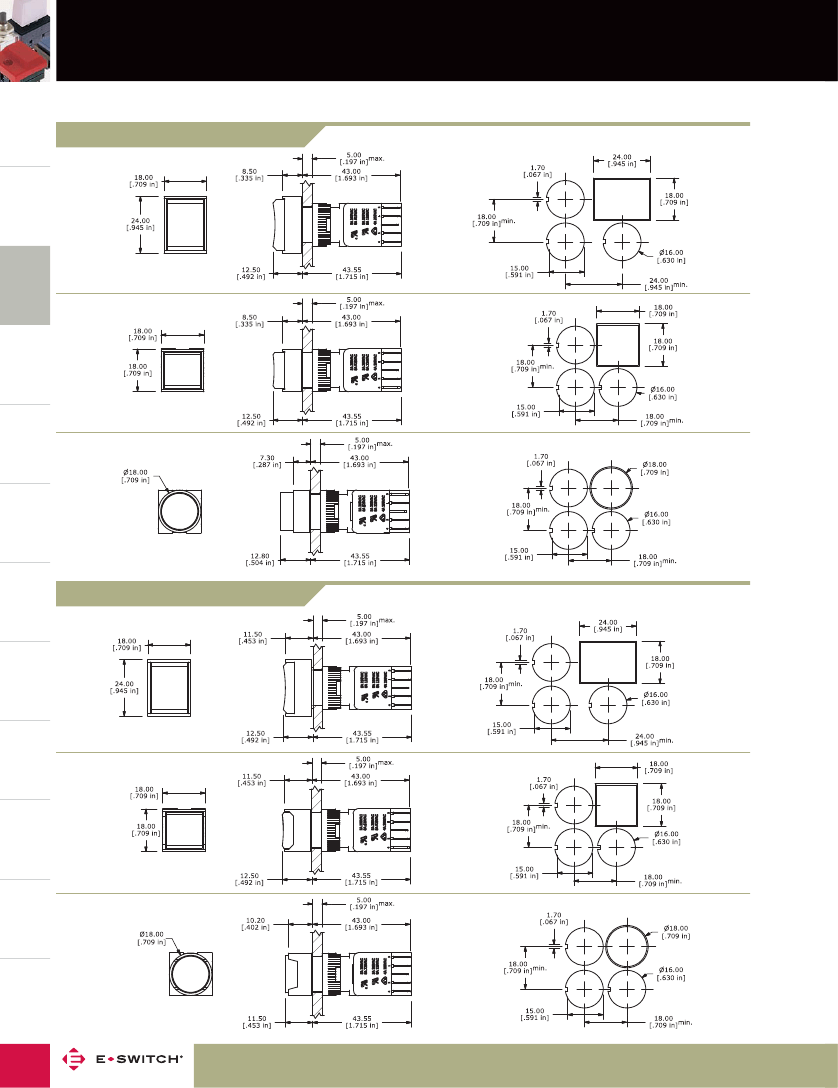

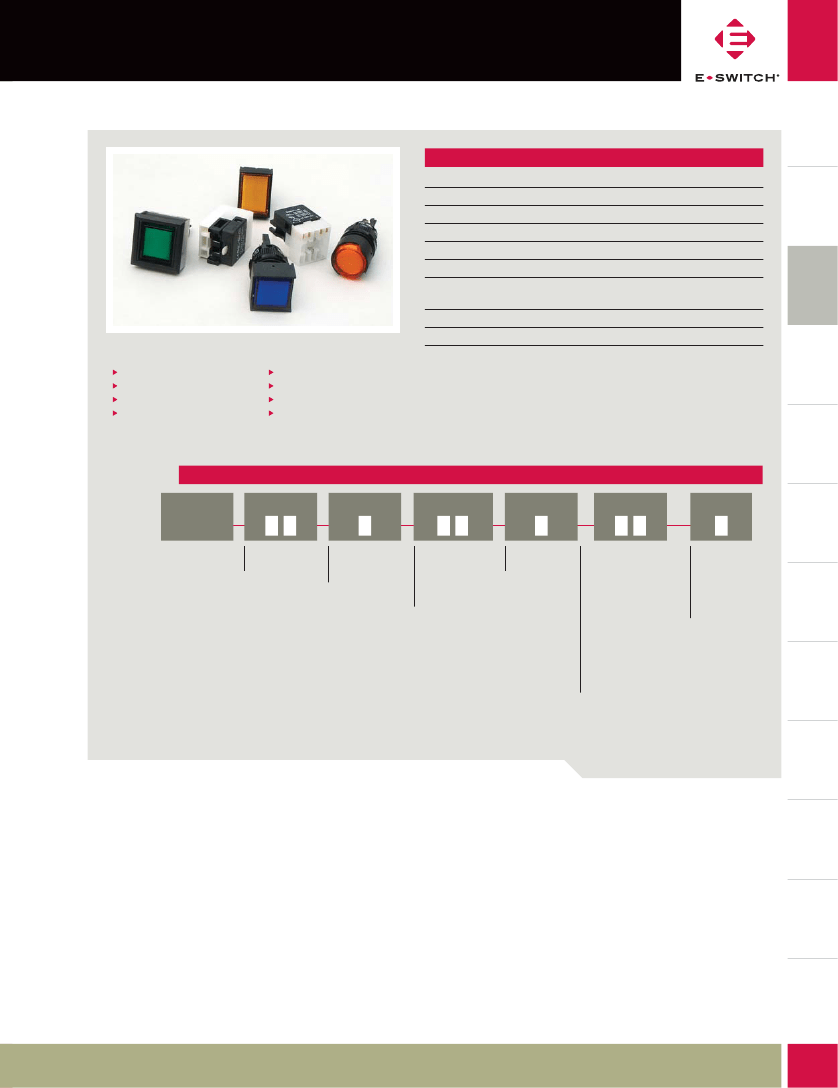

SERIES MDP-16 SWITCHES
SPECIFICATIONS
Life Expectancy (Mechanical): 50,000 cycles
Life Expectancy (Electrical):
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Actuation Force:
6,000 cycles
100mΩ (initial max)
50MΩ @ 100V min.
2000VDC
500 grams SPDT
800 grams DPDT
-40°C to 70°C
NAVIGATION
SWITCHES
CAP
OPTIONS
DETECTOR
SWITCHES
ROTARY
SWITCHES
KEYLOCK
SWITCHES
DIP
SWITCHES
SNAP-ACTION
SWITCHES
SLIDE
SWITCHES
ROCKER
SWITCHES
FUNCTION
STYLE
ACTUATOR
CONFIGURATION
ACTUATOR
STYLE
CIRCUIT
CONFIGURATION
LAMP
ACTUATOR
COLOR
EE = Latching
OA = Momentary
R = Round
S = Square
T = Rectangular
1 = Low Bezel
2 = High Bezel
3 = Flush Mount
5 = Full Guard*
1 = SPDT
2 = DPDT
* Note: Only offered in square
00 = None
01 = 6VAC Incandescent
02 = 14VAC Incandescent
03 = 28VAC Incandescent
04 = 48VAC Incandescent
05 = 60VAC Incandescent
06 = 48VDC Incandescent
07 = Neon 110VAC
08 = Neon 220VAC
09 = LED 6VDC
10 = LED 12VDC
11 = LED 24VDC
R = Red
B = Blue
G = Green
O = Orange
Y = Yellow
W = White
Specifications subject to change without notice.
Contact Rating:
5A, 250VAC; 8A, 125VAC UL and VDE
Operating Temperature: -25°C to 55°C
Storage Temperature:
FEATURES & BENEFITS
Modular interface design
Attractive front panel design
Illuminated options available
Robust product for industrial
applications
APPLICATIONS/MARKETS
Industrial controls
Instrumentation
Transportation
Telecommunications
HOW TO ORDER
SERIES
MDP-16
Example Ordering Number
MDP-16_ OA_ S_ 5_ 2_ 09_ R
www.e-switch.com
info
@
e-switch.com
TOGGLE
SWITCHES
PUSHBUTTON
SWITCHES
TACT
SWITCHES
PUSHBUTTON SWITCHES - MODULAR
▲
▲
▲
▲
▲
▲
