Series B
Toggles
Subminiature Fully Illuminated Toggles
A
Rockers
General
Specifications
Electrical Capacity (Resistive Load)
Logic Level:
0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Note: Find additional explanation of operating range in Supplement section.
Programmable Illuminated PB
Pushbuttons
Other Ratings
Keylocks
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Nominal Operating Force:
Contact Timing:
Angle of Throw:
50 milliohms maximum
500 megohms minimum @ 500V DC
500V AC minimum for 1 minute minimum
100,000 operations minimum
50,000 operations minimum
1.18N
Nonshorting (break-before-make)
26°
Materials & Finishes
Slides
Actuator:
Bushing Housing:
Case Housing:
Support Bracket:
Movable Contact:
Stationary Contacts:
Terminals:
Polyamide
Polyamide
Glass fiber reinforced polyamide
Phosphor bronze with tin plating
Phosphor bronze with gold plating
Brass with tin plating
Brass with gold plating
Rotaries
Environmental Data
Tactiles
Operating Temperature Range:
Humidity:
Vibration:
Shock:
–25°C through +55°C (–13°F through +131°F)
90 ~ 95% humidity for 240 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range
& returning in 5 minutes; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 3 right angled directions, with 5 shocks in each direction)
Tilt
PCB Processing
Touch
Soldering:
Cleaning:
Indicators
Wave Soldering recommended. See Profile A in Supplement section.
Manual Soldering: See Profile A in Supplement section.
Automated alcohol based cleaning recommended, 5 minutes maximum. Do not use high-purity
alcohol (50% alcohol or more) or organic solvent. High alcohol solution can damage clear plastic.
See Cleaning specifications in Supplement section.
Standards & Certifications
Supplement
Accessories
The B Series illuminated toggles have not been tested for UL recognition or CSA certification.
These switches are designed for use in a low-voltage, low-current, logic-level circuit.
When used as intended in a logic-level circuit, the results do not produce hazardous energy.
A20
www.nkk.com
Subminiature Fully Illuminated Toggles
Series B
A
Toggles
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
Distinctive
Characteristics

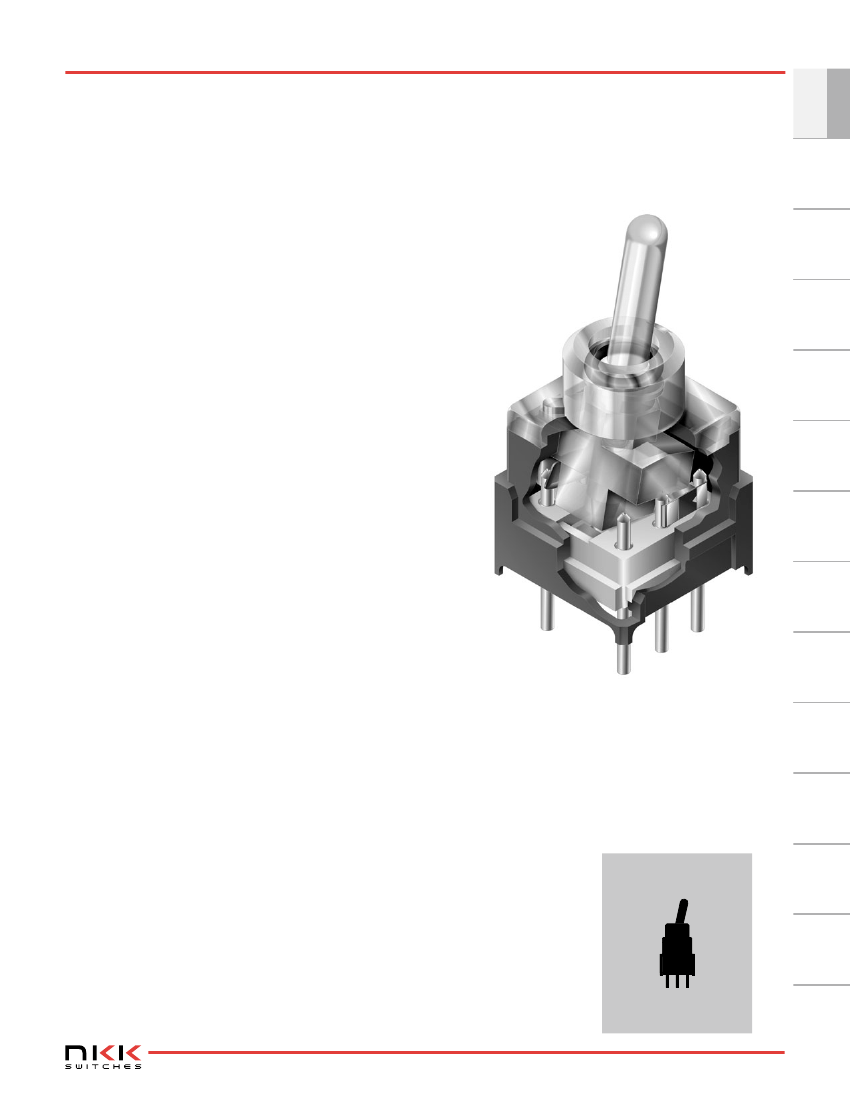

LED provides maximum illumination to bushing and actuator,
indicating actuator status in highly visible green, red, or
amber for single color or red/green for bicolor.
(Patent pending.)
Totally sealed body construction prevents contact
contamination and allows time- and money-saving
automated soldering and cleaning. Molded-in,
epoxy sealed terminals lock out flux and other
contaminants.
Award-winning STC contact mechanism with
benefits unavailable in conventional mechanisms:
smoother, positive detent actuation, increased
contact stability, and unparalleled logic-level
reliability. (Additional STC details in Terms &
Acronyms; see Supplement section.)
.100” x .100” (2.54mm x 2.54mm) terminal
spacing conforms to standard PC board grid
spacing.
Actual Size
www.nkk.com
A21
Series B
Toggles
Subminiature Fully Illuminated Toggles
TYPICAL SWITCH ORDERING EXAMPLE
A
Pushbuttons
Rockers
B
Poles
1
SPDT
2
1
Circuits
ON
NONE
2
J
Actuator
J
P
PC Terminals
P
Straight
Right Angle
Vertical
C
D
F
C
LEDs
Single Color
Red
Amber
Green
Bicolor
CF
Red/Green
ON-NONE-ON
& ON-OFF-ON
Programmable Illuminated PB
ON
J
Clear
Combines with single color
or bicolor LEDs
3
ON
OFF
ON
Combines with
bicolor LED only
J
H
V
ON-NONE-ON only
Bushing
Clear
Keylocks
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
B12JJPC
Rotaries
Clear Toggle & Bushing
with Red LED
SPDT
ON-NONE-ON Circuit
Straight
PC Terminals
Tactiles
Slides
POLE & CIRCUITS
Toggle Position
Up
Center
Down
Connected Terminals
Up
Center
Down
Throw & Schematics
Note: Terminal numbers are not actually on
the switch. LED circuit is isolated and
requires an external power source.
Tilt
Touch
Pole
Model
Throw
Slot
Slot
Indicators
SPDT
B12
B13
ON
ON
NONE
OFF
ON
ON
2-3
2-3
NONE
OPEN
2-1
2-1
3
2 (COM)
1
(4) Red
(5)
(6)
(5)
(6) Green
Single Color
Bicolor
Accessories
ACTUATOR & BUSHING
J
Clear Toggle
(6.3)
.248
(3.5)
.138
26°
(1.9) Dia
.075
J
Clear Bushing
Supplement
A22
www.nkk.com
Subminiature Fully Illuminated Toggles

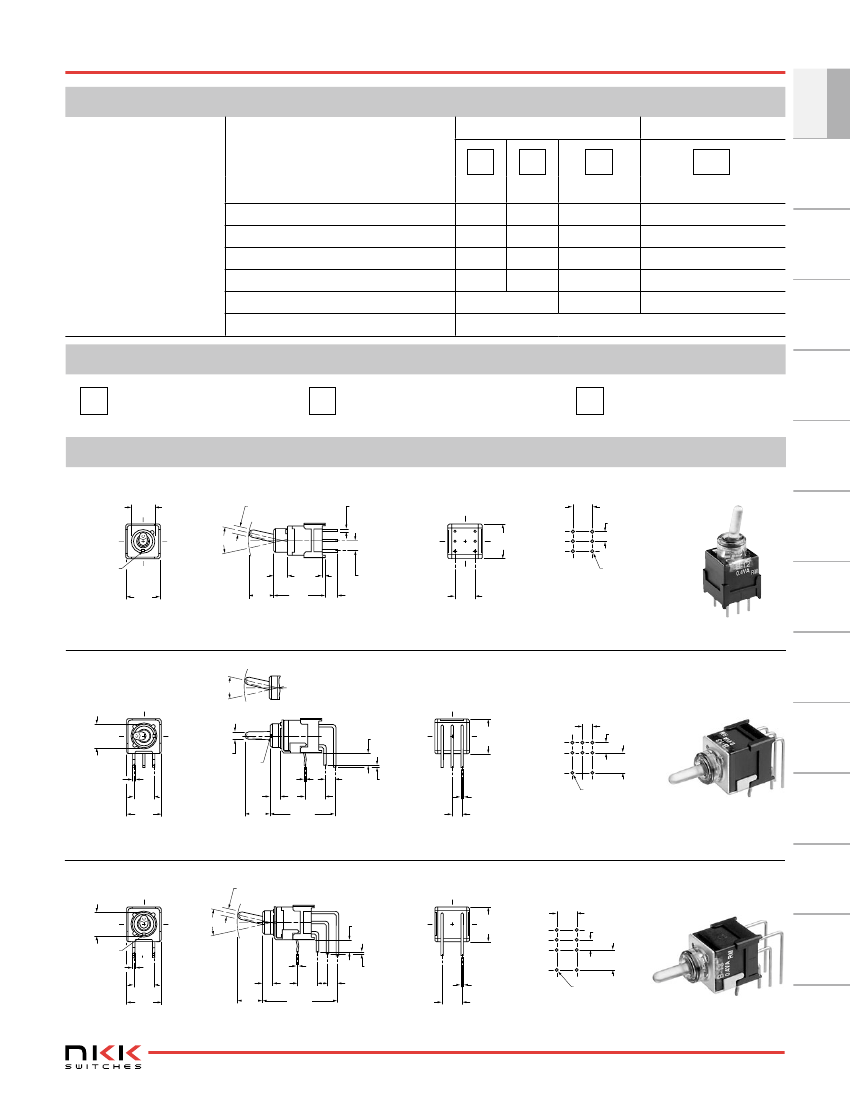

LED COLORS & SPECIFICATIONS
LEDs are an integral part
of the switch and not
available separately. The
electrical specifications
shown are determined at
a basic temperature of
25°C. If the source volt-
age exceeds the rated
voltage, a ballast resistor
is required.
The resistor value can be
calculated by using the
formula in the Supplement
section.
Single Color
Series B
A
Bicolor
Colors
Forward Peak Current
Typical Forward Current
Forward Voltage
Reverse Peak Voltage
I
FM
I
F
V
F
V
RM
Red
30mA
20mA
1.9V
5V
Amber
30mA
20mA
1.9V
5V
Green
20mA
10mA
3.4V
5V
0.28mA/°C
Red/Green
30mA/20mA
20mA/10mA
1.9V/3.4V
5V/5V
0.43mA/°C/0.28mA/°C
Current Reduction Rate Above 25°C ∆I
F
Ambient Temperature Range
0.43mA/°C
–25°C ~ +55°C
PC TERMINALS
P
Straight
H
Right Angle with Bracket
V
Vertical with Bracket
TYPICAL SWITCH DIMENSIONS
Straight PC
1
4
5
6
4
1
2
3
26°
Slot
(8.8)
.346
2
3
(8.8)
.346
5
6
(5.08)
.200
Terminal 4 is a support pin on single color models.
B12JJPC
Right Angle PC
26°
1
4
2
5
3
6
(1.9) Dia
.075
6
5
4
Slot
(2.7)
.106
(6.3)
.248
(0.4)
.016
(5.08)
.200
(16.42)
.646
(2.54)
.100
(0.5)
.020
(0.6) Typ
.024
(5.08)
.200
(0.6) Dia Typ
.024
(2.54) Typ
.100
(0.8) Dia Typ
.031
(5.08)
.200
(8.8)
.346
Terminal 4 is a support pin on single color models.
B13JJHCF
(1.9) Dia
.075
(6.0) Dia
.236
Slot
(0.6) Typ
.024
(2.7)
.106
(6.3)
.248
(0.4)
.016
(5.08)
.200
(18.96)
.746
(0.5) Typ
.020
(2.54) Typ
.100
(5.08)
.200
1
4
5
6
Vertical PC
(3.1)
.122
2
3
4
5
6
1
2
3
(2.54) Typ
.100
(5.08)
.200
Terminal 4 is a support pin on single color models.
www.nkk.com
B13JJVCF
A23
Supplement
(5.08)
.200
(8.8)
.346
(0.6) Dia Typ
.024
(0.8) Dia Typ
.031
Accessories
26°
(8.8)
.346
(5.08)
.200
Indicators
Touch
Tilt
(6.0) Dia
.236
3
2
1
(3.1)
.122
(8.8)
.346
(2.54) Typ
.100
(2.54)
.100
Tactiles
Slides
(3.5)
.138
(6.3)
.248
(0.8)
.031
(13.1)
.516
(2.54) Typ
.100
(3.1)
.122
(0.8) Dia Typ
.031
Rotaries
(6.0) Dia
.236
(1.9) Dia
.075
(0.6) Dia Typ
.024
(5.08)
.200
(2.54) Typ
.100
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
C
D
F
CF
Toggles
