KA8328D datasheet, PDF - EEWORLD Datasheet

KA8328D: Description2 PHASE DRUM MOTOR DRIVER; CategoryOther integrated circuit (IC) The signal circuit; File Size632KB，15 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

KA8328D Overview

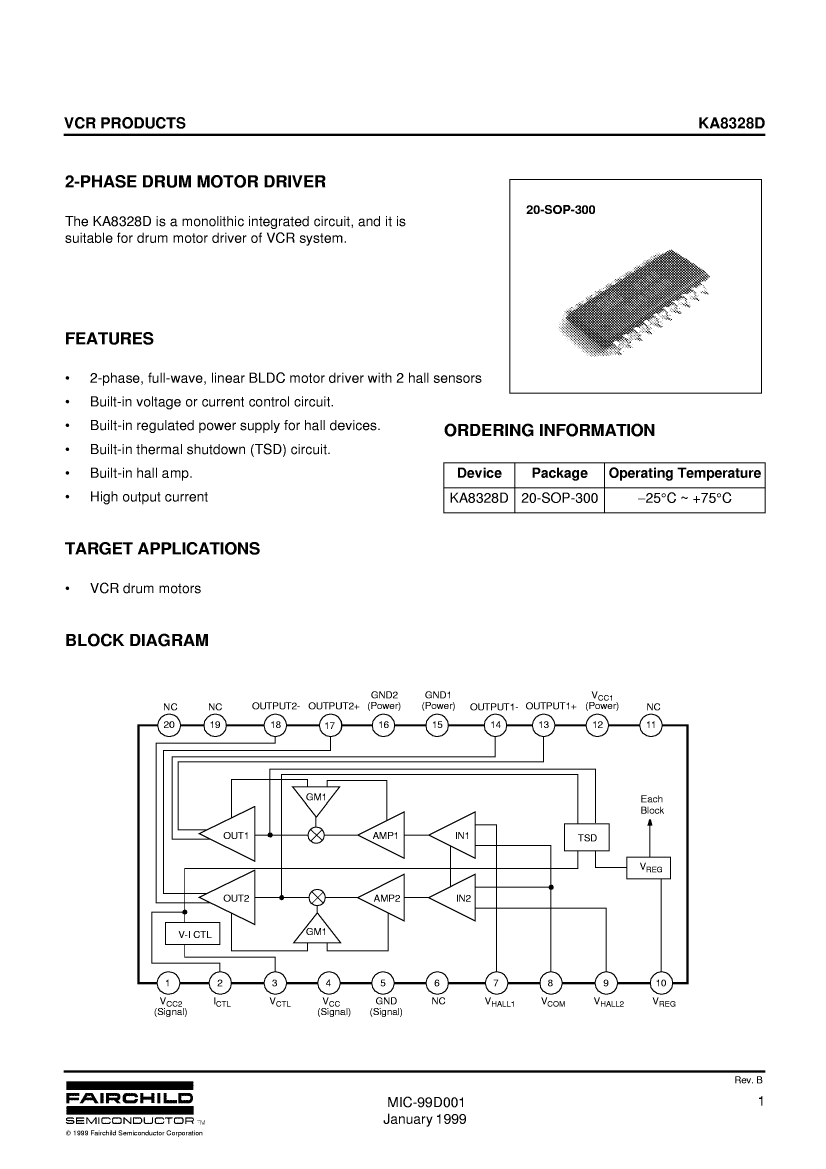

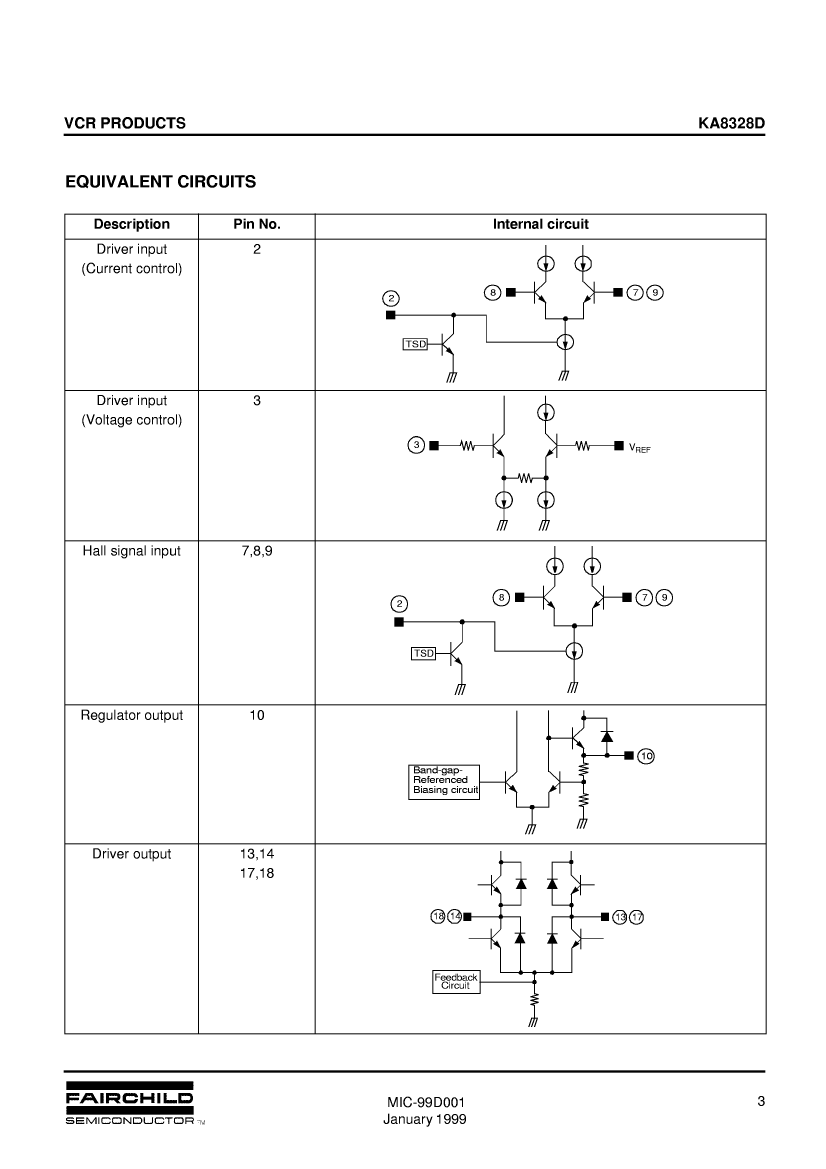

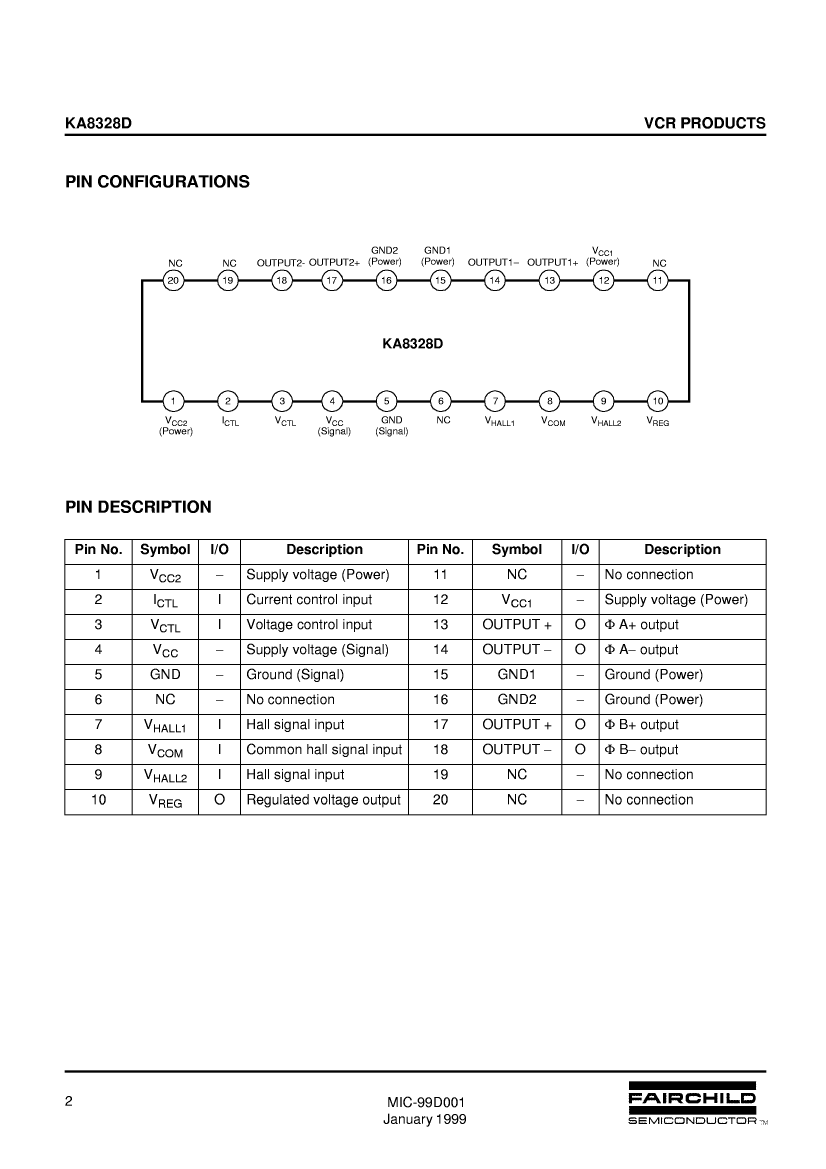

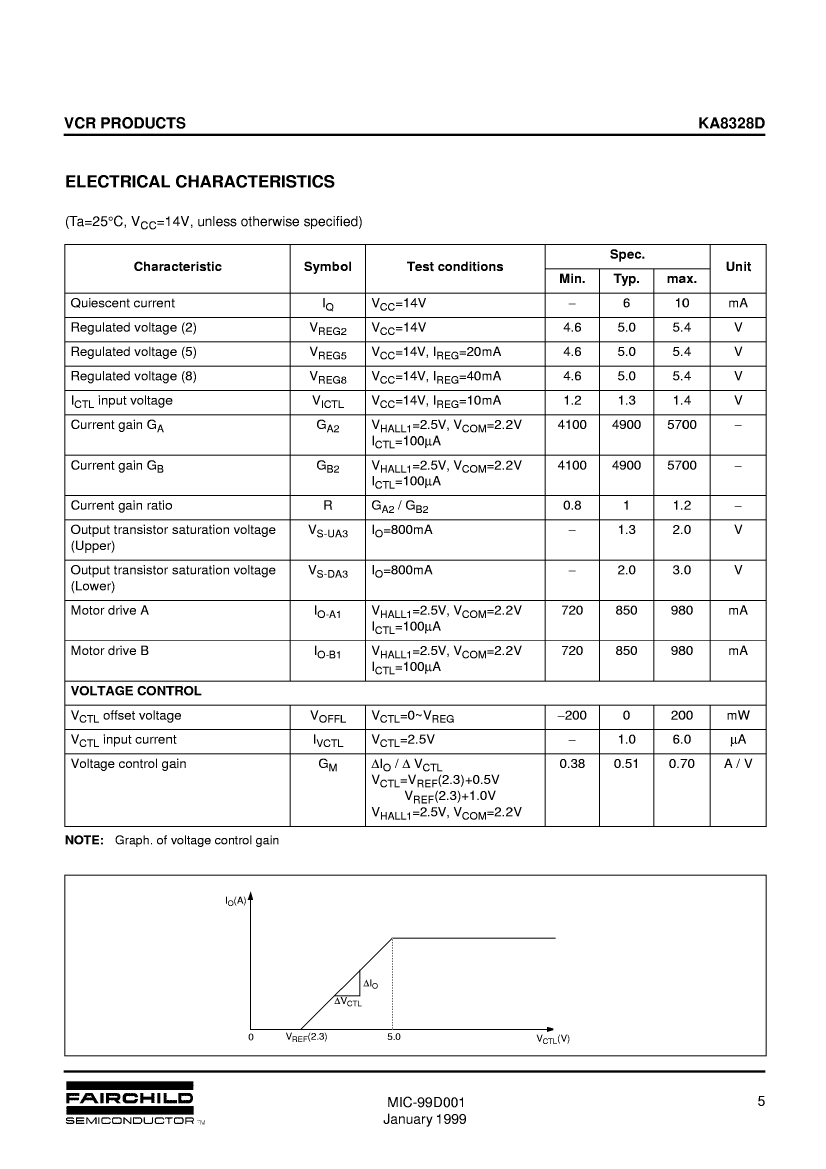

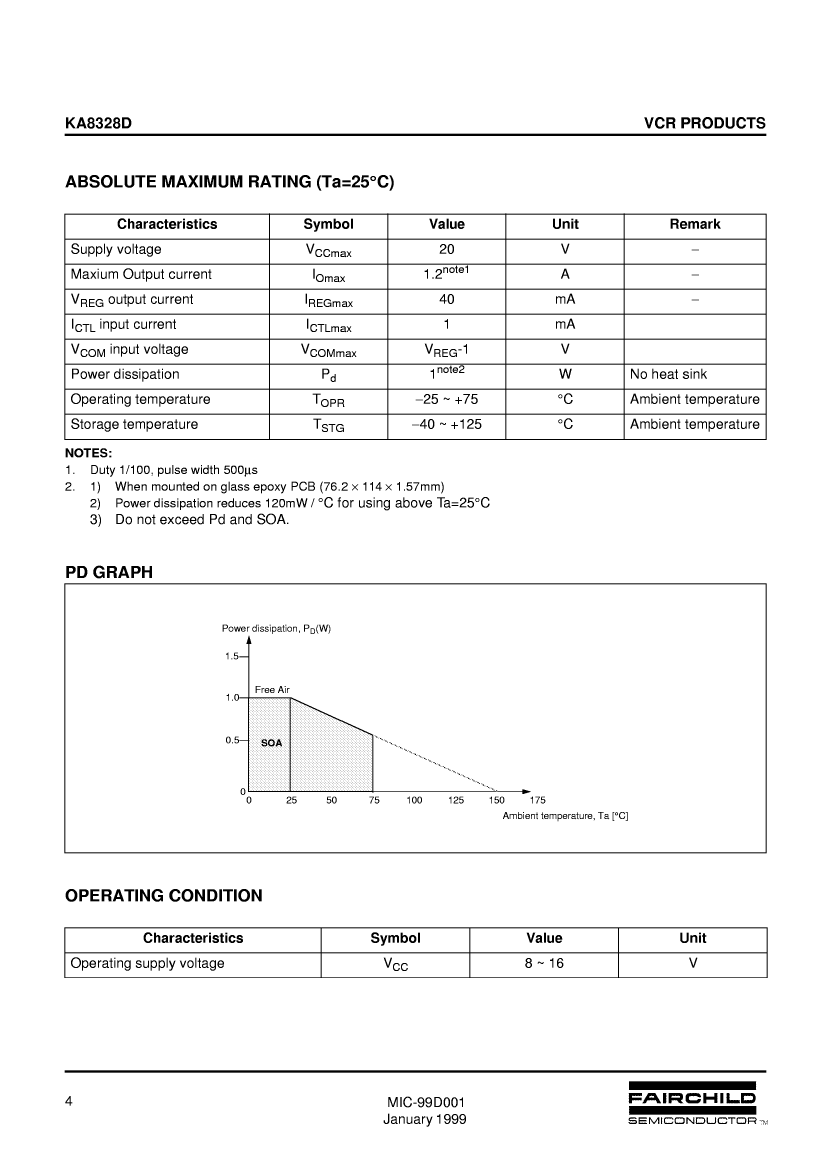

2 PHASE DRUM MOTOR DRIVER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, SOP20,.3
Contacts	20
Reach Compliance Code	unknow
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	12.8 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Maximum output current	1.2 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	14 V
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply current (Isup)	10 mA
Maximum supply voltage (Vsup)	16 V
Minimum supply voltage (Vsup)	8 V
Nominal supply voltage (Vsup)	14 V
surface mount	YES
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm
Base Number Matches	1

	KA8328D	KA8328
Description	2 PHASE DRUM MOTOR DRIVER	2 PHASE DRUM MOTOR DRIVER
