Programmable Relay
ZEN V2 Units
CSM_ZEN_DS_E_5_2
Even Broader Applications with Increased
Functionality and Higher Precision
• Increased functionality in a compact body (70 mm wide
×
90 mm
high).
• Easy programming is available using the LCD and operation
buttons. (See note 1.)
• This single Unit easily provides relay, timer, counter, and time
switch functions.
• Expansion is easy with Expansion I/O Units, allowing up to 44
I/O points. (See note 2.)
• Economy-type and Communications-type CPU Units have been
added to series.
• Improved Weekly Timers (See note 1.)
Increased timing accuracy with a monthly deviation of ±15 s
max. Multiple-day operation and pulse output operation have
been added.
• Select from two power supply options:
100 to 240 VAC or 12 to 24 VDC.
Note: 1.
Not supported for ZEN-@C2@@-@-V2 models.
2.
When using CPU Units with 20 I/O points.
Refer to
Safety Precautions
on page 33
The information in this document applies to V2 Units.
Refer to page 28 for details on differences with previous
products.
Features
■

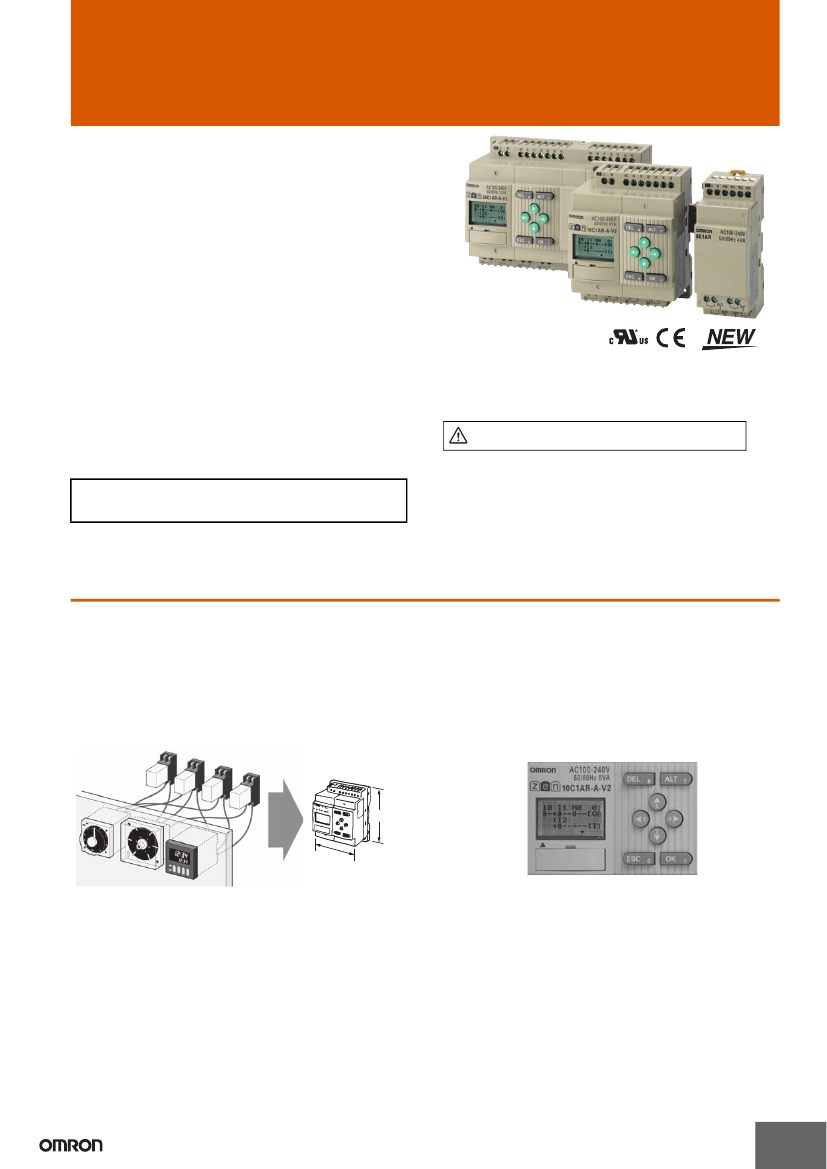

Easy and Simple Programming for Automatic Small-scale Control
Saves Space, Wiring, and Installation Steps
•
Versatile functionality in a compact body (70 mm wide
×
90 mm
high).
•
This single Unit easily provides relay, timer, counter, and time
switch functions. Wiring work is greatly reduced because separate
wiring is not required for devices such as timers and counters.
Easy Programming
The LCD screen comes with 8 operation buttons on the front panel to
enable programming in ladder view format. The LCD screen also has
a backlight, making it easier to see when the ZEN is used in dark
locations.
Note:
Not supported for ZEN-@C2@@-@-V2 models.
90 mm
70 mm
1
ZEN V2 Units

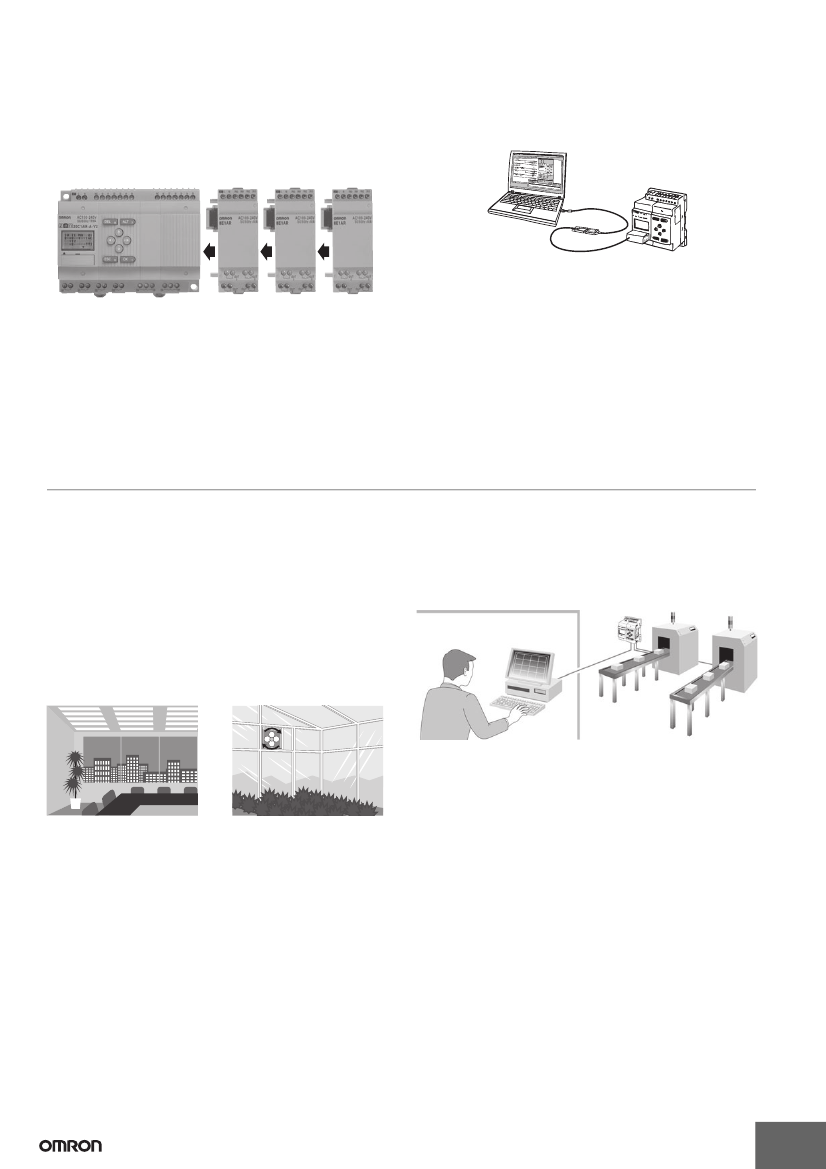

Flexible Expansion Enables Up to 44 I/O
Points
Up to three Expansion I/O Units can be connected if there are not
enough I/O points. Expansion I/O Units are only 35 mm wide.
Note:
CPU Units with 10 I/O points can be expanded to 34 I/O points.
Expansion I/O Units cannot be connected to Economy-type
CPU Units.
Support Software with Simulation Function
•
Programs can be easily written, saved, and monitored by personal
computer.
•
Programs can be simulated on the personal computer without
connecting to the ZEN.
Note:
For notebook computers that do not have an RS-232C serial
port, connect the computer to the ZEN by connecting an
OMRON CS1W-CIF31 USB-Serial Conversion Cable to the
ZEN-CIF01 Connecting Cable.
Other Versatile Functions
•
Use of a Memory Cassette makes it easy to copy and save
programs.
•
Equipped with two analog input channels (CPU Units with DC
power supply only).
•
Password function ensures security. (See note.)
•
Multi-language display in six languages (English, Japanese,
German, French, Spanish, Italian). (See note.)
•
Display user-set messages or analog-converted values. (See note.)
Note:
Not supported for ZEN-@C2@@-@-V2 models.
■
Enhanced Features of V2 CPU Units
Improved Weekly Timer and Calendar Timer
Functions
Note:
Not supported for ZEN-@C2@@-@-V2 models.
•
The time precision has been increased.
Conventional model: 2-min difference/month
↓
-V2 models:
±15-s
difference/month (at 25°C)
•
Multiple-day operation and pulse-output operation are now
possible.
•
These improved functions are convenient for time-controlled
applications such as lighting and air conditioning control.
RS-485 Communications Model Added to
Series
Production line conditions can be remotely monitored by monitoring
the ZEN control status.
Production line
Office
More Precise Analog Input
Conventional model:
±
10% FS
→
-V2 models:
±
1.5% FS
DC power supply models are equipped with two analog inputs (0 to
10 V). There are four analog comparators. The increased precision
makes it even easier to use the Unit in simple control applications
with voltage, current, temperature, and other analog values.
Lighting control
Air conditioning control
Economy-type Added to the Series
•
Economy-type CPU Units with a more affordable price have been
added to the series, although Expansion I/O Units cannot be
added.
8-digit Counter, 150-Hz Counter
•
An 8-digit counter and 8-digit comparator have been added.
•
The maximum count for DC power supply models is 150 Hz.
12 to 24 VDC Line Voltage Operation
Operation is now possible with 12 VDC.
Twin-timer Operation Added
Twin-timer operation allows you to set ON and OFF times separately,
greatly simplifying intermittent operation.
Expansion I/O Units have been reduced to
half-size (35 mm wide).
2
ZEN V2 Units
■

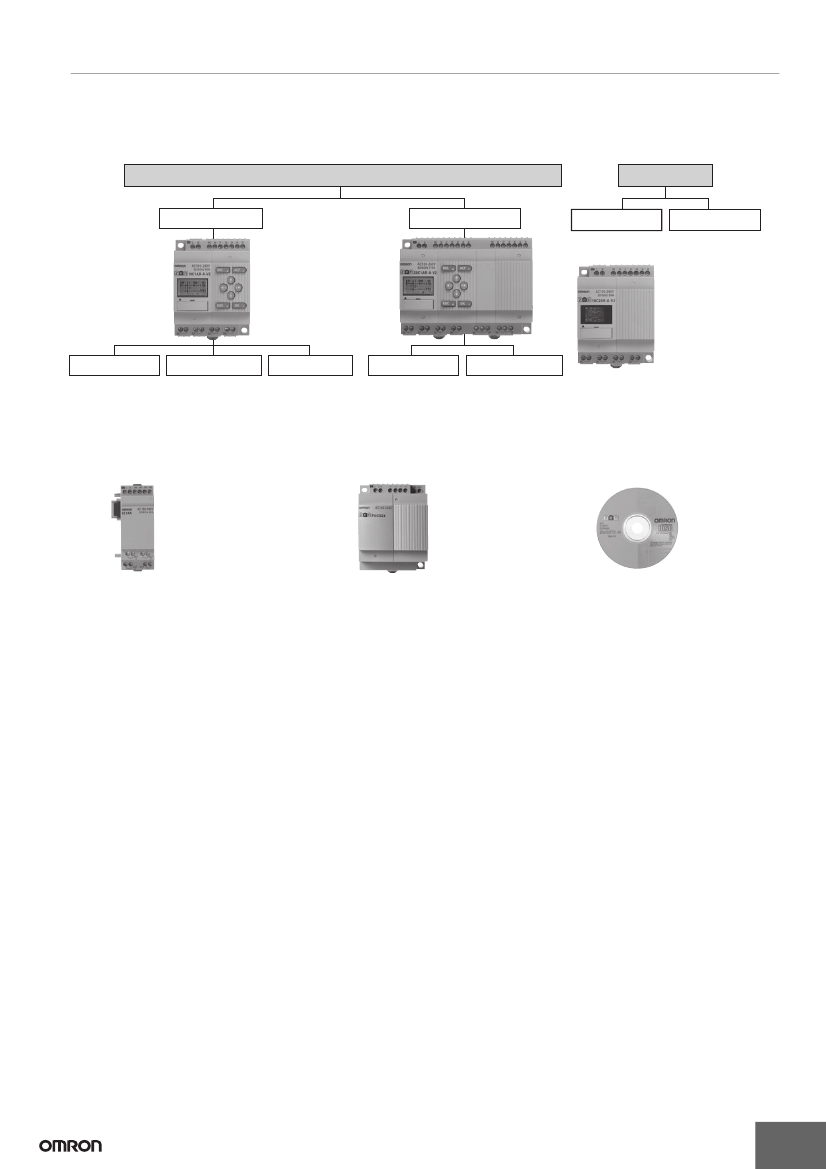

Series Configuration
CPU Units
Power supply voltage: 100 to 240 VAC, 12 to 24 VDC, Output: Relay, transistor output
With LCD display, operation buttons, and calendar/clock function
LED type
10 I/O points
20 I/O points
10 I/O points
20 I/O points
ZEN-10C2@
ZEN-20C2@
This CPU Unit has no LCD,
operation buttons, or
calendar/clock function.
Standard LCD type
Economy type
Communications type
Standard LCD type
Economy type
ZEN-10C1@
ZEN-10C3@
Expansion I/O Units
cannot be connected.
ZEN-10C4@
RS-485 communications
type.
ZEN-20C1@
ZEN-20C3@
Expansion I/O Units
cannot be connected.
(10 I/O points)
Expansion I/O Units
Only 35-mm wide.
4 input, 4 output points
Power Supply Unit
Same shape and design as ZEN.
24 VDC, 30 W
Support Software
Allows easy programming and
operation simulation.
3
ZEN V2 Units
Model Number Structure
■
Model Number Legend
Note:
This model number legend includes combinations that are not available.
Please check
List of Models
on page 5 for availability.
CPU Units
ZEN-@C@@@-@-V2
1
2 3 4 5
3. Input type
A: AC input
D: DC input
4. Output type
R: Relay
T: Transistor
5. Supply voltage
A: AC power supply
D: DC power supply
1. Number of I/O points
10: 6 inputs and 4 outputs (See note.)
20: 12 inputs and 8 outputs
2. Type classifier
1: Standard LCD type with display
2: LED type without display
3: Economy type with display
(Expansion I/O Units cannot be connected.)
4: Communications type with display
Note:
The Communications-type CPU Unit has 6 inputs and 3 outputs.
Expansion I/O Units
ZEN-8E1@@
1 2 3 4
1. Number of I/O points
8: 4 inputs and 4 outputs
2. Unit version classifier
E1: Can connect to V2 CPU Units (See note.)
3. Input type
A: AC input
D: DC input
4. Output type
R: Relay
T: Transistor
Note:
Use a ZEN-8E@@/-4E@ to connect to pre-V1 and V1 CPU Units.
This data sheet is provided as a guideline for selecting products. Be sure to refer to the following user manuals for application precautions
and other information required for operation before attempting to use the product.
ZEN Operation Manual
(Cat. No. Z211)
ZEN Communications Manual
(Cat. No. Z212)
ZEN Support Software Operation Manual
(Cat. No. Z184-E1-03)
The PDF versions of these manuals can be downloaded from the following website.
ZEN Website http://www.fa.omron.co.jp
4
ZEN V2 Units
Ordering Information
■
List of Models
CPU Units and Expansion I/O Units
Unit
Name
No. of
I/O
points
10
LCD
display
Yes
Power supply
voltage
100 to 240 VAC
12 to 24 VDC
20
100 to 240 VAC
12 to 24 VDC
LED type
10
without
display
(See note 1.)
20
No
100 to 240 VAC
12 to 24 VDC
100 to 240 VAC
12 to 24 VDC
Economy
type
(Expansion
I/O Units
cannot be
connected)
10
20
Yes
100 to 240 VAC
12 to 24 VDC
100 to 240 VAC
12 to 24 VDC
100 to 240 VAC
12 to 24 VDC
6
12
6
12
6
12
6
Inputs
Outputs
Buttons,
calendar,
and clock
Yes
Analog
input
No
Yes
Transistors
100 to 240 VAC
12 to 24 VDC
Transistors
100 to 240 VAC
12 to 24 VDC
Transistors
100 to 240V AC
12 to 24 VDC
Transistors
100 to 240 VAC
12 to 24 VDC
100 to 240 VAC
12 to 24 VDC
100 to 240 VAC
12 to 24 VDC
3
Relays
8
Relays
4
Relays
Yes
No
Yes
No
Yes
No
Yes
8
Relays
No
Yes
4
Relays
No
No
Yes
8
Relays
No
Yes
Model
CPU
Units
Standard
LCD type
100 to 240 VAC
12 to 24 VDC
4
Relays
ZEN-10C1AR-A-V2
ZEN-10C1DR-D-V2
ZEN-10C1DT-D-V2
ZEN-20C1AR-A-V2
ZEN-20C1DR-D-V2
ZEN-20C1DT-D-V2
ZEN-10C2AR-A-V2
ZEN-10C2DR-D-V2
ZEN-10C2DT-D-V2
ZEN-20C2AR-A-V2
ZEN-20C2DR-D-V2
ZEN-20C2DT-D-V2
ZEN-10C3AR-A-V2
ZEN-10C3DR-D-V2
ZEN-20C3AR-A-V2
ZEN-20C3DR-D-V2
ZEN-10C4AR-A-V2
ZEN-10C4DR-D-V2
ZEN-KIT01-EV4
ZEN-KIT02-EV4
ZEN-8E1AR
(See notes 2, 3.)
ZEN-8E1DR
(See note 2.)
Communica- 9
tions type
ZEN Kit
Expansion I/O Units
Set containing CPU Unit (ZEN-10C1AR-A-V2), Connecting Cable, ZEN Support Software, and manual.
Set containing CPU Unit (ZEN-10C1DR-D-V2), Connecting Cable, ZEN Support Software, and manual.
8
---
100 to 240 VAC
12 to 24 VDC
4
100 to 240 VAC
12 to 24 VDC
Transistors
4
Relays
---
---
ZEN-8E1DT
(See note 2.)
Note: 1.
Programming is not possible using only the CPU in the LED-type CPU Unit. ZEN Support Software or a Memory Cassette is required.
2.
Cannot be connected to pre-V1 and V1 CPU Units.
3.
The ZEN-8E1AR cannot be connected to a CPU Unit with DC power supply.
Power Supply Unit
Power ratings
30 W
Input voltage
100 to 240 VAC
Output voltage
24 VDC
1.3 A
Output current
Model
ZEN-PA03024
Note:
Refer to the
ZEN-PA03024 Datasheet
(Cat. No. L103) for detailed specifications.
5
