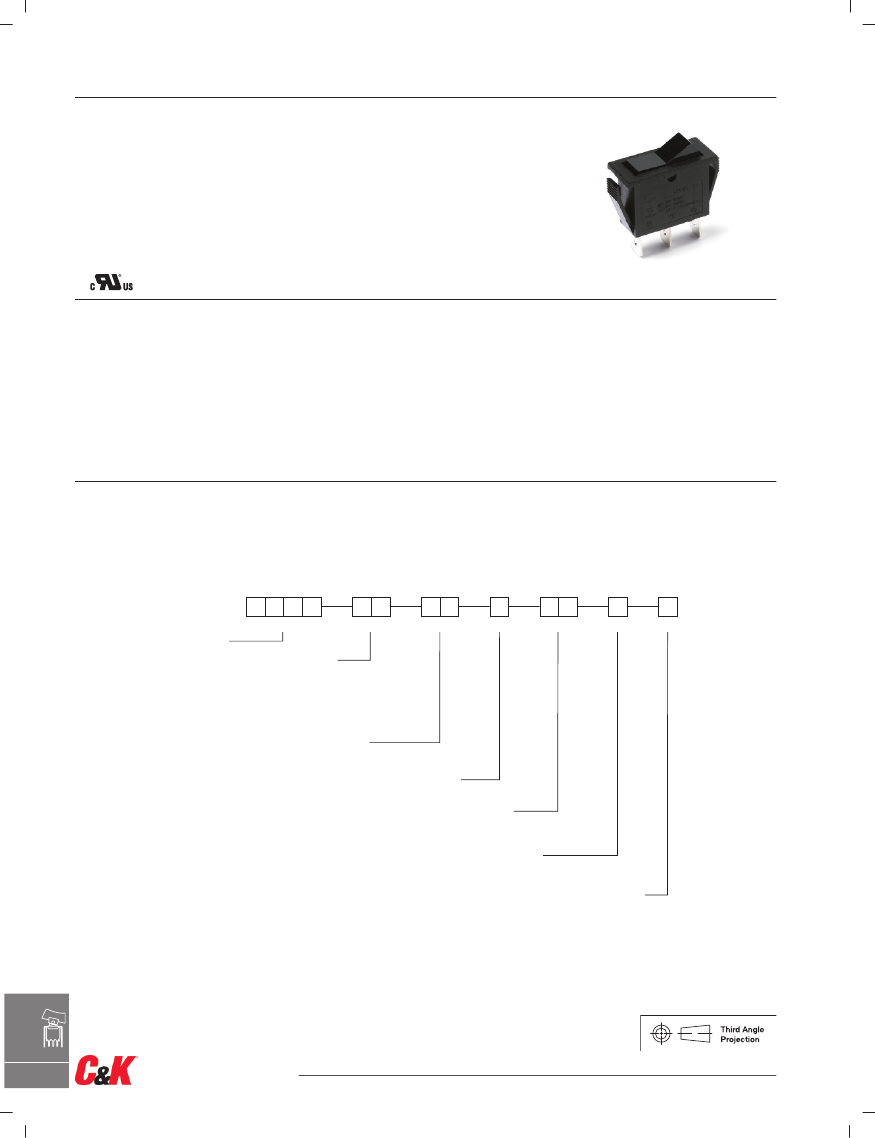

CA Series
Power Rocker Switches
Features/Benefits
•
15 AMPS @ 125 V AC
•
Cosmetic slimline detail
•
Positive detent
Typical Applications
•
Hair dryers and other small appliances
•
HVAC and other large appliances
•
RoHS compliant
Specifications
CONTACT RATING: 15 AMPS @ 125 V AC;
10 AMPS @ 250 V AC;
1/4 HP @ 125 V AC or 250 V AC
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
OPERATING TEMPERATURE: -30ºC to +65ºC
Materials
HOUSING: 6/6 nylon (UL 94V-2), black.
ACTUATOR: Polycarbonate (UL 94V-2), black.
CONTACTS: Coin silver, silver plated.
TERMINALS: Copper, silver plated.
CONTACT SPRING: Music wire.
NOTE:
Specifications and material listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages G–106 through G–108. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
CA01
SPDT, On-On
CA02
SPST, On-Off
CA21
DPDT, On-On
CA22
DPST, On-Off
Actuator
J1
Rocker with gloss finish
J7
Curved rocker with matte finish
Actuator Color
2
Black
1
White
3
Red
6
Green
Housing Color
2
Black
Terminations
07
Quick connect
Actuator Markings
NONE
No marking
D
ON-OFF
H
O|
P
O–
Rocker
Contact Material
Q
Silver
G
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
CA Series
Power Rocker Switches

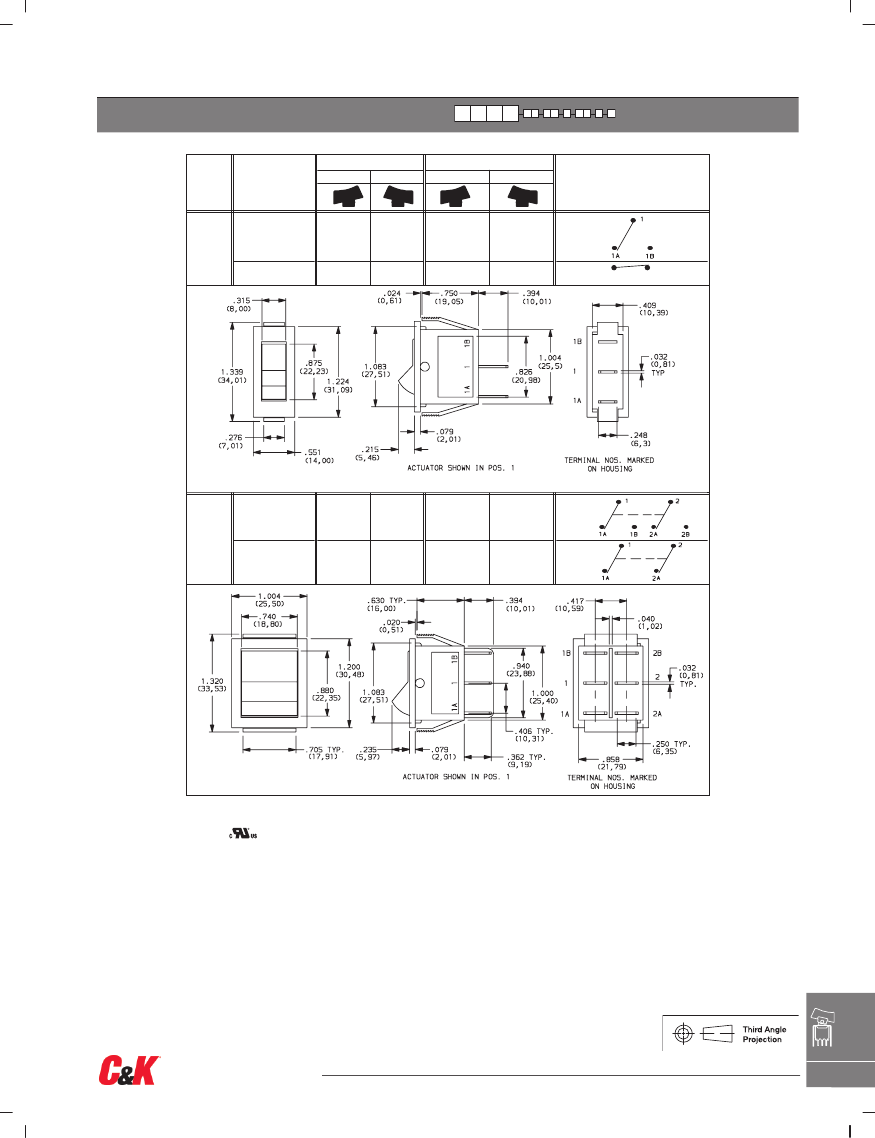

SWITCH FUNCTION
SWITCH FUNCTION
POS. 1
NO.
POLES
MODEL
NO.
POS. 2
CONNECTED TERMINALS
POS. 1
POS. 2
SCHEMATIC
CA01
SP
ON
ON
1-1A
1-1B
SPDT
CA02
SPST
ON
OFF
1-1A
OPEN
SPST
1A
1
Part number shown: CA02J12207Q
CA21
DP
ON
ON
1-1A, 2-2A
1-1B, 2-2B
DPDT
CA22
DPDT
ON
OFF
1-1A, 2-2A
OPEN
DPST
Part number shown: CA21J12207Q
For complete contact ratings and agency approvals, see CONTACT MATERIAL section, page G–108.
Contacts make on side opposite actuator thrown.
All models
with all options.
Rocker
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
G
CA Series
Power Rocker Switches
ACTUATOR
J1
ROCKER WITH GLOSS FINISH
SP
J7
SP
CURVED ROCKER WITH MATTE FINISH
.215
(5,46)
DP
DP
ACTUATOR COLOR
OPTION
CODE
OPAQUE
ACTUATOR COLOR
WHITE
BLACK
RED
GREEN
1
2
3
6
NOTE:
Actuator finish: matte. Special colors
available, consult Customer Service Center.
HOUSING COLOR
OPTION
CODE
HOUSING
COLOR
BLACK
2
NOTE:
Housing frame finish: matte.
Rocker
G
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
CA Series
Power Rocker Switches
TERMINATIONS
07
QUICK CONNECT
SP
.394
(10,0)
PANEL THICKNESS
.059–.078
(1,50) (2,00)
.078–.118
(2,00) (3,00)
.118–.177
(3,00) (4,50)
DIM ‘A’
1.102
(28,00)
1.110
(28,20)
1.126
(28,60)
ACTUATOR MARKINGS
NONE
NO MARKING
D
ON-OFF
H
O|
P
O–
ON
OFF
O
I
O
NOTE:
Orientation of actuator
markings and terminals
Marking color white, standard for all actuator colors except white and yellow. Marking color black, standard for
white and yellow actuators. Consult Customer Service Center for other available markings and colors.
CONTACT MATERIAL
OPTION
CODE
CONTACT AND
TERMINAL MATERIAL
SILVER
1
POWER
RATINGS
10 AMPS @ 250 VAC
Q
I
All models
with all options.
15 AMPS @ 125 VAC
1/4 HP 125/250 VAC
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
1 CONTACTS: Coin silver, silver plated.
TERMINALS: Copper, silver plated.
Rocker
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
G
CA Series

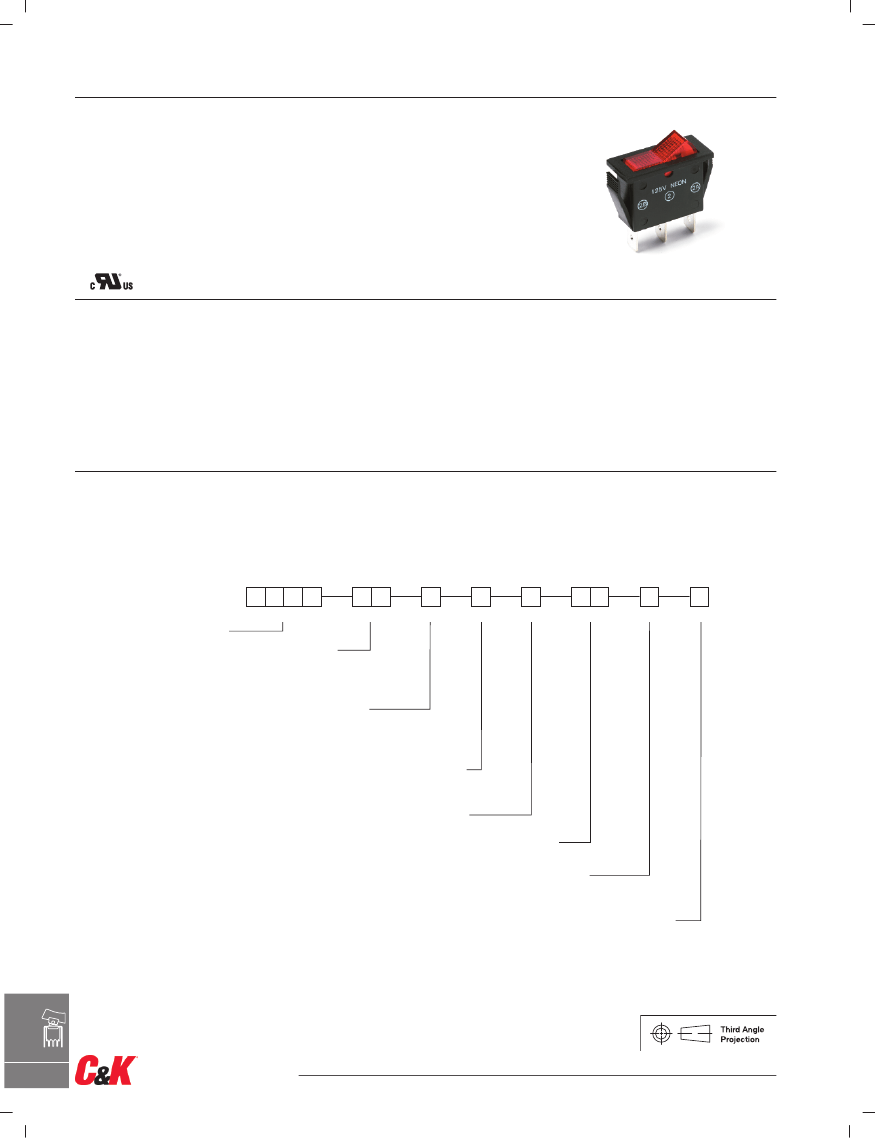

Illuminated Power Rocker Switches
Features/Benefits
•
15 AMPS @ 125 V AC
•
Illuminated actuator
•
Various actuator styles
Typical Applications
•
Power outlet strips
•
Appliances
•
Handling and packaging machines
•
RoHS compliant
Specifications
CONTACT RATING: 15 AMPS @ 125 V AC; 10 AMPS
@ 250 V AC; 1/4 HP @ 125 V AC or 250 V AC.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
LAMP LIFE: 20,000 hours typ.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
Materials
HOUSING: 6/6 nylon (UL 94V-2), black.
ACTUATOR: Polycarbonate (UL 94V-2), red.
CONTACTS: Coin silver, silver plated.
OPERATING TEMPERATURE: -30ºC to +65ºC
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages G–103 through G–105. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
CA04
SPST, On-Off
CA24
DPST, On-Off
Actuator
J1
Rocker
J7
Curved rocker
Actuator Color
3
Red translucent
5
Yellow translucent
6
Green translucent
Lamp Voltage
7
125 V neon
8
250 V neon
Housing Color
2
Black
1
White
Terminations
07
Quick connect
Actuator Markings
NONE
No markings
D
ON-OFF
H
O|
Contact Material
P
O–
Q
Silver
Rocker
G
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
